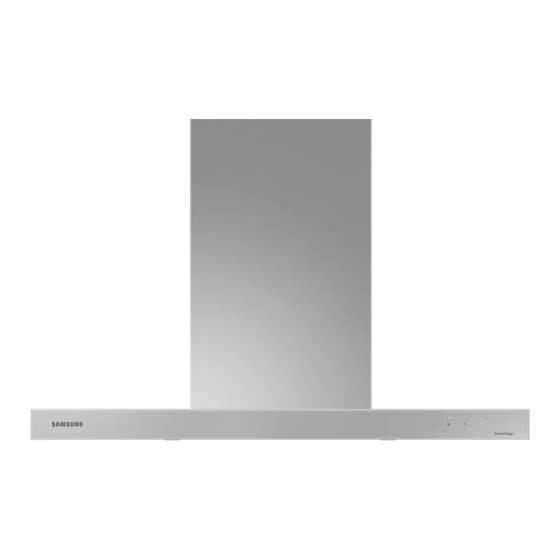

- Page 1 Range Hood Installation & User Manual NK30CB600W**/NK36CB600W**...
-
Page 2: Table Of Contents
Contents Activates/Deactivates Boost mode Important Safety Instructions Makeup Air Using the lighting Installation Requirements Wi-Fi On/Off General Specifications Automatic operation to prevent range hood overheating Mounting Height Entering AP(Access Point) Venting Methods Delay off Parts List Error indication Sub-Parts List Bixby Additional Purchase Accessories Amazon Alexa &... -
Page 3: Important Safety Instructions
Important Safety Instructions 1. FCC Notice APPROVED FOR RESIDENTIAL APPLIANCES FOR RESIDENTIAL USE ONLY READ AND SAVE THESE INSTRUCTIONS CAUTION FCC CAUTION: Any changes or modifications not expressly approved by the PLEASE READ THE ENTIRE INSTALLATION GUIDE BEFORE PROCEEDING. party responsible for compliance could void the user’s authority to operate the INSTALLATION MUST COMPLY WITH ALL LOCAL CODES. - Page 4 Important Safety Instructions FCC RADIATION EXPOSURE STATEMENT: WARNING This equipment complies with FCC radiation exposure limits set forth for an TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body.
- Page 5 WARNING WARNING Do not let children near this appliance. Do not let children play with this appliance. TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. Keep all packaging materials out of children’s reach. Properly dispose the packaging materials after this appliance is unpacked. WARNING Electrical Requirements TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:...
- Page 6 Important Safety Instructions • Follow the electrical connector manufacturer’s recommended procedure. Venting Methods Aluminum/copper connections must conform with local codes and industry To use the hood’s top outlet to vent your hood, a 6” (15.2 cm) round vent system is accepted wiring practices.
-
Page 7: Installation Requirements
Installation Requirements General Specifications Mounting Height CAUTION " (28.5 cm) • Be sure to check the mounting height before installing the product. " (34.8 cm) • The mounting height is measured from the top of the range to the upper cabinets. -
Page 8: Venting Methods
Installation Requirements Venting Methods Parts List Smoke is exhausted to the outside through a special pipe connected to the hood. (Recirculating) Roof Venting Wall Venting Roof Venting Wall Venting (Recirculating) User manual & Template for Hood Mounting Installation manual (2) Installation (1) Bracket (1) Duct Cover Mounting... -
Page 9: Sub-Parts List
Sub-Parts List Needed Parts list (Not Supplied) • Gloves • Safety Glasses • Pencil • Measuring Tape or Ruler • Tape to installation Template • Spirit Level • Phillips Screwdrivers • Electric Drill and 1/4" (0.6 cm) drill bits 6 × 130 mm 6 ×... -
Page 10: Installation Clearances
Installation Requirements Installation Clearances Making a hole in the furniture Duct hole guide_Op.1 Upper furniture Dimension Cabinet floor drilling work: hood exhaust outlet (damper) cutting work Min 11 " 30" (Min 77.0 cm) (29.0 cm) 36" (Max 90.0 cm) Rear (Wall) Furniture's Center Line "... -
Page 11: Installation
Installation Duct hole guide_Op.2 CAUTION Cabinet floor drilling work: hood exhaust outlet (damper) cutting work • This product must be installed by a professional hood installer. • If the product is installed on a tiled wall or on drywall, there is a risk of the hood falling, so be sure to fix the fixing screws to the concrete behind the wall. -
Page 12: Connecting The Vent System
Installation Connecting the Vent System Check the position for fixing the hood mounting bracket. NK3*CB600W** Assemble the damper or the electric damper for preventing backflow by turning it in to the hood exhaust outlet. NOTE • Damper is provided in NK3*CB600W**. •... -
Page 13: Installing The Range Hood
Installing the Range Hood Remove the cover by loosening the screw on the PCB cover. 10. Fix the hood to the hood mounting bracket installed on the wall. Connect the connector of the electric damper wire and the PCB connector. NOTE Insert the wire into the hole at the top left corner. -
Page 14: Electrical Connection
Installation Electrical Connection 12. Fix the Flexible Duct (6" (15.2 cm)) to 6" (15.2 cm) the hood outlet and the vent on the WARNING wall, respectively, with tape. Assembly and electrical connections must be carried out by qualified technician. WARNING WARNING CAUTION •... - Page 15 14-4. Run home power supply wiring 14-1. Disconnect power circuit through strain relief into breaker. terminal box. 14-2. Remove terminal box cover. 14-5. Use UL listed wire nuts and Terminal connect white wires (C) together. box cover 14-6. Use UL listed wire nuts and connect black wires (D) together.
- Page 16 Installation 15. Attach each magnet to the inner 17. Assemble the lower duct cover to surface of the upper duct cover the hood. Magnets on the upper duct overlapping the lower duct cover, and cover hold the lower duct cover in assemble the upper duct cover in a place.
-
Page 17: Connect The Filter Support Cable
Connect the filter support cable 19. When the lower duct cover assembly is complete, reassemble the filter in Remove the filter at the bottom of the reverse order of disassembly. the hood. Pass the filter support NOTE cable through the wire loop attached on the top of the filter. -
Page 18: Electrical Connection
Installation Installing the Recirculation Kit Electrical Connection WARNING NOTE Assembly and electrical connections must be carried out by qualified technician. Same process until No. 14 Assemble the air deflector with the WARNING Duct Cover Mounting Bracket WARNING duct cover mounting bracket with the four assembly screws provided with the Recirculation Kit. - Page 19 9-4. Run home power supply wiring 9-1. Disconnect power circuit through strain relief into breaker. terminal box. 9-2. Remove terminal box cover. 9-5. Use UL listed wire nuts and connect white wires (C) together. Terminal box cover 9-6. Use UL listed wire nuts and connect black wires (D) together.
- Page 20 Installation 11. Attach each magnet to the inner 10. Rotate the upper duct as in the surface of the upper duct cover picture. overlapping with the lower duct cover, and assemble the upper duct cover in a way that it fits the mounting bracket.
- Page 21 13. Assemble the lower duct cover to 15. Remove the 2 screws from the range the hood. Magnets on the upper duct hood. cover hold the lower duct cover in place. NOTE The Magnet must be attached to the upper line of the Lower Duct. Upper Duct 16.
- Page 22 Installation 18. Remove the guard by pushing the 20. Assemble the charcoal filter with the hook of the guard in the direction of assembly screw provided with the the arrow. Recirculation Kit. Reassemble the frame middle and filter in the reverse order of disassembly.
-
Page 23: Range Hood Description
– Delay off mode can be activated on the SmartThings app. – Filter usage time can be checked on the SmartThings app. – The range hood can be operated through automations with registered Samsung products on the SmartThings app. • 10 second press: Activates/deactivates the Boost mode. -
Page 24: Using The Range Hood
Using the Range Hood Using the Range Hood Turning the Range Hood On or Off Activates/Deactivates Boost mode The device turns on with a chime sound, Boost mode is a function that allows and starts operation in Low mode. powerful exhaust for a short time. 1. -
Page 25: Makeup Air
Makeup Air Automatic operation to prevent range hood overheating • When using ventilation systems with greater than the specified CFM of air This feature prevents overheating when movement, review local building codes as they may require makeup air systems. the hood is turned off. Consult an HVAC professional for the specific requirements for your area as the •... -
Page 26: Entering Ap(Access Point)
Using the Range Hood Entering AP(Access Point) Delay off Press the button for 5 seconds as Delay off is a function that vents the instructed in the app. remaining pollutants in the kitchen after cooking and operates after the hood is turned off. -
Page 27: Error Indication
Error indication Bixby • Bixby is the name of Samsung's artificial intelligence solution and it makes it • When a product error occurs, all LEDs on possible to control the product by voice. button blink. • To use the voice recognition function, you need to connect the SmartThings app •... -
Page 28: Cleaning And Maintenance
Cleaning and Maintenance Cleaning and Maintenance Cleaning the range hood Cleaning the Filters 1. Please remove the filter at the bottom Wipe the front of the product with a soft of the hood. cloth soaked in neutral liquid detergent. CAUTION When separating the filter, use both hands to separate it carefully so that it does not drop. -
Page 29: Smartthings App
Samsung SmartThings app via your mobile device or tablet. You can the instructions displayed on the easily install the SmartThings app or use the product with your smartphone by scanning 1. -
Page 30: Open Source Announcement
MAC address (a unique of your current Samsung account, by selecting "Scan." identification number) of your PC log in to your previous Samsung • Select manually: Range Hood > or modem, you may not be able account, and then delete all... -
Page 31: Troubleshooting
Allow the product to cool and restart it. If it is not resolved, please contact a If you need to check Problem Cause Action Samsung Electronics Service Center. C163 the option code Please check if there is a power outage. Is the power being... -
Page 32: Warranty (Usa)
If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service. - Page 33 During the applicable warranty period, the product will be repaired, replaced, or EXCLUSION OF IMPLIED WARRANTIES the purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use new or reconditioned parts in repairing a product, or replace the product with IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF a new or reconditioned product.
-
Page 34: Warranty (Canada)
DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANT- SAMSUNG will repair or replace this product, at our option and at no charge as ABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE... - Page 35 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To obtain warranty service, please contact SAMSUNG at: 1-800-SAMSUNG (726-7864) or www.samsung.com/ca/support (English), www.samsung.com/ca_fr/support (French)
- Page 36 QUESTIONS OR COMMENTS? COUNTRY CALL OR VISIT US ONLINE AT U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com/us/support - Consumer Electronics www.samsung.com/ca/support (English) CANADA 1-800-SAMSUNG (726-7864) www.samsung.com/ca_fr/support (French) DG68-01416C-03...
