| TA-AX401
SECTION 1
GENERAL

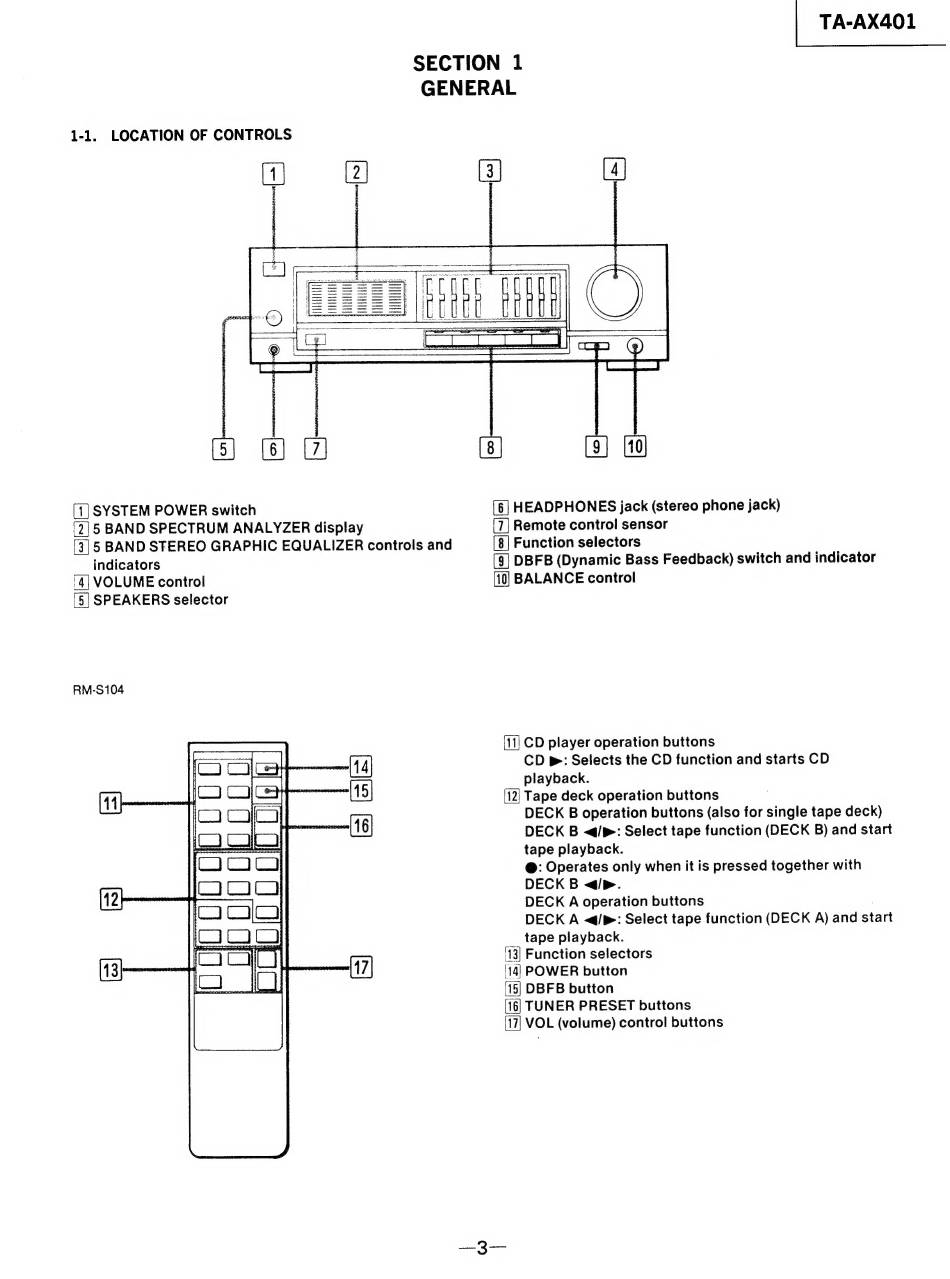

1-1. LOCATION OF CONTROLS
11] CD player operation buttons
CD m: Selects the CD function and starts CD
playback.
12} Tape deck operation buttons
DECK B operation buttons (also for single tape deck)
DECK B <@/p: Select tape function (DECK B) and start
tape playback.
@: Operates only when it is pressed together with
DECK B </p>.
DECK A operation buttons
DECK A <@/p: Select tape function (DECK A) and start
tape playback.
13] Function selectors
14] POWER button
(15] DBFB button
TUNER PRESET buttons
VOL (volume) control buttons
—|f—
t=2)
