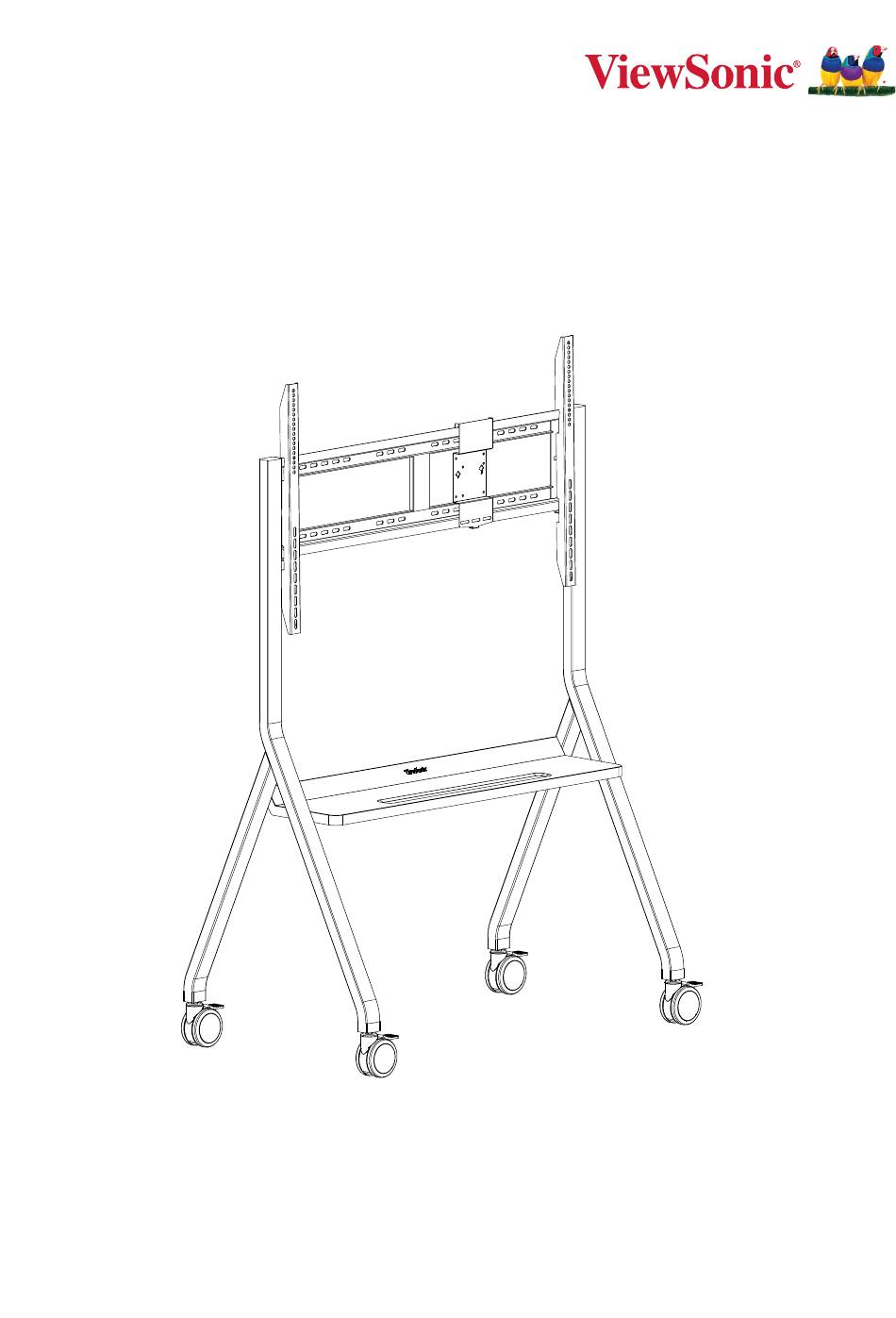

VB-STND-009
VB-STND-009-1B
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
Model No. VS19726
P/N: VB-STND-009 | VG-STND-009-1B
Advertisement
Table of Contents
Related Manuals for ViewSonic VB-STND-009-1B
Summary of Contents for ViewSonic VB-STND-009-1B
- Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
- Page 2 As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.
-
Page 3: Safety Precautions
• This product has no parts which can be repaired by the user. Any damage caused by the user's own disassembly is not covered by warranty. • This product is specially designed for use with ViewSonic® displays. Use with other models or manufacturers may result in stand instability possibly causing injury. -
Page 4: Table Of Contents
Contents Safety Precautions ............3 Introduction ..............5 Package Contents ....................5 Product Overview ....................7 Initial Setup ..............8 Assembling the Product ..................8 Appendix ..............12 Specifications ......................12 Product Dimensions .....................13 Regulatory and Service Information ......14 Compliance Information ..................14 FCC Compliance Statement ................... 14 Industry Canada Statement ................... -
Page 5: Introduction
Introduction Package Contents Letter Item Description Quantity Left Trestle Right Trestle Plate Wall Plate Wall Bracket 4 inch Caster M8x16 mm Screw M6x12 mm Screw 24x12.5x1.5 mm Washer... - Page 6 Letter Item Description Quantity 20xØ12.5x3.1 mm Spring Washer 4 mm Inner Hex Wrench 5 mm Inner Hex Wrench Display Assembly Parts M4x12 mm Screw M6x25 mm Screw M8x35 mm Screw Ø18x8.5x10 mm Spacer Ø18x9x2.5 mm Spacer M5 Washer M6 Washer...
-
Page 7: Product Overview
Product Overview... -
Page 8: Initial Setup
Initial Setup Assembling the Product 1. Engage the break on the wheels of the four Casters (F). 2. Screw the four Casters (F) into the Left (A) and Right Columns (B) using the 20xØ12.5x3.1 mm Spring Washer (J) and 24x12.5x1.5 mm Washer (I). 3. - Page 9 4. After choosing the appropriate combination, screw one M8x16 mm Screw (G) halfway into the middle mounting hole of the chosen combination into each Column (A & B). NOTE: Ensure at least 8 mm of the M8x16 mm Screw (G) is sticking out. Reserve 8 mm Reserve 8 mm Reserve 8 mm...
- Page 10 7. Screw one M6x12 mm Screw (H) halfway into each Column (A & B) as shown below. NOTE: Ensure at least 8 mm of the M6x12 mm Screw (H) is sticking out. Reserve 8 mm 8. Place the Plate (C) onto the two exposed M6x12 mm Screws (H). Fully tighten the two M6x12 mm Screws (H).
- Page 11 9. Secure the two Wall Brackets (E) onto the display as shown below. a/b/c 10. Secure the Mini PC bracket onto the stand as shown below. 11. With two or more people, carefully hang the display, with the Wall Brackets (E) installed, onto the Wall Plate (D).
-
Page 12: Appendix
Appendix Specifications Item Specifications Swivel 360° 1317/1437 mm Height Adjustment Range (51.85”/56.57”) Wall Mount Bracket up to 1000 x 600 mm (max. 105” display) Caster 4” 120 kg max Wall Mount Loading (265 lbs) 15 kg max Plate Loading (33.1 lbs) Dimensions 1155 x 1570~1762 x 704 mm (45.5”... -
Page 13: Product Dimensions
Product Dimensions 1155mm 359mm MIN: 200mm MIN: 200mm 1440mm 664mm... -
Page 14: Regulatory And Service Information
Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit. FCC Compliance Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 15: Declaration Of Rohs2 Compliance
The following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law. -
Page 16: Indian Restriction Of Hazardous Substances
Schedule 2 of the Rule. Product Disposal at End of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic®... -
Page 17: Copyright Information
Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries. ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation. VESA is a registered trademark of the Video Electronics Standards Association. -
Page 18: Customer Service
For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product’s serial number. Country/ Region Website Country/ Region Website Asia Pacific & Africa Australia www.viewsonic.com/au/ Bangladesh www.viewsonic.com/bd/ www.viewsonic.com.cn www.viewsonic.com/hk/ 中国 (China) 香港 (繁體中文) Hong Kong (English) www.viewsonic.com/hk-en/ India www.viewsonic.com/in/...
