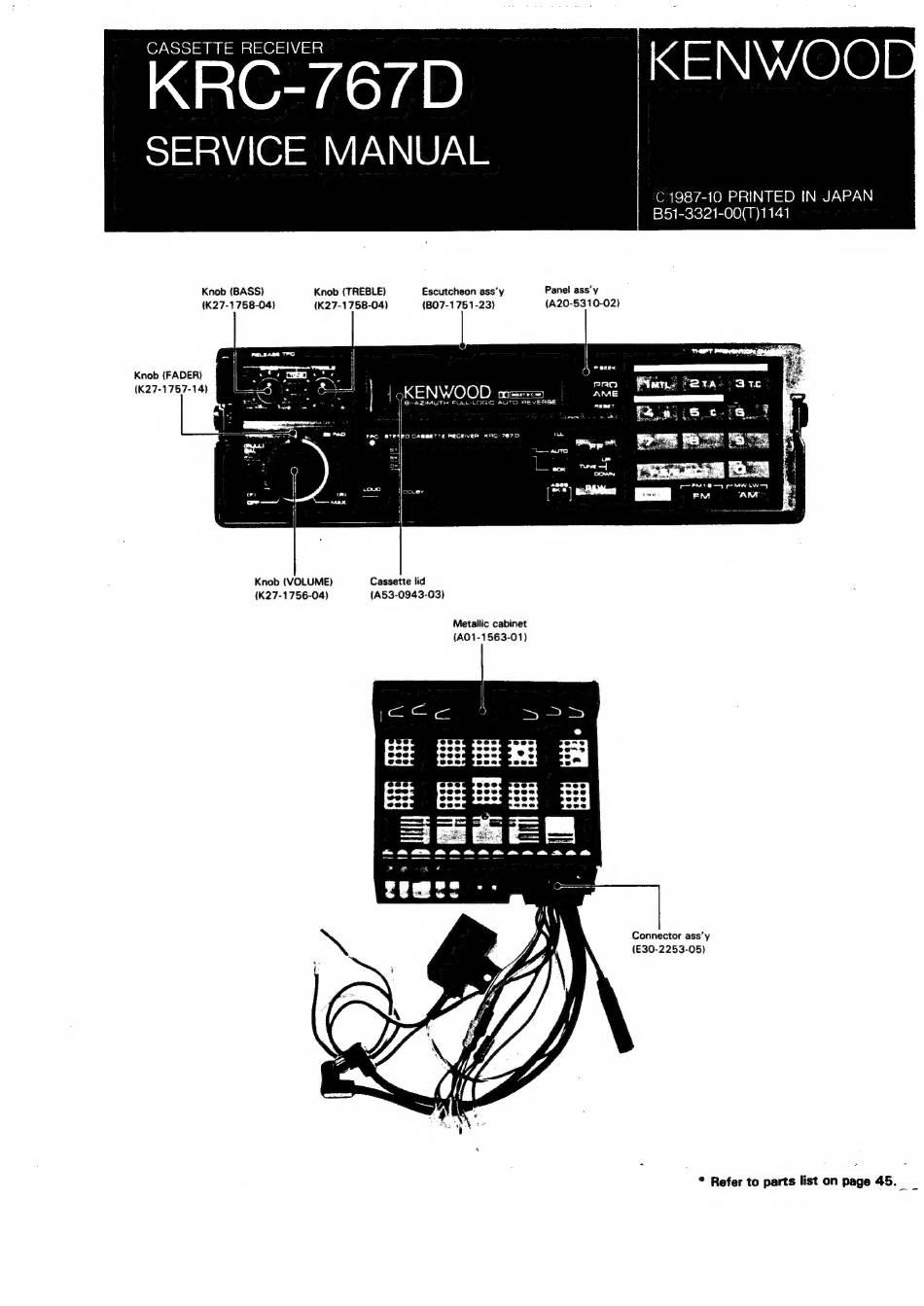

Kenwood KRC-767D Service Manual

SERVICE MANUAL
'C1987-10 PRINTED IN JAPAN
B51-3321-00(T)1141
Knob (BASS) Knob (TREBLE) Escutcheon ass'y Panel ass'y
(K27-1758-04) (K27-1758-04) (BO7-1751-23) (A20-5310-02}
Knob (FADER)
V f @i-aZiMuUTH FULL-LO
TS | 1 CASSETTE RECEIVER KAC-787D
e
Knob (VOLUME) Cassette lid
(K27-1756-04) {A53-0943-03)
Metallic cabinet
(A01-1563-01)
Connector ass'y
(E30-2253-05)
