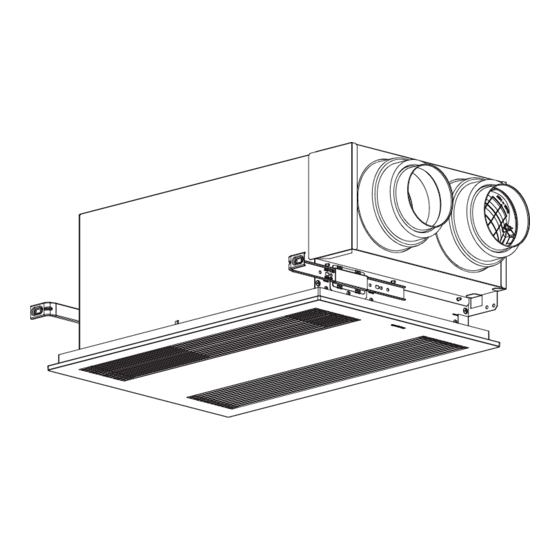

Panasonic WhisperComfort 60 Service Manual
Panasonic WhisperComfort 60 Service Manual

Panasonic WhisperComfort 60 Service Manual

Energy recovery ventilator
Hide thumbs Also See for WhisperComfort 60:

Advertisement

Quick Links

Service Manual
This service information is designed for experienced repair technicians only and is not designed for use by
the general public. It does not contain warnings or cautions to advise non-technical individual of potential
dangers in attempting to service a product. Products powered by electricity should be serviced o repaired
only by experienced professional technicians. Any attempt to service or repair the product or products
dealt with in this service information by anyone else could result in serious injury or death.
There are special components used in this equipment which are important for safety. These parts are
marked by
in the Schematic Diagrams, Exploded Views and Replacement Part List. It is essential
that these critical parts are replaced with manufacturer´s specified parts to prevent shock, fire
or other hazards. Do not modify the original design without permission the manufacturer.
We suggest to handles such parts after the static electricity prevention.
It is forbidden to touch the PCB parts by bare hands during the repairing process.
CONTENTS
1.Specifications
2.Parts Identification
3.Wiring Diagram
4.Parts List
Energy Recovery Ventilator
PESMX23110006CE
Version:2301
FV-06VE1
PAGE
1
2~6
7
8~10

Advertisement

loading

Summary of Contents for Panasonic WhisperComfort 60

  • Page 1 PESMX23110006CE Version:2301 Service Manual Energy Recovery Ventilator FV-06VE1 This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individual of potential dangers in attempting to service a product.
  • Page 2 1. Specifications...
  • Page 3 2. Parts Identification FV-06VE1 Main Body (2pcs) Switch PCB Assy (7pcs) (2pcs) (6pcs) (2pcs) Fan Assy (2pcs) Main PCB Assy Frame Assy...
  • Page 4 2. Parts Identification FV-06VE1 Switch PCB Assy (2pcs) (2pcs) (2pcs) Fan Assy. (5pcs) (3pcs)
  • Page 5 2. Parts Identification FV-06VE1 Main PCB Assy (2pcs) Frame Cover Assy (3pcs) (5pcs)
  • Page 6 2. Parts Identification FV-06VE1 MAIN LABEL...
  • Page 7 2. Parts Identification FV-06VE1 Packing Case...
  • Page 8 3. Wiring diagram FV-06VE1...
  • Page 9 4. Parts List FV-06VE1 Main Body Part No. Part Name Q´ty Remark 1 FFV06VE1081 Louver Assy 2 FFV06VEM13 OA Filter 3 FFV06VE1053 Switch PCB Assy 4 FFV06VE1081 RA Filter 5 FFV06VE1095 Element Case 6 FFV06VE1092 Element Holder 7 FFV06VE1001 Fan Assy 8 FFV35ZM1C99 Element Block 9 FFV06VE1070...
  • Page 10 4. Parts List FV-06VE1 Main PCB Assy Part No. Part Name Q´ty Remark 22 FFV06VE1991 PCB Box 23 FFV06VE1520 Main PCB Assy 24 FFV06VE1313 SA Motor Lead Wire 25 FFV06VE1316 Thermistor Lead Wire 26 FFV06VE1315 SP Motor Lead Wire 27 FFV06VE1317 SW PCB Lead Wire 28 FFV06VE1314 EA Motor Lead Wire...
  • Page 11 4. Parts List FV-06VE1 Main Labels Part No. Part Name Q´ty Remark 41 FFV06VE1073 Wiring Label 42 FFV06VE1083 Control Label 43 FFV06VE1081 Arrow Label 44 FFV06VE1079 Scale Label 45 FFV3402226M EA OA Adapter Label 46 FFV06VE1070 Caution Label 47 FFV06VE1074 Junction Label 48 FFV06VE1084 Start UP Label...
