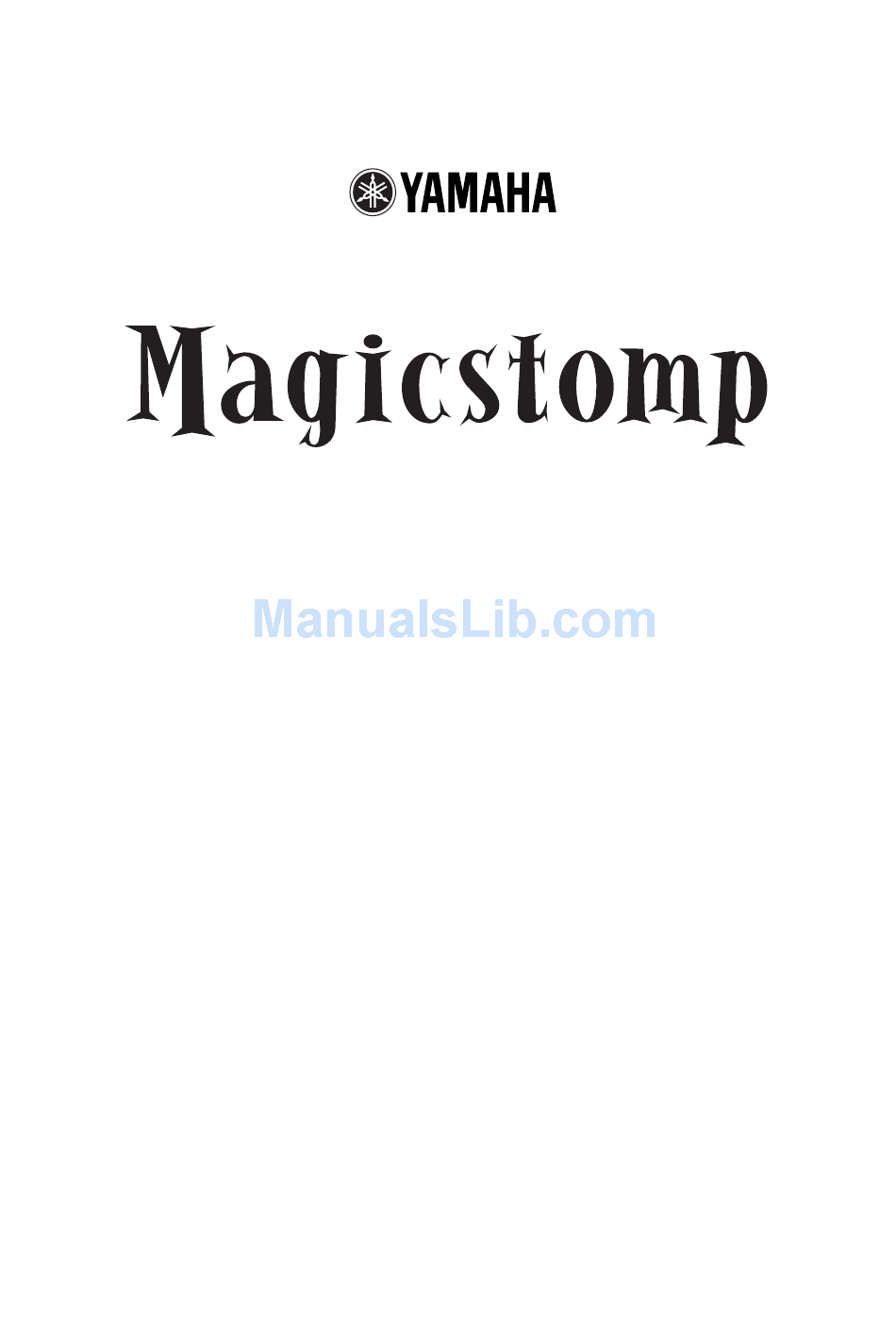

  • Page 1 EFFECT LIST...
  • Page 2 Effect Type List EFFECT TYPE Distortion Distortion DigiDistortion Digital Distortion AmpSimulator Amp Simulator Chorus Chorus Symphonic Symphonic Flange Flange Vintage Flange VintageFlanger Phaser Phaser MonoVntagPhaser Mono Vintage Phaser Stereo Vintage Phaser StreoVintPhaser Tremolo Tremolo Auto Pan Auto Pan Rotary Rotary RingMod.
  • Page 3 Multi effect consisting of Comp + Distortion + Tremolo + Delay + Reverb. Mainly used for direct connection to guitar amp’s front input. Multi effect consisting of Comp + Distortion + Phaser + Delay + Reverb. Mainly used for direct connection to guitar amp’s front input. Multi effect for electric-acoustic guitar.

  • Page 4: Effect Parameters

    Effect Parameters Distortion Advanced distortion. Mainly used for direct connection to guitar amp’s front input. Parameter Display Lead1, Lead2, Drive1, Drive2, Crunch1, Crunch2, Fuzz1, Type TYPE Fuzz2, Distortion1, Distortion2, Overdrive1, Overdrive2, Tube, Solidstate Gain GAIN 0.0 to 10.0 Master MSTR 0.0 to 10.0 Tone TONE...
  • Page 5 Bass BASS 0.0 to 10.0 Presence 0.0 to 10.0 Off, American 412, British 412, Modern 412, YAMAHA 412, Hybrid 412, American 212, British 212, Speaker Modern 212, YAMAHA 212, Hybrid Simulator 212, American 112, Modern 112, YAMAHA 112, Hybrid 112, 410, N.

  • Page 6: Table Of Contents

    Flange Flange effect. Parameter Display Wave WAVE Sine, Triangle Freq. FREQ 0.05 to 40.00 Hz Depth 0 to 100% FB. Gain –99 to +99% Mod. Delay 0.0 to 500.0 ms LSH Freq. LSHF 21.2 Hz to 8.00 kHz LSH Gain LSHG –12.0 to +12.0 dB EQ Freq.

  • Page 7: Eq Gain Eq.g -12.0 To +12.0 Db

    Stereo Vintage Phaser Stereo phaser produced by utilizing VCM (Virtual Circuitry Modeling) technology. Parameter Display Stage STAG 4, 6, 8, 10 Mode MODE 1, 2 Speed 0.0 to 10.0 Depth DPTH 0.0 to 10.0 Manual MANU 0.0 to 10.0 Feedback 0.0 to 10.0 Color CLOR...
  • Page 8 Ring Mod. Ring modulator. Parameter Display Source OSC, SELF OSC Freq. 0.0 to 5000.0 Hz FM Freq. FM.F 0.05 to 40.00 Hz FM Depth FM.D 0 to 100% 0 to 100% Mod. Filter Modulation filter. Parameter Display Low Pass Filter, High Pass Filter, Type TYPE Band Pass Filter...

  • Page 9: Eq Qeq.q 10.0 To

    M.Band Dyna. 3-band dynamics processor, with individual solo and gain reduction metering for each band. Parameter Display Slope SLOP –6, –12 dB Low Gain LO.G –96.0 to +12.0 dB Mid Gain MI.G –96.0 to +12.0 dB High Gain HI.G –96.0 to +12.0 dB Lookup LKUP 0.0 to 100.0 ms...

  • Page 10: Feedback

    Dyna. Phaser Phaser effect. The effect changes according to input level. Parameter Display Decay 6 to 46000 ms FB. Gain –99 to +99% Direction Up, Down Sense SENS 0 to 100 Offset OFST 0 to 100 Stage STAG 2, 4, 6, 8, 10, 12, 14, 16 LSH Freq.

  • Page 11: Parameter Display Range

    Mod. Delay Basic repeat delay with modulation. Parameter Display Wave WAVE Sine, Triangle Delay TIME 0.0 to 2725.0 ms FB. Gain –99 to +99% Freq. FREQ 0.05 to 40.00 Hz High Pass Filter Thru, 21.2 Hz to 8.00 kHz Low Pass Filter 50.0 Hz to 16.0 kHz, Thru High Ratio HRAT...
  • Page 12 8 Band Parallel Delay 8-band modulation delay connected in parallel. Parameter Display Wave Form W.F. Triangle, Saw Up, Saw Down Effect Level ELVL 0.0 to 10.0 Direct Level DLVL 0.0 to 10.0 Direct Pan DPAN L10.0 to R10.0 * Edit window page no. corresponds to delay band no. Time 0.1 to 696.0 ms Low Cut Filter...
  • Page 13 4 Band 2 Tap Mod. Delay 4-band delay connected in parallel w/2 multi-tap modulation delays. Parameter Display Wave Form W.F. Triangle, Saw Up, Saw Down Effect Level ELVL 0.0 to 10.0 Direct Level DLVL 0.0 to 10.0 Direct Pan DPAN L10.0 to R10.0 * Edit window no.
  • Page 14 8 Multi Tap Mod. Delay 8 Multi tap modulation delay. Parameter Display Wave Form W.F. Triangle, Saw Up, Saw Down Effect Level ELVL 0.0 to 10.0 Direct Level DLVL 0.0 to 10.0 Direct Pan DPAN L10.0 to R10.0 * Edit window page no. corresponds to tap no. Page1:Tap1, Page2:Tap2, Page3:Tap3, Page4:Tap4, Page5:Tap5, Page6:Tap6, Page7:Tap7, Page8:Tap8 Time 0.5 to 5890.0 ms...
  • Page 15 Short + Medium + Long Mod. Delay 3 band multi tap delay w/3 delay times. Parameter Display Wave Form W.F. Triangle, Saw Up, Saw Down Effect Level ELVL 0.0 to 10.0 Direct Level DLVL 0.0 to 10.0 Direct Pan DPAN L10.0 to R10.0 * Edit window no.
  • Page 16 Early Ref. Early reflections. Parameter Display Small Hall, Large Hall, Random, Type TYPE Reverse, Plate, Spring Initial Delay IDLY 0.0 to 500.0 ms FB. Gain –99 to +99% Room Size SIZE 0.1 to 20.0 Liveness LIVE 0 to 10 Diffusion DIFF 0 to 10 Density...

  • Page 17: Mode Mode

    Spring Reverb Spring reverb simulation. Parameter Display Reverb 0.0 to 10.0 HQ. Pitch High-quality pitch shifter. Parameter Display Mode MODE 1 to 10 Delay 0.0 to 1000.0 ms FB. Gain –99 to +99% Pitch –12 to +12 semitones Fine FINE –50 to +50 cents 0 to 100% Dual Pitch...
  • Page 18 Multi Filter 3-band multi-filter (24 dB/octave). Parameter Display Low Pass Filter, High Pass Filter, Type 1 TYP1 Band Pass Filter Freq. 1 FRQ1 28.0 Hz to 16.0 kHz Level 1 LVL1 0 to 100 Resonance 1 RES1 0 to 20 0 to 100% Low Pass Filter, High Pass Filter, Type 2...

  • Page 19: Modulation Waveform

    Reverb+Flange Reverb and flanger effects in parallel. Parameter Display Wave WAVE Sine, Triangle Initial Delay IDLY 0.0 to 500.0 ms Freq. FREQ 0.05 to 40.00 Hz Mod. Delay 0.0 to 500.0 ms FB. Gain –99 to +99% Reverb Time 0.3 to 99.0 s High Ratio HRAT 0.1 to 1.0...
  • Page 20 Reverb->Symphonic Reverb and symphonic effects in series. Parameter Display Wave WAVE Sine, Triangle Initial Delay IDLY 0.0 to 500.0 ms Freq. FREQ 0.05 to 40.00 Hz Mod. Delay 0.0 to 500.0 ms Reverb Time 0.3 to 99.0 s High Ratio HRAT 0.1 to 1.0 Diffusion...
  • Page 21 Delay->Early Ref. Delay and early reflections effects in series. Parameter Display Delay L DT.L 0.0 to 1000.0 ms Delay R DT.R 0.0 to 1000.0 ms FB. Delay DTFB 0.0 to 1000.0 ms FB. Gain –99 to +99% High Ratio HRAT 0.1 to 1.0 High Pass Filter Thru, 21.2 Hz to 8.00 kHz...
  • Page 22 Distortion->Delay Distortion and delay effects in series. Mainly used for direct connection to guitar amp’s front input. Parameter Display Distortion1, Distortion2, Type TYPE Overdrive1, Overdrive2, Crunch Delay 0.0 to 2725.0 ms FB. Gain –99 to +99% Freq. FREQ 0.05 to 40.00 Hz Drive 0 to 100 Master...
  • Page 23 Bass BASS 0.0 to 10.0 Presence 0.0 to 10.0 Off, American 412, British 412, Modern 412, YAMAHA 412, Hybrid 412, American 212, British 212, Speaker Modern 212, YAMAHA 212, Hybrid Simulator 212, American 112, Modern 112, YAMAHA 112, Hybrid 112, 410, N.

  • Page 24: Modulation Speed Modulation Depth

    Bass BASS 0.0 to 10.0 Presence 0.0 to 10.0 Off, American 412, British 412, Modern 412, YAMAHA 412, Hybrid 412, American 212, British 212, Speaker Modern 212, YAMAHA 212, Hybrid Simulator 212, American 112, Modern 112, YAMAHA 112, Hybrid 112, 410, N.
  • Page 25 Bass BASS 0.0 to 10.0 Presence 0.0 to 10.0 Off, American 412, British 412, Modern 412, YAMAHA 412, Hybrid 412, American 212, British 212, Speaker Modern 212, YAMAHA 212, Hybrid Simulator 212, American 112, Modern 112, YAMAHA 112, Hybrid 112, 410, N.

  • Page 26: Modulation Speed

    Bass BASS 0.0 to 10.0 Presence 0.0 to 10.0 Off, American 412, British 412, Modern 412, YAMAHA 412, Hybrid 412, American 212, British 212, Speaker Modern 212, YAMAHA 212, Hybrid Simulator 212, American 112, Modern 112, YAMAHA 112, Hybrid 112, 410, N.
  • Page 27 Distortion Multi (Chorus) Multi effect consisting of Comp + Distortion + Chorus + Delay + Reverb. Mainly used for direct connection to guitar amp’s front input. Parameter Display Lead1, Lead2, Drive1, Drive2, Crunch1, Crunch2, Fuzz1, Type TYPE Fuzz2, Distortion1, Distortion2, Overdrive1, Overdrive2, Tube, Solidstate, Bypass Gain...
  • Page 28 Distortion Multi (Flange) Multi effect consisting of Comp + Distortion + Flange+ Delay + Reverb. Mainly used for direct connection to guitar amp’s front input. Parameter Display Lead1, Lead2, Drive1, Drive2, Crunch1, Crunch2, Fuzz1, Type TYPE Fuzz2, Distortion1, Distortion2, Overdrive1, Overdrive2, Tube, Solidstate, Bypass Gain GAIN...
  • Page 29 Distortion Multi (Tremolo) Multi effect consisting of Comp + Distortion + Tremolo + Delay + Reverb. Mainly used for direct connection to guitar amp’s front input. Parameter Display Lead1, Lead2, Drive1, Drive2, Crunch1, Crunch2, Fuzz1, Type TYPE Fuzz2, Distortion1, Distortion2, Overdrive1, Overdrive2, Tube, Solidstate, Bypass Gain...
  • Page 30 Distortion Multi (Phaser) Multi effect consisting of Comp + Distortion + Phaser + Delay + Reverb. Mainly used for direct connection to guitar amp’s front input. Parameter Display Lead1, Lead2, Drive1, Drive2, Crunch1, Crunch2, Fuzz1, Type TYPE Fuzz2, Distortion1, Distortion2, Overdrive1, Overdrive2, Tube, Solidstate, Bypass Gain...
  • Page 31 Acoustic Multi Multi effect for electric-acoustic guitar. Parameter Display Condenser1, Condenser2, Dynamic1, Dynamic2, Tube1, Mic Type TYPE Tube2, Nylon String1, Nylon String2 Blend BLND 0.0 to 10.0 Bass BASS -12.0 to 12.0 dB Middle -12.0 to 12.0 dB Treble -12.0 to 12.0 dB Presence -12.0 to 12.0 dB...
  • Page 32 WD92180 Printed in China...
