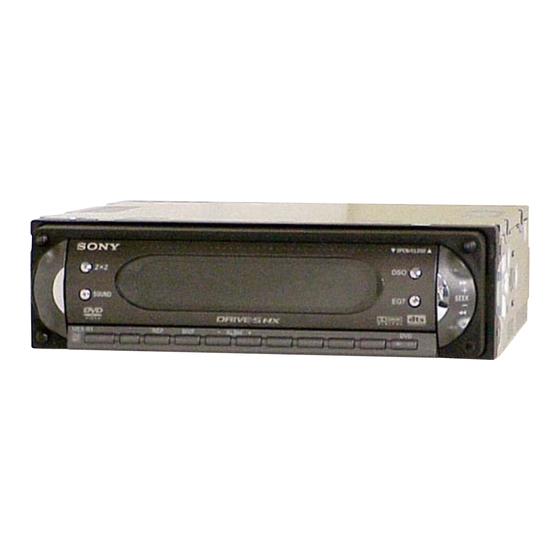

Multi disc player

Advertisement

Quick Links

SERVICE MANUAL
Ver. 1.2 2005.06
US and foreign patents licensed from Dolby
Laboratories.
Copyrights
This product incorporates copyright protection
technology that is protected by method claims of
certain U.S. patents, other intellectual property
rights owned by Macrovision Corporation, and
other rights owners. Use of this copyright
protection technology must be authorized by
Macrovision Corporation, and is intended for
home and other limited viewing uses only unless
otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly
is prohibited.
Manufactured under license from Dolby
Laboratories.
"Dolby" and the double-D symbol are
trademarks of Dolby Laboratories.
Confidential unpublished works. Copyright
1992−1997 Dolby Laboratories. All rights
reserved.
"DTS" and "DTS 2.0 + Digital Out" are
trademarks of Digital Theater Systems, Inc.
Sony Corporation
9-879-420-03
e Vehicle Group
2005F05-1
© 2005.06
Published by Sony Engineering Corporation
Model Name Using Similar Mechanism
DVD Mechanism Type
Optical Pick-up Block Name
System
Laser
Semiconductor laser
Signal format system
AEP, UK, Russian models: PAL
Except AEP, UK, Russian model:
PAL/NTSC switchable
DVD/CD Player section*
Signal-to-noise ratio
120 dB
10 − 20,000 Hz
Frequency response
Wow and flutter
Below measurable limit
Harmonic distortion (DVD)
0.01%
Wow and flutter
Less than detected value
(±0.001 % W PEAK)
* Measured from the AUDIO OUT jacks.
When you play PCM sound tracks with a 96 kHz
sampling frequency, the output signals from the
DIGITAL OUT jack are converted to 96 kHz
sampling frequency.
Tuner section
FM
Tuning range
AEP, UK, Russian, Asian models:
87.50 − 108.00 MHz
Latin American model:
87.50 − 107.90 MHz
Aerial terminal
External aerial connector
Intermediate frequency
10.7 MHz/450 kHz
Usable sensitivity
9 dBf
Selectivity
75 dB at 400 kHz
Signal-to-noise ratio
67 dB (stereo), 69 dB
(mono)
Harmonic distortion at 1 kHz
0.5 % (stereo),
0.3 % (mono)
Separation
35 dB at 1 kHz
30 − 15,000 Hz
Frequency response
MW/LW
Tuning range
AEP, UK, Russian models:
MW: 531 − 1,602 kHz
LW: 153 − 279 kHz
Asian model:
531 − 1,602 kHz (at 9 kHz step)
Latin American model:
530 − 1,710 kHz (at 10 kHz step)
Aerial terminal
External aerial connector
Intermediate frequency
10.7 MHz/450 kHz
MW: 30 µV, LW: 40 µV
Sensitivity
MEX-R1
AEP Model
SPECIFICATIONS
Power amplifier section
Outputs
Speaker impedance
Maximum power output
General
Outputs
Inputs
Tone controls
Loudness
Power requirements
Dimensions
Mounting dimensions
Mass
Supplied accessories
Note
This unit cannot be connected to a digital preamplifier or an
equalizer which is Sony BUS system compatible.
Design and specifications are subject to change without
notice.
MULTI DISC PLAYER
UK Model
E Model
NEW
MG-612-187
KHS-340B
Speaker outputs (sure seal
connectors)
4 − 8 ohms
52 W × 4 (at 4 ohms)
Front audio/video output terminals
Rear audio (Z×Z)/video output
terminals
Rear audio output terminal
Subwoofer output terminal
(mono)
Optical digital output terminal
Power aerial relay control terminal
Power amplifier control terminal
Telephone ATT control terminal
Illumination control terminal
BUS control input terminal
BUS audio input/AUX IN terminal
Parking break control terminal
Remote controller input terminal
Aerial input terminal
Bass: ±8 dB at 100 Hz
Treble: ±8 dB at 10 kHz
+8 dB at 100 Hz
+2 dB at 10 kHz
12 V DC car battery
(negative earth)
Approx. 178 × 50 × 182 mm (w/h/d)
Approx. 182 × 53 × 161 mm (w/h/d)
Approx. 1.3 kg
Card remote commander
RM-X702 (Except AEP, UK,
Russian model)
RM-X703
(AEP, UK, Russian models)
Parts for installation and
connections (1 set)
Front panel case (1)

Advertisement

Table of Contents
loading

Summary of Contents for Sony MEX-R1

  • Page 1 LW: 153 − 279 kHz This unit cannot be connected to a digital preamplifier or an Asian model: equalizer which is Sony BUS system compatible. 531 − 1,602 kHz (at 9 kHz step) Latin American model: Design and specifications are subject to change without 530 −...
  • Page 2: Section 3 Disassembly

    MEX-R1 SECTION 3 DISASSEMBLY Note: Follow the disassembly procedure in the numerical order given. • This set can be disassembled in the order shown below. 3-2. SUB PANEL COMPLETE ASSY 3-1. DISASSEMBLY FLOW 1 screw (PTT 2.6 × 6) 2 two bosses...
  • Page 3: Chassis (T) Sub Assy

    MEX-R1 3-4. MAIN BOARD, DC FAN (25X25) (M901) 6 connection cord (rear out) 8 three ground point screws (PTT 2.6 × 6) 5 screw (PTT 2.6 × 8) 4 connector (CN701) 7 two screws (PTT 2.6 × 8) 9 MAIN board 3 DC fan (25 ×...
  • Page 4: Roller Arm Assy

    MEX-R1 3-6. ROLLER ARM ASSY 3 washer (1.1-2.5) 5 roller arm assy 4 gear (RA1) 2 spring (RAR) 1 spring (RAL) 3-7. CHASSIS (OP-DVD) COMPLETE ASSY qa chassis (OP-DVD) complete assy q; compression spring (damper) lever (D) 9 two compression springs (damper)
  • Page 5 MEX-R1 3-8. CHASSIS (OP-DVD) SUB ASSY 2 chucking arm sub assy 1 tension coil spring (CHKG) 3 chassis (OP-DVD) sub assy 3-9. LE MOTOR ASSY (LOADING) (M3) 8 screw (M 1.7 × 2.5) q; gear (LE) assy 9 bearing (LEB-N)
  • Page 6: Servo Board

    MEX-R1 3-10. SERVO BOARD 2 OP flexible board 4 screw (CN2) (P 1.7 × 2.2) 1 Remove the two solders. 4 screw (P 1.7 × 2.2) 6 SERVO board 3 motor flexible board (CN1) 1 Remove the three solders. 5 four claws 3-11.
  • Page 7: Display Section

    MEX-R1 3-12. BASE BOARD 2 flexible flat (6 core) cable (CN903) 4 BASE board 3 flexible flat (12 core) cable (CN902) 3-13. DISPLAY SECTION Note for assembly After installing to the front panel assy, 4 display section make sure the spring is not off from the dowel.
  • Page 8 MEX-R1 3-14. BRACKET (DISPLAY) 2 spring (M) 3 bracket (display) 1 spring (M) 3-15. SPRING (S) 5 spring (S) display (SV) assy Note for assembly 3 Take off the spring from display (SV) assy the dowel on preset assy side.
  • Page 9: Electrical Adjustments

    MEX-R1 Ver. 1.1 SECTION 4 ELECTRICAL ADJUSTMENTS E, F SIGNAL OFFSET ADJUSTMENTS Adjustments Location: SERVO SECTION Connection: oscilloscope If any of the following parts was replaced, perform the “IOP Check” (DC range) and “E, F Signal Offset Adjustment” as mentioned below.
  • Page 10 MEX-R1 SECTION 5 DIAGRAMS 5-1. BLOCK DIAGRAM – SERVO Section – OPTICAL PICK-UP BLOCK ANALOG FRONT-END DVD PROCESSOR VIDEO SELECT, KHS-340B 75 OHM DRIVER IC701 CN301 (1/3) RFIP FRONT RFAC 11 RF AC PA0 129 VSAG 30 VIDEO OUT RFIN...
  • Page 11 MEX-R1 Ver. 1.1 5-2. BLOCK DIAGRAM – AUDIO Section – GAIN CONTROL IC304 CN701 (2/2) DVD-L IN1B (Page 18) OUTB 11 ZxZ REAR IN2B AUDIO OUT R-CH MUTING POWER AMP Q311 IC306 (1/2) CN801 (2/2) R-CH FL+ 5 FL IN MUTING CONTROL FL–...
  • Page 12 MEX-R1 5-3. BLOCK DIAGRAM – MAIN Section – SONY BUS INTERFACE LCD DRIVER SYSTEM CONTROLLER (FOR SONY BUS) CN602 IC901 IC501 (2/2) IC603 BUS CONTROL IN UNISO 57 DATA IN DATA 6 B-DATA UNISI 56 DATA OUT DI 78 LCDSO S1 –...
  • Page 13 MEX-R1 • See page 37 for Waveforms. • See page 38 for IC Block Diagrams. • See page 46 for IC Pin Function Description. 5-6. SCHEMATIC DIAGRAM – SERVO Section (1/3) – (1/3) TP69 10µH 0.47 ASEN ASDT ASCK DFCT...
  • Page 14 MEX-R1 • See page 37 for Waveforms. • See page 46 for IC Pin Function Description. 5-7. SCHEMATIC DIAGRAM – SERVO Section (2/3) – (2/3) C152 0.001 (Page 26) C151 0.001 C148 C105 C106 100p 100p 100p 100p 0.01 COMPARATOR...
  • Page 15 MEX-R1 5-8. SCHEMATIC DIAGRAM – SERVO Section (3/3) – • See page 38 for IC Block Diagrams. (3/3) AVR1 (Page 25) (Page 25) +3.3V REGULATOR C144 100p SD-RAM XC6206P332PR C146 100p VOUT MT48LC4M16A2-7E C147 R168 R171 C145 100p 3.3k 5.6k...
  • Page 16 MEX-R1 Ver. 1.1 5-9. SCHEMATIC DIAGRAM – MAIN Section (1/3) – • See page 38 for IC Block Diagrams. (1/3) J201 (ANTENNA IN) C353 R335 CN301 10 50V LFOUT FRONT LCH R320 C358 100p FRONT LGND VIDEO OUT: GAIN CONTROL...
  • Page 17 MEX-R1 Ver. 1.1 5-10. SCHEMATIC DIAGRAM – MAIN Section (2/3) – • See page 37 for Waveforms. • See page 38 for IC Block Diagrams. (2/3) (EXCEPT AEP, UK, RU) CN801 FRONT LCH+ FRONT LCH- REAR LCH+ REAR LCH- REAR RCH+...
  • Page 18 FD_DET D103 SDS2836/F R548 100k CN601 R614 (PAL) (CHASSIS) R549 DIGITAL (NTSC) R609 R610 C604 0.01 RESET R607 SONY BUS INTERFACE (FOR SONY BUS) C505 R602 IC603 D604 BATT TH601 R606 BA8271F UDZS-TE17 R508 100k R511 -6.2B CN602 R510 DATA...
  • Page 19 MEX-R1 5-15. SCHEMATIC DIAGRAM – BASE Board – BASE BOARD D902 UDZSTE–1718B LED902 LED914 CN901 CL–190UB2–X–T CL–190UB2–X–T R973 CN902 R974 R948 R943 LED917 LED915 CL–190UB2–X–T CL–190UB2–X–T VOL + VOL + MAIN SEEK + BOARD (2/3) DISPLAY CN401 R976 BOARD (Page 28)
  • Page 20 MEX-R1 5-17. SCHEMATIC DIAGRAM – DISPLAY Board – LED931 R953 LED961 NSCW505CT–A CL– 270UB2 –X–TS CN904 (CD SLOT) LSW921(2/2) R964 R961 R924 DPSL LSW918(2/2) R965 R954 R925 BASE BOARD CN902 R966 R962 R955 R926 (Page 33) R983 LSW919(2/2) LED932 NSCW505CT–A...
  • Page 21 MEX-R1 Ver. 1.1 • See page 21 for Circuit Boards Location. 5-18. PRINTED WIRING BOARD – PRESET Board – : Uses unleaded solder. LSW904 LSW903 MODE LSW905 LSW906 LSW907 LSW908 LSW909 LSW910 LSW911 LSW912 LSW913 SHUF SOURCE (11) 1-864-699- LSW907...
  • Page 22: Main Board

    MEX-R1 • Waveforms – SERVO Board – – MAIN Board – IC1 1 (RFIN), 2 (RFIP) IC201 4 (OSCO) IC701 wg (CYOUT), ea (VOUT) (DVD play mode) (DVD play mode (color bar)) 5 Vp-p 2.5 Vp-p DVD play: 460 mVp-p...
  • Page 23 MEX-R1 • IC Block Diagrams – SERVO Board – IC1 CXD5002R 47 46 44 43 39 38 37 36 V/I REF AUTOMATIC POWER SIGNAL VCC2 49 SDEN CONTROL MONITOR SERIAL CONTROL SDATA HAVC 50 REGISTER SCLK VREF VHALF IREF PULL IN ERROR...
  • Page 24 MEX-R1 IC2 BH6599KV-E2 32 31 29 28 26 25 STANDBY STBY SHORT DRIVER DRIVER DRIVER DRIVER BRAKE CNF4 37 NF AMP LOGIC NF AMP LOGIC NF AMP LOGIC NF AMP LOGIC CNF3 38 CNF2 39 CNF1 40 VREF VREF IN1 42...
  • Page 25 MEX-R1 IC7 EDS6416AHTA-6BTT-E VDD 1 BANK 3 DQ15 BANK 2 DQ0 2 VSSQ BANK 1 VDDQ 3 DQ14 DQ1 4 DQ13 DQ2 5 VDDQ VSSQ 6 BANK 0 DQ12 DQ3 7 DQ11 DQ4 8 VSSQ VDDQ 9 SENSE AMPLIFIER DQ10 DQ5 10 COLUMN DECODER &...
  • Page 26 MEX-R1 IC10 MBM29DL32TF-70TN-E1-S001 48 A16 X-DECODER CELL MATRIX 4M BIT (BANK A) 47 BYTE 46 VSS X-DECODER 45 DQ15/A-1 CELL 44 DQ7 MATRIX 43 DQ14 12M BIT 42 DQ6 (BANK B) 41 DQ13 40 DQ5 39 DQ12 38 DQ4 RESET...
  • Page 27 MEX-R1 IC301 TDA7416 POWER HPF2 SOFT STEP FADER MIXER ZERO CROSS SOFT STEP FADER HPF2 MIXER OUTRF SOFT STEP FADER SOFT STEP FADER OUTRR NC 34 AC2INR ACOUTR 35 AC2OUTR FILOR ACINSW 36 SWOUT SOFT STEP FADER ACOUTSW 37 SUB WOOFER...
  • Page 28 MEX-R1 IC302 PCM1751DBQR 15 14 ZERO DETECT SYSTEM FUNCTION CLOCK OUTPUT AMP AND CONTROL MANAGER CONVERTER LOW-PASS FILTER INTERFACE 8 TIME OVER SAMPLING ENHANCED DIGITAL FILTER MULTI-LEVEL WITH SYSTEM DELTA-SIGMA FUNCTION CLOCK MODULATOR CONTROLLER SERIAL OUTPUT AMP AND INPUT CONVERTER...
  • Page 29 MEX-R1 IC306 TDA8588AJ/N2/R1 PGND2/TAB 1 OUT3– 3 MUTING OUT3+ 5 OUT1– 7 PGND1 MUTING OUT1+ 9 SGND 13 IN2 15 ACGND OUT2+ 17 PGND3 MUTING OUT2– 19 OUT4+ 21 MUTING OUT4– 23 STANDBY/ PGND4 MUTING DIAG 25 PROTECTION/ DIAGNOSTIC IIC-BUS INTERFACE TEMPERATURE &...
  • Page 30 MEX-R1 IC603 BA8271F-E2 RESET SWITCH IC701 MM1567AJBE VCC1 VCC2 BIAS 75Ω COUT DRIVER MUTE1 CLAMP GND2 75Ω VOUT DRIVER YC MIX VSAG CLAMP GND2 75Ω YOUT DRIVER BIAS BIAS YSAG GND1 GND1 10 NC 11 GND2 CYIN 12 75Ω CYOUT...
  • Page 31 MEX-R1 • IC Pin Function Descripition SERVO BOARD IC1 CXD5002R (DVD ANALOG FRONT-END) Pin No. Pin Name Description 1, 2 RFIN, RFIP Differential RF signal input terminal SUMF DC filter connection terminal for differential sum amplifier AGHPF1, 4, 5 High-pass filter connection terminal for AGC input block...
  • Page 32 MEX-R1 Pin No. Pin Name Description HAVC Reference voltage input for interface with optical pick-up 51 to 54 MD to MA Main 4D signal input from the optical pick-up 55, 56 FON, FOP Focus error signal input from the optical pick-up Not used...
  • Page 33 MEX-R1 SERVO BOARD IC6 M6578FP (DVD PROCESSOR) Pin No. Pin Name Description DVDD33 Power supply terminal (+3.3V) EXPLDT RF data (logic level) input terminal SPWM1, 3, 4 PWM output for the spindle motor drive SPWM2 FG signal input from the coil/motor driver...
  • Page 34 MEX-R1 Pin No. Pin Name Description PLLAVDD33 Power supply terminal (+3.3V) PLLAVDD15 Power supply terminal (+1.5V) PLLGND Ground terminal SLPF2 Loop filter connection terminal of VCO for system clock PLL System clock output terminal (36.864 MHz) System clock input terminal (36.864 MHz)
  • Page 35 MEX-R1 Pin No. Pin Name Description DVDD33 Power supply terminal (+3.3V) DVSS Ground terminal Two-way data bus with the SD-RAM MD12 Two-way data bus with the SD-RAM Two-way data bus with the SD-RAM MD13 Two-way data bus with the SD-RAM...
  • Page 36 MEX-R1 Pin No. Pin Name Description HDAT3 to 164 to 167 Two-way data bus with the flash memory HDAT0 Data read strobe signal output to the flash memory Control signal output for data write protector or writing speed to the flash memory...
  • Page 37 Fan motor drive signal output terminal (for high speed) 7, 8 Not used Ground terminal Ground switching signal output of SONY bus/AUX audio input BUS_AUX "L": AUX input, "H": SONY bus input MUTE_SEL Muting on/off control signal output terminal "L": output only rear monitor...
  • Page 38 Serial data input from the SONY bus interface IC UNISO Serial data output to the SONY bus interface IC UNICLK Serial data transfer clock signal output to the SONY bus interface IC BUSON SONY bus on/off control signal output terminal "L": bus on SYSRST...
  • Page 39 MEX-R1 Pin No. Pin Name Description DSTSEL1, 94, 95 Setting terminal for the destination DSTSEL0 TESTIN Test mode setting terminal FANL Fan motor drive signal output terminal (for low speed) Not used Front panel remove/attach detection signal input terminal NOSE SW "L": front panel is attached...
  • Page 40: Section 6 Exploded Views

    MEX-R1 SECTION 6 Ver. 1.1 EXPLODED VIEWS NOTE: • Items marked “*” are not stocked since they • -XX and -X mean standardized parts, so they The components identified by mark 0 or dotted line with mark 0 are may have some difference from the original are seldom required for routine service.
  • Page 41: Front Panel Section

    MEX-R1 Ver. 1.1 6-2. FRONT PANEL SECTION not supplied (BASE board) not supplied not supplied LCD911 not supplied supplied not supplied not supplied (DISPLAY board) 61 62 not supplied not supplied not supplied not supplied supplied (PRESET board) not supplied...
  • Page 42: Dvd Mechanism Deck Section

    MEX-R1 6-3. DVD MECHANISM DECK SECTION-1 (MG-612-187) not supplied (SENSOR board) not supplied not supplied DVD mechanism deck section-2 DVD mechanism deck section-3 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-1078-351-A CHASSIS (T) SUB ASSY...
  • Page 43 MEX-R1 Ver. 1.2 6-4. DVD MECHANISM DECK SECTION-2 (MG-612-187) not supplied (optical pick-up block (KHS-340B)) not supplied (sled motor (M2)) not supplied (spindle motor (M1)) The components identified by mark 0 or dotted line with mark 0 are critical for safety.
  • Page 44 MEX-R1 6-5. DVD MECHANISM DECK SECTION-3 (MG-612-187) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-259-469-01 SPRING (LE), LEAF 2-186-699-11 GEAR (RA1) 2-134-636-51 SCREW (M1.7X2.5) A-1075-789-A ARM ASSY, ROLLER 2-186-696-11 BRACKET (LEM-N) 3-253-755-02 LEVER (D) 3-345-648-91 SCREW (M1.4), TOOTHED LOCK...
  • Page 45: Section 7 Electrical Parts List

    MEX-R1 Ver. 1.1 SECTION 7 BASE DISPLAY ELECTRICAL PARTS LIST NOTE: • Items marked “*” are not stocked since they • Due to standardization, replacements in the The components identified by mark 0 or dotted line with mark 0 are parts list may be different from the parts are seldom required for routine service.
  • Page 46 MEX-R1 Ver. 1.1 DISPLAY MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < CAPACITOR > < LIQUID CRYSTAL DISPLAY > C101 1-100-767-21 ELECT CHIP 220uF LCD911 1-805-746-11 DISPLAY PANEL, LIQUID CRYSTAL C103 1-100-767-21 ELECT CHIP...
  • Page 47 MEX-R1 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C311 1-136-153-00 FILM 0.012uF C369 1-107-823-11 CERAMIC CHIP 0.47uF C312 1-162-927-11 CERAMIC CHIP 100PF C370 1-126-947-11 ELECT 47uF C371 1-115-340-11 CERAMIC CHIP 0.22uF C313 1-162-927-11 CERAMIC CHIP...
  • Page 48 MEX-R1 Ver. 1.1 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C708 1-135-366-11 ELECT CHIP 100uF D801 8-719-053-18 DIODE 1SR154-400TE-25 C709 1-137-893-11 ELECT CHIP 22uF D802 8-719-053-18 DIODE 1SR154-400TE-25 D803 8-719-053-18 DIODE 1SR154-400TE-25 C802 1-107-882-11 ELECT...
  • Page 49 MEX-R1 Ver. 1.1 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R136 1-216-864-11 SHORT CHIP IC501 6-805-111-01 IC MB90474PFV-G-208-BNDE1 R137 1-216-864-11 SHORT CHIP IC502 8-759-659-13 IC PST3428UL R138 1-216-864-11 SHORT CHIP IC503 8-759-695-94 IC TAR5S33 (TE85R)
  • Page 50 MEX-R1 Ver. 1.1 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R343 1-216-841-11 METAL CHIP 1/10W R540 1-216-839-11 METAL CHIP 1/10W R345 1-216-841-11 METAL CHIP 1/10W (AEP, UK, RU) R346 1-216-825-11 METAL CHIP 2.2K 1/10W...
  • Page 51 MEX-R1 Ver. 1.1 MAIN PRESET SERVO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R808 1-216-841-11 METAL CHIP 1/10W LSW912 1-786-807-11 SWITCH, TACT (WITH LED) (PICTURE, EQ) (AEP, UK, RU) R809 1-216-073-00 RES-CHIP 1/10W LSW912 1-786-807-11 SWITCH, TACT (WITH LED) (SCRL)
  • Page 52 MEX-R1 SERVO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1-125-777-11 CERAMIC CHIP 0.1uF 1-164-846-11 CERAMIC CHIP 0.5PF 1-164-937-11 CERAMIC CHIP 0.001uF 1-165-897-11 TANTALUM CHIP 22uF 1-164-874-11 CERAMIC CHIP 100PF 1-164-937-11 CERAMIC CHIP 0.001uF 1-125-777-11 CERAMIC CHIP 0.1uF...
  • Page 53: Short Chip

    MEX-R1 Ver. 1.1 SERVO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C144 1-164-874-11 CERAMIC CHIP 100PF 6-707-993-01 IC EDS6416AHTA-6BTT-E C145 1-164-874-11 CERAMIC CHIP 100PF 6-704-529-01 IC XC6206P332PR 6-704-529-01 IC XC6206P332PR C146 1-164-874-11 CERAMIC CHIP 100PF...
  • Page 54 MEX-R1 SERVO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R110 1-218-990-11 SHORT CHIP 1-218-977-11 RES-CHIP 100K 1/16W R111 1-218-990-11 SHORT CHIP 1-218-965-11 RES-CHIP 1/16W R114 1-218-937-11 RES-CHIP 1/16W 1-218-965-11 RES-CHIP 1/16W 1-218-935-11 RES-CHIP 1/16W R116...
  • Page 55 MEX-R1 Ver. 1.1 SPEAKER SENSOR Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark SPEAKER BOARD PARTS FOR INSTALLATION AND CONNECTIONS ************** ************************************** (Included in the MAIN board, complete) X-3382-647-1 FRAME ASSY, FITTING 1-465-459-21 ADAPTER, ANTENNA (AEP, UK, RU)
  • Page 56 MEX-R1 MEMO...
  • Page 57: Revision History

    MEX-R1 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 2005.03...
