IMPORTANT INSTRUCTIONS
WARNING
: If the instructions contained in this manual are not followed
precisely, fire or explosion may result causing property damage, personal
injury, or loss of life.
READ AND SAVE THESE INSTRUCTIONS
others are very important.
We have provided many important safety messages throughout this manual and
on the appliance.
Read all the instructions before using the appliance and always obey all safety
messages.
Table of Contents
- Your safety and the safety of
13
13
14
17
17
18
27
28
32
35
36
36
36
36
36
37
3
Advertisement
Table of Contents
Related Manuals for Smeg SIMU330D
Summary of Contents for Smeg SIMU330D
-
Page 1: Table Of Contents
Table of Contents 1 Description 1.1 General description 1.2 Control panel 2 Use 2.1 Warnings 2.2 Using the cooktop 2.3 Special features 2.4 Additional functions 2.5 User menu 2.6 Error codes 3 Cleaning and maintenance 3.1 Warnings 3.2 Surface cleaning 3.3 Weekly routine cleaning 3.4 Food stains or residues 3.5 What to do if... - Page 2 Important Safety Instructions RECOGNIZE SAFETY INFORMATION This is a safety alert symbol. This symbol alerts you to potential hazards that can result in severe personal injury or loss of life. UNDERSTAND SIGNAL WORDS A signal word - DANGER, WARNING or CAUTION - is used with the safety alert symbol.
- Page 3 Important Safety Instructions WARNING To reduce the risk of fire, electrical shock, personal injury, or damage when using the appliance, follow basic safety precautions, including the following: • Read all instructions. • DO NOT LEAVE CHILDREN UNATTENDED: Children should not •...
- Page 4 Important Safety Instructions • This appliance and its accessible parts • WEAR PROPER APPAREL: Loose-fitting get very hot during use. or hanging garments should never be worn while using the appliance. • Do not touch the heating elements during use. •...
- Page 5 Important Safety Instructions • Fats and oils can catch fire if they • Fire hazard: Do not store anything on overheat. Do not leave the appliance the cooking surfaces. unattended while preparing foods • Never Leave Surface Units containing oils or fats. If fats or oils Unattended at High Heat Settings –...
- Page 6 Important Safety Instructions • DO NOT USE AEROSOL SPRAYS IN • Supervise children carefully as they THE VICINITY OF THIS APPLIANCE cannot see the residual heat indicator WHILE IT IS IN USE. easily. Even after being turned off, the cooking zone remains hot for a •...
- Page 7 Important Safety Instructions • Take care not to spill acid substances • Do not use cleaning products such as lemon juice or vinegar on the containing chlorine, ammonia or cooktop. bleach on the steel parts or those with metallic surface finishes (e.g. •...
- Page 8 Important Safety Instructions • People who have pacemakers or • To avoid possible overheating, the other similar devices must make sure appliance must not be installed that the operation of these devices is behind a decorative door or a panel. not affected by the inductive field, the •...
- Page 9 Important Safety Instructions • Use only dry potholders - Moist or • Do not attempt to repair the appliance damp potholders on hot surfaces yourself or without the intervention of may cause burns due to steam. Do a qualified technician. not allow potholders to touch hot •...
- Page 10 Important Safety Instructions • This appliance is designed for How to read the user manual cooking or baking food in the home. This user manual uses the following reading Any other use is inappropriate. conventions: • This appliance is not designed to work Instructions with external timers or remote control General information on this user...
-
Page 11: Description

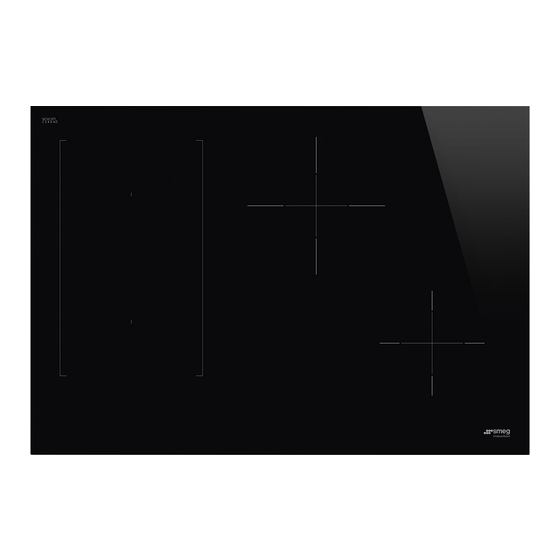

Description 1 Description 1.1 General description 24 in - 610 mm = Left cooking zone = Right cooking zone = Control panel 30 in - 762 mm 1 = Rear central cooking zone = Left cooking zone 2 = Front right cooking zone = Control panel... -
Page 12: Control Panel
Description 36 in - 914 mm = Left cooking zone = Right cooking zone = Central cooking zone = Control panel 1.2 Control panel 1 Function buttons 4 (36 in - 914 mm model only) 2 Timer buttons and display 5 Scroll bar 3 Cooking zone buttons and display 6 On/Off button... - Page 13 Description Table of maximum power consumption Dimensions Zone Level 9 Booster Double Booster H x L 71 in x 95 in Single 2100 W 2500 W 3000 W 180 cm x 240 cm 142 in x 95 in Multizone 3000 W 3700 W 360 cm x 240 cm 79 in x 79 in...
- Page 14 Description Power control The cooktop is fitted with a power control module that optimizes / limits energy consumption. If the total set power level exceeds the maximum allowed limit, the circuit board will automatically regulate the power supplied by the hot plates. The module tries to maintain the maximum power levels that can be supplied.
-
Page 15: Use
2 Use High temperature Danger of fire or explosion 2.1 Warnings High temperature • Do not use or store flammable materials near the appliance or directly under the Burn hazard cooktop. • Do not use cans, unopened containers, • Protect your hands with thermal gloves dishes or plastic containers for cooking. -
Page 16: Using The Cooktop
2.2 Using the cooktop Switching on the cooktop for the first time All the appliance's commands and controls NOTES: During the first connection are grouped together on the front panel. to the mains supply, an automatic The induction cooktop is controlled using check is run that turns on all the the Touch control sensor buttons. - Page 17 Cooking zones display Bear in mind the following: • Do not exceed the limits of the zones printed on the cooktop. • Do not cover the control panel. • Do not place the pans close to the The buttons for selecting the cooking zones edges of the glass.
- Page 18 Unsuitable cookware: Switching the cooktop on and off • Copper, stainless steel, aluminum, Keep the On/Off button pressed for a fireproof glass, wood, ceramic and few seconds to activate the cooktop. terracotta cookware. Press it again to deactivate it. To understand whether the pan is suitable, bring a magnet close to the bottom: if it is NOTES: If a power level is not attracted to the pan, the pan is suitable for...
- Page 19 Regulating the cooking zone Switching off the cooking zone After selecting a cooking zone: 1. Slide your finger all the way to the left on the scroll bar of the cooking zone you 1. Place your finger on the left-hand side of wish to turn off.
- Page 20 Limiting the cooking time Booster Function The cooktop is fitted with an automatic Improper use device that limits the time it is used for. Burn hazard If the cooking zone settings are not changed, the maximum operating time for each individual zone will depend on the •...
- Page 21 2. Move your finger to the right of the scroll Double Booster Function bar to select the Booster function NOTES: There is no Double Booster Function in cooking zone 1 of the 30-inch (762 mm) model. The Double Booster function allows more power to be supplied than with the Booster function.
- Page 22 If a large, oval or oblong pan is being After a short beep, the symbol will used, make sure that it is placed in the appear next to the button of the rear zone. center of the cooking zone. The Multizone function is now active. 2.
- Page 23 Power level Suitable for: OFF position Cooking small amounts of food (minimum power), reheating food, keeping small amounts of water boiling, and whipping egg yolk or butter sauces. Cooking solid or liquid foods, keeping water boiling, defrosting frozen foods, Examples of griddle position making 2- or 3-egg omelets, To deactivate the Multizone function: fruit and vegetable dishes,...
- Page 24 Energy saving tips Residual heat • The diameter of the base of the pan must Improper use not be greater than the width of the Burn hazard cooking zone printed on the cooktop. • Pans must not be placed outside the •...
-
Page 25: Special Features
2.3 Special features NOTES: The cooking time limitation, the residual heat Pause function indicators and the control lock function remain enabled during the NOTES: This function pauses the Pause function. operation of all the cooking zones. NOTES: When the power comes To activate the Pause function: back on after a power failure, the 1. -
Page 26: Additional Functions
Grill Function Warming Function NOTES: This function is used to NOTES: This function allows you automatically activate the to keep cooked food warm or to Multizone function for the left keep water boiling. zones only. It is used when using a griddle or cooking with long pans. - Page 27 After selecting a cooking zone: The child lock function is active and the • Press and hold a power level (from symbol appears on the cooking zone displays. ) for at least 3 seconds. To deactivate the child lock, with the appliance switched on: symbol appears on the cooking 1.
- Page 28 Modifying and deactivating the minute 2. Use the buttons to select timer the required time. To modify or deactivate the minute timer during the countdown: 1. Press the On/Off button to activate the cooktop (if it is in stand-by). The timer display will indicate the minutes that were set.
- Page 29 Modifying or deactivating timed cooking 3. Use the buttons to select To modify timed cooking during the the required time. countdown: 1. Press the On/Off button to activate the cooktop (if it is in stand-by). 2. Press the display button of the timed cooking zone.
-
Page 30: User Menu
2.5 User menu Recall Function The user menu allows you to modify the NOTES: This function is used to operating characteristics of the appliance. restore some functions that have Each option is indicated on the display with already been started after the appliance has been switched off the letter which alternates with a... - Page 31 3. Press and hold the pause button 5. Release the pause button Some symbols will appear on the The user menu is active and the symbol cooking zone displays that must be pressed in sequence in order to access alternating with the number will appear the menu options.
- Page 32 Option NOTES: For technical reasons, the Modifies volume of the sound signals when second segment from the left the timer has ended. (option ) is disabled. • : minimum volume. Selecting this option will have no effect. • : maximum volume. NOTES: For each option, press the Option value symbol to activate the scroll...
-
Page 33: Error Codes
2.6 Error codes Option If the appliance malfunctions or operates Allows you to activate or deactivate the incorrectly, the associated error code automatic pan detection function. appears on the displays of the cooking zones. • : automatic detection off. The error codes always start with •... -
Page 34: Cleaning And Maintenance
Cleaning and Maintenance 3 Cleaning and maintenance 3.3 Weekly routine cleaning Clean and maintain the cooktop once a 3.1 Warnings week using a standard product for cleaning glass. Always follow the manufacturer's Improper use directions. The silicone in these products Risk of damage to surfaces creates a water- and dirt-repellent protective film. -
Page 35: What To Do If
Cleaning and Maintenance 3.5 What to do if... Changes in color do not affect the function and stability of the glass. It is, in fact, not a The cooktop does not work: question of changes to the cooktop • Check that the cooktop is plugged in material, but simply of residues which were and the main switch is turned on. - Page 36 PAGE INTENTIONALLY LEFT BLANK...
