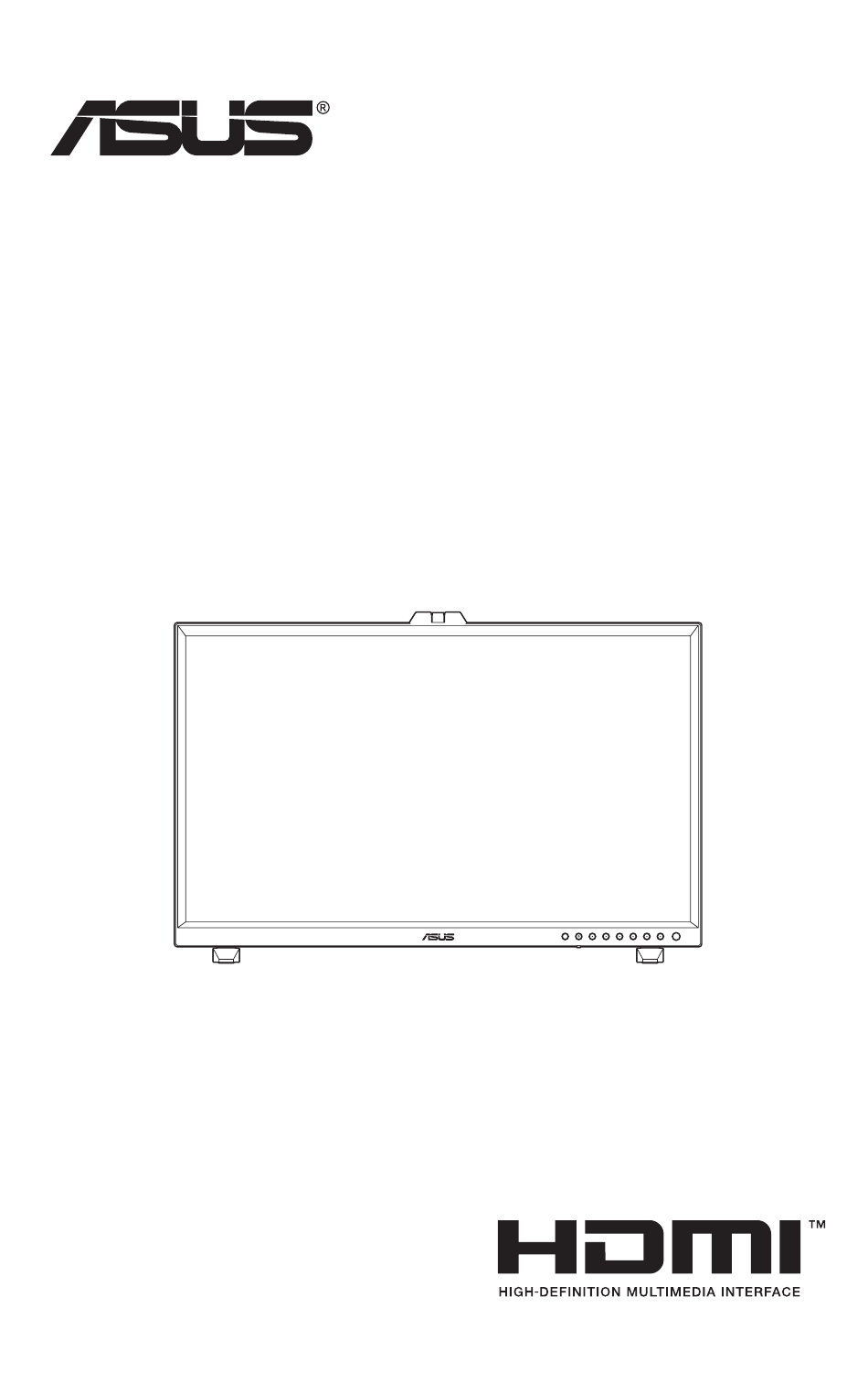

  • Page 1 HA3281A OLED Monitor User Guide...
  • Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

  • Page 3: Table Of Contents

    Notices ......................iv Safety information ..................v Care and Cleaning ..................vi Disposing of your old product ..............vii ASUS contact information ................ vii Takeback services ..................viii Product information for EU energy label ..........viii Chapter 1: Product introduction Welcome! ..................

  • Page 4: Notices

    Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation.

  • Page 5: Safety Information

    Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.

  • Page 6: Care And Cleaning

    Care and Cleaning • The OLED Display does not require any scheduled maintenance activities. In any case of doubts, contact the ASUSTeK Computer Inc. • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord.

  • Page 7: Disposing Of Your Old Product

    Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer.

  • Page 8: Takeback Services

    Takeback services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.

  • Page 9: Chapter 1: Product Introduction

    Thank you for purchasing the ASUS OLED monitor! The latest widescreen OLED monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual...

  • Page 10: Monitor Introduction

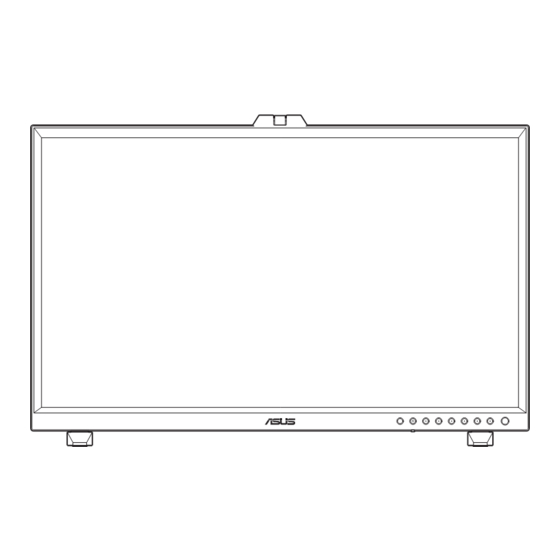

    Monitor introduction 1.3.1 Front view Menu Close Brightness Pixel Pixel Aspect Aspect Control Ctrl. Monochrome DICOM Aspect Pixel Ctrl. Aspect Pixel Ctrl. 4 3 2 Menu (5-way) button: • Enter the OSD menu. • Enact the selected OSD menu items. •...
  • Page 11 The default setting of Human sensor is “Off”. User can activate this function through OSD settings. • To configure the setting, go to the Setting > Human Sensor menu. ASUS HA3281A OLED Monitor...

  • Page 12: Back View

    1.3.2 Back view Earphone jack: This port connects to an earphone. HDMI ports: These ports are for connection with an HDMI compatible device. DisplayPort in: This port is for connection with a DisplayPort compatible device. The default setting of DisplayPort Stream in the OSD menu is DisplayPort 1.2. To configure the setting, go to Setting >...

  • Page 13: Color Calibration

    1.3.3 Color Calibration Users can use the ASUS tool with the color sensor that is embedded on the top of the monitor for color calibration. Ensure that the protective film on the color sensor has been removed before using the color sensor for calibration.

  • Page 14: Chapter 2: Setup

    (Figure 3) • We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. • When the panel screen is facing down, be careful not to damage the Menu (5-way) button. ASUS HA3281A OLED Monitor...

  • Page 15: Attaching The Stand (Arm/Base)

    Attaching the stand (arm/base) To assemble the stand: Carefully take the monitor out of the box. Hold the monitor firmly and do not press on the panel screen when lifting to avoid any accidental damage (Figure 1). Place the monitor face down on the table, and then use a paper clip (or a similar object) to remove the rubber cushions in the screw holes and remove the mini stands (Figure 2).
  • Page 16 We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. • When the panel screen is facing down, be careful not to damage the Menu (5-way) button. Shall use VESA standardized mounting pad in mounting application. ASUS HA3281A OLED Monitor...

  • Page 17: Detaching The Stand (For Vesa Wall Mount)

    Detaching the stand (for VESA wall mount) The detachable stand of this monitor is specially designed for VESA wall mount. To detach the stand: Place the monitor face down on the table, remove the screws that fix the arm to the monitor, and then remove the arm (Figure 1). Install the mini stands (Figure 2).
  • Page 18 • No adjustable VESA arm type wall mount device to be permitted for product installation. (The color calibration sensor always oriented on top or sides of the screen) ASUS HA3281A OLED Monitor...

  • Page 19: Installing The Cable Clips

    Installing the cable clips Use the cable clips to manage the connected cables. To install the cable clips: Using a paperclip (or similar item), remove the rubbers covering the screw holes (Figure 1). By aligning the screw hole (marked by blue line) and the guide pin (marked by the...

  • Page 20: Adjusting The Monitor

    You can adjust the monitor’s angle from -5˚~+23˚, and it allows 30˚ swivel adjustment from either left or right. You can also adjust the monitor’s height within 130 mm. (Tilt) (Swivel) -5°~+23° 30° 0° 30° (Height adjustment) 130 mm ASUS HA3281A OLED Monitor...
  • Page 21 Pivoting the monitor Lift the monitor to the highest position. Tilt the monitor to its maximum angle. Pivot the monitor to the angle you need. 90˚ -5°~+23° 90˚ It is normal that the monitor slightly shakes while you adjust the viewing angle. The OSD menu item will automatically rotate when the monitor rotates.

  • Page 22: Connecting The Cables

    Make sure your computer is installed with the latest Windows 10/11 operating system. That will enable the USB ports on the monitor to work. » Downstream: Use an USB cable to connect your device with the monitor's USB Type-A port. ASUS HA3281A OLED Monitor...

  • Page 23: Turning On/Off The Monitor

    When these cables are connected, you can choose the desired signal from the Input Select item in the OSD menu. 2.7 Turning on/off the monitor Set the DC switch to ON position (A), and then press the button (B). The Stand-by indicator lights up in white to show that the monitor is ON. Safely shutdown the monitor: Press the button (B) turn off the screen, and then set the DC switch to OFF...

  • Page 24: Chapter 3: General Instructions

    Menu (5-way) button up/down to change the settings of the selected function. To exit and save the OSD menu, press the Close button or move the Menu (5-way) left repeatedly until the OSD menu disappears. To adjust other functions, repeat steps 1-3. ASUS HA3281A OLED Monitor...

  • Page 25: Osd Function Introduction

    • User Mode 1/User Mode 2: You can save one or two ASUS Calibration profiles as User Mode 1/User Mode 2 after executing ASUS Calibration and then have quick access here.
  • Page 26 Below tables show the default configurations for each ASUS Preset mode: Function Native sRGB DICOM_0lux DICOM_50lux Color Temp. 6500K Fixed (6500K) 7500K 7500K fixed Brightness 80nits Disable Disable Contrast (Gray out) (Gray out) Sharpness Enable (0) Enable (0) Enable (0)
  • Page 27 Image Set the image related setting from this menu. Image Mode ASUS HA3281A Native Mode HDMI-1 3840x2160@ 60Hz Brightness Contrast Color Temp. Gamma Sharpness RGB Tuning Monochrome Darkness • Brightness: The adjusting range is from 0 to 100. • Contrast: The adjusting range is from 0 to 100.
  • Page 28 D 3MP: Only support 2048 x 1536. D 5MP: Only support 2560 x 2048. D 6MP: Only support 3280 x 2048. D 8MP: 3840 x 2160 (default). Also support 4096x2160 / 1920x2160 / 3M / 6M. ASUS HA3281A OLED Monitor...
  • Page 29 Perform standalone calibration to ensure color accuracy every working period. To maintain the accuracy of the schedule, ensure that the DC switch is always set to ON position. Self Calibration Mode ASUS HA3281A Native Mode HDMI-1 3840x2160@ 60Hz Target Warm Up...
  • Page 30 Target Warm Up Manual Execution Auto Execution • Manual Execution: Manually perform the standalone calibration. Select “Yes” to start. Self Calibration Mode ASUS HA3281A Native Mode HDMI-1 3840x2160@ 60Hz Target Warm Up Manual Execution Auto Execution ASUS HA3281A OLED Monitor...
  • Page 31 • Auto Execution: Allow the system to automatically perform standalone calibration for your personalized time setup. Self Calibration Mode ASUS HA3281A Native Mode HDMI-1 3840x2160@ 60Hz Target Warm Up Manual Execution Auto Execution . . . » Clock: Set the current time.
  • Page 32 Auto Execution will be disabled when “Off” is selected. Self Calibration Mode ASUS HA3281A Native Mode HDMI-1 3840x2160@ 60Hz Target Clock Warm Up Appointment Single Manual Execution Routine Everyday Auto Execution Every 7 days Every 14 days Every 28 days ASUS HA3281A OLED Monitor...
  • Page 33 DisplayPort USB Type-C • Color Setting: Selects an individual ASUS Preset Mode for the selected PIP/PBP source. (Up to 2 ASUS Preset modes can be chosen) • PIP Size: Adjusts the PIP size to Small, Middle, or Large. (Only available...
  • Page 34 • Customization: You can decide the frame size by moving the Menu (5-way) button up/down/left/right. You can press the Menu (5-way) button for longer than 3 seconds to switch the measurements between millimeter and inch. 3-11 ASUS HA3281A OLED Monitor...
  • Page 35 Eye Care Protect your eyes with ASUS EYE CARE Monitors. The latest ASUS monitors feature exclusive Blue Light Filter and Flicker free technologies to keep your eye healthy. Refer to https://www.asus.com/Microsite/display/eye_care_technology/ Eye Care Mode ASUS HA3281A Native Mode HDMI-1 3840x2160@...
  • Page 36 Color Augmentation: Adjusts the color augmentation for the red, green, blue, or yellow color. Input Select In this function, you can select your desired input source. Input Select ASUS HA3281A Native Mode HDMI-1 3840x2160@ 60Hz HDMI-1 HDMI-2 HDMI-3 DisplayPort USB Type-C Auto Detection 3-13 ASUS HA3281A OLED Monitor...
  • Page 37 Setting Allows you to adjust the system. Setting ASUS HA3281A Native Mode HDMI-1 3840x2160@ 60Hz Power Saving OSD Setup Language Sound DisplayPort Stream Key Lock Power lndicator Ambient Effect • Power Saving: Specifies the power saving setting. » Normal Level: Allows the USB downstream ports/USB Type-C ports to charge external devices when the monitor enters power saving mode.
  • Page 38 Please do not put any object too close to the Human Sensor to avoid any interference. • Information: Shows the monitor information. • All Reset: Selects “Yes” to revert all settings to the factory default mode. 3-15 ASUS HA3281A OLED Monitor...
  • Page 39 10. Shortcut Defines the functions for Shortcut 1 and 2 buttons. Shortcut ASUS HA3281A Native Mode HDMI-1 3840x2160@ 60Hz Shortcut 1 Shortcut 2 • Shortcut 1/Shortcut 2: Selects a function for Shortcut 1 and 2 buttons. When a certain function is selected or activated, your shortcut key may not support.

  • Page 40: Troubleshooting (Faq)

    • Ensure that the HDMI/DisplayPort/Type C cable is properly connected to the monitor and the computer. • Adjust the volume settings of both your monitor and HDMI/DisplayPort/Type C device. • Ensure that the volume setting of the device is correct. 3-17 ASUS HA3281A OLED Monitor...

  • Page 41: Supported Operating Modes

    Supported operating modes Vertical Frequency Horizontal Frequency Resolution Pixel (MHz) (Hz) KHz) 640x480 59.94(N) 31.47(N) 25.18 640x480 72.82(N) 37.87(N) 31.5 640x480 75(N) 37.5(N) 31.5 720x400 70(P) 31.47(N) 28.32 720x480 59.94 31.469 720x576 31.25 800x600 56.25(P) 35.16(P) 800x600 60(P) 37.88(P) 800x600 72(P) 48.1(P) 800x600...
  • Page 42 28.125 1920x1080p 33.75 56.25 67.5 37.5 1280x720p 640x480p 31.469 * Modes not listed in the table may not be supported. For optimal resolution, we recommend that you choose a mode listed in the table above. 3-19 ASUS HA3281A OLED Monitor...

  • Page 43: Display

    White (On) / Amber (Standby) Tilt +23˚ ~ -5˚ Swivel +30˚ ~ -30˚ Pivot +90˚ ~ -90˚ Height Adjustment 130mm Kensington lock Power On: 23.2 W** (Typ.) Power consumption Standby: < 0.5 W Power Off: 0.3 W (Switch off) ASUS HA3281A OLED Monitor...
  • Page 44 Monitor input Rating 24 Vdc, 6.6A Temperature (Operating) 0˚C ~ 40˚C Temperature -20˚C ~ +60˚C (Storage & Transportation) Humidity (Operating) 5%~90% Humidity 5%~90% (Storage & Transportation) Pressure (Operating) 70K-106KPa Pressure 18Kpa-101Kpa (Storage & Transportation) 735.4mm x 466.9mm x 54.4mm (monitor only) 735.4mm x 489.1mm x 162.6mm (with mini stand) Dimension (W x H x D) 735.4mm x 626.9mm x 245mm (with stand, highest)

  • Page 45: Power

    Power Power Adapter Vendor Adapter Technology Co., Ltd. Power Adapter Model Number ATM160T-P240 I/P: 100-240V~, 50-60Hz, 1.8-0.9A; Power Adapter Input O/P: 24Vdc, 6.6A ASUS HA3281A OLED Monitor...

  • Page 46: Chapter 5: Dimension

    Chapter 5: Dimension [Monitor] ASUS HA3281A OLED Monitor...
  • Page 47 [Monitor with mini stands] Chapter 5: Dimension...
  • Page 48 [Monitor with stand] ASUS HA3281A OLED Monitor...
