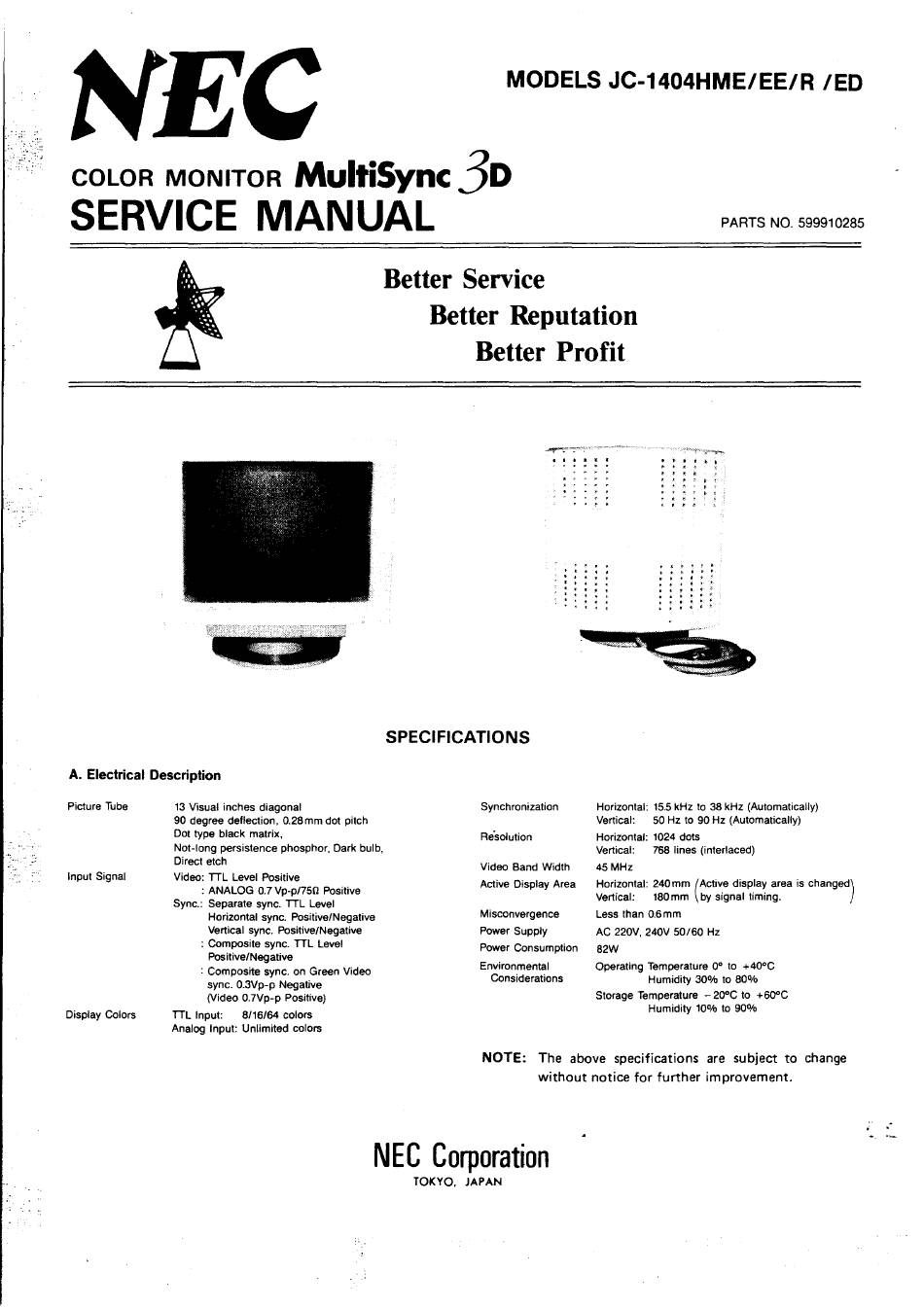

NEC MultiSync 3D JC-1404HME Service Manual

NEC
MODELS JC-1404HME/EE/R /ED
coLoR MONITOR
MultiSync
3D
SERVICE MANUAL
PARTS NO. 599910285
A. Electrical Description
Picture Tube
Input Signal
Display Colors
13 Visual inches diagonal
90 degree deflection, 0.28mm dot pitch
Dot type black matrix,
Not-long persistence phosphor, Dark bulb,
Direct etch
Video: TTL Level Positive
: ANALOG 0.7 Vp-p/750 Positive
Sync.: Separate sync. TTL Level
Horizontal sync. Positive/Negative
Vertical sync. Positive/Negative
: Composite sync. TTL Level
Positive/Negative
: Composite sync. on Green Video
sync. 0.3Vp-p Negative
(Video 0. 7Vp-p Positive)
TTL Input: 8/16/64 colors
Analog Input: Unlimited colors
Better Service
Better Reputation
Better Profit
SPECIFICATIONS
Synchronization
Resolution
Video Band Width
Active Display Area
Misconvergence
Power Supply
Power Consumption
Environmental
Considerations
I _. ~
..
~ ♦
, •
~
: : :
: : :
Horizontal: 15.5 kHz to 38 kHz (Automatically)
Vertical: 50 Hz to 90 Hz (Automatically)
Horizontal: 1024 dots
Vertical: 768 lines (interlaced)
45MHz
Horizontal: 240mm (Active display area is changed)
Vertical: 180mm by signal timing.
Less than 0.6mm
AC 220V, 240V 50/60 Hz
82W
Operating Temperature 0° to +400C
Humidity 30% to 80%
Storage Temperature -20°C to +600C
Humidity 10% to 90%
NOTE: The above specifications are subject to change
without notice for further improvement.
NEC Corporation
TOKYO, JAPAN
