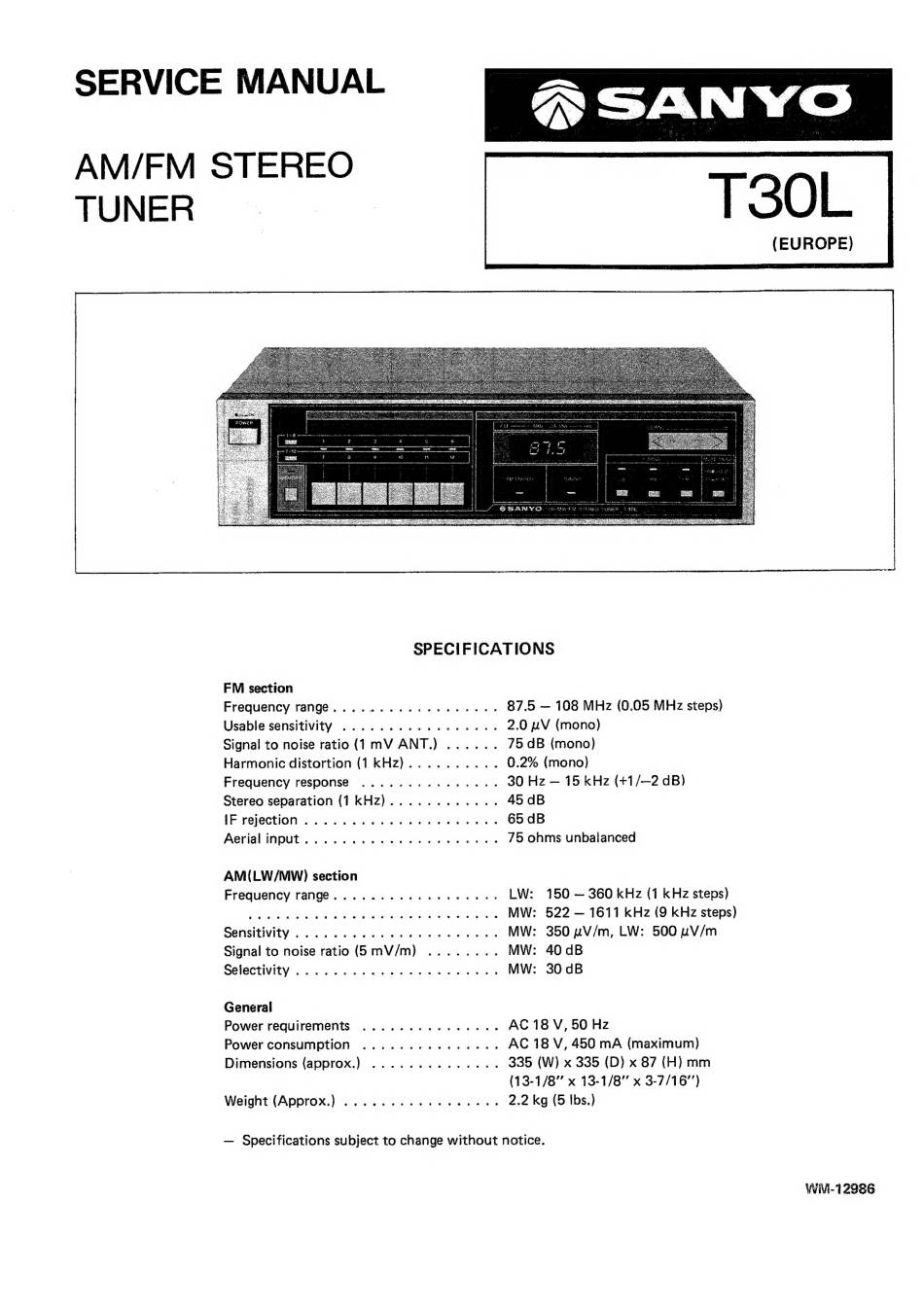

AM/FM STEREO
TUNER
FM section
Frequency range...
Usable sensitivity
...
Signal to noise ratio (1 mV ANT.)
>
-
©
#
@
8
TSOL
SPECIFICATIONS
«
Harmonic distortion (1 kHz)... .
Frequency response
IF rejection .........
Aerial input.......
AM(LW/MW) section
Frequency range....
Sensitivity
........
Stereo separation (1 kHz)
Signal to noise ratio (5 mV/m)
Selectivity ...........0.5:5
General
Power requirements
.
Power consumption
.
Dimensions (approx.)
Weight (Approx.)
...
87.5 — 108 MHz (0.05 MHz steps)
2.0 nV (mono)
75 dB (mono)
0.2% (mono}
30 Hz — 15 kHz (+1/—2 dB)
45 dB
65 dB
75 ohms unbalanced
LW:
150 ~ 360 kHz (1 kHz steps)
MW:
522 — 1611 kHz (9 kHz steps)
MW:
350 pV/m, LW: 500 uV/m
MW:
40dB
MW:
30dB
AC 18 V, 50 Hz
AC 18 V, 450 mA (maximum)
335 (W) x 335 (D) x 87 (H) mm
(13-1/8" x 13-1/8" x 3-7/16"')
2.2 kg (5 Ibs.)
— Specifications subject to change without notice.
(EUROPE)
WiVi-12986
