EN
User Manuel
Freezer - Fridge
DE
Bedienungsanleitung
Kühl-Gefrierkombination
FR
Manuel d'utilisation
Congélateur – Réfrigérateur
IT
Manuale per l'uso
Congelatore - Frigorifero
NL
Handleiding
Vriezer - Koelkast
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
marmo
o cerca il tuo prodotto tra le
migliori offerte di Frigoriferi e Congelatori
Smeg FC20EN4A Effetto
FC20EN4AX
FC20EN4AM

Advertisement

Table of Contents
loading

Related Manuals for Smeg FC20EN4A

Summary of Contents for Smeg FC20EN4A

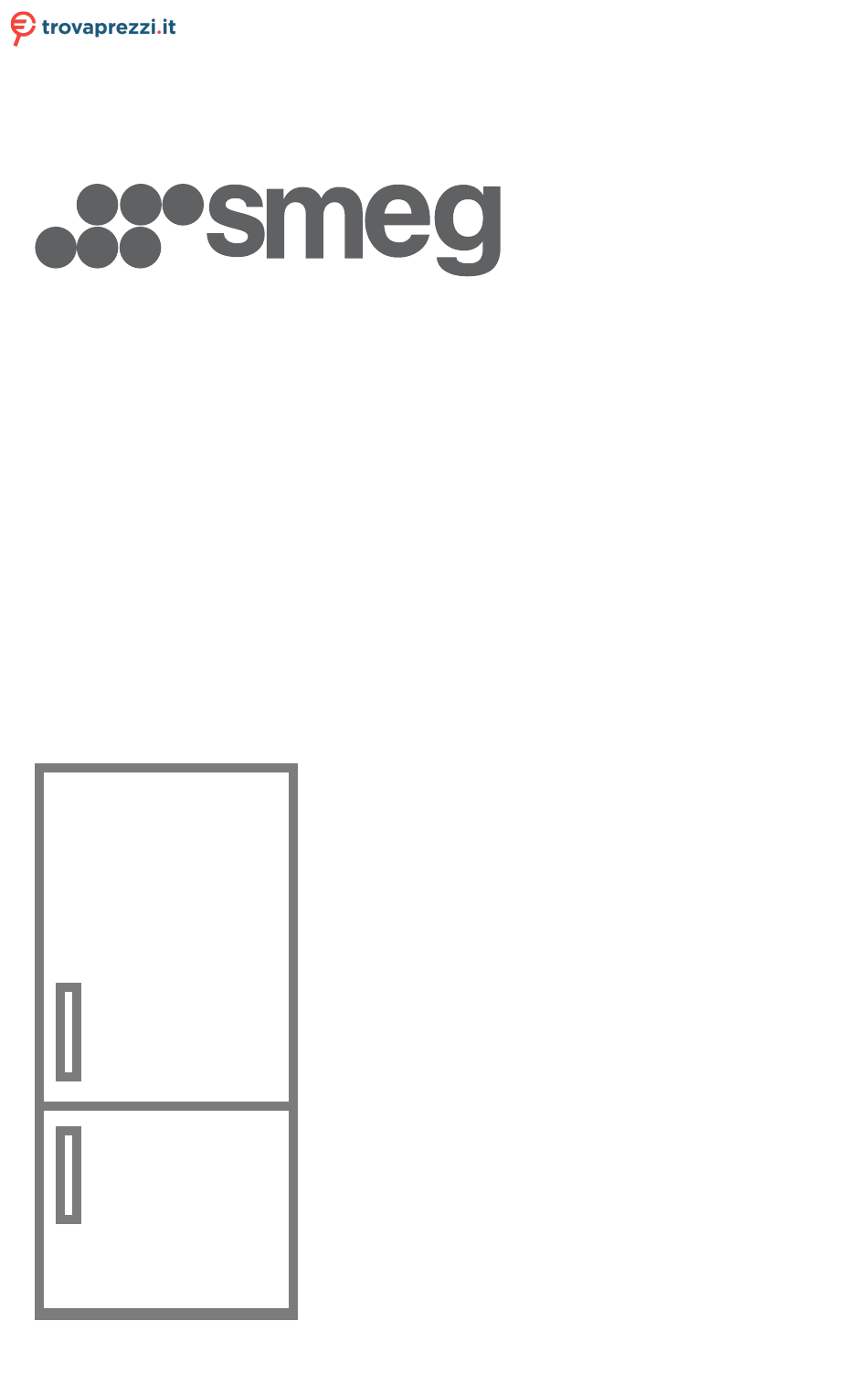

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Smeg FC20EN4A Effetto marmo o cerca il tuo prodotto tra le migliori offerte di Frigoriferi e Congelatori User Manuel Freezer - Fridge Bedienungsanleitung Kühl-Gefrierkombination Manuel d’utilisation Congélateur – Réfrigérateur Manuale per l’uso...
  • Page 2 Warning; Risk of fire / flammable materials FIRE BRANDGEFAHR Warnung; Brandgefahr / entflammbare Materialien Avertissement; Risque d'incendie / matières INCENDIE inflammables Avvertenza; Rischio di incendio / Materiali INCENDIO infiammabili Waarschuwing; Gevaar voor brand / ontvlambare BRAND materialen...

  • Page 3: Table Of Contents

    INDEX BEFORE USING THE APPLIANCE ............5 General warnings ..................... 5 Safety warnings ....................8 Installing and operating your fridge freezer ............9 Before Using your Fridge ................10 THE VARIOUS FUNCTION AND POSSIBILITIES ........11 Information about New Generation Cooling Technology ........ 11 Display and Control Panel ................
  • Page 4 THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ..30 Dimensions ..................... 31 TECHNICAL DATA ................. 32 INFORMATION FOR TEST INSTITUTES ..........32 CUSTOMER CARE AND SERVICE ............32 EN -4-...

  • Page 5: Before Using The Appliance

    PART - 1. BEFORE USING THE APPLIANCE General warnings This appliance is not intended to be used as a built-in appliance. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
  • Page 6 • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • This appliance is intended to be used in household and domestic applications such as: - staff kitchen areas in shops, offices and other working environments.
  • Page 7 older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given. •...

  • Page 8: Safety Warnings

    Old and out-of-order fridges or freezer • If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident. • Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

  • Page 9: Installing And Operating Your Fridge Freezer

    • Do not place glass bottles or cans in the ice-making compartment as they will burst when the contents freeze. • Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure their tops are tightly closed.

  • Page 10: Before Using Your Fridge

    • Before using your fridge freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge freezer after cleaning. • Install the two plastic distance guides (the parts on the black vanes -condenser- at the rear) by turning it 90°...

  • Page 11: The Various Function And Possibilities

    PART - 2. THE VARIOUS FUNCTION AND POSSIBILITIES Information about New Generation Cooling Technology Fridges with new-generation cooling technology have a different operating system to static fridges. Other (static) fridges may experience a build up of ice in the freezer compartment due to door openings and humidity in the food.

  • Page 12: Display And Control Panel

    Display and Control Panel Using the Control Panel 1. It is cooler set value screen. 2. It is super cooling indicator. 3. It is freezer set value screen. 4. It is super freeze indicator. 5. It is alarm symbol. 6. It is child-lock symbol. 7.

  • Page 13: Super Cool Mode

    Notes: • The maximum amount of fresh food (in kilograms) that can be frozen within 24 hours is shown on the appliance label. • For optimal appliance performance in maximum freezer capacity, activate Super Freeze mode 3 hours before you put fresh food into the freezer. •...

  • Page 14: Holiday Mode

    Holiday Mode How Would It Be Used? • Push "MODE" button until holiday symbol appears • If no button is pressed for 1 second. Mode will be set. Holiday symbol will blink 3 times. When mode is set, buzzer will sound beep beep. •...

  • Page 15: Screen Saver Mode

    Screen Saver Mode Purpose This mode saves energy by switching off all control panel lighting when the panel is left inactive. How To Use? • This mode will be activated when you press on "MODE" button for 3 seconds. • If no button is pressed within 30 seconds when he mode is active, lights of the control panel will go off.

  • Page 16: Temperature Settings

    Temperature Settings Freezer Temperature Settings • The initial temperature value for the freezer setting indicator is -18°C. • Press the set freezer button once. • When you first push this button, the last set value will blink on the screen. •...

  • Page 17: Temperature Adjustment Warnings

    Temperature Adjustment Warnings • It is not recommended that you operate your fridge in environments colder than 10°C in terms of its efficiency. • Do not start another adjustment while you are already making an adjustment. • Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the fridge and the ambient temperature in the location of your fridge.

  • Page 18: Accessories

    Accessories Ice Tray • Fill the ice tray with water and place in the freezer compartment. • After the water has completely frozen, you can twist the tray as shown below to remove the ice cubes. The Freezer Box The freezer box allows food to be accessed more easily.

  • Page 19: The Fresh Dial

    The Fresh Dial Fresh dial If the crisper is full, the fresh dial located in front of the crisper should be opened. This allows the air in the crisper and the humidity rate to be controlled, to increase the life of food within. The dial, located behind the shelf, must be opened if any condensation is seen on the glass shelf.

  • Page 20: Arranging Food In The Appliance

    PART - 3. ARRANGING FOOD IN THE APPLIANCE Refrigerator compartment • To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting. •...

  • Page 21: Freezer Compartment

    The table below is a quick guide to show you the most efficient way to store the major food groups in your refrigerator compartment. Food Maximum storage time How and where to store Vegetables and fruits 1 week Vegetable bin Wrap in plastic foil, bags, or in a meat Meat and fish 2 - 3 Days...
  • Page 22 NOTE: If you attempt to open the freezer door immediately after closing it, you will find that it will not open easily. This is normal. Once equilibrium has been reached, the door will open easily. Important note: • Never refreeze thawed frozen food. •...
  • Page 23 Maximum storage time Meat and fish Preparation (months) In salty water, or in an aluminium or plastic Snails container NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen. Maximum storage time Vegetables and Fruits Preparation...

  • Page 24: Cleaning And Maintenance

    Maximum storage Dairy products Preparation Storage conditions time (months) Packet Pure Milk – in its own In its own packet 2 - 3 (Homogenized) Milk packet Original packaging may be used for short-term Cheese - excluding In slices 6 - 8 white cheese storage.

  • Page 25: Defrosting

    Defrosting Your refrigerator performs automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporisation container behind your refrigerator and evaporates there. • Make sure you have disconnected the plug of your refrigerator before cleaning the vaporisation container.

  • Page 26: Before Calling Your After Sales Service

    PART - 6. BEFORE CALLING YOUR AFTER SALES SERVICE Errors Your fridge will warn you if the temperatures for the cooler and freezer are at improper levels or if a problem occurs with the appliance. Warning codes are displayed in the freezer and cooler indicators.
  • Page 27 ERROR TYPE MEANING WHAT TO DO 1. Set the fridge temperature to a colder value or set Super Cool. This should remove the error code once the required temperature has been reached. Keep doors Likely to occur after: closed to improve time Fridge - Long term power taken to reach the correct...
  • Page 28 • There is an adequate distance between the appliance and surrounding walls • Is the ambient temperature within the range of values specified in the operating manual? Your refrigerator is operating noisily The following noises can be heard during normal operation of the appliance. Cracking (ice cracking) noise occurs: •...

  • Page 29: Hints For Energy Saving

    • If the problem persists after you have followed all the instructions above, please consult the nearest Authorised Service Centre. • This appliance is designed for domestic use and for the stated purposes only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with these instructions, we emphasise that the manufacturer and the dealer will not be responsible for any repair or failure within the guarantee period.
  • Page 30 THE PARTS OF THE APPLIANCE AND THE PART - 7. COMPARTMENTS This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model. A) Refrigerator compartment B) Freezer compartment 1) Wine rack * 9) Freezer bottom basket 2) Refrigerator shelves 10) Levelling feet...
  • Page 31 Dimensions Overall dimensions 2010 Space required in use 2060 Overall space required in use 1179 EN -31-...
  • Page 32 The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model. Visit our website to: Get User manuals: https://www.smeg.com/info/download-manuals Get Service information: https://www.smeg.com/services/customer-service EN -32-...
