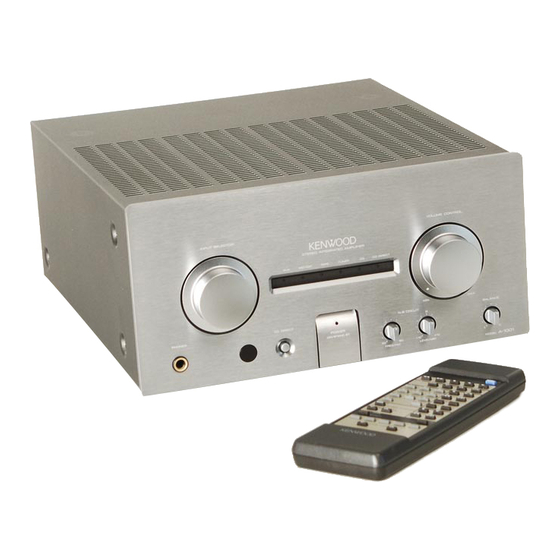

Kenwood A-1001 Service Manual

SERVICE MANUAL
© 1993-7 PRINTED IN JAPAN
B51-4757-00 (S) 2335
Panel assy Metallic cabinet Front glass Knob
(A60-0424-1 1) (A01-3044-01) (B10-1992-04) (K29-5753-04)
NSN Ol@)B)
STEREO INTEGRATED AMPLIFIER
Phono jack Knob Knob
(E11-0210-05) (K29-5754-04) (K29-5818-14)
Phono jack Phono jack Slide switch Rectangular receptacle AC outlet* AC power cord*
(E63-0098-05) (E63-0099-05) (S31-3010-05):M only (E08-0312-05) (E03-) (E03-)
SYSTEM
CONTROL
AC110-120V-/220-240V-50/80Hz
SWITCiHED 250W MAX.
AC110-120V- <@B» AC220-240v-
* Refer to parts list on page 23.
