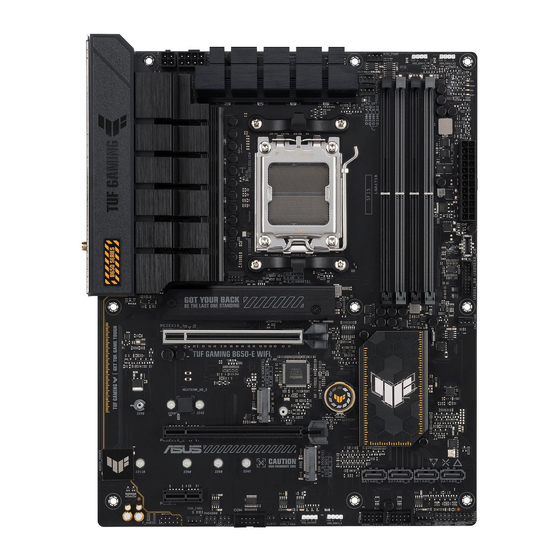

  • Page 1 TUF GAMING B650-E WIFI...
  • Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

  • Page 3: Table Of Contents

    Contents Safety information ...................... iv About this guide ......................v Package contents ....................... vi TUF GAMING B650-E WIFI specifications summary ..........vi Chapter 1: Product Introduction Before you proceed ..................1-1 Motherboard overview ................. 1-2 Central Processing Unit (CPU) ..............1-10 System memory ..................

  • Page 4: Safety Information

    Safety information Electrical safety • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. • When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.

  • Page 5: About This Guide

    Refer to the following sources for additional information and for product and software updates. ASUS website The ASUS website (www.asus.com) provides updated information on ASUS hardware and software products. Optional documentation Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer.

  • Page 6: Package Contents

    Package contents Check your motherboard package for the following items. Motherboard 1 x TUF GAMING B650-E WIFI motherboard Cables 2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas Miscellaneous 1 x Rubber Package for M.2 2 x Screw packages for M.2 SSD...
  • Page 7 TUF GAMING B650-E WIFI specifications summary Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • Page 8 TUF GAMING B650-E WIFI specifications summary 2 x USB 10G ports (1 x Type-A +1 x USB Type-C ® 3 x USB 5G ports (3 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 1 x DisplayPort Back Panel I/O 1 x HDMI™...
  • Page 9 TUF GAMING B650-E WIFI specifications summary ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED Special Features - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header...
  • Page 10 • Specifications are subject to change without notice. Please refer to the ASUS website for the latest specifications. • MyASUS offers a variety of support features such as helping to troubleshoot issues, optimizing product performance, integrating ASUS software, and recovery drive creation.

  • Page 11: Chapter 1: Product Introduction

    • The pin definitions in this chapter are for reference only. The pin names depend on the location of the header/jumper/connector. • For more information on installing your motherboard, please scan the code below: TUF GAMING B650-E WIFI...

  • Page 12: Motherboard Overview

    Motherboard overview 24.4cm(9.6in) ADD_GEN 2_1 ADD_GEN 2_2 AIO_PUMP ATX_12V_2 ATX_12V_1 HDMI_DP CPU_FAN DIGI DRAM +VRM CPU_OPT BOOT BIOS_FLBK FLBK_LED U32G1_23 USB_13 _U32G1_4 USB_1_5 SOCKET AM5 U32G2_C11 LAN_U32G2_10 M.2(WIFI) AUDIO PCIE SATA 5.0 X4 Ethernet 2280 2260 2242 CHA_FAN2 PCIEX16_1 Super B650 BATTERY 2280...
  • Page 13 The system may become unstable or may not boot up if the power is inadequate. • If you want to use two high-end PCI Express x16 cards, use a PSU with 1000W power or above to ensure the system stability. TUF GAMING B650-E WIFI...
  • Page 14 6. M.2 slots (Key M) The M.2 slots allow you to install M.2 devices such as M.2 SSD modules. AMD Ryzen™ 7000 Series Desktop Processors: • - M.2_1 slot supports PCIe 5.0 x4 mode M Key design and type 2242/2260/2280 storage devices.
  • Page 15 If the steps above do not help, remove the onboard button cell battery and short the two pins again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the button cell battery. TUF GAMING B650-E WIFI...
  • Page 16 14. COM Port header The COM (Serial) Port header allows you to connect a COM port module. Connect the COM port module cable to this header, then install the module to a slot opening on the system chassis. PIN 1 15.
  • Page 17 If an error is found, the critical component’s LED stays lit up until the problem is solved. The Q-LEDs provide the most probable cause of an error code as a starting point for troubleshooting. The actual cause may vary from case to case. TUF GAMING B650-E WIFI...
  • Page 18 BIOS Flashback™ button. Press the BIOS FlashBack™ button for three seconds until the FlashBack LED blinks three times, indicating that the BIOS FlashBack™ function is enabled. To use BIOS FlashBack™: 1) Visit https://www.asus.com/support/ and download the latest BIOS version for this motherboard. Chapter 1: Product Introduction...
  • Page 19 ® Wi-Fi 6E ports. These ports connect to Wi-Fi antennas. • Ensure that the ASUS Wi-Fi moving antennas are securely installed to the Wi-Fi ports. • Ensure that the antennas are at least 20 cm away from all persons. Microphone port (pink). This port connects a microphone.

  • Page 20: Central Processing Unit (Cpu)

    CPU into the socket to prevent bending the connectors on the socket and damaging the CPU. • ASUS will not cover damages resulting from incorrect CPU installation/removal, incorrect CPU orientation/placement, or other damages resulting from negligence by the user. Installing the CPU...
  • Page 21 TUF GAMING B650-E WIFI 1-11...

  • Page 22: System Memory

    (D/C) from the same vendor. Check with the retailer to get the correct memory modules. • Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. Recommended memory configurations...
  • Page 23 Installing a DIMM To remove a DIMM TUF GAMING B650-E WIFI 1-13...

  • Page 24: Installation

    M.2 installation • Use a Phillips screwdriver when removing or installing the screws or screw stands mentioned in this section. • The M.2 is purchased separately. Completely loosen the screws on the heatsink. Remove the heatsink. Install your M.2 to your M.2 slot(s). For 2280, 22110 length (optional) Remove the pre-installed removable M.2 Q-Latch screw at the 2280 length screw hole.
  • Page 25 If the thermal pad on the M.2 heatsink becomes damaged and needs to replaced, we recommend replacing it with a thermal pad with a thickness of 1.25mm. Replace the heatsink(s). Secure the heatsink(s) using the screws removed previously. TUF GAMING B650-E WIFI 1-15...

  • Page 26: Wi-Fi Antennas Installation

    Wi-Fi antennas installation Installing the ASUS Wi-Fi antennas Connect the bundled ASUS Wi-Fi antennas connectors to the Wi-Fi ports at the back of the chassis. • Ensure that the ASUS Wi-Fi moving antenna is securely installed to the Wi-Fi ports.

  • Page 27: Chapter 2: Bios And Raid Support

    For more details on BIOS and RAID configurations, please refer to www.asus.com/support. Knowing BIOS The new ASUS UEFI BIOS is a Unified Extensible Interface that complies with UEFI architecture, offering a user-friendly interface that goes beyond the traditional keyboard- only BIOS controls to enable a more flexible and convenient mouse input. You can easily navigate the new UEFI BIOS with the same smoothness as your operating system.

  • Page 28: Bios Setup Program

    BIOS Setup program Use the BIOS Setup to update the BIOS or configure its parameters. The BIOS screens include navigation keys and brief onscreen help to guide you in using the BIOS Setup program. Entering BIOS at startup To enter BIOS Setup at startup, press <Delete> or <F2> during the Power-On Self Test (POST).

  • Page 29: Asus Ez Flash 3

    ASUS EZ Flash 3 The ASUS EZ Flash 3 feature allows you to update the BIOS without using an OS-based utility. Ensure to load the BIOS default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu or press hotkey <F5>.

  • Page 30: Asus Crashfree Bios 3

    ASUS CrashFree BIOS 3 The ASUS CrashFree BIOS 3 utility is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can restore a corrupted BIOS file using a USB flash drive that contains the BIOS file.

  • Page 31: Raid Configurations

    For more information on configuring your RAID sets, please refer to the RAID Configuration Guide which you can find at https://www.asus.com/support, or by scanning the code. RAID definitions Volume provides the ability to link-together storage from one or several disks, regardless of the size of the space on those disks.
  • Page 32 Chapter 2: BIOS and RAID Support...

  • Page 33: Appendix

    Appendix Notices FCC Compliance Information Responsible Party: Asus Computer International Address: 48720 Kato Rd., Fremont, CA 94538, USA Phone / Fax No: (510)739-3777 / (510)608-4555 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 34 HDMI Trademark Notice The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. Compliance Statement of Innovation, Science and Economic Development Canada (ISED) This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s).
