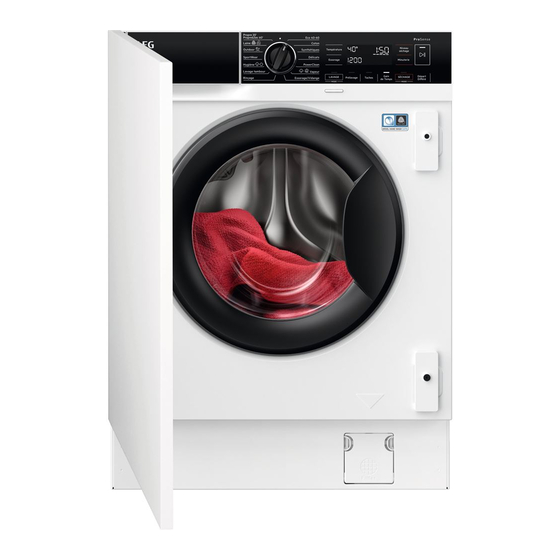

AEG LWG88416BI User Manual
  1. Manuals
  2. Brands
  3. AEG Manuals
  4. Washer/Dryer
  5. LWG88416BI
  6. User manual
AEG LWG88416BI User Manual

AEG LWG88416BI User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
aeg.com/register
EN User Manual | Washer Dryer
LWG88416BI
aeg.com\register

Advertisement

Table of Contents
loading

Related Manuals for AEG LWG88416BI

Summary of Contents for AEG LWG88416BI

  • Page 1 EN User Manual | Washer Dryer LWG88416BI aeg.com\register...

  • Page 2: Table Of Contents

    FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
  • Page 3 My AEG Care app ENGLISH...

  • Page 4: Safety Information

    SAFETY INFORMATION Before beginning the installation and use of this appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.
  • Page 5 1.2 General Safety • This appliance is for washing and drying domestic-type machine-washable and dryable laundry only. • Do not use the dryer function if laundry has been soiled with industrial chemicals. • This appliance is designed for single household domestic use in an indoor environment.
  • Page 6 • The appliance must be connected to the water mains using the new supplied hose sets, or other new hose sets supplied by the Authorised Service Centre. • Old hose sets must not be reused. • If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

  • Page 7: Safety Instructions

    • Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket. 2. SAFETY INSTRUCTIONS 2.1 Installation 2.2 Electrical Connection WARNING! The installation must comply with Risk of fire and electric shock. relevant national regulations. • WARNING: This appliance is designed to •...
  • Page 8 2.4 Use discontinued: motor and motor brushes, transmission between motor and drum, pumps, shock absorbers and springs, WARNING! washing drum, drum spider and related Risk of injury, electric shock, fire, burns ball bearings, heaters and heating or damage to the appliance. elements, including heat pumps, piping and related equipment including hoses, •...

  • Page 9: Product Description

    3. PRODUCT DESCRIPTION 3.1 Appliance overview 10 11 12 Hinge supports Drain pump filter Detergent dispenser Front feet for levelling the appliance Control panel Drain hose Magnetic plate Mains cable Door handle Inlet hose connection Rating plate Back feet for levelling the appliance Plate with rubber beater The rating plate reports: model name...

  • Page 10: Installation

    Cold water Water supply Water supply pressure Minimum 0.5 bar (0.05 MPa) Maximum 10 bar (1.0 MPa) Maximum wash load Cotton 8.0 kg Maximum dry load Cotton 4 kg Synthetics 3 kg Spin Speed Maximum spin speed 1551 rpm Connect the water inlet hose to a water tap with a 3/4'' thread. 5.
  • Page 11 1. Put two polystyrene packaging elements on the floor under the appliance. WARNING! It is strongly recommended that this action is carries out by two persons. 2. Carefully put the appliance down on its rear side. Make sure not to damage the hoses. 3.
  • Page 12 6. Remove the three bolts, the hose holders and plastic spacers by using the spanner supplied with the appliance. 7. Close the holes with the plastic caps you find in the user manual bag. Put the smallest cap F in upper hole and the two bigger caps G in lower holes.
  • Page 13 The appliance must be level and stable. CAUTION! Do not put cardboard, wood or equivalent materials below the appliance feet to adjust the level. 5.5 Hose and cable connection 1100 mm 1450 mm 1230 mm 960 mm 1360 mm 900 mm The inlet hose 1.
  • Page 14 3. Connect the hose to the back of the appliance. Do not turn the inlet hose downwards, but turn it left or right depending on the position of your water tap. 4. Loosen the ring nut to fix it in the correct position.
  • Page 15 To a stand pipe with vent-hole Directly into a drain pipe at a height of not less Ø 40 mm than 60 cm (23.6”) and not more than 100 cm (39.3”). The end of the drain hose must always be ventilated , i.e.
  • Page 16 5.6 Building in This appliance has been designed to be built into the kitchen furniture. See the minimum recess min. 600 mm dimensions in the drawings. min. 560 mm min. 820 mm 16-22 mm 596 mm 553 mm If hoses run behind the appliance, make sure that nothing closes the small recess indicated with the measures 50 x 50 mm.
  • Page 17 5.7 Preparation and assembly of the cupboard door The dimensions of the cupboard door should be: • width min. 595 - max. 598 mm; • thickness 16-22 mm. Factory pre setting The appliance is originally pre set for the assembly of a cupboard door opening from right to left.
  • Page 18 Make sure that the plate with magnet is on the upper position. Cupboard door preparation For countersinking the door, it is recommended to call a professional. Align the cupboard door to the furniture correctly. Measure the distance X to fix the height of the hole to countersink the upper hinge.
  • Page 19 To align the door perfectly, make sure that the edge of cupboard door is parallel with the appliance edge and to respect the proper opening angle (max. 105 °). max. 105° Mounting the door Fix the hinges to the hinge supports on the appliance by means of the two supplied screws The hinges can be adjusted to compensate for possible uneven thickness...

  • Page 20: Control Panel

    5.8 Electrical connection The power supply cable must be easily accessible after installing the appliance. At the end of installation you can connect the For any electrical work required to install this mains plug to the mains socket. appliance, contact our Authorised Service The rating plate and the 'Technical Data' Centre.
  • Page 21 Prewash touch button and permanent Start / Pause touch button Extra Rinse option Delay Start touch button On/Off push button Dry Mode touch button and permanent Wash Mode touch button Anti-crease option Time Save touch button and permanent Child Lock option Stains touch button and permanent Soft Plus option 6.2 Display...

  • Page 22: Dial And Buttons

    Auto Dry indicator: Iron dry Cupboard dry Extra dry Washing phase indicator Extra Rinse indicator. PowerCare phase indicator. Drum clean indicator. This is a recommendation to perform the drum cleaning. Re‐ fer to paragraph "Cleaning the drum" in "Care and cleaning" chapter. Anti-crease phase indicator.
  • Page 23 7.4 Spin This option is recommended for heavily soiled laundry, especially if containing sand, dust, When you set a programme, the appliance mud and other solid particles. automatically sets the default spin speed. Touch repeatedly this button to: • Change the spin speed. The display The option can increase the programme shows only the spin speeds available for duration.
  • Page 24 To activate/deactivate this option , hold the Stains button pressed for 3 seconds until the indicator indicator comes on/goes off on the display. When it is activated, the appliance will default to this option after you switch it off or change/ reset the programme.
  • Page 25 This phase reduces fabric creasing and • Cupboard dry: laundry to be put in facilitates the fabric ironing. store. To activate/deactivate this option, hold the • Extra dry: laundry to be fully dried. Dry Mode button pressed for 3 seconds until the indicator comes on/goes off on the display.

  • Page 26: Programmes

    8. PROGRAMMES 8.1 Programme Chart Programme Reference Maxi‐ Programme description Default tempera‐ spin speed (Type of load and level of soiling) ture Spin speed load Temperature range range 1600 rpm 8.0 kg 1600 rpm - Eco 40-60 (Wash 400 rpm only mode) 40 °C White cotton and fast-coloured cotton.
  • Page 27 Programme Reference Maxi‐ Programme description Default tempera‐ spin speed (Type of load and level of soiling) ture Spin speed load Temperature range range 1.0 kg Cottons, Synthetics, Delicates. Short and gentle steam pro‐ gramme to refresh even your very delicate garments, includ‐ Steam ing very delicate garments with sequins, lace etc.
  • Page 28 Programme Reference Maxi‐ Programme description Default tempera‐ spin speed (Type of load and level of soiling) ture Spin speed load Temperature range range 1200 rpm 3.0 kg Synthetic sport items. This programme is designed to gently (1200- 400 wash modern outdoor sportswear and is also suitable for Sportswear rpm) gym, cycling or jogging clothes or similar.
  • Page 29 Programme Reference Maxi‐ Programme description Default tempera‐ spin speed (Type of load and level of soiling) ture Spin speed load Temperature range range Reset position. The display shows dashes only. According to Commission Regulation EU 2019/2023. This programme at default temperature and spin speed, in washing only mode, with rated capacity 8.0 kg is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle.
  • Page 30 Programme ■ ■ Steam ■ ■ ■ Spin/Drain ■ ■ ■ ■ ■ ■ Rinse ■ ■ ■ Machine Clean ■ ■ ■ ■ ■ ■ ■ ■ ■ Hygiene ■ ■ ■ ■ ■ ■ ■ Sportswear ■ ■ ■...
  • Page 31 ▲ ▲ Delicates ▲ ▲ Hygiene ▲ ▲ ▲ Hygiene ▲ ▲ ▲ Sportswear ▲ ▲ Outdoor ▲ ▲ Wool ▲ ▲ Quick 20’ Wash&Dry 60’ At temperature higher than 60 °C the use of powder detergent is recommended. ▲ = Recommended Company for the washing of wool garments labelled as “hand wash”...
  • Page 32 Dryness Level Type of fabric Load Cottons and Linen up to 4 kg (bathrobes, bath towels, etc) Extra Dry For towelling materials Denim garments up to 3 kg Cottons and Linen up to 4 kg (bathrobes, bath towels, etc) Cupboard Dry For items to be stored Synthetics and mixed fabrics up to 3 kg...

  • Page 33: Settings

    Dryness Level Type of fabric Load Spin Suggested du‐ (kg) speed ration (mins) (rpm) Synthetics and mixed fabrics 1200 135 - 150 (jumpers, blouses, underwear, household and bed linen) 1200 45 - 55 Delicates 1200 155 - 165 (acrylics, viscose and delicate mixed fabrics) 1200 95 - 105 Wool...

  • Page 34: Before First Use

    10. BEFORE FIRST USE 1. Make sure that the electrical power is 4. Set and start a programme for cotton at available and the water tap is open. the highest temperature without any 2. Pour 2 litres of water into the detergent laundry in the drum.
  • Page 35 With the flap in the position DOWN: • Do not use gelatinous or thick liquid - Flap for powder or liquid detergent. detergents. • Do not exceed to liquid detergent dose indicated on the flap. • Do not set the prewash phase. Always follow the instructions that you •...
  • Page 36 11.6 Starting a programme 2. Touch the Delay Start button repeatedly until the display shows the desired delay Touch the Start / Pause button to start time. the programme. It is not possible to start the 3. Touch the Start / Pause button again programme when the indicator of the button to start the new countdown.
  • Page 37 If the ProSense Technology has About 20 minutes after the programme completed and the water filling has start, the programme duration could be already started, the new programme adjusted again depending on the starts without repeating the ProSense capacity of water absorption of the Technology.

  • Page 38: Daily Use - Washing & Drying

    The indicator of the Start / Pause button The option indicator Rinse Hold goes off. disappears. The door unlocks and the indicator goes off. If you have selected No Spin , the 1. Press button On/Off to deactivate the appliance will only drain the water. appliance.
  • Page 39 12.1 Complete wash&dry programme To have a good drying by using less energy and in a shorter time, the Non-automatic wash&dry programmes appliance does not let you set a too low In some washing programmes, you can spin speed for the items to be washed combine Wash Mode and Dry Mode for and dried.

  • Page 40: Daily Use - Drying Only

    remove the laundry when the phase is 1. Remove the laundry from the appliance. almost completed or completed. The 2. Make sure that the drum is empty. indicator remains lit. • Press the On/Off button for some seconds After drying phase, clean the drum, the to deactivate the appliance.

  • Page 41: Fluff In The Fabrics

    13.4 At the end of the drying almost completed or completed. The programme indicator remains lit. • Press the On/Off button for some seconds • The appliance stops automatically. to deactivate the appliance. • The acoustic signals operate (if they are active).
  • Page 42 15.2 Stubborn stains • Do not wash white and coloured items together. For some stains, water and detergent is not • Some coloured items can discolour with sufficient. the first wash. We recommend that you wash them separately for the first couple We recommend that you pre-treat these of times.
  • Page 43 • Do not mix different types of detergents. In areas where the water is soft it is not • Use less detergent if: necessary to use a water softener. – you are washing a small load, To find out the water hardness in your area, –...

  • Page 44: Care And Cleaning

    • type of laundry Experience will help you to dry the laundry • weight of the load better. Take note of the duration of the cycles done before. 15.10 Additional drying To avoid the static charge at the end of the drying cycle: If, at the end of the drying programme, the laundry is still damp, set a short drying cycle...
  • Page 45 CAUTION! Do not use alcohol, solvents or chemical products. CAUTION! Do not clean the metal surfaces with chlorine-based detergent. 16.4 Descaling Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface. If the water in your area is hard or medium hard, we recommend that you use a water softener for washing Always obey the instructions that you find...
  • Page 46 the recess. Use a small brush to clean the recess. Occasionally, at the end of a cycle the display may show the icon : this is a recommendation to perform the “drum cleaning”. Once the drum cleaning has been performed, the icon disappears. 16.8 Cleaning the detergent dispenser To prevent possible deposits of dried...
  • Page 47 WARNING! • Do not remove the filter while the appliance operates. • Do not clean the pump if the water in the appliance is hot. Wait until the water cools down Proceed as follows to clean the pump: 1. Open the pump cover. 2.
  • Page 48 6. Turn the filter anti-clockwise to remove it 7. If it is necessary, remove fluff and objects from the filter recess. Make sure that the impeller of the pump can rotate. If it does not rotate, contact the Authorised Service Centre.
  • Page 49 10. Close the pump cover. When you drain the water with the emergency drain procedure, you must activate the drain system again: 1. Put 2 litres of water in the main wash compartment of the detergent dispenser. 2. Start the programme to drain the water. 16.10 Cleaning the inlet hose and the valve filter 45°...

  • Page 50: Troubleshooting

    16.12 Frost precautions 4. Empty the drain pump. Refer to the emergency drain procedure. If the appliance is installed in an area where 5. When the drain pump is empty, install the the temperature can reach values around 0° inlet hose again. C or drop below, remove the remaining water from the inlet hose and the drain pump.
  • Page 51 Problem Possible solution • Make sure that the water tap is open. • Make sure that the pressure of the water supply is not too low. For this infor‐ The appliance does not fill mation, contact your local water authority. with water properly.
  • Page 52 Problem Possible solution • Set the spin programme. • Make sure that the drain filter is not clogged. Clean the filter, if necessary. Re‐ The spin phase does not op‐ erate or the washing cycle fer to "Care and cleaning". lasts longer than usual.
  • Page 53 Problem Possible solution The fabrics washed in the previous cycle released fluff of a different colour: • The drying phase helps to eliminate some fluff. The laundry is full of different • Clean the clothes with a fluff remover. colours fluff. In case of an excessive amount of fluff in the drum refer to “Fluff in the fabrics"...

  • Page 54: Consumption Values

    18. CONSUMPTION VALUES 18.1 Introduction See the web link www.theenergylabel.eu for detailed information about Energy Label. The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance.
  • Page 55 Eco 40-60 pro‐ rpm 1) Litres hh:mm °C gramme Half load 0.430 44.0 02:25 52.00 32.0 1551 Quarter load 0.180 34.0 02:25 54.00 24.0 1551 Maximum spin speed. Wash and dry cycle Eco 40-60 pro‐ rpm 1) gramme and Cup‐ Litres hh:mm °C...

  • Page 56: Environmental Concerns

    Programme rpm 1) Litres hh:mm °C Wool 0.200 55.0 01:05 30.00 30.0 1200 30°C Reference indicator of the spin speed. Suitable for washing heavily soiled textiles. Suitable for washing lightly soiled cottons, synthetic and mixed fabrics. It also performs as quick washing cycle for lightly soiled laundry. 18.5 Common programmes - Wash and dry These values are indicative only.
  • Page 60 My AEG Care app The software in this product contains components that are based on free and open source software. AEG gratefully acknowledges the contributions of the open software and robotics communities to the development project. To access the source code of these free and open source software components whose license conditions require publishing, and to see their full copyright information and applicable license terms, please visit: http://aeg.opensoftwarerepository.com (folder NIUS)
