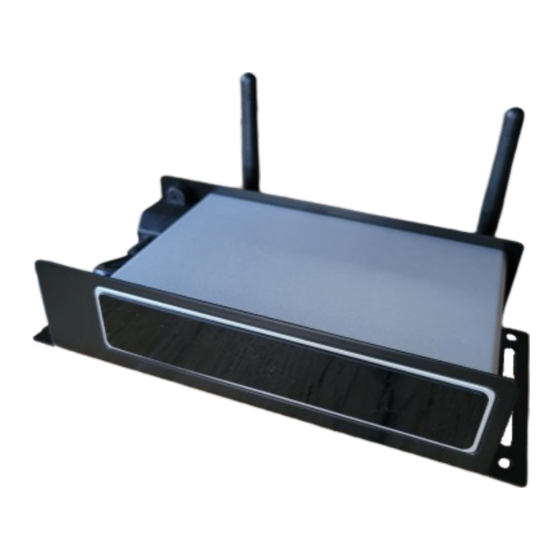

- Page 1 DDA-SA235D User Manual Wireless Streaming Amplifier Wireless Spotify AirPlay Multi-Room InternetRadio...
-
Page 3: Table Of Contents
Table of contents 1. Introduction ..............................1 2. What's in the box .............................1 3. Main Features ............................2 4. Specification ............................3 5. Interface..............................4 6. Remote controller ............................5 7. Connection diagram ..........................6 8. How to use...............................6 8.1 App download ...........................6 8.2 Connection ............................7 8.2.1 Option 1 - Connection via app ....................7 8.2.2 Option 2 - Connection via LAN ....................8 8.2.3 Option 3 - Bluetooth pair ......................8... -
Page 4: Introduction
1. Introduction DDA-SA235D streaming Bluetooth 5.0 amplifier. Adding it to your current stereo system will enable you to stream music from your smart device, USB, NAS or streaming services, such as Spotify,Tidal or Qobuz etc by 4STREAM App, AirPlay, Bluetooth or other DLNA apps. Adding more units to your home audio system... -
Page 5: Main Features
- Custom URL’s can be saved as a preset in the webinterface, this makes it possible to use a central icecast server to stream all radio streams to the DDA-SA235D’s which makes maintenance of the streams easy for big systems. -
Page 6: Specification
4. Specification Wireless network IEEE802.11 b/g/n 2.4G Ethernet Single 10/100M RJ45 Connectivity USB Host Play USB music Bluetooth Distance Power Input DC 18V/4A Audio Input 3.5mm Line in Frequency response 20Hz to 20kHz Speaker Power 2X35W@4Ω , 2X18W@8Ω THD+N 0.03%, @1kHz 50W+50W 24V-4Ω Speaker Impedance 4-8ohms Music Format... -
Page 7: Interface
5. Interface DDA-SA235D IPC8 Controller (optional accessory) Connect to DDA-SA235D using cat5/6 patch cable. LED Device status White: Streaming Blue: Bluetooth, ready to pair when flashing Red: PC/USB Green: Aux input IR receiver for remote control. WiFi antenna connection for (supplied) Wi-Fi antenna. -
Page 8: Remote Controller
6. Remote controller... -
Page 9: Connection Diagram
7. Connection diagram 8. How to use 8.1 App download Download the 4STREAM application from App Store for iOS based devices and Google Play Store for Android based devices. The application supports English, Spanish, French, German, Italian, Portugese, Korean, Simplified Chinese, Traditional Chinese and Japanese... -
Page 10: Connection
8.2 Connection 8.2.1 Option 1 - Connection via Wi-Fi -> We recommend using LAN, see option 2. 1. Power the device. 2. Connect your mobile devices to your network. 3. Go for mobile device WLAN settings> Connect . (short press the reset button if mobile device to hotspot SoundSystem_xxxx you will see a WiFi logo the hotspot is not found) 4. -
Page 11: Option 2 - Connection Via Lan
*Attention for Android users Different brand mobile phones may ask you to allow to use SoundSystem WiFi network, please choose yes, if not, you may not able to set up successfully . 8.2.2 Option 2 - Connection via LAN 1. Before powering up the device plug in the wired cable to the RJ45 Ethernet, and after that the power supply. The device will show on the app in about 10 seconds. -
Page 12: App Features
8.3 App features 8.3.1 Device setting Rename: to customize the device name Speaker info: you will see the device information like Mac ID,device,IP, SSID etc EQ: open to control the device bass and treble Preset content: you will see all the preset contents here Sleep timer: Countdown to turn off... -
Page 13: To Play Music From Nas
8.3.3 To play music from NAS Please note that our system only support NAS with DLNA feature. 8.3.4 To play line in mode - Connect the AUX cables to the TV or other audio sources - Choose line in mode on the application or remote control 8.3.5 To play Bluetooth mode - Choose the Bluetooth mode on the application or remote control, the LED will change to blue - Open the Bluetooth on your cellphone/tablet... -
Page 14: Streaming Services
8.4 Streaming services To use the online streaming services, iHeartRadio, Spotify, Tidal, Qobuz and Deezer may need to register account at the service provider platform. 8.4.1 Spotify To use Spotify, you have to own spotify premium account . You will find the device in the device list on the Spotify application and choose the device you want to play. NOTE: one Spotify account can only streaming to one device at a time. -
Page 15: Airplay
8.4.2 AirPlay The device supports AirPlay1, you can choose the AirPlay and play music 8.4.3 Qplay Our devices support QQ music using the Qplay protocol, you have to turn on the Qplay in the QQ music player setting and then find the device in the Qplay list. -
Page 16: Multiroom And Multizone
8.5 Multiroom and Multizone Users can group multiroom and multizone on the Application, for example you can group device 1,2,3 and 4 together and play same music in sync, or group device 1 and 2 as zone A and device 3 and 4 as zone B, and play different music in zone A and zone B. -
Page 17: Left And Right Channel
8.6 Left and right channel Users can choose the right channel or left channel or stereo mode on the application, or choose left channel on device A and choose right channel on device B, and group them together and play in sync to make stereo. -
Page 18: Firmware Update
8.10 Firmware update The application will notify you in app when there is a new fireware version available.It's recommended to update fireware whenever available as this might not only correct bugs or improve security,but also can add new features or services. 9. -
Page 19: To Play Music From Windows Pc Via Foobar2000
9.2 To play music from Windows PC via Foobar2000 Our devices support UPnP protocol, with the popular foobar2000, you can play music from Windows PC to our devices. Please follow the steps below: 1. download the foobar2000 and install it. 2. -
Page 21: Web Interface
10. Web interface To activate, reset the device to factory settings, see page 14. Then browse to the device’s IP adress which can be found in the app under settings/loudspeaker information. Log in with your password, default is admin. input online-radio preset list 10.1 Custom URL... -
Page 22: Faq
Q: Do your devices support airplay and third-party DLNA apps? A: Yes. They support airplay and third-party apps like BubbleUPNP... Q: How many zones can you group in one system? A: 12 rooms is the maximum, while 8 zones are recommended. Q: How many individual devices can you use in one system? A: As long as they are not grouped the maximum depends on the available IP adresses from the router.
