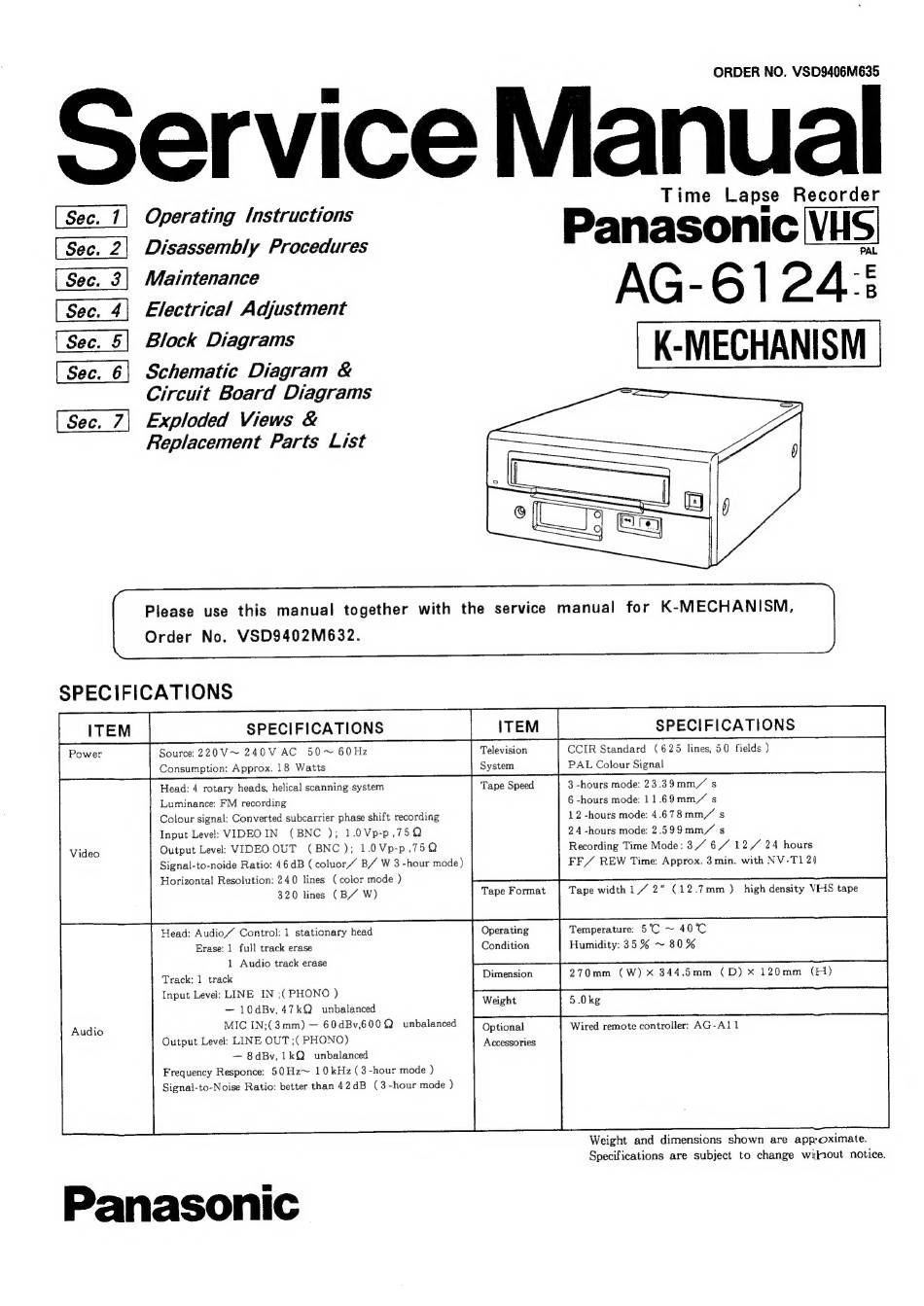

ORDER NO. VSD9406M635
Sec.
Electrical Adjustment
Sec.
Circuit Board Diagrams
Sec. 7|
Exploded Views &
Replacement Parts List
SPECIFICATIONS
Luminance: FM recording
Colour signal: Converted subcarrier phase shift recording
Tape width 1// 2" (12.7mm ) high density VHS tape
Operating
Temperature:
5°C ~ 40T
Condition
Humidity:
35% ~ 80%
Input Level: VIDEOIN
(BNC
); 1.0Vp-p,75Q
Output Level: VIDEO OUT
(BNC);
1.0Vp-p,75Q
| Dimension | 270mm (W) x 344.5mm (D) x 120mm (H)
Signal-to-noide Ratio: 46dB ( coluor/ B/ W 3 -hour mode)
Horizontal Resolution:
240 lines
(color mode )
Optional
Wired remote controller; AG-A11
Accessories
320 lines (B/ W)
Head: Audio' Control: 1 stationary head
Erase: 1 full track erase
1 Audio track erase
Track: 1 track
Input Level: LINE
IN ;( PHONO
)
— 10dBv,47kQ
unbalanced
MIC IN;(3mm) — 60dBv,600Q
unbalanced
Output Level: LINE OUT ;( PHONO)
— 8dBv,1kQ
unbalanced
Frequency Responce:
50Hz~
10 kHz (3-hour mode )
Signal-to-Noise Ratio: better than 42 dB
(3-hour mode )
Weight
and dimensions
shown
are approximate.
Specifications are subject to change
wihout
notice.
