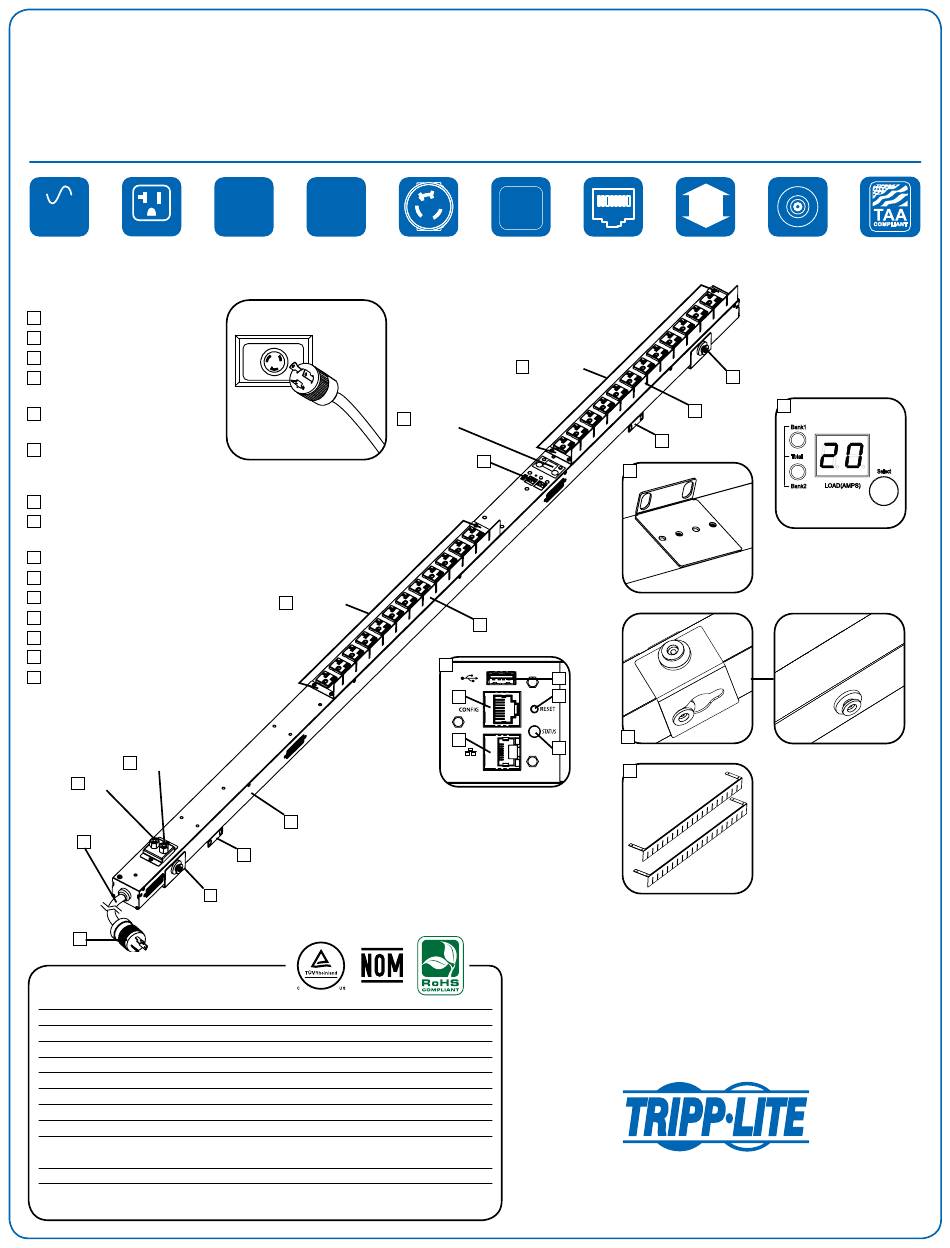

Tripp Lite PDUMNV30LX Manual

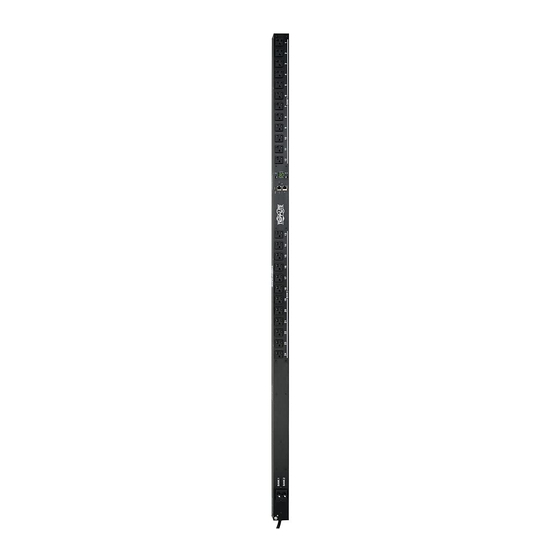

Single-Phase Monitored 0U Vertical PDU
100/120/127V
50/60Hz
5-15/20R
100/120/127V 24 Outlets
Single-Phase
Input/Output
A Digital Load Meter
B 5-15/20R Outlets
C 20A Circuit Breakers
D Removable Cord
Retention Brackets
E Removable Mounting
Brackets
F Toolless Mounting
Buttons with Removable
90° Rotation Brackets
G 10 ft. Input Power Cord
H L5-30P Twist-Lock
Input Plug
I Durable Metal Case
J LX Platform Interface
K RJ45 Ethernet Port
L RJ45 Configuration Port
M USB-A Port
N Reset Button
O Status LED
Also includes: Configuration Cable,
Cable Ties, PDUMVROTATEBRKT,
Owner's Manual
C (BANK 2)
C (BANK 1)
G
H
Specifications
Model
Voltage
Frequency
Maximum Capacity
Agency-Derated Capacity
Input Connector
Cord Length
Outlets
Primary Mounting Option
Unit Dimensions (H x W x D)
Unit Weight
Standards
PDUMNV30LX
2.9kW
30A
2.9kW 30A Max
Capacity
AC Input Connection: Insert L5-30P
twist-lock plug into compatible L5-30R
utility, generator or UPS outlet.
B (BANK 1)
I
E
F
PDUMNV30LX
100/120/127V
50/60 Hz
30A
24A
L5-30P
10 ft. / 3 m
24 (5-15/20R)
0U (Vertical) Rack Mount
70 x 2.2 x 1.8 in. / 1778 x 556 x 445 mm
See next page for detailed unit measurements.
11.5 lb. / 5.2 kg
Tested to UL 60950-1 (US & Canada), NOM (Mexico),
FCC Class A, RoHS
MODEL:
20
L5-30P Plug Multimode
Load Meter
B (BANK 2)
A (BANK 1 & BANK 2)
J
D
J
M
N
L
K
O
LX Platform Interface: Connect to
Ethernet for remote monitoring and
individual outlet control via SNMP, Web,
SSH or telnet. Add optional EnviroSense2
(E2) modules for temperature/humidity
monitoring and dry contact interface.
• Distributes power to 24 outlets arranged in two banks
• Java-free HTML5-based network interface allows for remote
monitoring and control via SNMP, Web, SSH or telnet
• Displays load for either outlet bank or both banks
combined in real time
• Perfect for rack-mount server, network and telecom
applications
SEE NEXT PAGE FOR DETAILED UNIT MEASUREMENTS
0U
Network 0U
Interface Rackmount
F
D
E
E
90° Bracket
F
D
1111 W. 35th Street
Chicago, IL 60609 USA
773.869.1234
www.tripplite.com
Toolless TAA
Mounting Compliant
Buttons
A
Bank1
Total
Select
Bank2 LOAD(AMPS)
Multimode Load Meter:
Press the "Select" button to
switch modes—display the
load for bank 1, bank 2
or both banks combined.
Standard
Note: Installed 17.67 mm
toolless mounting buttons
can be replaced with
included 14.17 mm buttons
for additional compatibility.
