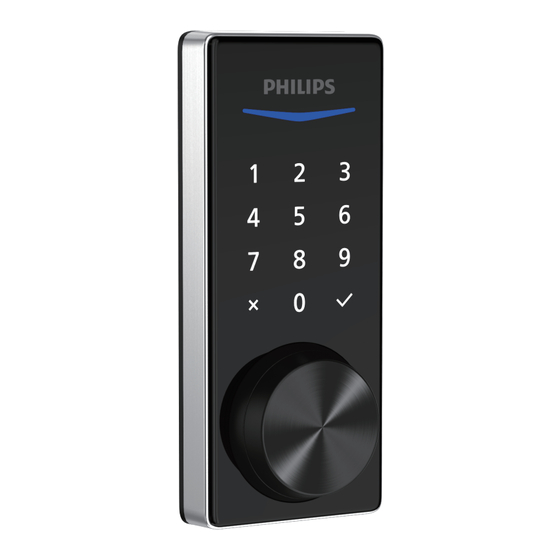

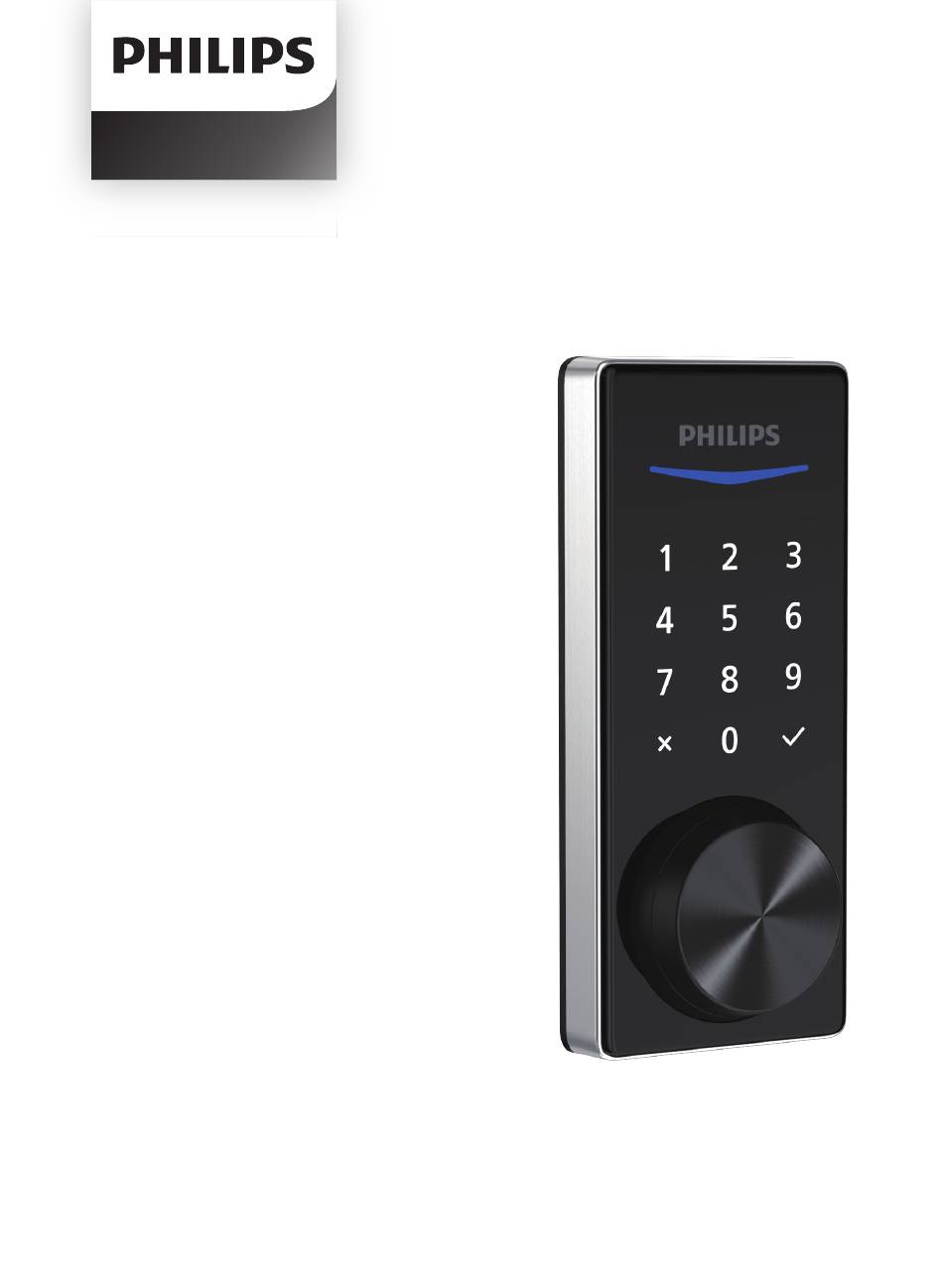

- Page 1 Home Access Smart deadbolt 4000 series User Manual Register your product and get support at www.philips.com/support...
-
Page 3: Table Of Contents
Contents 7 Warranty 1 Warnings & Safety Safety Caution 8 FCC Statement Returns & Disposal 9 ISED Statement 2 How to Install Parts List Assembly View Install the Lock 3 How to Use Feature De�nitions Factory Reset & Default Settings Format of Entry Methods Program the Lock 4 Z-Wave Network Setup... -
Page 4: Warnings & Safety
◆ Do not expose products to places that have water leakage or splashing. Returns & Disposal ◆ Locks can be returned at an authorized Philips service center. Appropriate compensation will be provided if the returned product meets Philips's conditions. ◆ Please follow local regulations and do not throw the used products or batteries into... -
Page 5: How To Install
2 How to Install Parts List Exterior Assembly Latch Bolt Mounting Plate Interior Assembly AA Batteries (4) Battery Cover Interior Assembly Mounting Plate Screws (2) Screws (2) Reinforcement Strike Plate Strike Plate Screws (2) Latch Bolt Screws (2) Reinforcement Plate Plate (Optional) Screws (2) Upper Screw &... -
Page 6: Assembly View
Assembly View 13 (Optional) 13 (Optional) Exterior Assembly Mounting Plate Screws (2) Latch Bolt Reinforcement Plate (Optional) Mounting Plate 10. Strike Plate Interior Assembly Strike Plate Screws (2) AA Batteries (4) Reinforcement Plate Screws (Optional) (2) Latch Bolt Screws (2) 6. - Page 7 Exterior Assembly Status Indicator Touchscreen Keypad Cancel Key Con�rm Key Keyhole Cover Keyhole Interior Assembly Battery Cover Reset Button Privacy Button Installation Buckle Thumb Turn...
-
Page 8: Install The Lock
Install the Lock Required Tools #2 Phillips Screwdriver Prepare the Door and Check the Dimensions Measure to con�rm that the hole in the Measure to con�rm that the backset is door is 1-1/2’’ or 2-1/8" (38mm or 54mm). either 2-3/8" or 2-3/4" (60mm or 70mm). Measure to con�rm that the hole in the door edge is 1"... - Page 9 OPTIONAL: Drill a hole for Upper Screw. Attention Installing this screw onto the Exterior Assembly is OPTIONAL. It is used for additional security or when a door is weak or warped. If you install this screw, you need to drill a hole (19/32″) in the door before starting the installation. Drilling Template Determine the backset and adjust the Latch Bolt.
- Page 10 For a 1-1/2" (38 mm) bore hole, use a 1" (25 mm) Drill Bit to extend the latch hole at least 13/64" (5 mm) deep. No need to extend the latch hole for a 2-1/8" (54 mm) bore hole. After extending the latch hole, insert the Latch Bolt again to ensure it �ts correctly. 1”...
- Page 11 Install the Strike Plate on the door frame. Reinforcement Attention Plate Screws Strike Plate Screws Make sure the hole in door frame is drilled a minimum of 1"(25mm) deep. (Optional) Install the Exterior Assembly Attention With the Latch Bolt fully retracted (in the unlocked position), route the cable below Before installing the Exterior and Interior Assembly, the Latch Bolt, and insert the tailpiece...
- Page 12 Secure the Mounting Plate with the Mounting Plate Screws. Do not overtighten screws. Attention Route the cable through the hole in the mounting plate. The Upper Screw on the top is OPTIONAL. Before installing the Upper Screw, fasten the Screw Post into the hole of the Exterior Assembly.
- Page 13 Keep the Thumb Turn in the vertical position, Attach the Interior Assembly to the Mounting toggle the Installation Buckle upwards, and Plate, toggle the Installation Buckle downwards, install the Interior Assembly. and fasten using the Interior Assembly Screws. Interior Assembly Screws Note: Do not use...
-
Page 14: How To Use
3 How to Use Feature De�nitions Master PIN Code Required for programming and adjusting settings. The Master PIN Code can be used to unlock the deadbolt in Away Mode and Privacy Mode. The default Master PIN Code (12345678) must be changed immediately by programming on the lock (Programming instructions refer to page 15.) after completing the installation. -
Page 15: Factory Reset & Default Settings
Factory Reset & Default Settings This procedure erases all user and network settings and unpairs the lock from the Z-Wave network. Restoring the lock will also activate the lock-handing process. 1. Remove one of the batteries. 2. Press and hold the Reset Button. 3. -
Page 16: Format Of Entry Methods
Format of Entry Methods 1. Master PIN Code (4 to 10 digits): The default Master PIN Code is 12345678. Change the default Master PIN Code before programming other codes. 2. User PIN Code (4 to 10 digits): A total of 250 User PIN Codes can be programmed and stored in the lock. 3. -
Page 17: Program The Lock
Program the Lock Attention The default Master PIN Code is 12345678. Change the default Master PIN Code before programming the lock. The indicator light will �ash red when the code entered is not saved successfully. If no key is pressed for more than 10 seconds, the lock will exit programming mode. Change the Default Master PIN Code Enter new Enter Master... - Page 18 Delete the User PIN Code Enter Master Press Press 2 times Press 1 time PIN Code Green light is on Enter the unwanted Press 1 time User PIN Code Green light is on Change the System Language Enter Master Press Press 2 times Press...
- Page 19 Timed Auto-Lock Setting Enter Master Press Press 2 times Press 1 time PIN Code Green light is on Auto-Lock Press Green light is on Press 1 time Press for 30s Green light is on 1 time Press Press for 60s Green light is on Press 1 time...
-
Page 20: Wave Network Setup
4 Z-Wave Network Setup SmartStart Learn Mode SmartStart-enabled products can be added into a Z-Wave network by scanning the Z-Wave QR Code present on the product with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically within 10 minutes after this product being powered on in the network vicinity. -
Page 21: Lock & Unlock
5 Lock & Unlock Unlocking the Door from Outside 1. Unlock by PIN code. 2. Unlock by Mechanical Key. 3. Unlock by smartphone. App Unlock PIN Code Unlocking the Door from Inside 1. Rotate the Thumb Turn to the unlocked position. 2. - Page 22 Locking the Door from Outside 1. Press and hold any button on the touchscreen for at least 2 seconds to lock the door in Manual Mode. 2. In Auto-Lock mode, the Latch Bolt will automatically extend after it is unlocked and the door is shut. 3.
-
Page 23: Troubleshooting
6 Troubleshooting Issue Solution The Latch Bolt does Make sure the backset on the Latch Bolt is set to the proper not operate correctly length. Refer to page 8. after installation. Make sure before installation the Latch Bolt is retracted. Refer to page 9. - Page 24 Issue Solution The lock only locks but If the door locks and unlocks smoothly in the open position, then does not unlock, or the there is a problem with the door frame. Latch Bolt goes in and Make sure the hole in the door frame is drilled a minimum of out uncontrollably.
-
Page 25: Warranty
Still have questions or need help? Please feel free to contact us: U.S.A. & Canada: +1(833)599-9111 7 Warranty 2 Years Warranty For more information on the warranty applicable for this product, please visit www.philips.com or contact the dealer where you purchased the product. -
Page 26: Fcc Statement
8 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 28 Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license. This product has been manufactured by and is sold under the responsibility of Shenzhen Conex Intelligent Technology Co., Ltd. and Shenzhen Conex Intelligent Technology Co., Ltd. is the warrantor concerning this product.
