Installation Instructions

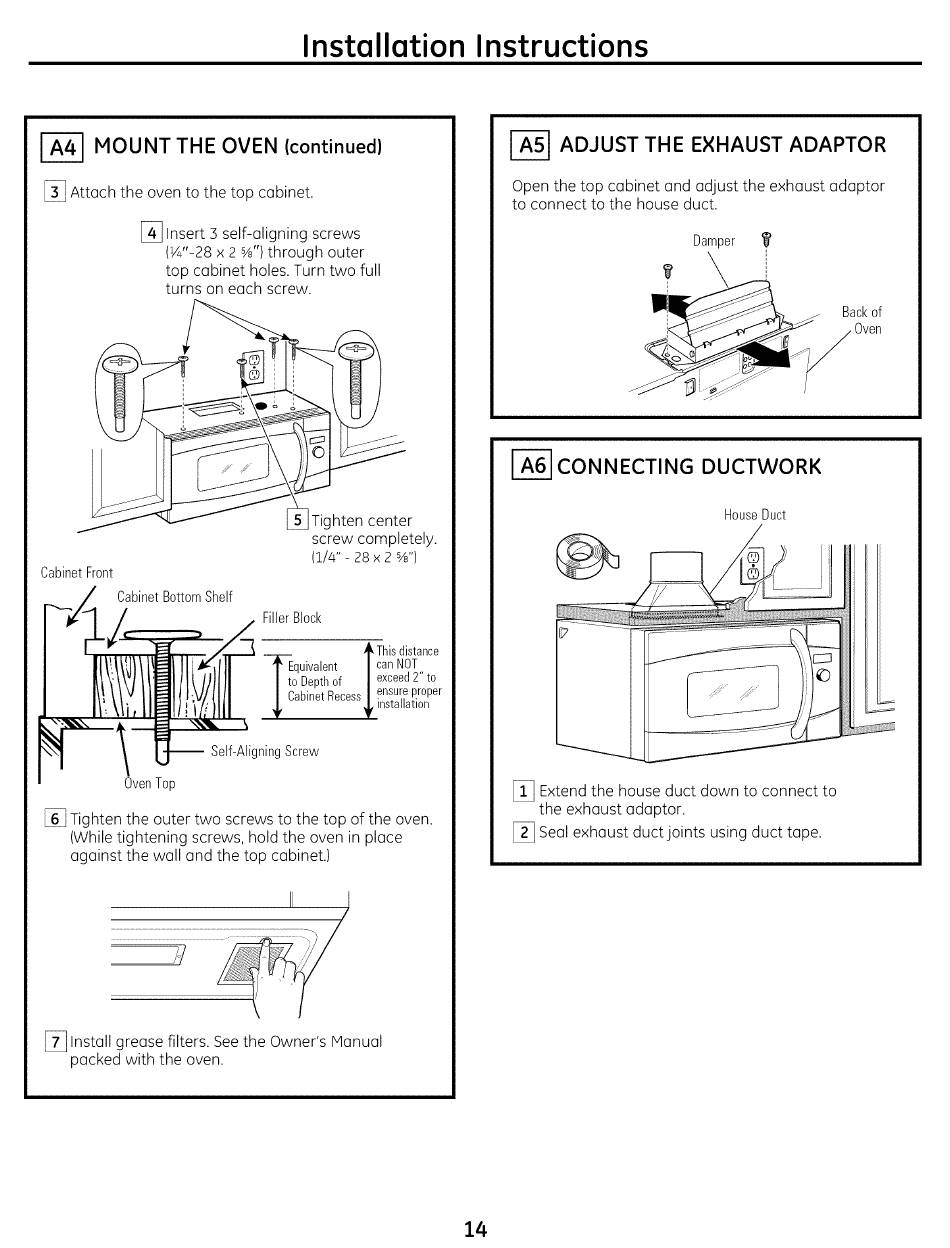

A4| MOUNT THE OVEN (continued)
Attach the oven to the top cabinet.
Insert 3 self-aligning screws
(%4"-28 x 2 56") through outer
top cabinet holes. Turn two full
turns on each screw.
screw completely.
(1/4"" - 28 x 2%")
Filler Block
|
KE
A This distance
Equivalent can NOT
to Depth of
exceed 2" to
ensure proper
y installation
Cabinet Recess
Self-Aligning Screw
Oven Top
|6 | Tighten the outer two screws to the top of the oven.
(While tightening screws, hold the oven in place
against the wall and the top cabinet.)
Install grease filters. See the Owner's Manual
packed with the oven.
A5| ADJUST THE EXHAUST ADAPTOR
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
Damper
Back of
Oven
A6| CONNECTING DUCTWORK
House Duct
Extend the house duct down to connect to
the exhaust adaptor.
Seal exhaust duct joints using duct tape.
