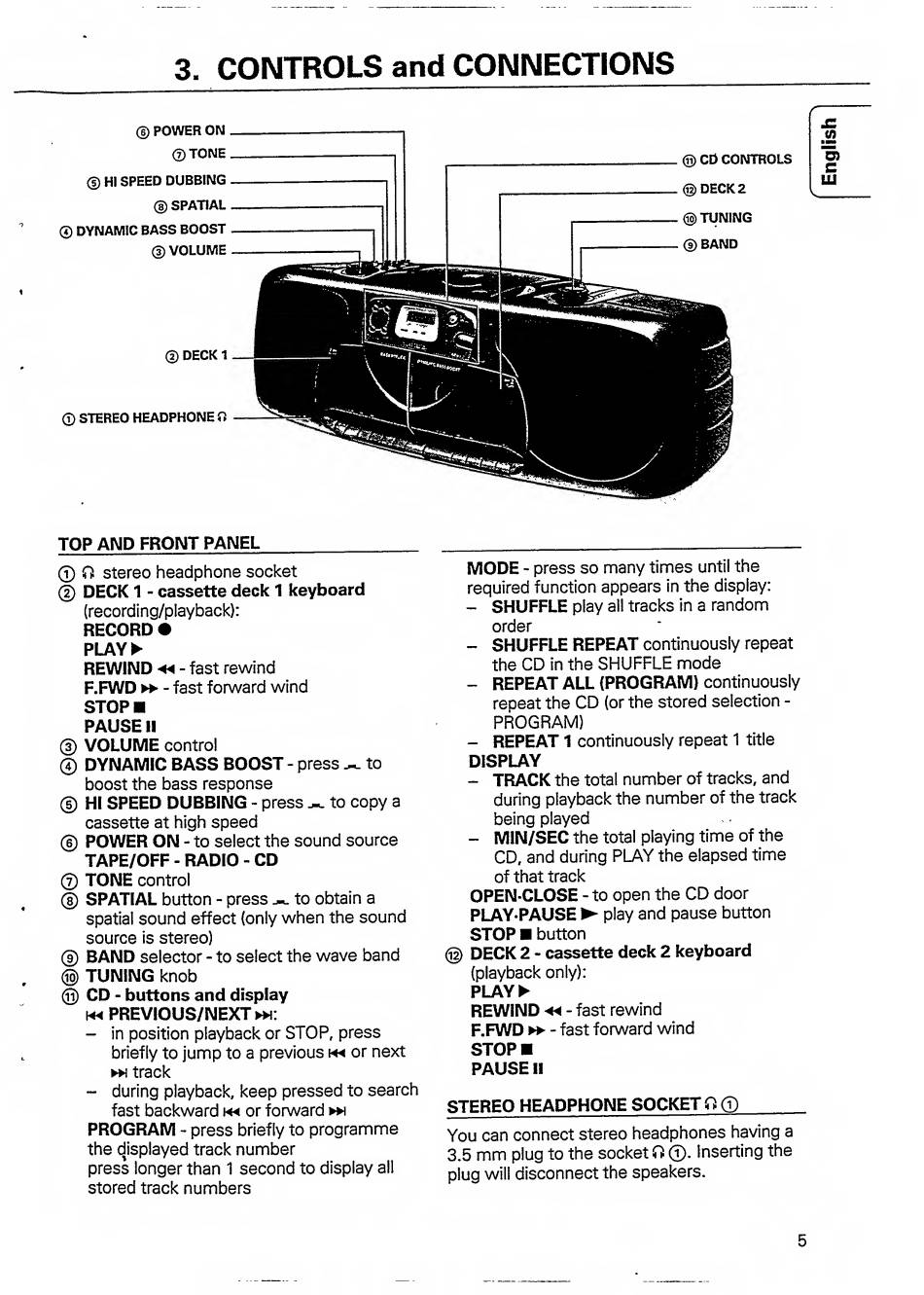

3. CONTROLS and CONNECTIONS
© POWER ON
©TONE
© HI SPEED DUBBING
© SPATIAL
© DYNAMIC BASS BOOST
© VOLUME
© DECK 1
© STEREO HEADPHONE
© CD CONTROLS
©DECK 2
©TUNING
©BAND
TOP AND FRONT PANEL_
© O stereo headphone socket
© DECK 1 - cassette deck 1 keyboard
(recording/playback):
RECORD •
PLAY*
REWIND - fast rewind
F.FWD ►► - fast forward wind
STOP!
PAUSE II
© VOLUME control
© DYNAMIC BASS BOOST - press — to
boost the bass response
© HI SPEED DUBBING - press j-. to copy a
cassette at high speed
© POWER ON - to select the sound source
TAPE/OFF - RADIO - CD
© TONE control
© SPATIAL button - press ^ to obtain a
spatial sound effect (only when the sound
source is stereo)
© BAND selector - to select the wave band
© TUNING knob
© CD - buttons and display
kh
PREVIOUS/NEXT
pm:
- in position playback or STOP, press
briefly to jump to a previous m or next
►w track
- during playback, keep pressed to search
fast backward m or forward
PROGRAM - press briefly to programme
the displayed track number
press longer than 1 second to display all
stored track numbers
MODE - press so many times until the
required function appears in the display:
- SHUFFLE play all tracks in a random
order
- SHUFFLE REPEAT continuously repeat
the CD in the SHUFFLE mode
- REPEAT ALL (PROGRAM) continuously
repeat the CD (or the stored selection -
PROGRAM)
- REPEAT 1 continuously repeat 1 title
DISPLAY
- TRACK the total number of tracks, and
during playback the number of the track
being played
- MIN/SEC the total playing time of the
CD, and during PLAY the elapsed time
of that track
OPEN-CLOSE - to open the CD door
PLAY-PAUSE ► play and pause button
STOP ■ button
© DECK 2 - cassette deck 2 keyboard
(playback only):
PLAY*
REWIND ◄◄ - fast rewind
F.FWD ►► - fast forward wind
STOP*
PAUSE II
STEREO HEADPHONE SOCKET O ©
You can connect stereo headphones having a
3.5 mm plug to the socket O ©. Inserting the
plug will disconnect the speakers.
