Outdoor Fan Motor

The outdoor fan motor is a permanently lubricated,
variable speed DC motor, using an internal speed
control in the motor.
The indoor fan and outdoor fan will operate si-
multaneously under normal operating conditions.
However, if the heat pump is operated when high
outdoor temperatures are present, the indoor coil
may overheat. Should the indoor coil temperature
reach 131°F, the main board will shut the outdoor
fan off. A 5°F hysteresis loop will restore outdoor fan
operation when the indoor coil temperature lowers
to 126°F.
To energize the fans, press the FAN button on the
thermostat. When fan ON mode is selected, the fans
will run continuously, independent of the compres-
sor or heaters. Selecting AUTO on the thermostat
will cause the fans to automatically cycle on and off
with the compressor or heaters. The fans will always
run when the compressor or heaters are operat-
ing. They will start before compressor or heater
operation, and will stop after compressor or heater
operation has ended. The fans can also be set to
run continually, regardless of thermostat setting, by
placing the CONST FAN dip switch in the UP position
(See
Controls-Dip Switches
Note: If the outdoor fan is inoperative, see No Fan
Operation on page 42.
.)
To remove the outdoor fan motor:
1. Remove the unit from the cabinet. (See
.)
Chassis
2. Remove the electronics cover. (See
Note: It may be helpful to observe the appearance
of the bundled wiring behind the electronics cover.
(See .) In following steps, it will become
Drive Board
necessary to cut off plastic wire ties that fasten
wiring together. Bundle wiring before installing the
electronics cover.

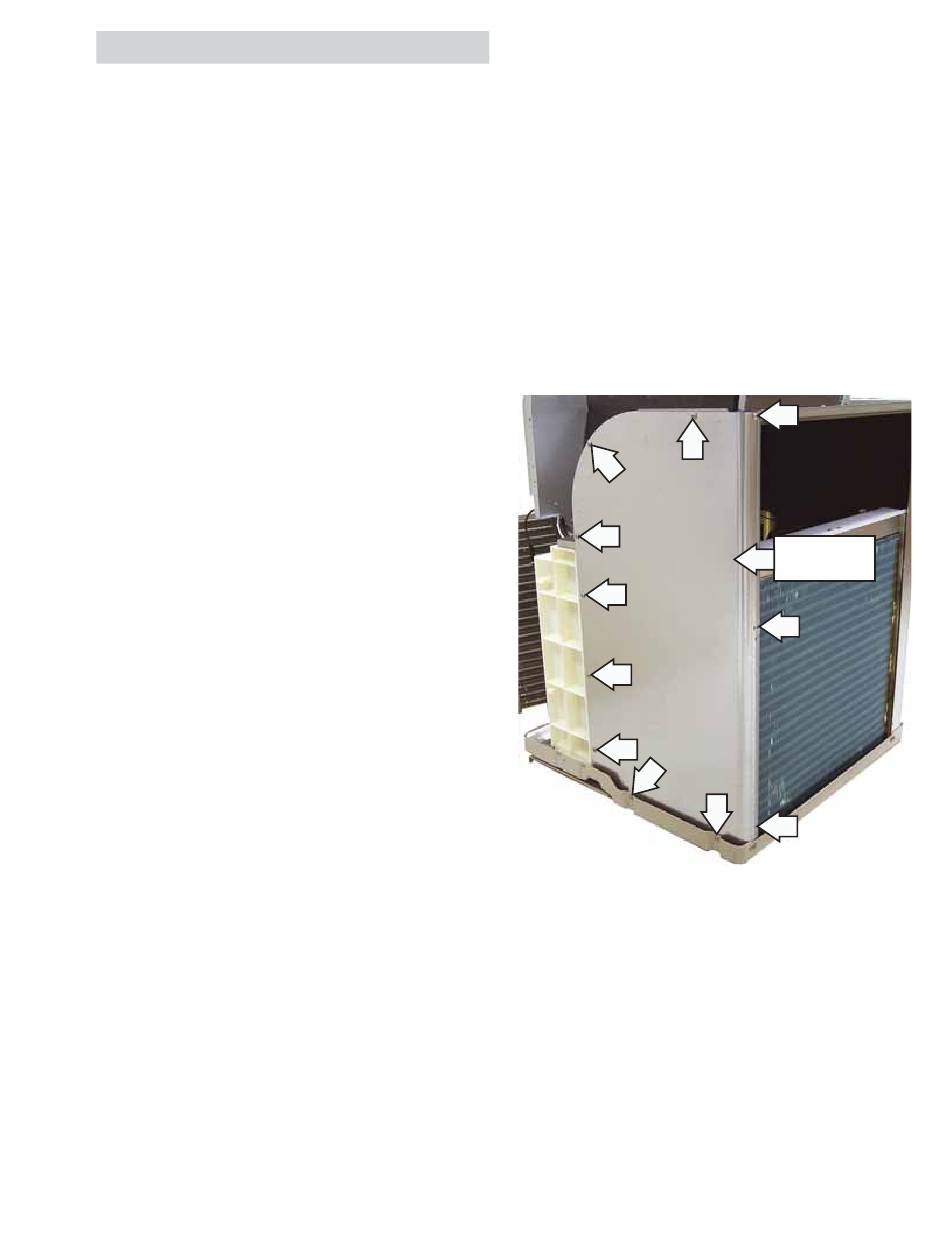

3. Remove the 11 Phillips-head screws and the
divider assembly from the left and right side of
the unit.
– 39 –
Slide-Out
)
Main Board.
Right Divider
Assembly
(Continued next page)
