Page 1: Video Processor

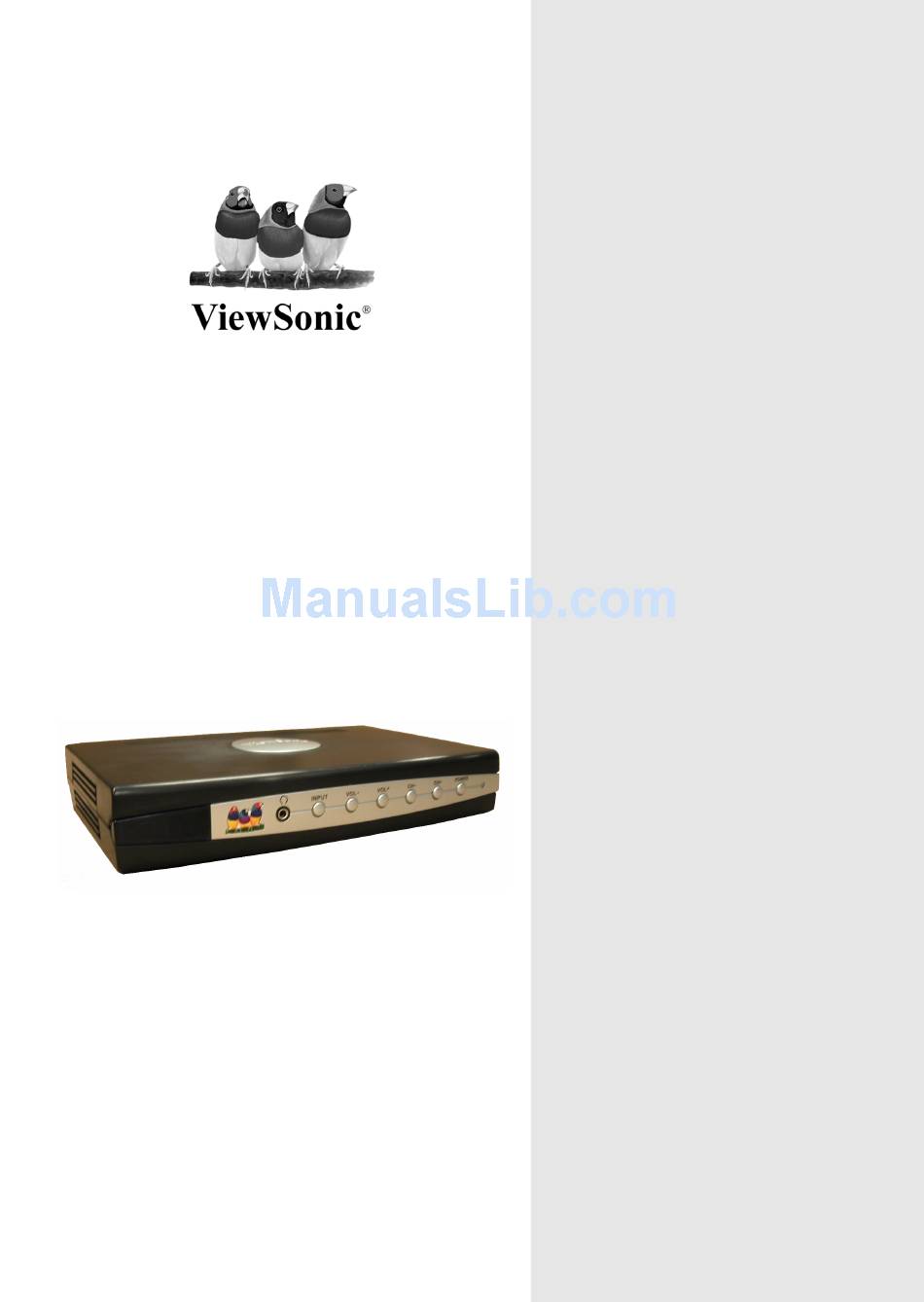

NextVision ™ Video Processor User Guide... -
Page 2: Table Of Contents
Video Menu ... 11 Setup Menu ... 12 Information Screen ... 12 Other Information Troubleshooting ... 13 Specifications ... 14 Customer Support ... 15 Cleaning and Maintenance ... 16 Compliance Information ... 16 Limited Warranty ... 17 ViewSonic NextVision N4... - Page 3 ViewSonic NextVision N4...
- Page 4 To meet your future needs, and to receive any additional product information as it becomes available, please register your product on the Internet. See the Customer Support table for the website for your region. You can also print the registration form and mail or fax it to ViewSonic. Model Name:...
-
Page 5: Getting Started
Getting Started Congratulations on your purchase of a ViewSonic NextVision N4 Video Processor. Your N4 allows you to connect to a DVD, game console, VCR, Laser Disk player (LD), stereo system, and a cable or satellite antenna, with only one monitor or other display device. -
Page 6: Safety Precautions
Safety Precautions Read all safety precautions for the N4 and your antenna before operating the product. Failure to abide by these precautions may void the warranty. Save the Quick Start Guide and the User Guide for future reference. • Use only the power adapter that came with the product. -
Page 7: The Remote Control
1. Push the tip of a ballpoint pen into the small pin hole on the back of the remote control as shown below and pull the cover off. 2. Place the 3 V Lithium battery in the battery compartment. Back cover Pin hole ViewSonic NextVision N4 Lithium battery... -
Page 8: Using The Remote Control
Recall Return to the previous channel in TV Mode. (Toggles between two TV channels.) ViewSonic NextVision N4 Power Turns the N4 ON/ TV Channel up or down Volume up or down Select a TV channel CH Scan Press Channel Scan once. -

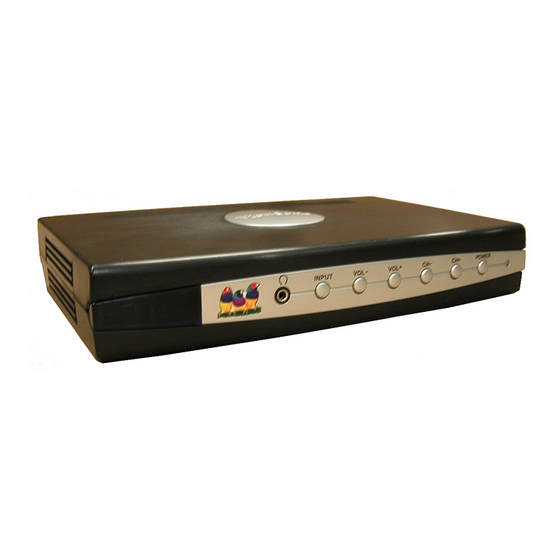

Page 9: The Video Processor
The Video Processor Front View Power indicator and IR (infrared) receiver. IMPORTANT: Point the remote control to this part of the N4. Headphone jack Selects the next higher channel Selects the next lower channel VOL+ Increases the volume VOL- Decreases the volume... -
Page 10: Back View
DC IN Connect to a 12V power supply AUDIO IN R-L Connect the external AUDIO IN to the N4. AUDIO IN Connect the audio cable from your PC sound card to the AUDIO IN port on the N4. AUDIO OUT Connect the AUDIO OUT to your PC speakers. -
Page 11: Setup
* For an Audio/Video connection, use the RCA audio (L + R) connectors. **For a video connection, use an RCA video connector or an S-Video connector. Cable or antenna **S-VIDEO cable *RCA A/V cable ViewSonic NextVision N4 DVD/VCR/ LD/IRD Game console... -
Page 12: Main Menu
The command line at the bottom of each menu tells you what to do next. Example, to exit the MAIN MENU, press the MENU button on the remote control. ViewSonic NextVision N4 to highlight a menu option. Press MENU button... -
Page 13: Picture Menu
. To return to the MAIN MENU and save your adjustments, press MENU. Depending on the region you are in, the NICAM menu may appear. to scroll up or down the menu. With an option to scroll up or down the menu. With an option ViewSonic NextVision N4... -
Page 14: Channel Menu
To scroll up or down the menu, press the up or down arrow remote control. With an option highlighted, press the ENTER button. Select a RESOLUTION. Then, select a REFRESH RATE and press ENTER. To return to the MAIN MENU and save your adjustments, press MENU. ViewSonic NextVision N4 on the... -
Page 15: Setup Menu
Setup Menu The N4 has several language options. Information Screen To reset the video/audio performance back to factory defaults, press ENTER on the remote control. This means to “turn OFF” the N4. To clear the 30 minute setting, press the POWER button... -
Page 16: Other Information
> press ENTER again (reset back to factory defaults). • Press VOL-, VOL+, and CH-, CH+ on the front panel of the N4 unit at the same time. The unit returns to factory default settings and a normal picture appears. -
Page 17: Specifications
0.5 Kg (1.1 lbs.) -10° C to +40° C (+14° F to +104° F) 90% RH Max. -25° C to 60° C (-13° F to +140° F) 95% RH Max. UL and cUL, FCC Class B, ICES003 ViewSonic NextVision N4... -
Page 18: Customer Support
Zealand Singapore/India viewsonic.com.sg and Southeast Asia Other Asia/Pacific viewsonic.com.tw countries South Africa viewsonic.com/asia ViewSonic NextVision N4 T = Telephone Email F = FAX T: (800) 688-6688 vstech@ F: (909) 468-1202 viewsonic.com T: (800) 688-6688 service.ca@ F: (909) 468-1202 viewsonic.com service.eu@... -
Page 19: Cleaning And Maintenance
® cleaners on the product. Some chemical cleaners have been reported to damage the case of the product. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. Compliance Information... -
Page 20: Limited Warranty
How long the warranty is effective: ViewSonic Video Processors are warranted for one (1) year for all parts and one (1) year for all labor from the date of the first consumer purchase. - Page 21 ViewSonic NextVision N4...
- Page 22 ViewSonic Corporation Document Name: An_N4_UG 2-19-03...
