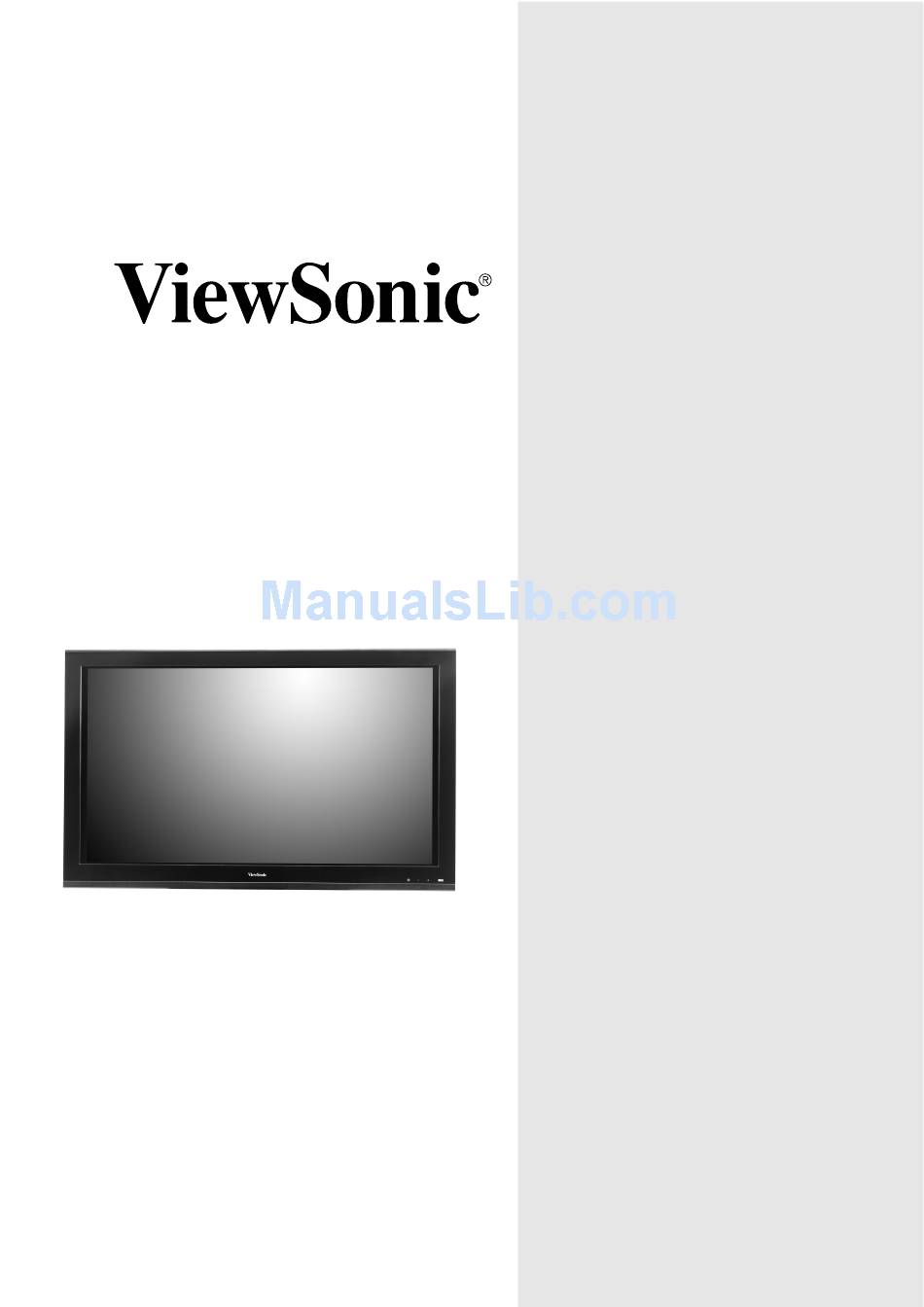

- Page 1 VPW5500 User Guide Guide de l’utilisateur Guía del usuario '' PLASMA DISPLAY...
- Page 2 IMPORTANT If you intend to mount the plasma display on a wall, be sure to write down the serial number (located on the back of the unit) to meet any future product support needs you may have. For your convenience, you can write the serial number in this User Guide. See the "Serial Number"...
-
Page 3: Table Of Contents
We are not held liable for damages caused by improper handling of the product. • Reproduction of this manual in whole or in part without our prior written permission is prohibited. • The product names mentioned in this manual may be trademarks or registered trademarks of their respective owners..16 ...26 ViewSonic VPW5500... -
Page 4: For Your Records
Image Optimization files are also available free of charge at our web site. Go to www.viewsonic.com and select “Support.” If you do not have access to the Internet or if you require further assistance, contact Customer Support. Product Name:... -
Page 5: Important Safety Instructions
Please read it carefully and apply the knowledge you obtain from it to the proper operation of your ViewSonic Plasma monitor. Please fill out your warranty card and mail it to ViewSonic. This will enable ViewSonic to notify you promptly in the improbable event that a safety problem should be discovered in your product model. - Page 6 COVERED PUBLIC VIEWING OF COPYRIGHTED MATERIAL Public viewing of programs broadcast by TV stations and cable companies, as well as programs from other sources, may require prior authorization from the broadcaster or owner of the video program material. IMPORTANT SAFETY INSTRUCTIONS 15.
-
Page 7: Features
(2) A wide range of devices other than personal computers can also be connected. (3) A component input is possible to switch to RGB signals from the Menu screen. Options Ask your local retail dealer for further details. Desktop stand: VS10343 Wall Mount: WMK-001 ViewSonic VPW5500... -
Page 8: Safety Instructions
Incorrect power supply could result in fire or electrical shock. Use only the correct power outlet depending on the indication on the monitor and the safety standard. • The enclosed power cord must be used depending on the power outlet to be used. Disconnect the plug from the power outlet. Do not disassemble. ViewSonic VPW5500... - Page 9 • If you observe a leakage of the battery, wipe out the liquid and then replace the battery. If the liquid adheres your body or clothes, rinse well with water. • Obey the local laws on disposing the battery. Surely connect the ground wire. ViewSonic VPW5500...
- Page 10 Never use acid/alkaline detergent, alcoholic detergent, abrasive cleaner, powder soap, OA cleaner, car wax, glass cleaner, etc. especially because they would cause discoloration, scratches or cracks. Disconnect the plug from the power outlet. ViewSonic VPW5500...
- Page 11 Switch off using the switch on the equipment. - Disposal of this product may require specific instructions pertaining to your resident region. - Never guess or take any chances with electrical equipment of any kind - it is better to be safe than sorry! ViewSonic VPW5500...
- Page 12 - Connect the equipment into an outlet on a circuit different from where the receiver is connected. - Consult the dealer or an experienced radio / TV technician for help. Instructions to Users : This equipment complies with the requirements of FCC (Federal Communication Commission) regulations, provided that following conditions are met.
-
Page 13: Image Retention Prevention
écrans pendant de longues années. ViewSonic a pourvu ses écrans Plasma TV et moniteurs de fonctions permettant de réduire la rétention image et les images temporaires. Veuillez s il vous plaît vérifier dans... -
Page 14: Component Names
• The main power switch is located at the back, on the lower surface. MENU button Main power switch External speaker terminals スピーカー端子 (6 12W) External device connection terminals Cabinet (front frame) Indicating lamp Remote-control receiver External speaker terminals スピーカー端子 (6 12W) Subwoofer RGB input terminals ViewSonic VPW5500... -
Page 15: Remote Control
VOLUME UP/DOWN buttons SIZE button RECALL button RETURN button SELECT/ADJUST buttons ID SET button With in 30 With in 30 degrees degrees About 3m About 3m About 5m RGB 1 RGB 2 MUTE AUTO PinP SIZE RECALL MENU ID SET ViewSonic VPW5500... -
Page 16: Installation Instructions
1) Using wood screws (two), fasten the set to the clamping screw holes on the rear of the stand as shown. 2) Using commercially available wood screws, secure the set firmly in position. 10cm (4 inches) or more Clamp Cord chain cord or chain Chain clamp Wall or Pillar Wood Two places ViewSonic VPW5500... -
Page 17: Connecting To A Pc
• Make sure that the power switch of this device is turned off. Connecting to a PC (1) Please refer to the ViewSonic website for appropriate PC drivers to run the display at its optimal condition. (www.ViewSonic.com) (2) Make sure that the dislay signal of the personal computer to be used is compatible wih the specifications of this device. -
Page 18: Mounting The Speaker Unit
(The type of plug is different from this drawing for some countries.) CAUTION • Use only the power cord provided. • Do not use a power supply voltage other than that indicated (AC100-240V, 50/60Hz) as this may cause fire or electric shock. ① ② ViewSonic VPW5500... -
Page 19: Operating Instructions
ON, and SUB POWER is OFF. (standby) When the main power switch is ON, and SUB POWER is ON. When the main power switch is ON, and SUB POWER is ON. The unit is in Power Save mode. ViewSonic VPW5500... -
Page 20: Input Switching
When the MUTE button of the remote control is pressed again, the audio will be restored and the volume display (green) will appear. Volume setting value Volume 15 Adjustment status guide display Volume setting value Volume 15 Adjustment status guide display ViewSonic VPW5500... -
Page 21: Size Switching
V : 60.1 Hz -- -- Min. -- -- : -- -- RGB 1 RGB 2 MUTE AUTO PinP SIZE RECALL RECALL button MENU ID SET Zoom2 Zoom3 can reduce Input mode Signal mode Input horizontal frequency Input vertical frequency ViewSonic VPW5500... -
Page 22: Automatic Adjustment Of Screen Position And The Clock
: – 31 Color Tint : + 31 Picture Enhancement : Off Color Temperature : Normal Color Temp.Adjust Reset Reset Select Return Exit SELECT buttons to select the item to ADJUST Contrast + 31 Next / Prev Adjust Return ViewSonic VPW5500... -
Page 23: Picture Menu
Next / Prev Adjust Return Color Temperature Normal Next/Prev Select Return Picture Color Temp. Adjust Amplitude – 63 Green Blue – 31 Cut Off + 31 Green Blue + 31 Reset Reset Select On/Off Return Setup hint cursor ViewSonic VPW5500... -
Page 24: Audio Menu
: Middle Matrix Surround : Off Perfect Volume : Off Reset Reset Select Return Setup hint Timer Off Timer 30Min. On Timer : - - : - - Select Adjust Return Setup hint SELECT buttons on the remote ViewSonic VPW5500... -
Page 25: Function Menu
OPERATING INSTRUCTIONS (continued) FUNCTION MENU MENU Selected characters Screen Saver Screen Wipe Black Side Panel Video Power Save Freeze Mode Default Zoom Reset (off the function) Normal Panel Life Mode Display ID Number Inverse Standby White Gamma Picture Audio Timer Function Setup Language... -
Page 26: Setup Menu
OPERATING INSTRUCTIONS (continued) SETUP MENU Picture Audio Timer MENU Function Setup Language Select OK Set Selected characters (Menu) Auto Adjust* Moves the horizontal position to left. Horizontal Position Moves down the vertical position. Vertical Position Reduces the dot clock frequency (shrinks the right side). -
Page 27: Language Menu
• The previously recorded items will be lost. • The signal mode can be identified by the horizontal/vertical sync frequency and the sync signal polarity. Different signals where all the elements are the same or similar will be handled as the same signal. ViewSonic VPW5500... -
Page 28: Signal Check
1W or less (RGB2 ; 100V ≦ AC ≦ 120V) 365W 3W or less (RGB2 ; 120V ＜ AC ≦ 240V) RGB2 H : 48.4kHz V : 60.1 Hz -- -- Min. -- -- : -- -- ! No Sync. Signal ! Invalid Scan Freq. ViewSonic VPW5500... -
Page 29: Image Retention Of Plasma Display
A reinforced glass filter is installed over the panel surface but avoid strong impact because there is still danger of glass breakage. 【 Fig. A 】 【 Fig. B 】 【 Fig. a 】 【 Fig. b 】 ViewSonic VPW5500... -
Page 30: Troubleshooting
(RGB input) • Adjust the dot clock phase for the clearest viewing. (RGB input) • Check to see if the batteries are loaded in the remote control correctly. • Try loading new batteries in the remote control. See page ViewSonic VPW5500... - Page 31 • When used for long periods of time, the top of the monitor may heat up. This is not a malfunction. • The thicknesses of characters and lines may vary if images with a vertical resolution greater than 512 lines are displayed. This is not a malfunction. ViewSonic VPW5500 See page...
-
Page 32: Actions To Correct Abnormal Displays
Some characters are blurred. After adjustment All characters appear crisp now. After adjustment All characters are blurred. Before adjustment Figure 3 After adjustment 6) Press flicker. Before adjustment After adjustment ADJUST buttons to make the text not ViewSonic VPW5500... -
Page 33: Product Specifications
H/V composite sync. sync.on Green * *Even in the case of the recommended signals shown on the following page, there may be instances when correct display is not possible. In this case, use H/V separate sync, H/V composite sync. Priority ViewSonic VPW5500... -
Page 34: Recommended Signal List
35.16 60.32 37.88 72.19 48.08 75.00 46.88 85.06 53.67 60.00 48.36 70.07 56.48 75.03 60.02 Dot clock Remarks frequency (MHz) 25.18 25.18 WVGA type : On 34.24 31.50 31.50 36.00 36.00 40.00 50.00 49.50 56.25 65.00 75.00 78.75 ViewSonic VPW5500... - Page 35 WVGA type : On 31.50 31.50 36.00 36.00 40.00 50.00 49.50 56.25 65.00 75.00 78.75 94.50 108.00 108.00 135.00 157.50 162.00 202.50 229.50 30.24 57.28 80.00 100.00 81.00 94.760 79.50 WXGA Mode : (1280 x768) 85.50 WXGA Mode : (1366 x768) ViewSonic VPW5500...
-
Page 36: Supplement
SUPPLEMENT ViewSonic VPW5500... -
Page 37: Optional Video Unit Function
(6 12W) スピーカー端子 スピーカー端子 (6 12W) (6 12W) DVD player Set-Top Box D-sub Remarks Component Refer to Setup Menu. Refer to Setup Menu. Refer to Setup Menu. Refer to Setup Menu. ○ ViewSonic VPW5500 Speaker (L) (exp.) ○ : Available) - Page 38 In some cases, some slight blanking may remain at the top and bottom. * An image with an aspect ratio of 16:9 shrunk horizontally to 4:3 to display in a 4:3 screen ViewSonic VPW5500...
- Page 39 Using a wide-screen monitor • This monitor has a screen mode selection feature. If an incompatible screen mode is selected to play certain software, such as a TV program, the image would appear different from the original. Take this into consideration when making screen mode choices.
- Page 40 ○ ○ VIDEO Off-timer On-timer RGB2 ✱ AV1: Displays the VIDEO input signal of the sub-screen. RGB1 RGB2 Component Main ○ : Available) Composite -- -- Min. -- -- : -- -- ViewSonic VPW5500 (Sub- screen) Input mode Signal mode...
- Page 41 On/Off Return Picture Color Management Magenta + 60 + 30 Yellow Green + 60 Cyan + 30 Blue Reset Reset Select On/Off Return Picture Color Decoding Green + 60 Color Tint + 31 Reset Reset Select Return Exit ViewSonic VPW5500...
- Page 42 4 Color Temperature Dark scene is increased in modes. reddish color. Dark scene is increased in greenish color. Dark scene is increased in bluish color. Setup hint improve the feeling of contrast. possible. ViewSonic VPW5500 cursor...
- Page 43 On 60Min. Black Side Panel Video Power Save Freeze Mode Split Default Zoom Panoramic Reset Reset Select Return Function Panel Life Normal Mode Display ID Number Inverse On 60Min. Standby White Gamma Reset Reset Select Return Setup hint ViewSonic VPW5500...
- Page 44 Return Setup System 2 Video Input Auto Composite/Component Monitor Auto DVI-STB S.Video Component HDTV Return Select Return Setup System 2 Audio Input Stereo L/Mono Stereo Monitor L/Mono Select Return DVI-STB Component HDTV Return Setup hint ViewSonic VPW5500 Exit Exit Exit...
- Page 45 Green Color For every input function and every Picture Mode, 1 setting is Tint registered. 1 setting is registered. 1 setting is registered. 1 setting is registered. AV1 1 setting is registered. AV1 1 setting is registered. ViewSonic VPW5500...
- Page 46 • This sometimes occurs when a component output VCR such as the 480i is connected. This is not a malfunction; therefore, please take note that this may occur. When it does occur, change to composite output, or S.video output. See page – ViewSonic VPW5500...
- Page 47 In this case, use H/V separate sync, H/V composite sync. Signal Sync signal type Priority H/V separate sync. H/V composite sync. sync.on Green * ③ ① ④ ② 20 18 21 19 ViewSonic VPW5500...
- Page 48 ○ ○ ○ ○ EIA-861 ○ EIA-861 ○ EIA-861 ○ ○ : acceptable) Dot clock Remarks frequency (MHz) − − Dot clock Remarks frequency (MHz) − Dot clock Remarks frequency (MHz) − − − − − − − ViewSonic VPW5500...
-
Page 49: Appendi X
F: +61 2 9906 6377 viewsonic.com T: 65 273 4018 service@sg. F: 65 273 1566 viewsonic.com T: 886 2 2246 3456 service@sd. F: 886 2 8242 3668 viewsonic.com T: 886 2 2246 3456 service@hk. F: 886 2 8242 3668 viewsonic.com ViewSonic VPW5500... -
Page 50: Limited Warranty
(d) a description of the problem, and (e) the serial number of the product. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic. -
Page 51: Power Cord Safety Guidelines
If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you have purchased the product. Switzerland ...SEV Britain...BASE/BS Japan...Electric Appliance Control Act Maximum Current Rating of Unit 10 Amps 12 Amps 12 Amps 10 Amps 12 Amps ViewSonic VPW5500... -
Page 52: Cleaning And Maintenance
BBE is a registered trademark of BBE Sound Inc. SRS and symbol are trademarks of SRS Labs Inc. SRS technology is incorporated under license from SRS Labs, Inc. All other trademarks are the properties of theri respective owners. ViewSonic VPW5500... -
Page 53: Fcc Information
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Warning To assure continued FCC compliance, the user must use grounded power supply cord and the provided shielded video interface cable with bonded ferrite cores. - Page 54 ® ViewSonic Corporation...
