HIKVISION DS-PDP15P-EG2 User Manual

1

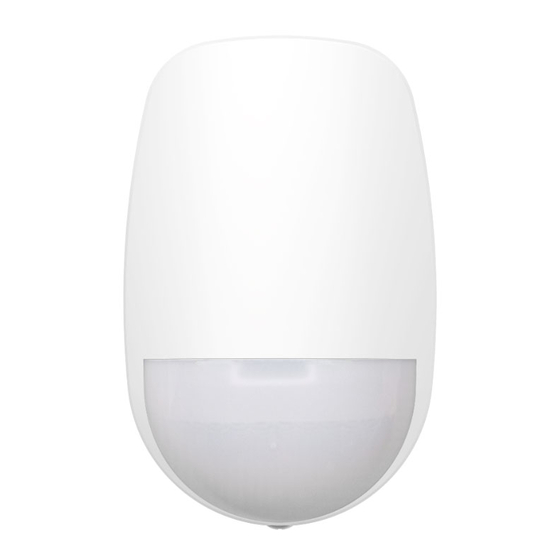

Appearance
65.4 mm
2
Installation
Warning
Ceiling Bracket Fitting
1
3
Hangzhou Hikvision Digital Technology CO.,Ltd.
DS-PDP15P-EG2
Wired PIR Detector
User Manual
UD18957B-C
45.5 mm
2
4
3
Screw Model:
PA_3.5 ×25 (4 screws)
No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
3
The 15 m Lens
15m
13m
11m
9m
7m
5m
3m
1m
1m 3m
1.8 to 2.4m
1m 3m
This PIR detector is approved at 2 m to 2.4 m mounted
height for 15 m detection range, at 1.8 m to 1.9 m
mounted height for 12 m detection range.
4
Connect to Control Panel
Note: The resistor needs to be connected to the end of detector.
1 None Resistor Connection
Detector
TAMPER ALARM
EOL EOL
ZONE1 COM ZONE2
Control Panel
2 Single EOL Connection
Detector
-
TAMPER ALARM
EOL EOL
2.2 K 2.2 K
ZONE1 COM ZONE2
-
Control Panel
5m 7m 9m 11m 13m
5m 7m 9m 11m 13m
Detection Range
85.9°
52 zones
4 planes
- +
TAMPER/ALARM
=
Z
- +
+
TAMPER/ALARM
2.2 K
=
Z
+
15m
15m
G
G
