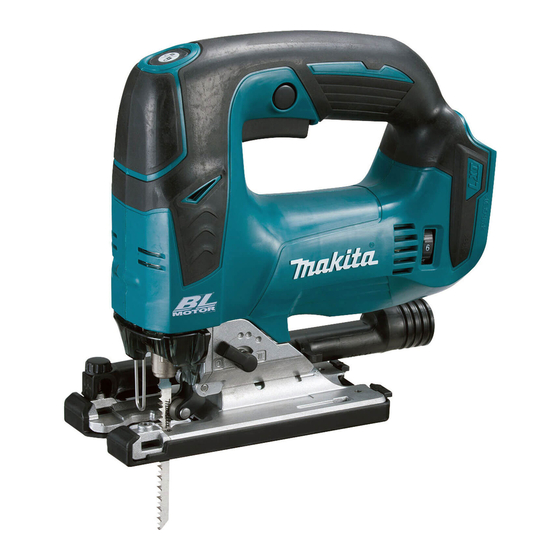

Makita DJV142 Instruction Manual
Cordless jig saw
Hide thumbs
Also See for DJV142:
- Instruction manual (81 pages) ,
- Instruction manual (40 pages) ,
- Instruction manual (65 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Makita DJV142
Summary of Contents for Makita DJV142

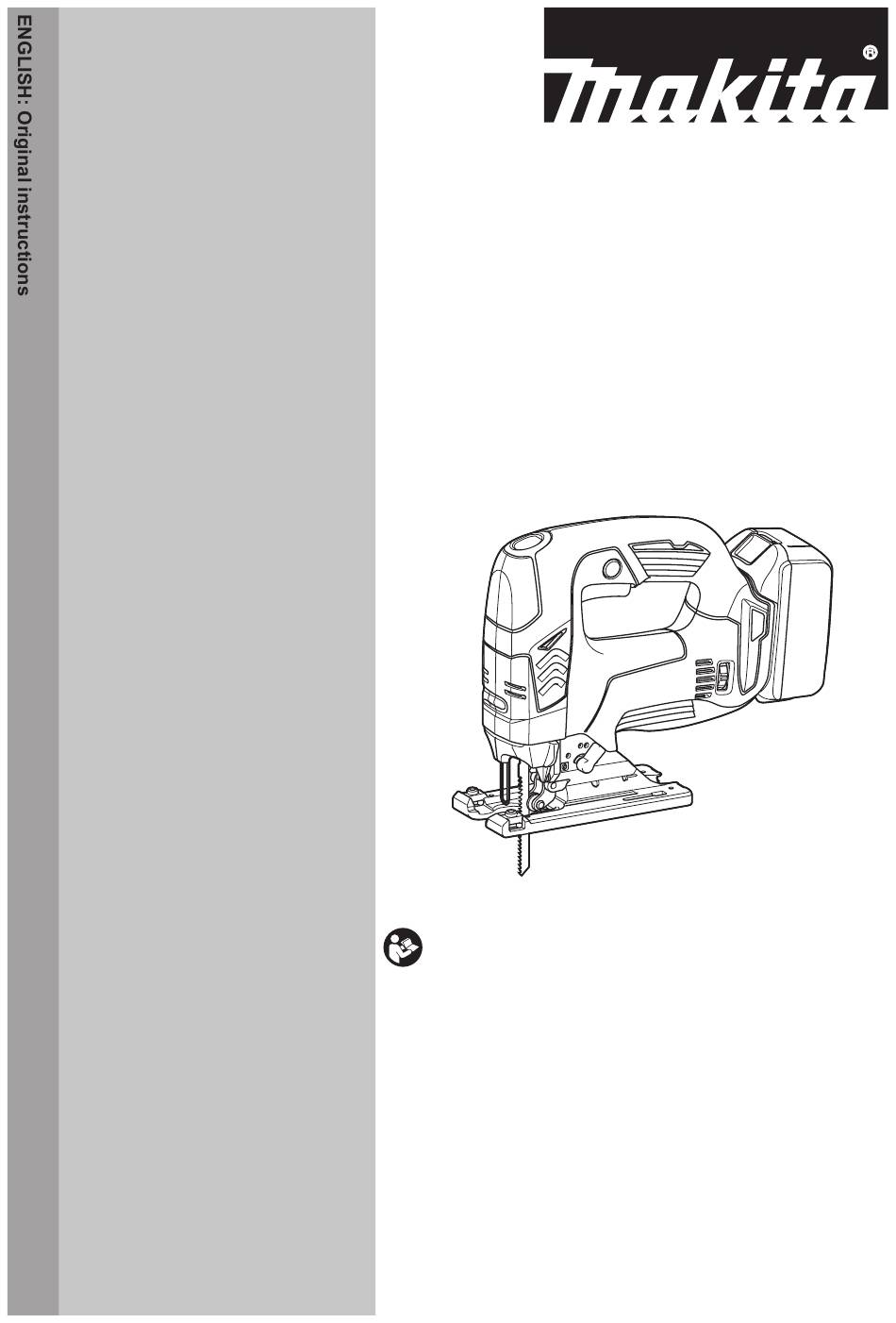

- Page 1 INSTRUCTION MANUAL Cordless Jig Saw DJV142 DJV182 Read before use.
-
Page 2: Specifications
Only use the battery cartridges and chargers listed above. Use of any other battery cartridges and chargers may cause injury and/or fire. Symbols Noise The followings show the symbols used for the equip- The typical A-weighted noise level determined accord- ment. Be sure that you understand their meaning before ing to EN62841-2-11: use. Model DJV142 When soft no-load rotation function is enabled: Read instruction manual. Sound pressure level (L ) : 78 dB(A) Uncertainty (K) : 3 dB(A) The noise level under working may exceed 80 dB (A). Only for EU countries Ni-MH... -
Page 3: Ec Declaration Of Conformity
The vibration total value (tri-axial vector sum) deter- mined according to EN62841-2-11: Electrical safety Model DJV142 Power tool plugs must match the outlet. Never Work mode : cutting boards modify the plug in any way. Do not use any Vibration emission (a ) : 7.0 m/s... - Page 4 Remove any adjusting key or wrench before Maintain power tools and accessories. Check for turning the power tool on. A wrench or a key left misalignment or binding of moving parts, break- attached to a rotating part of the power tool may age of parts and any other condition that may result in personal injury. affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents Do not overreach.
- Page 5 (gained from repeated use) replace CAUTION: Only use genuine Makita batteries. strict adherence to safety rules for the subject Use of non-genuine Makita batteries, or batteries that product. MISUSE or failure to follow the safety have been altered, may result in the battery bursting rules stated in this instruction manual may cause causing fires, personal injury and damage. It will...
-
Page 6: Functional Description
Battery protection system (Lithium- FUNCTIONAL ion battery with star marking) DESCRIPTION CAUTION: • Always be sure that the tool is switched off and the battery cartridge is removed before adjust- ing or checking function on the tool. Installing or removing battery cartridge ► 1 . Star marking Lithium-ion batteries with a star marking are equipped with a protection system. This system automatically cuts off power to the tool to extend battery life. The tool will automatically stop during operation if the tool and/or battery are placed under one of the following conditions: • Overloaded: The tool is operated in a manner that causes it to draw an abnormally high current. - Page 7 Switch action Indicator lamps Remaining capacity CAUTION: Lighted Blinking • Before inserting the battery cartridge into the 75% to 100% tool, always check to see that the switch trigger actuates properly and returns to the "OFF" 50% to 75% position when released. 25% to 50% 0% to 25% Charge the battery. The battery may have malfunctioned. NOTE: Depending on the conditions of use and the ambient temperature, the indication may differ slightly ► 1 .
-
Page 8: Electronic Function
Disabling the soft no-load rotation Speed adjusting dial function Country specific To disable the soft no-load rotation function, follow the steps below. Make sure that the tool is turned off. Set the speed adjusting dial to "1". Press the lock/unlock button to turn on the tool. Set the speed adjusting dial to "6" by turning it, and then set it to "1" by turn it back. -
Page 9: Cover Plate
To install the blade, insert the blade (teeth facing for- Cover plate ward) into the blade holder until it latches. The blade holder moves to the fixed position by itself and the blade is locked. Pull the blade lightly to make sure that the blade does not fall off during operation. CAUTION: • Do not open the tool opener excessively, or it may cause tool damage. ► 1 . Cover plate 2. Base Use the cover plate when cutting decorative veneers, plastics, etc. -
Page 10: Dust Extraction
The dust nozzle can be installed on either left or right the base. side of the base. ► 1 . Dust nozzle 2. Hose for vacuum cleaner With the base tilted, you can make bevel cuts at any angle between 0° and 45° (left or right). Then connect a Makita vacuum cleaner to the dust nozzle. 10 ENGLISH... -
Page 11: Plunge Cutting
Cutouts Cutouts can be made with either of two methods A or B. A) Boring a starting hole: ► 1 . Base 2. Hex wrench 3. Bolt To tilt the base, loosen the bolt on the back of the base with the hex wrench. - Page 12 Finishing edges ► 1 . Hex wrench 2. Bolt 3. Fence guide To install, insert the rip fence into the rectangular hole on the side of the tool base with the fence guide facing down. Slide the rip fence to To trim edges or make dimensional adjustments, run the blade lightly along the cut edges.
-
Page 13: Maintenance
Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be per- formed by Makita Authorized Service Centers, always using Makita replacement parts. OPTIONAL When cutting parallel and uniform width or cutting straight, the use of the guide rail and the guide rail ACCESSORIES adapter will assure the production of fast and clean cuts. - Page 16 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885228D225 www.makita.com 20190621...
