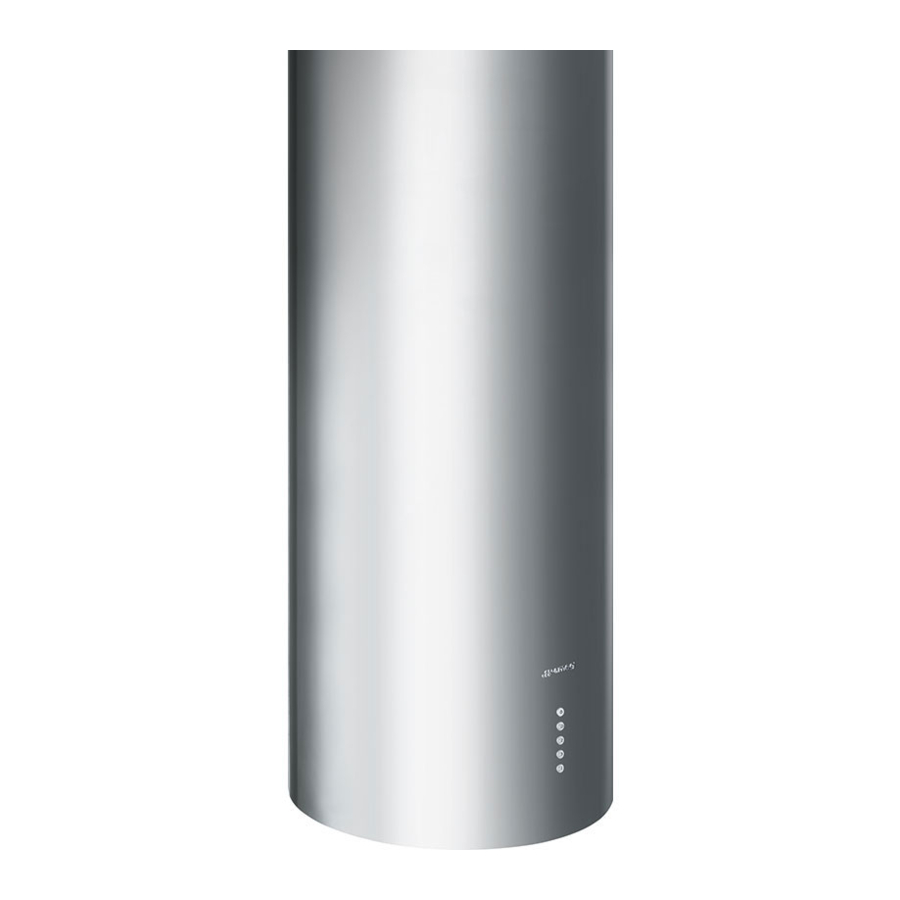

Smeg KR37XE - Decorative Wall Hood 37 cm Manual

Table of Contents

Contents

1 RECOMMENDATIONS AND SUGGESTIONS
2 CHARACTERISTICS
- 2.1 Dimensions
- 2.2 Components
3 INSTALLATION
4 USE
- 4.1 Control panel
5 MAINTENANCE
6 Documents / Resources
- 6.1 Download manual

RECOMMENDATIONS AND SUGGESTIONS

warning The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.

USE

The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
Never use the hood for purposes other than for which it has been designed.
Never leave high naked flames under the hood when it is in operation.
Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
Do not flambè under the range hood; risk of fire
This appliance is not intended for use by persons (including children) with reduced physical, sen-sory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Accessible parts may become hot when used with cooking appliances."

MAINTENANCE

Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
Clean and/or replace the Filters after the specified time period (Fire hazard).
Clean the hood using a damp cloth and a neutral liquid detergent.

CHARACTERISTICS

Dimensions

Components

Ref.	Q.ty	Product components
1	1	Hood equipped with: Controls, Lights, Filters
3	1	Hood support equipped with the Exhaust Group
7	1	tube in PVC
8	1	Directioned grid
8c	1	Air outlet reduction ø 120mm
9	1	Reduction flange ø 150-120 mm
Ref.	Q.ty	Installation components
11	4	Small blocks ø 10
12a	4	Screws 5 x 70
12b	4	Screws M4 x 15
12e	2	Screws 2,9 x 9,5
13	4	Screws plug M4
	Q.ty	Documentations
	1	Instruction booklet

INSTALLATION

Wall drilling and bracket fixing

Wall drilling and bracket fixing
When installing the hood in recycling version it has to be taken into consideration that space remaining between the hood and the upper limit (ceiling or self) is at least 8-10 cm.

On the wall, draw:

a Vertical line up to the ceiling or upper limit, at the centre of the area in which the hood is to be fitted;
a Horizontal line at a minimum of 1050 mm above the Cooker Top; .
As indicated, mark a reference point at 100 mm to the right of the vertical reference line.
Repeat this operation on the other side, checking that the two marks are level.
As indicated, mark a reference point at 390 mm above the horizontal reference line, and at 100 mm to the right of the vertical reference line.
Repeat this operation on the other side, checking that the two marks are level.
Drill at the points marked, using a ø 10 mm drill bit.
Insert the plugs11 into the holes.

Hood support mounting

Lean the hood support 3 against the wall making sure thatholes in the hood support correspond to those in the wall.
Block the hood support to the wall using 4 12a (5 x 70) screws supplied with the hood.
Before fastening the screws definitively make sure that thesupport is well-levelled. Only after this operation proceed with the definitive tightening of the screws.

Air outlet connection in the ducting version

When installing the hood in ducting version, basing on the installer's choice, a rigid or a flexible pipe with a ø 150 o 120 mm is used in order to connect the hood to the air outlet piping. The pipe connection can be made on the upper part or on the back side of the hood.

AIR OUTLET ON THE BACK SIDE OF THE HOOD

When drilling the air outlet hole in the wall proceed in accord-ance with the scheme in the paragraph concerning the wall drilling.
In case the connection is made with a ø 120 mm pipe insert thereduction flange 9 on the hood body outlet.
Fix the pipe with an adequate quantity of pipe clamps. Thismaterial is not supplied together with the hood.
Remove the charcoal filter if present.

AIR OUTLET ON THE UPPER PART OF THE HOOD

In case the connection of the hood to the air outlet piping ismade with a ø 150 mm pipe then use a rigid or a flexible pipe.
In case the connection is made with a ø 120 mm pipe insert thereduction flange 9 on the hood body outlet.
Fix the air outlet reduction8c to the air outlet hole of the hood support with the screws supplied together with the hood.
Connect the hood to the piping with a rigid or a flexible pipe.
Fix the pipe with an adequate quantity of pipe clamps. Thismaterial is not supplied together with the hood.
Remove the charcoal filter if present.

RECIRCULATION VERSION AIR OUTLET

Insert pvc pipe 7 provided onto the Hood Canopy Outlet.

Hood body mounting

Ducting version

In case the air outlet connection on the upper part of the hood has been chosen it will be necessary to remove the pre-cut piece.
Lean the hood body on the support and fix it laterally with the 4 12b screws.
Cover the screw seats with the plugs 13 supplied with the hood.

Recycling version

Remove the pre-cut piece.
Lean the hood body on the support and fix it laterally with the 4 12b screws.
Cover the screw seats with the plugs 13 supplied with the hood.
Place the directioned grid 8 on the pipe and make sure that it is correctly installed.
Fix the directioned grid 8 with the screws 12e supplied together with the hood.
Make sure that the charcoal filters are present.

ELECTRICAL CONNECTION

Connect the hood to the mains through a twopoleswitch having a contact gap of at least 3 mm.
Open the lighting unit by pulling on the notch.
Remove the filters one at a time by pushing them towards theback of the group and pulling down at the same time.
Being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan. Connect the control connectorv Cmd.
Connect the Spotlights connector Lux to the socket provided behind the lighting unit cover.
Replace the filters, make sure that the handle is visible on theoutside, and the lighting unit.

USE

Control panel

Button	Function	Led
L	Turns the lighting system on and off.	-
L	Press and hold for approx. 2 seconds to turn the lighting system on and off at reduced intensity.	-
T1	Turn the suction motor on and off at speed one.	On.
T1	Press and hold the button for approximately 2 seconds, with all the loads turned off (Motor and Lights), to reset the Filters and turn off the Leds that are lit.	After 100 working hours all the LEDs (L1-L2-L3-L4) will light up and remain lit to indicate saturation of the metal grease filters. After 200 working hours all the LEDs (L1-L2-L3-L4) will light up and start to flash to indicate saturation of the activated charcoal filters.
T2	Turn the suction motor on at speed two.	On.
	Press and hold for approximately 5 seconds, with all the loads turned off (Motor and Lights), to enable/disable the Remote control.	2 flashes, Remote control Enabled. 1 flash, Remote control Disabled.
T3	Turn the suction motor on at speed three.	On.
	Press and hold the button for 2 seconds to activate intensive speed. This speed is timed to run for 10 minutes. At the end of this time the system will automatically return to the speed set before.
T4	Press and hold the button for approximately 2 seconds to activate automatic shutdown with a 30' delay (Motor+Lights).	On.
T4	Press and hold for approximately 5 seconds to enable/disable the Activated Charcoal Filter alarm.	2 Flashes of the Leds (L1-L2-L3) Filter Alarm Enabled. 1 Flash of the Leds (L1-L2-L3) Filter Alarm Disabled.

MAINTENANCE

Metal grease filters

These can also be washed in the dishwasher, and need to be cleaned when all the command LEDs light up in a continuous manner or at least once every 2 months use, or more frequently if use is particularly intensive.

Resetting the alarm signal

Press button T1 (see the paragraph on Use).

Cleaning the Filters

Open the lighting unit by pulling on the nocth.
Remove the Filters one at a time, pushing them towards theback of the unit and at the same time pulling downward.
Wash the Filters without bending them, and leave them to drycompletely before replacing.
Replace, taking care to ensure that the handle faces forwards.
Replace the lighting unit.

Activated Charcoal Filter (Recirculation Version)

This cannot be washed or regenerated, and must be changed when all the command LEDsstart to flash, or at least once every 4 months.

Activating the alarm signal

In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at a later date.
Press and hold the Delay button (T4) on the keypad for 5 seconds and the following will be displayed:
Leds (L1-L2-L3) flash twice – Activated Charcoal Filter saturation alarm ACTIVATED.
Leds (L1-L2-L3) flash once – Activated Charcoal Filter saturation alarm DEACTIVATED.

CHANGING THE ACTIVATED CHARCOAL FILTER

Resetting the alarm signal

Press button T1 (see the paragraph on Use).

Changing the Filter

Open the lighting unit by pulling on the nocth.
Remove the Metal grease filters.
Remove the saturated Activated Charcoal filter, as shown inthe figure.
Fit the new Filter, hooking it into place.
Replace the Metal grease filters.
Replace the lighting unit.

Lighting

LIGHT REPLACEMENT

20 W halogen light.

Extract the lamp from the lamp holder by pulling gently.
Replace with another of the same type, making sure that thetwo pins are properly inserted in the lamp holder socket holes.
