KitchenAid KHM72, KHM92 - 9-Speed Hand Mixer Manual

PROOF OF PURCHASE & PRODUCT REGISTRATION

Always keep a copy of the sales receipt showing the date of purchase of your Hand Mixer. Proof of purchase will assure you of in-warranty service. Before you use your Hand Mixer, please fill out and mail your product registration card packed with the unit. This card will enable us to contact you in the unlikely event of a product safety notification and assist us in complying with the provisions of the Consumer Product Safety Act. This card does not verify your warranty. Please complete the following for your personal records:
Model Number
Serial Number
Date Purchased
Store Name and location

Remember to register your product online at www.kitchenaid.com, or by mail using the attached Product Registration Card.

TROUBLESHOOTING

If Hand Mixer malfunctions or fails to operate
First try the solutions suggested here and possibly avoid the cost of service.

1. Is the Hand Mixer plugged in?
2. Is the fuse in the circuit to the Hand Mixer in working order? If you have a circuit breaker box, make sure the circuit is closed.
3. Try unplugging the Hand Mixer, then plug it back in.

If the problem cannot be fixed with the steps provided in this section, then contact KitchenAid or an Authorized Service Center.

USA/Puerto Rico: 1-800-541-6390,
Canada: 1-800-807-6777,
Mexico: 01-800-024-17-17 (JV Distribuciones)
or
01-800-902-31-00 (Industrias Birtman)

See the "Warranty" section for additional details. Do not return the Hand Mixer to the retailer – they do not provide service.

PARTS AND FEATURES

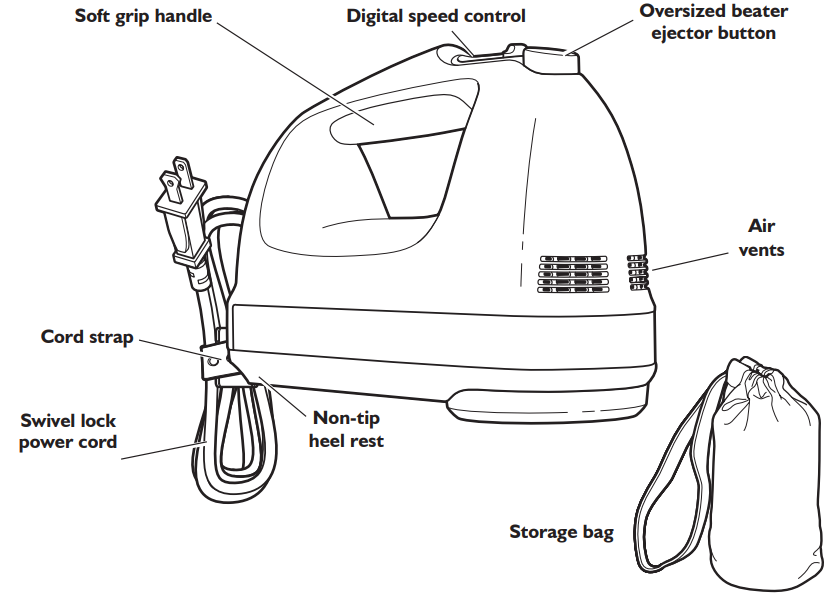

Device parts and accessories

Cord strap
(included with 9-Speed models)

Storage bag
(included with exclusive models, see "Accessory guide" section)

Liquid blender rod accessory
(included with 9-Speed models)

Artisan Beater accessory
(Included with Professional Models only)

Accessory guide

Accessory	Uses		Included with Model
		KHM7210	KHM7211	KHM926	KHM929	KHM9212
Turbo Beater	cookie dough cake batter		*		*
Turbo Beater II	cookie dough cake batter	*		*
Artisan Beater †	cookie dough cake batter					*
Liquid blender rod	smoothies diet drink mixes chocolate milk iced tea milkshakes soups sauces			*	*	*
Dough hooks	yeast bread doughs		*	*	*	*
16-Tine pro whisk	whipped cream whipped egg whites sauces puddings	*		*	*	*
Storage bag†	to store accessories		*	*		*

†Not sold as an accessory.

To order these accessories
In USA: visit www.shopkitchenaid.com, or call 1-800-541-6390.
In Canada: call 1-800-807-6777

SETTING UP YOUR DEVICE

Attaching the accessories

Injury Hazard
Unplug mixer before touching.
Failure to do so can result in broken bones, cuts, or bruises.

Be sure to read and follow the specific instructions in this manual for proper use of the Hand Mixer.

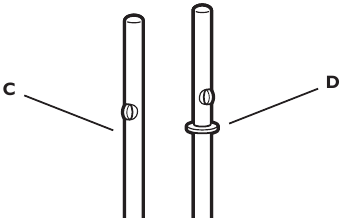

Paired accessories (beaters, optional dough hooks) include one accessory with a collar (D), and one without (C). Single accessories come with a collar (D) (liquid blending rod) or without (C) (whisk).

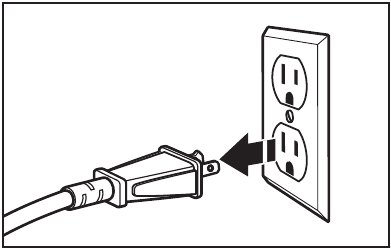

1. Unplug the Hand Mixer from the electrical outlet.

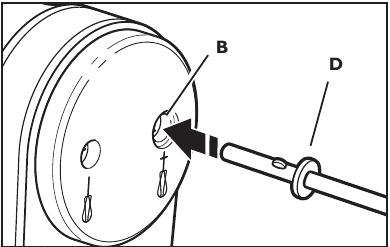

2. Insert the accessory shaft with the collar (D) into the larger opening (B) of the Hand Mixer. Align the flanges on the shaft with the slots in the opening. Push to lock into place.

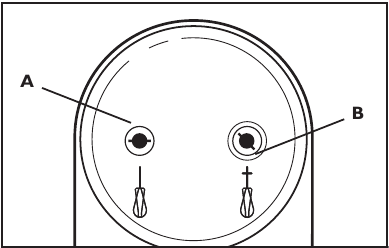

3. Insert the accessory without a collar (C) into the smaller opening (A). Align and push to lock into place.


NOTE: An accessory shaft without a collar may be used in either opening (A or B). Those with a collar may only be used in the larger opening (B).

Removing the accessories

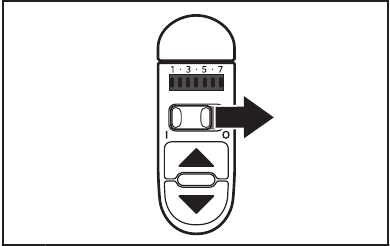

1. If the Hand Mixer is running, stop the Hand Mixer by sliding the Power switch to the "O" (Off) position.

2. Unplug the Hand Mixer from the electrical outlet.

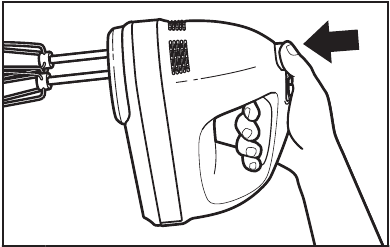

3. Press the Ejector Button to release the accessories from the Hand Mixer, then remove them.


Operating the Speed Control

This KitchenAid Hand Mixer will beat faster and more thoroughly than most other electric hand mixers. Therefore, the beating time in most recipes must be adjusted to avoid over beating. Beating time is faster due to larger beater sizes.

To help determine the ideal beating time, observe the batter or dough and beat only until it has the desired appearance described in your recipe, such as "smooth and creamy". To select the best beating speeds, use the "Speed control guide" section.

Injury Hazard
Unplug mixer before touching.
Failure to do so can result in broken bones, cuts, or bruises.

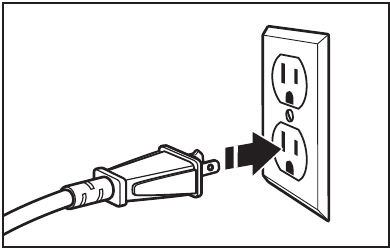

1. Plug the Hand Mixer into an electrical outlet.

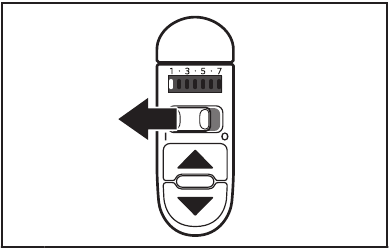

2. Slide the Power switch to the "I" (ON) position. The motor will automatically start at Speed 1, and the "1" on the speed indicator control will light up.

3. Touch the "UP (arrow)" button to increase the mixing speed to the desired setting. If necessary, touch the "DOWN (arrow)" button to decrease the mixing speed. See the "Speed control guide" for more information.

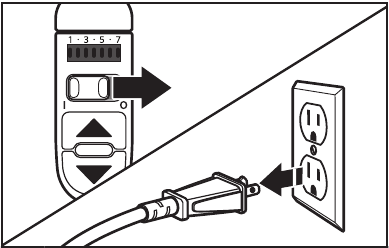

4. When mixing job is finished, slide the Power switch to the "O" (Off) position. Unplug the Hand Mixer before removing accessories.


NOTE: The Hand Mixer automatically starts at Speed 1 every time it is turned on, regardless of the Speed setting at the time the Hand Mixer is shut off.

Speed control guide

7-Speed Hand Mixers
The 7-Speed Hand Mixer always starts on the lowest speed (Speed 1). Move to higher speeds as needed, the speed setting indicator control will light up with the corresponding number for each speed.

Speed	Attachment	Description
1		For slow stirring, combining, and starting all mixing procedures. Use this speed to stir in nuts, chocolate chips, shredded cheese, onions, olives, and other chunky ingredients. Mix flour and other dry ingredients with liquids or other moist mixtures. Helps prevent ingredients from splashing out of bowl.
2		Mix pancake batter.
3		Combine heavy mixtures, such as cookie dough. Mix light cream cheese spreads. Stir batters and gelatin mixtures.
4		Combine heavy cream cheese mixtures. Mash potatoes or squash.
5		Mix muffins, quick breads, batter breads, cake batters, and frostings. Blend butter and sugar.
6		Whip heavy cream and mousse mixtures.
7		Beat egg whites and meringue mixtures.

NOTE: Beater accessories are not designed for mixing and kneading bread dough. Special dough hook attachments are available. See "Accessories" section for details and ordering information.

9-Speed Hand Mixers
The 9-Speed Hand Mixer always starts on the lowest speed (Speed 1). Move to higher speeds as needed, the speed setting indicator control will light up with the corresponding number for each speed.

Speed	Attachment	Description
1		For slow stirring, combining, and starting all mixing procedures. Use this speed to stir in nuts, chocolate chips, shredded cheese, onions, olives, and other chunky ingredients. Helps prevent ingredients from splashing out of bowl.
2		Mix flour and other dry ingredients with liquids or other moist mixtures.
3		Mix pancake batter.
4		Combine heavy mixtures, such as cookie dough. Mix light cream cheese spreads. Stir batters and gelatin mixtures.
5		Mix muffins and quick breads. Combine heavy cream cheese mixtures. Mash potatoes or squash.
6		Mix batter breads. Blend butter and sugar. Mix frostings.
7		Finish mixing cake and other batters. Whip heavy cream and mousse mixtures.
8		Beat egg whites. Whip heavy cream and mousse mixtures.
9		Beat meringue mixtures.

NOTE: Beater accessories are not designed for mixing and kneading bread dough. Special dough hook attachments are available. See "Accessories" section for details and ordering information.

CARE AND CLEANING

Cleaning the unit body

Electrical Shock Hazard
Do not put in water.
Doing so can result in death or electrical shock.

Injury Hazard
Unplug mixer before touching.
Failure to do so can result in broken bones, cuts, or bruises.

1. Always unplug Hand Mixer before cleaning. Wipe power cord and cord strap with damp cloth. Dry with a soft cloth.

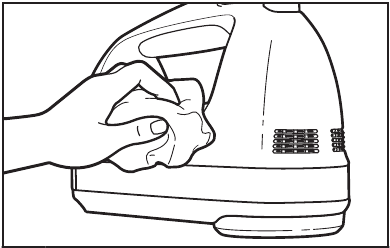

2. Wipe Hand Mixer with a damp cloth. Dry with a soft cloth.

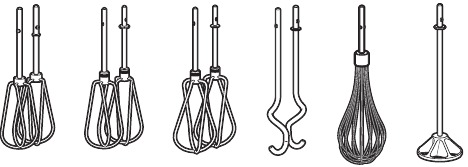

Cleaning the accessories

Always remove accessories from Hand Mixer before cleaning. Wash in dishwasher, or by hand in warm, soapy water. Rinse and wipe dry.

Cleaning the storage bag

Machine wash warm, tumble dry low. Or wipe clean with a warm soapy cloth.

WARRANTY AND SERVICE

Hassle-Free Replacement of your Hand Mixer: call the Customer Satisfaction Center toll-free at 1-800-541-6390.
OR
The replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center.

PRODUCT SAFETY

Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

	You can be killed or seriously injured if you don't immediately follow instructions.
	You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

State of California Proposition 65 Warnings:

This product contains one or more chemicals known to the State of California to cause cancer.

This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. To protect against risk of electrical shock, do not put Hand Mixer in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near children.
4. Unplug Hand Mixer from the outlet when not in use, before putting on or taking off parts, and before cleaning.
5. Avoid contacting moving parts. Keep hands, hair, clothing, as well as spatulas and other utensils away from all accessories during operation to reduce the risk of injury to persons and/or damage to the Hand Mixer.
6. Do not operate the Hand Mixer with a damaged cord or plug, or after the Hand Mixer malfunctions, or is dropped or damaged in any manner. Return the Hand Mixer to the nearest Authorized Service Center for examination, repair, or electrical or mechanical adjustment.
7.
   The use of attachments not recommended or sold by KitchenAid may cause fire, electric shock, or injury.
8. Do not use the Hand Mixer outdoors.
9. Do not let cord hang over edge of table or counter.
10. Do not let cord contact hot surface, including the stove.
11. Remove any accessories from Hand Mixer before washing.

SAVE THESE INSTRUCTIONS

Electrical Requirements

Volts: 120 A.C. only.
Hertz: 60 Hz

NOTE: This Hand Mixer has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way. This product is designed for household use only.

Join us in the kitchen at www.kitchenaid.com for recipes, tips, and more.

USA: 1.800.541.6390
Kitchenaid.com

Canada: 1.800.807.6777
Kitchenaid.ca
