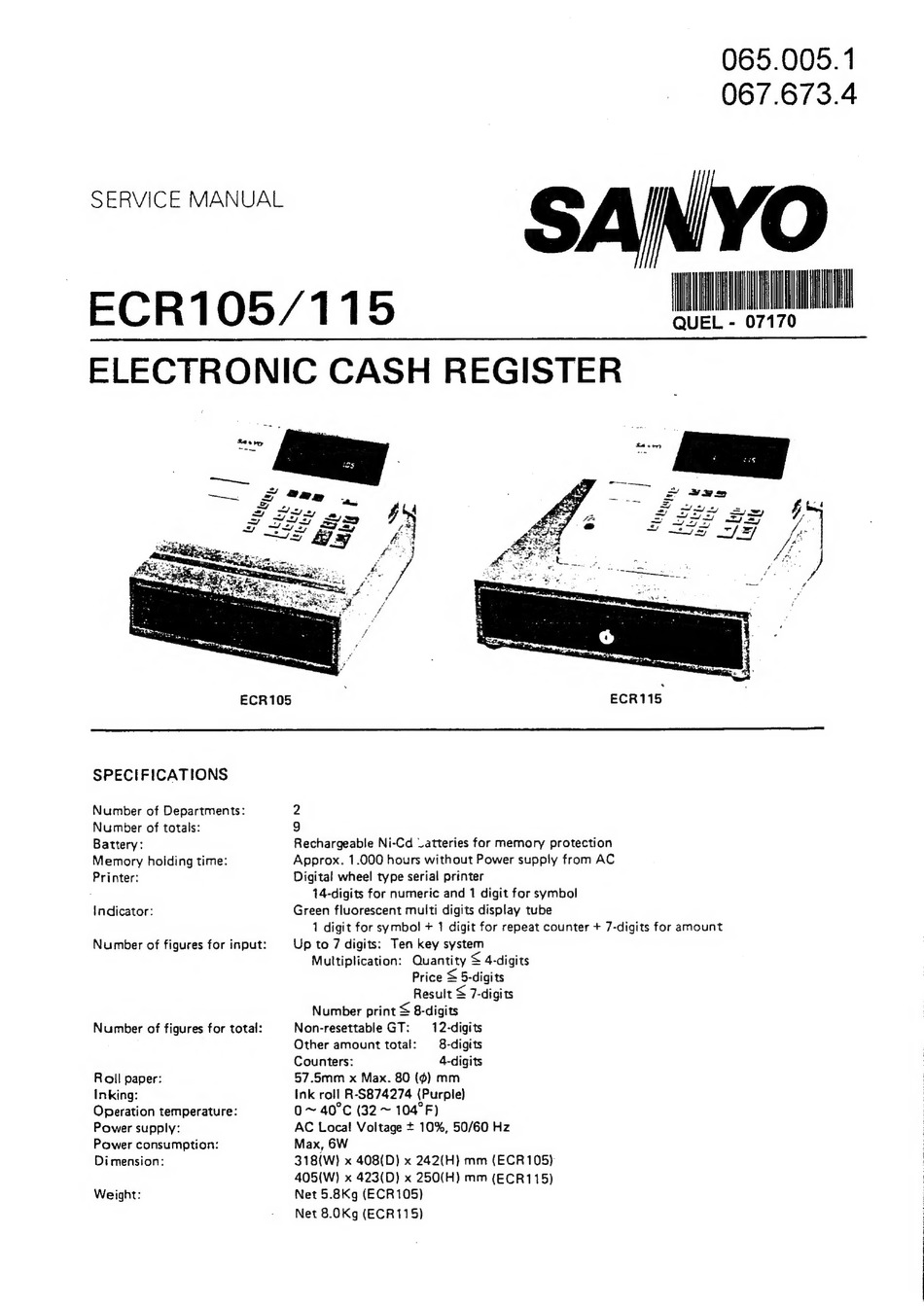

Sanyo ECR105 Service Manual

065.005. 1
067.673.4
SANYO
SERVICE MANUAL
ECR105/115
ELECTRONIC CASH REGISTER
ECR105 ECR115
SPECIFICATIONS
Number of Departments: 2
Number of totals: 9
Battery: Rechargeable Ni-Cd Uatteries for memory protection
Memory holding time: Approx. 1.000 hours without Power supply from AC
Printer: Digital wheel type serial printer
14-digits for numeric and 1 digit for symbol
Indicator: Green fluorescent multi digits display tube
1 digit for symbol + 1 digit for repeat counter + 7-digits for amount
Up to 7 digits: Ten key system
Multiplication: Quantity & 4-digits
Price & 5-digits
Result & 7-digits
Number print Ps 8-digits
Number of figures for input:
Number of figures for total: Non-resettable GT: 12-digits
Other amount total: 8-digits
Counters: 4-digits
Roll paper: 57.5mm x Max. 80 (¢) mm
Inking: Ink roll R-S874274 (Purple)
Operation temperature:
Power supply:
Power consumption:
Dimension:
Weight:
0~ 40°C (32 ~ 104°F)
AC Local! Voltage + 10%, 50/60 Hz
Max, 6W
318(W) x 408(D) x 242(H) mm (ECR105)
405(W) x 423(D) x 250(H) mm (ECR115)
Net 5.8Kg (ECR105)
Net 8.0Kg (ECR115)
