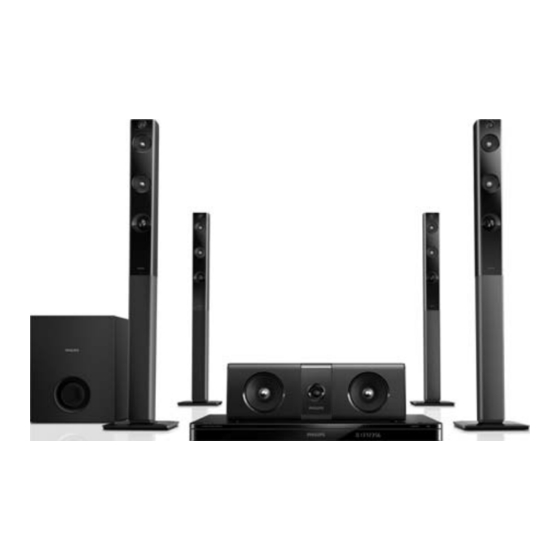

Philips HTB5575D/51 Service Manual
Philips HTB5575D/51 Service Manual

Philips HTB5575D/51 Service Manual

Home theater bd player
Hide thumbs Also See for HTB5575D/51:

Advertisement

Quick Links

Home Theater BD Player
Service
Service Manual
. Location of PCB Boards,Version Variation and Repair Scenario Matrix.....1-2
. Technical Specifications.........................................................1- 3
. Safety Instruction, Warning & Notes........................................1- 4
. DFU Instruction..............................................................................2-1
. Mechanical and Dismantling Instructions....................................3-1
. Software Upgrades .......................................................................
. Trouble Shooting Chart......................................................
. Wiring Diagram..................................................................6-1
. Electrical Diagrams and Print-layouts......................................7-1
. Votages and Waveforms for Connection Pins...........................8-1
. Pin Description & Block Diagrams of ICs..................................9-1
. Set Mechanical Exploded view & Part list...............................10-1
. Revision List.................................................................................11-1
©Copyright 2013 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in aretrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise
without the prior permission of Philips.
Published by Arya & Stephen - 1317 Printed in The Netherlands Subject to modification
Version 1.0

TABLE OF CONTENTS

HTB5575D/51
Page
4-1
.
5-1
.
CLASS 1
LASER PRODUCT
3145 038 60180
GB
PHILIPS

Advertisement

loading

Summary of Contents for Philips HTB5575D/51

  • Page 1: Table Of Contents

    . Set Mechanical Exploded view & Part list.…………………..….…10-1 . Revision List.................11-1 CLASS 1 ©Copyright 2013 Philips Consumer Electronics B.V. Eindhoven, The Netherlands All rights reserved. No part of this publication may be reproduced, stored in aretrieval system or LASER PRODUCT transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.
  • Page 2 PCB Board Locations VERSION VARIATIONS Type / Versions HTB5575D Service Policy Board in used MAIN BOARD POWER BOARD AMPLIFIER BOARD FRONT CONTROL BOARD TOUCH BOARD LOADER C -- Component Lever Repair Tips: * M -- Module Lever Repair X -- Used Used...
  • Page 3 Product File formats specifications Audio: .aac, .mka, .mp3, .wma, .wav, .mp4, .m4a, China) Video: Note .avi, .divx, .mp4, .m4v, .mkv, .asf, .wmv, notice. .rmvb, .rm, .rv (Available only in Asia Picture: .jpg, .jpeg, .jpe, .gif, .png Region codes Bluetooth The type plate on the back or bottom of the home theater shows which regions it supports.
  • Page 4 Upto 320 kbps Audio codec Video codec Bit rate Upto 192 PCM, Dolby DivX 3.11, kbps Digital, MP3, DivX 4.x, DivX 5.x, Mbps AAC, Upto 192 DivX 6.x kbps AAC, Upto 192 Audio codec Video codec Bit rate kbps Dolby Digital, MPEG 1, 40 Mbps MPEG, MP3,...
  • Page 5 Input sensitivity: AUX: 2 V Audio codec Video codec Bit rate AUDIO IN: 1 V Dolby Digital, MPEG 4 ASP 38.4 Mbps MP3, WMA, Video H.264/AVC 25 Mbps Signal system: PAL / NTSC HiP@4.2 HDMI output: 480i/576i, 480p/576p, 720p, 1080i, 1080p, 1080p24 WMV9 45 Mbps Audio...
  • Page 6 HTB5540: 3.64 kg/each (front); 0.61 V/220-240 V~, 50-60 Hz kg/each (rear) Russia/India: 220-240 V~, 50 Hz HTB5570: 2.18 kg/each (front); 2.21 Power consumption: 160 W kg/each (rear) Cable length (front): Dimensions (WxHxD): 435 x 58 x 280 HTB5510: 3 m (front); 10 m (rear) HTB5540: 4 m (front);...
  • Page 7: Safety Instruction, Warning & Notes

    1- 7 Safety instruction, Warning & Notes Safety instruction 1. General safety 2.Laser safety Safety regulations require that during a repair: This unit employs a laser. Only qualified service personnel . Connect the unit to the mains via an isolation transformer. may remove the cover, or attempt to service this device .
  • Page 8 Warning 1.General 2. Laser . All ICs and many other semiconductors are susceptible to . The use of optical instruments with this product, will electrostatic discharges (ESD). Careless handing during increase eye hazard. repair can reduce life drastically. Make sure that, during .
  • Page 9 Solder Joint...
  • Page 10 - lead free BGA-ICs will be delivered in so-called respected by the workshop during a repair: ‘dry-packaging’ (sealed pack including a silica gel Use only lead-free solder alloy Philips SAC305 with pack) to protect the IC against moisture. After order code 0622 149 00106. If lead-free solder-paste is...
  • Page 11 EN Before using your product, read all accompanying safety information DA Læs alle medfølgende sikkerhedsoplysninger, inden du tager produktet i brug PT Antes de utilizar o produto, leia todas as informações de begleitenden Sicherheitsinformationen segurança que o acompanham ES Antes de usar el producto, lea toda la información de seguridad adjunta disertakan okuyun...
  • Page 12 EN Stand mount the speakers IT Montaggio degli altoparlanti su supporto CS Nainstalujte reproduktory NL Monteer de luidsprekers op de standaarden DA Monter højttalerne på fod NO Mo DE Montage der Lautsprecher auf den Standfüßen PL Mo PT Colocar os altifalantes no suporte ES Mo RO Mo SK Mo...
  • Page 14 EN Connect the home theater IT Collegamento del sistema Home Theater NL Sluit de home cinema aan DA Tilslut hjemmebiografen NO Koble til hjemmekinoanlegget DE Anschließen des Home PL Po Entertainment-Systems PT Efectuar as ligações ao sistema de cinema em casa RO Co ES Conecta el sistema de cine en casa SK Pr...
  • Page 15 seguito szerint HDMI ARC HDMI HDMI OUT (ARC) TO TV HDMI IN (ARC) HDMI + OPTICAL OPTICAL HDMI DIGITAL IN HDMI OUT (ARC) TO TV OPTICAL HDMI IN OPTICAL OUT...
  • Page 16 HDMI + COAXIAL COAXIAL HDMI HDMI OUT (ARC) TO TV DIGITAL IN COAXIAL HDMI IN COAXIAL OUT HDMI + AUDIO L/R AUDIO L/R HDMI HDMI OUT (ARC) TO TV HDMI IN AUDIO OUT AUDIO IN...
  • Page 17 NL Aansluiten op andere HDMI-apparaten DA Opret forbindelse til andre HDMI-enheder NO Koble til andre HDMI-enheter SV Ansluta till andra HDMI-enheter HDMI IN HDMI HDMI OUT (ARC) HDMI IN 1 HDMI IN 2 TO TV HDMI IN (ARC)
  • Page 18 EN Switch on the home theater NL Schakel de home cinema in CS Za NO Slå på hjemmekinoanlegget DA Tænd for hjemmebiografen DE Einschalten des Home PT Ligar o sistema de cinema em casa Entertainment-Systems RO Po SK Za ES Enciende el sistema de cine en casa tt på...
  • Page 19 EN Co ltooi de eerste installatie CS Do PL Pi ldfør den indledende opsætning DE Abschließen der Ersteinrichtung RO Re SK Do SV Sl Ensiasennuksen suorittaminen loppuun FR Ef HU Az IT Co HDMI HOME THEATER HOME THEATER HOME THEATER...
  • Page 20 2-10 EN Use your home theater IT Utilizzo del sistema Home Theater CS Po NL Uw home cinema bedienen DA Brug af din hjemmebiograf NO Bruke hjemmekinoanlegget PL Korzystanie z zestawu kina domowego rwenden des Home Entertainment-Systems PT Utilizar o sistema de cinema em casa RO Ut ES Uso del sistema de cine en casa SK Po...
  • Page 21 2-11 3.5MM STEREO AUDIO IN...
  • Page 22 2-12...
  • Page 23: Mechanical And Dismantling Instructions

    Mechanical and Dismantling Instructions Dismantling Instruction Detailed information please refer to the model set. The following guidelines show how to dismantle the player. Step 1:Open the top cover.Remove 4 screws on the back panel,dismantle the left and right baffles,then open the top cover.(Figur 1) Figue 1...
  • Page 24 Mechanical and Dismantling Instructions Dismantling Instruction Detailed information please refer to the model set. The following guidelines show how to dismantle the player. Step 2:Dismantle the loader.Open the tray,diamantle the CD door,disconnect connectors(J11,J12,XP7,P2), remove 2 screws beside the loader,then pull up the loader.(Figure 2) Step 3:Dismantle the main board.Disconnect connectors(XP6,XP9,XP4,XP13),remove 2 screws on the main board and 5 screws on the back panel.then pull up the main board.(Figure 2) Step 4:Dismantle the amplifier board.Disconnect connectors(XP3,XP58),remove 2 screws on the...
  • Page 25: Software Upgrades

    4‐1    Software upgrade      1.Build a folder name as UPG under root menu of USB device.  3.Copy the HTB5510.bin file(upgrade file) to the root menu of USB device.    4.Connect the USB device to HTS ,    5.Power on DUT,enter into HOME UI.  6.Enter into Setup menu select Advance >>Software upgrade>>USB. If the upgrade SW was found ,it will  prompt start upgrade SW,pls press ok select Start.  7.Don’t power off DUT .DUT will restart after SW upgrade completed.  Caution: The set must not be power off during upgrading, Otherwise the Main board will be damaged  entirely. ...
  • Page 26: Trouble Shooting Chart

    Trouble shooting Chart VFD No display on Front Control Board VFD No display on Front Control Board Check every supply voltage on Main Board whether normal or not. Refer to CON501 on Power Board (XP4 PIN4&PIN5:+12V) Check voltage -24V on main Board at XP9 Check whether U6 and U10 work good PIN16: -24V or not? And fix it or replace the main...
  • Page 27 Trouble shooting Chart Touch keys do not work keys do not work Check voltage 3.3V and 12V on Touch Fix the connection CON606 to CON607 Board: 3.3V at R676 on Front Board 12V at R680 Check Front Control Board signals at XP9 Pin1 SCL_MCU, Pin2 SDA_MCU Replace U8 on Main Board, or replace Main Board...
  • Page 28 Trouble shooting Chart Remote control does not work Remote control does not work Check battery of remote control whether exhausted or not. Replace the battery for remote control Check power supply of IR601 on Front Check the +3.3V net on Front Control Board whether normal or not Control Board to Main Board XP9 XP9 Pin13: +3.3V...
  • Page 29 Trouble shooting Chart No audio output No audio output Check voltage +34V for whether normal or Check XP4 Pin1 +5V on Main Board not at on Amplifier Board whether normal or not Refer to CON502 on Power Board Check the 24Pin FFC connection XP13 on Main Board and XP1 on Amplifier Board whether right or not between Main Board and Amplifier Board...
  • Page 30 Trouble shooting Chart No video output No video output Check L452, R616 whether right on Main Add L452, R616 Board Check the video signal whether right at U1: PIN B18 or R615 Replace Main IC or Main Board...
  • Page 31 Trouble shooting Chart Can’t read disc or can’t open the disk door Can’t read disc or can’t open the disk door Check loader work normally or not Check XP7 and J11 on Main Board Check 45Pin, 8Pin, 4Pin cable from Fix 45Pin, 8Pin, 4Pin cable Main Board to Loader connect right or Replace Loader...
  • Page 32 Trouble shooting Chart Tuner FM does not work Tuner FM does not work Check voltage at Q28 C electrode (+5V) on Main Board whether normal Check whether U6 and U10 work good or not or not? And fix it or replace the main board.
  • Page 33 Trouble shooting Chart AUX in does not work AUX in does not work Check voltage at U18 PIN16 (6V), check 12V on Main Board whether normal or not Refer to Power Board CON501 Check Main Board U18 Pin4, Pin11 signal input whether right or not Check AUX IN connector Check...
  • Page 34 Trouble shooting Chart MP3 Link does not work MP3 Link does not work Check voltage 5V at FB23 whether normal or Check Main Board U9 Check signal at XP9 PIN22: MP3_R PIN20: Check U21 U22 on front board MP3_L on front board whether normal or not Check Main Board U18 74HC4052 PIN2, Check Main Board C361, C352, R352, PIN15 L/R signal input right or not...
  • Page 35 5-10 Trouble shooting Chart COAX in does not work COAX in does not work Check voltage at U27 PIN6/PIN23: 3.3V on Main Board whether normal or not Check power supply circuit. Check Main Board U27 CS8416 PIN3 input signal whether normal or not Check Main Board C360, L11 or not Check U27 CS8416 whether broken...
  • Page 36 5-11 Trouble shooting Chart Karaoke in does not work Karaoke in does not work Front Check signal at XP9 PIN24 on Board : MIC_in signal is normal or not Check Karaoke switch is ON in software setting and U602 is OK. Check Main Board U18 74HC4052 PIN5, PIN14 L/R signal input right or not Refer to Main Board XP9 and...
  • Page 37 5-12 Trouble shooting Chart Network in does not work Network in does not work P3 Pin1, Pin2, Pin3, Pin6 from Check netting twine link Check normal or netting twine normal or not Replace P3 or U12...
  • Page 38 Block Diagram for HTB5575D: TUNER SPK FL/FR 4052*2 FL/FR PWM EP92A2E ARC(OPTI) BD BOARD I/O*3 SDIN AK5358 ASCLK AUDIO ALRCLK RL/RR PWM MT8560 PROCESSOR SPK RL/RR TAS5352*3 TI5538 CS8416 AOSDATA0 AOLRCK AOSDATA1 AOSDATA2 AOBCK SUB/CEN PWM AOMCLK RESET AMP_SCL SPK SUB/CEN AMP_SDA AMP_MUTE MOTOR...
  • Page 39 Touch Board Circuit Diagram: 3.3V_STBY R669 R669 C627 C627 C637 C637 3.3V_STBY PAD601 PAD601 PLAY/PAUSE PAD602 PAD602 STOP R676 R676 OPEN/CLOSE PAD603 PAD603 VOLUME+ PAD604 PAD604 GNDA PAD605 PAD605 VOLUME- LED10 LED10 PAD606 PAD606 R680 R680 Q622 Q622 SOURCE +12V_D PAD607 PAD607 STANDBY...
  • Page 40 Front Control Board Circuit Diagram:VFD TP32 TP32 Bluetooth NC/0 NC/0 NC/0 NC/0 R938 R938 100K 100K BT_ADUIO_EN BT_ADUIO_EN 3.3V_STBY BT_STATUS BT_STATUS BT_3V3 BT_3V3 R945 R945 PNP_3CG3906M PNP_3CG3906M BT_BM160 BT_BM160 R946 R946 9.1K 9.1K C775 C775 R937 R937 R319 R319 4.7uF/10V/Y5V 4.7uF/10V/Y5V 100K 100K...
  • Page 41 Front Control Board Circuit Diagram:Bluetooth 24PIN/0.5mm 24PIN/0.5mm SCL_MCU SDA_MCU R190 R190 PIO13 R191 R191 PIO11 R192 R192 VFD581 VFD581 PIO9 +12V_D BT_ADUIO_EN BT_STATUS MIC_Detect R135 R135 -24V_D +5VA +12V_D R189 R189 3.3V_STBY VFD_CLK R137 R137 R136 R136 R141 R141 VFD_DATA R138 R138 Q135...
  • Page 42 Power Board Circuit Diagram: CY505 CY505 470pF/250VAC 470pF/250VAC C507 2200pF/1KV C507 2200pF/1KV 01U0PWOPP-PW101 R527 R527 JP509 JP509 T502 T502 NC/Jumper NC/Jumper PQ3230 PQ3230 C506 C506 10/1W 10/1W R515 R515 +34V_1 +34V 0.0022uF(222)400V 0.0022uF(222)400V ZD508 ZD508 R516 R516 R517 R517 R518 R518 D514 SF20A300HPI/20A/300V D514 SF20A300HPI/20A/300V...
  • Page 43 Amplifier Board Circuit Diagram:SL+SW R135 R135 +12V WIRE WIDE=3MM WIRE WIDE=1MM R136 R136 C135 C135 C133 C133 C134 C134 0.1uF/50V/X7R 0.1uF/50V/X7R 0.1uF/50V/X7R 0.1uF/50V/X7R 0.1uF/50V/X7R 0.1uF/50V/X7R TP33 TP33 WIRE WIDE=3MM +34V C136 C136 CEN+ 0.1uF/50V/X7R 0.1uF/50V/X7R GVDD_B GVDD_A 0.033uF/50V/X7R 0.033uF/50V/X7R R137 R137 C137 C137...
  • Page 44 Amplifier Board Circuit Diagram:SL+SW +12V LAYOUT NOTE 0.1uF/50V/X7R 0.1uF/50V/X7R 0.1uF/50V/X7R 0.1uF/50V/X7R 0.1uF/50V/X7R 0.1uF/50V/X7R PLACE ON TP25 TP25 COMPONENT SIDE +34V 0.1uF/50V/X7R 0.1uF/50V/X7R WIRE WIDE=5MM GVDD_B GVDD_A 0.033uF/50V/X7R 0.033uF/50V/X7R {4,5} BST_A NOTE ALL CHANEL POWER SUPPLY NET \SPEAKER OUT NET AND ITS WIRE WIDE=3.5MM 1000pF/50V/X7R 1000pF/50V/X7R 0.22uF/50V/X7R...
  • Page 45 Amplifier Board Circuit Diagram:DSP WL_IRQ +3.3V ADD FB8 AND +12V-FAN WL_RST WL_IRQ WL_SDA NET FOR FAN WL_SCL +12V-FAN 24PIN/0.5mm 24PIN/0.5mm 70/1A 70/1A TP24 TP24 NC/4.7K NC/4.7K 4.7K 4.7K 4.7K 4.7K 4.7K 4.7K 4.7K 4.7K 4.7K 4.7K 4.7K 4.7K 4.7K 4.7K LRCLKO SCLKO MCU_CON...
  • Page 46 Touch Board Print layout (bottom side):...
  • Page 47 Touch Board Print layout (top side):...
  • Page 48 7-10 7-10 Front Control Board Print layout (bottom side):...
  • Page 49 7-11 7-11 Front Control Board Print layout (top side):...
  • Page 50 7-12 7-12 Power Board Print layout:...
  • Page 51 7-13 7-13 Amplifier Board Print layout (bottom side):...
  • Page 52 7-14 7-14 Amplifier Board Print layout (top side):...
  • Page 53 Voltage for Connection XP4--From Main Board Connect to Power Board XP13--From Main Board Connect to Amp Board Pin No Pin Assin Remarks Pin No Pin Assin Remarks VCC_D 4.75-5.25V AOSDATA0 AOLRCK AOSDATA1 +12V 11.4-12.6V AOSDATA2 +12V 11.4-12.6V AOBCK XP9--From Main Board Connect to Front Board AOMCLK Pin No Pin Assin Remarks...
  • Page 54 Waveforms for measure point Waveforms for measure point 图1.XP13.1 DATA0 图2.XP13.2 LRCKL 图3.XP13.3 DATA1 图4.XP13.4 DATA2 图5.XP13.5 BCLK 图6.XP13.7 MCLK...
  • Page 55 Waveforms for measure point 图7.XP13.9 AMP_SCL 图8.XP13.10 AMP_SDA 图9.XP13.12 AMP_MUTE 图10.XP13.13 AMP_RST 图11.XP13.20 POWER_derating 图12.XP13.23 PDWN...
  • Page 56 FUNCTIONAL BLOCK DIAGRAM FOR MAIN IC MT8560 NAND DDR3 256/384MB Audio 7.1 CH 2 CH MT8560 S/PDIF Motor Driver HDMI HD+SD Decode Component 810MHz ARM11 Ethernet CVBS 400MHz AudioDSPx3 HDMI 1.4 Ethernet...
  • Page 57 10-1 10-1 Exploded View for HTB5575D...
  • Page 58: Revision List

    1 1 - 1 Revision List Version 1.0 Initial Release for HTB5575D/51 by WK1317.
