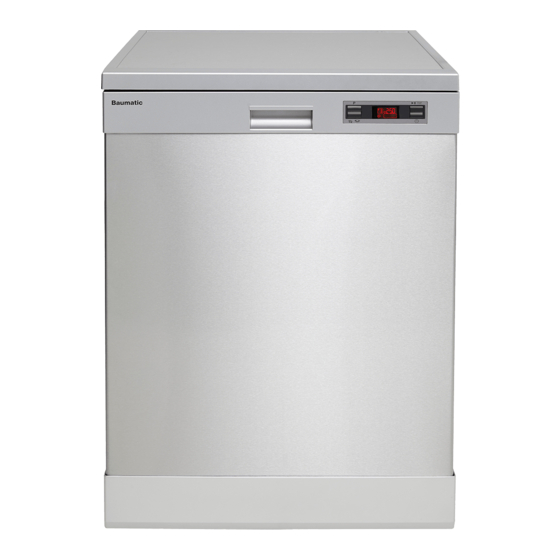

- Page 1 USER MANUAL 60CM FREESTANDING DISHWASHER BDW14BS...
- Page 2 Product / Installer details For future reference we suggest that you staple a copy of your purchase receipt here and complete the below so the information is always at hand. Product Details Model number: ________________________________________________________________________________________ Description: ___________________________________________________________________________________________ Serial number: _________________________________________________________________________________________ (Located on the product rating label) Purchase Details Date of purchase: ______________________________________________________________________________________...
- Page 3 Dear Customer, Congratulations on the purchase of your new product from Home Appliances Pty Ltd. We recommend you please take some time to read the instruction manual thoroughly to familiarise yourself with the functionality and operations to ensure optimum performance of your new appliance. After reading the manual, please store it in a safe and accessible location for future reference.
- Page 4 Please read this user manual first! Dear Customer, We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 5: Table Of Contents
CONTENTS 1 INSTRUCTIONS Lower Basket Glass Holder .....26 Tray Wash Supports ........26 FOR SAFETY AND Lower basket multipurpose / height ENVIRONMENT adjustable service rack ......27 General safety ...........4 Upper basket height adjustable rack ..28 Intended use ..........4 Upper basket drawer .......28 Children’s safety ........5 Upper basket glass support piece ...28 Disposing of packaging material....5... -
Page 6: Instructions For Safety And Environment
• Never wash the product by Intended use spreading or pouring water • onto it! There is the risk of This product has been electric shock! designed for domestic use. /50 EN Page 4 BDW14BS 60cm Freestanding Dishwasher User Manual... -
Page 7: Children's Safety
Cleaning and electronic parts in it user maintenance shall get wet and damaged. not be made by children without supervision. 5 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 5... -
Page 8: Compliance With Weee Directive And Disposing Of The Waste Product
Compliance with RoHS Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive. /50 EN Page 6 BDW14BS 60cm Freestanding Dishwasher User Manual... -
Page 9: Dishwasher
11. Salt reservoir lid 12. Upper basket rail 13. Upper cutlery basket 14. Top Cover (depends on model) 15. Ceiling impeller 16. Fan drying system (depends on model) 7 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 7... -
Page 10: Fan Drying System
Code, stock and serial numbers of the product may be found on the type label attached to the side wall of the door. /50 EN Page 8 BDW14BS 60cm Freestanding Dishwasher User Manual... -
Page 11: Installation
Do not hold the product from its accumulation at the end of door or panel to move it. washing. 9 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 9... -
Page 12: Connection To The Drain
The length of this connection must be min. 50 cm and max. 100 cm from the floor. A discharge hose longer /50 EN Page 10 BDW14BS 60cm Freestanding Dishwasher User Manual... -
Page 13: Aquasafe
Unplug the product after the product after factory quality washing programme is over. control tests. This has no harm on the product. 11 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 11... -
Page 14: Preparation
This system softens the supply water that enters into the product to a level that will allow washing the dishes with the required quality. /50 EN Page 12 BDW14BS 60cm Freestanding Dishwasher User Manual... - Page 15 13 / 50 EN machine according to the new location you move in order to preserve the washing efficiency. BDW14BS 60cm Freestanding Dishwasher User Manual Page 13 It is essential to reset the water hardness in order to obtain optimum washing efficiency.
-
Page 16: Adding Salt
(A, B). 3. Fill the salt reservoir with salt by using salt funnel (D). To speed up dissolution rate of salt in water, stir it with a spoon. /50 EN Page 14 BDW14BS 60cm Freestanding Dishwasher User Manual... -
Page 17: Detergent
1. Push the latch to right to open the not rinsed away. Only fill salt detergent dispenser lid (A). just before a programme is run. 15 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 15... -
Page 18: Combined Tablet Detergents
/50 EN Page 16 BDW14BS 60cm Freestanding Dishwasher User Manual... -
Page 19: Rinse Aid
17 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 17... - Page 20 You can use your dishwasher in the optimum way with respect to energy consumption and washing and drying performance only if you place the dishes in an orderly way. /50 EN Page 18 BDW14BS 60cm Freestanding Dishwasher User Manual...
- Page 21 Preparation Suggestions for loading the dishwasher Improper Loading Of Dishware Lower basket Upper basket Improper Loading Of Dishware 19 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 19...
-
Page 22: Silverware Basket Piece
You can place your forks, spoons and Silverware basket is designed to wash etc. to upper basket with the additional your dishes such as fork, spoon and piece in the figure.. etc. in a cleaner manner. /50 EN Page 20 BDW14BS 60cm Freestanding Dishwasher User Manual... -
Page 23: Cutlery Basket
21 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 21... -
Page 24: Collapsible Lower Basket Wires (6 Pieces)
Therefore, it will be appropriate to bring the wires in the middle to horizontal or vertical position by holding them from their stems and pishing in the direction of arrow. /50 EN Page 22 BDW14BS 60cm Freestanding Dishwasher User Manual... -
Page 25: Collapsible Lower Basket Wires (4 Pieces)
(A). once. Lay the foldable wires down by pressing on the latch (A). 23 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 23... -
Page 26: Collapsible Lower Basket Tines
(B). To bring the tines back to vertical position, just lift them up. Collapsible tines will click into the latch again (C). /50 EN Page 24 BDW14BS 60cm Freestanding Dishwasher User Manual... -
Page 27: Collapsible Lower Basket Tines
(B). To bring the tines back to vertical position, just lift them up. Collapsible tines will click into the latch again (C). 25 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 25... -
Page 28: Softtouch Accessory
Lower Basket Glass Holder (depends on model) Lower Basket Glass Holder found in the lower basket of your machine enables a safe washing for your oversized and tall glasses. /50 EN Page 26 BDW14BS 60cm Freestanding Dishwasher User Manual... -
Page 29: Lower Basket Multipurpose / Height Adjustable Service Rack
(G). You may use the racks as required by moving them to lower or upper position, or close them to create a wider space in your lower basket. 27 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 27... -
Page 30: Upper Basket Height Adjustable Rack
Upper basket drawer (depends on the model) You can easily place additional desert spoons, small forks and knives into the basket drawer installed to the upper basket of your machine. /50 EN Page 28 BDW14BS 60cm Freestanding Dishwasher User Manual... -
Page 31: Upper Basket Glass Support Piece
Thus, you can obtain a wider space. 29 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 29... -
Page 32: Collapsible Upper Basket Tines
/50 EN Page 30 BDW14BS 60cm Freestanding Dishwasher User Manual... -
Page 33: Adjusting The Height Of The Upper Basket
(down or up). To lower the basket: Press the latch on the loaded basket adjustment mechanism (right and left) to lower the basket (B). 31 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 31... -
Page 34: Adjusting The Height Of Loaded Upper Basket
2. Repeat the same process to lower the other side of the basket. 3. Make sure that both sides of the basket height adjustment mechanism are at the same level (down or up). /50 EN Page 32 BDW14BS 60cm Freestanding Dishwasher User Manual... -
Page 35: Height Setting With Empty Basket
Pull out the basket out completely. Place the basket back into the tracks at the desired height Push the latches back into the correct position. 33 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 33... -
Page 36: Upper Cutlery Basket
(B). /50 EN Page 34 BDW14BS 60cm Freestanding Dishwasher User Manual... -
Page 37: Operating Your Machine
14. Half Load/Tablet Detergent Indicator 15. Program Steps Follow-up Indicator a Washing Step Indicator “ ” b Drying Step Indicator “ ” c End of Program Indicator “ ” 35 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 35... -
Page 38: Button And Button Descriptions
..Program number will increase by one each time you press the program selection button. Number of the defined programs can change depending on the model you have purchased. /50 EN Page 36 BDW14BS 60cm Freestanding Dishwasher User Manual... - Page 39 Operating Your Machine 37 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 37...
-
Page 40: Program Selection
Detergent functions concurrently, turn Total time can be different from the on your machine by pressing the On time indicated at the beginning since /50 EN Page 38 BDW14BS 60cm Freestanding Dishwasher User Manual... -
Page 41: Adding Functions To The Program
Program will start automatically when the countdown is over. The display shows the steps for washing and drying, respectively, while the selected program is running. Only 39 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 39... -
Page 42: Salt Indicator
You need to refill the powder dispenser your machine becomes low while whenever the salt warning indicator light the machine is in use. If you switch lights. off the machine with “On/Off” button /50 EN Page 40 BDW14BS 60cm Freestanding Dishwasher User Manual... -
Page 43: Starting Your Machine
There may be a rush of vapor when you open the door of your machine; be careful. Close the door and press Start/Pause/Cancel button again. Program will resume running. 41 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 41... -
Page 44: Maintenance And Cleaning
"Cleaning the filters" section coarse filter from the assembly. and check if there are any leftover deposits that have accumulated at the bottom of the machine, blocking the water path. Clean if necessary. /50 EN Page 42 BDW14BS 60cm Freestanding Dishwasher User Manual... -
Page 45: Cleaning The Hose Filter
4. Install the hose to tap. clockwise until a "click" sound is heard. (depends on model) Do not use the dishwasher without filter. Incorrect placement of the filters will reduce washing efficiency. 43 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 43... -
Page 46: Cleaning The Impellers
Check if the holes on the lower impeller (1) are clogged. If they are clogged, remove and clean the impeller. You can pull the lower impeller up to remove it. /50 EN Page 44 BDW14BS 60cm Freestanding Dishwasher User Manual... -
Page 47: Ceiling Impeller
To install the impeller, seat it into its slot, push slightly upwards and turn it rightwards until it is securely tightened. When the impeller is released, check if it rotates without any obstruction. 45 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 45... -
Page 48: Troubleshooting
Dishes are not dry at the end of cycle • Dishes are not placed orderly in the machine. >>> Place your dishes in a way that no water will accumulate in them. /50 EN Page 46 BDW14BS 60cm Freestanding Dishwasher User Manual... - Page 49 Salt leakage exists. >>> Pay attention not to spill salt around the salt filling hole while adding salt. Make sure that the salt reservoir lid is tightly closed after 47 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 47...
- Page 50 Kitchen utensils that are already corroded are washed in dishwasher. >>> Rust on a corroded item can migrate to other stainless steel surfaces and cause corrosion on those surfaces as well. Such items should not be washed in dishwashers. /50 EN Page 48 BDW14BS 60cm Freestanding Dishwasher User Manual...
- Page 51 Striking of the glasses to each other or to other dishes due to the impact of water during washing can cause breaks, or scratches on their surfaces. 49 / 50 EN BDW14BS 60cm Freestanding Dishwasher User Manual Page 49...
- Page 52 Troubleshooting A smear remains on glasses that resembles milk stain which can not be removed when wiped by hand. A bluish / rainbow appearance occurs when the glass is pointed to light. • Excessive rinse aid is used. >>>Lower rinse aid setting. Clean the spilled rinse aid when adding rinse aid.
