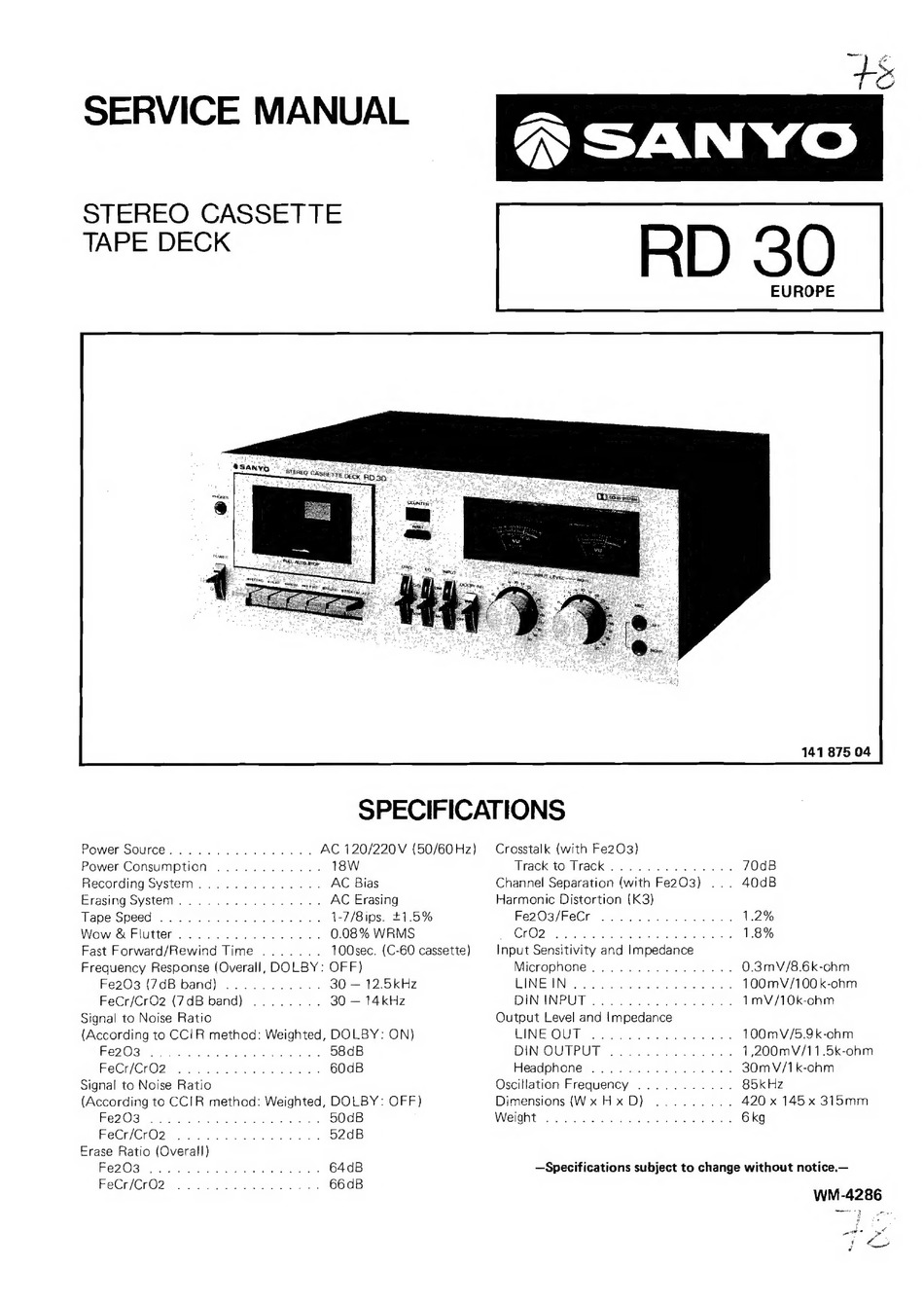

Sanyo RD 30 Service Manual

SERVICE MANUAL mn
q SANYO
STEREO CASSETTE
TAPE DECK RD 30
EUROPE
141 875 04
SPECIFICATIONS
Power Source. ............0... AC 120/220V (50/60Hz) Crosstalk (with Fe203)
Power Consumption ............ 18W Track to Track... .......0... 70dB
Recording System.............. AC Bias Channel Separation (with Fe203) ... 40dB
Erasing System... ............. AC Erasing Harmonic Distortion (K3)
Tape Speed .................. 1-7/8ips. +1.5% Fe203/FeCr ............... 1.2%
Wow & Flutter... .........02.. 0.08% WRMS CODE ahs Gane a ay be ats via Ph ates hic 1.8%
Fast Forward/Rewind Time ....... 100sec. (C-60 cassette) Input Sensitivity and Impedance
Frequency Response (Overall, DOLBY: OFF) Microphone................ 0.3mV/8.6k-ohm
Fe203 (7dB band) ........... 30 — 12.5kHz WINE IN 53 oto, onenerernr ioe etetewtnld & 100mV/100 k-ohm
FeCr/CrO2 (7dBband) ........ 30 — 14kHz DINGINPUT 4.2 thecud Neots 1mV/10k-ohm
Signal to Noise Ratio Output Level and {mpedance
(According to CCIR method: Weighted, DOLBY: ON) EINE QW ces pts oF soba woke bane ah i 100mV/5.9k-ohm
FO2O8) foie dae enc tected Wate oe 58dB DIN OUTPUT .............. 1,200mV/11.5k-ohm
FOCt/ ClO]: ss sce wi mew nested 60dB Headphone ................ 30mV/1k-ohm
Signal to Noise Ratio Oscillation Frequency ........... 85kHz
(According to CCIR method: Weighted, DOLBY: OFF) Dimensions (WxHxD) ......... 420 x 145 x 315mm
PEDO 1 hee este eon, tages 50dB Weight... oS otoe s Boe eee ees 6 kg
FeCr/GrO2 2... ek oe eee ees 52dB
Erase Ratio (Overall)
FE2Z03) eben aon atte pen 64dB —Specifications subject to change without notice.—
FEGH/GRO 2 6 dose etednp weeded GOH A 66 dB
WM-4286
