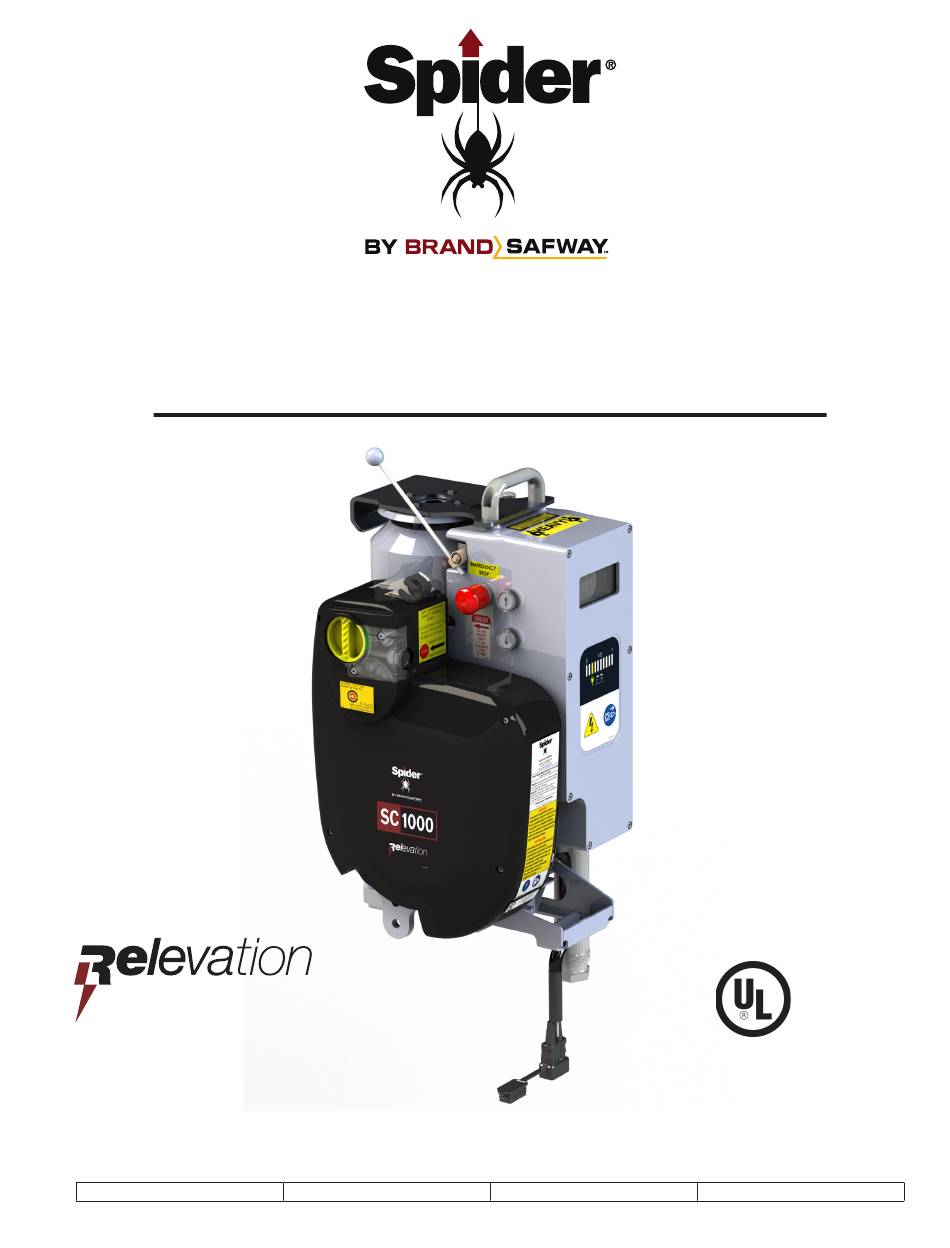

OPERATOR'S MANUAL

SC1000 Relevation

MODEL:

SC1000-RE

Manufactured by: Safeworks, LLC | 365 Upland Drive, Seattle, WA 98188 | Phone: (855) 457-8513 | Fax: (206) 575-6240

Email: ProductSupport@SpiderStaging.com | Website: SpiderStaging.com

Document No: 723590-1

Revision: D

Issue Date: 2023-Jan-30

Page 1 of 45

This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.

The user must ensure that the equipment complies with local rules and regulations.

Table of Contents

Summary of Contents for SAFWAY Spider Relevation SC1000

Page 1 OPERATOR’S MANUAL SC1000 Relevation MODEL: SC1000-RE Manufactured by: Safeworks, LLC | 365 Upland Drive, Seattle, WA 98188 | Phone: (855) 457-8513 | Fax: (206) 575-6240 Email: ProductSupport@SpiderStaging.com | Website: SpiderStaging.com Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30 Page 1 of 45 This document and all copies are the property of Safeworks, LLC.
Page 2 WARNING • All persons operating this equipment must read and completely understand this manual. • All persons must be thoroughly trained in the use of this equipment, its operational and safety features, and they must also be capable of carrying out the daily inspections. •...
Page 3: Table Of Contents
Table of Contents 1. ABOUT THIS MANUAL ......................5 1.1 Symbols Used in this Manual .....................5 2. SAFETY INSTRUCTIONS .......................6 2.1 General Hazard Warnings ....................9 2.2 Mechanical Hazards ......................10 2.3 Electrical Hazards ......................10 2.4 Environmental Hazards ....................11 2.5 Wire Rope Warnings ......................11 3.
Page 4 9.1 Inspect after Previous Use ....................28 9.2 Testing the Overspeed Brake Test Button ................29 9.3 Resetting the Overspeed Brake Test Button ..............29 9.4 Testing the Overspeed Brake ...................31 9.5 Check for Flywheel Movement ..................32 9.6 Testing the Emergency Stop Button .................32 9.7 Testing the Emergency Descent ..................33 10.
Page 5: About This Manual
ABOUT THIS MANUAL Before using the Spider SC1000 Relevation (SC1000-RE) hoist, learn the procedures described ® in this manual. Any operation in violation of these instructions may result in bodily injury or death. This manual is included with each Spider SC1000-RE hoist.
Page 6: Safety Instructions
SAFETY INSTRUCTIONS CAUTION: Every year, workers on suspended scaffolds are injured, become disabled, or are killed because of carelessness or because they did not understand how to correctly operate the equipment. DO NOT become one of them. Know how to use this equipment and prevent accidents.
Page 7 Operating the Hoist 1. Be careful when operating the hoist in freezing temperatures. Water or moisture may enter the hoist’s overspeed brake or traction assembly. See “Cautions for Cold Weather Operation” on Page 27. 2. Be careful when operating the hoist in high winds. Consider stopping work or adding stabilization at wind speeds of 40 kph (25 mph) or more when working on a 2-line suspended platform.
Page 8 Suspended Scaffolds 1. WARNING! WARNING! DO NOT use suspended scaffolds unless: a. You are wearing a personal fall arrest system that meets or exceeds your application requirements. b. You have personally made sure that: i. the roof support system is complete, properly assembled, counterweighted (or otherwise anchored), tied off, and not overloaded;...
Page 9: General Hazard Warnings
Welding/Electrical Cautions 1. When welding from a suspended scaffold, provide proper electrical grounding for the hoist. 2. Ensure platform is grounded to the structure. 3. Insulate wire rope 1.2 m (4 feet) above and below the platform. 4. Insulate wire rope at suspension point and ensure that the wire rope cannot come in contact with the structure at any point along its entire length, including the tail line.
Page 10: Mechanical Hazards
2.2 Mechanical Hazards ► Crushing between the platform and the building or structure. ► Cutting or severing between moving machine parts. ► Loss of rigging stability because of one or more of the following: „ Insufficient counterweight or counterweights not properly fixed; „...
Page 11: Environmental Hazards
2.4 Environmental Hazards ► Consider and prepare for the effects of climate: heat/cold/ice/wind. ► Sandblasting and acid wash procedures may introduce special concerns. They may adversely affect the immediate health of an operator and may pose serious risks to the hoist and other equipment being used.
Page 12: Battery
BATTERY Battery Information Cycle Life Minimum 800 cycles (a cycle is from 0% to 100%) Charge: 0° to 40°C (32° to 104° F) Operating Temperature Discharge: -10° to 40°C (14° to 104° F) Capacity 40.5 Amp hours Max Charge Voltage 54 V Discharge Cut-off Voltage 40 V...
Page 13: Battery Charging
3.2 Battery Charging CAUTION: The battery charger is only suitable for the 48 VDC lithium-ion battery pack of the hoist and must not be used for other purposes. The battery must be charged indoors to protect charger reduce the risk of moisture/debris getting into the charging port.
Page 14: Charge Indicator
3.3 Charge Indicator The battery charge indicator displays the current charge remaining on the battery. One of ten colored bars will be illuminated (seven green, two yellow, and one red bar) as the battery discharges from left to right. If the two bars on the far left are flashing, the battery charge is less than 30% and should be charged.
Page 15: Wire Rope
WIRE ROPE 4.1 Wire Rope Terminations 1. To prepare the end of IWRC wire rope for insertion, cut back the steel center at least 2” (51 mm) to allow for independent movement of the core. Braze and rough shape the end of the wire rope to form a smooth, tapered, bullet shape no more than 1/4”...
Page 16: Wire Rope Cautions
4.2 Wire Rope Cautions 1. Wire rope stretches when loaded, which reduces the diameter. Wire rope begins to wear the moment it is used. It must be regularly inspected to be sure it is in good condition. Wire rope must be removed from service when diameter loss or wire breakage occurs, as detailed in ANSI A10.4.
Page 17: Wire Rope Inspection
4.3 Wire Rope Inspection The need for replacement of suspension wire ropes shall be determined by regular inspection and shall be based on the condition of the wire rope inspected. Wire rope in active service should be visually inspected once every working day. A thorough inspection shall be made once a month, or before each use if the suspension wire ropes have been inactive for 30 days or longer and are placed into service.
Page 18: The Spider ® Sc1000-Re Series Hoist
THE SPIDER SC1000-RE SERIES HOIST ® The Spider SC1000-RE hoist is used to raise, support, and lower suspended scaffolds and work ® cages on, or in, buildings and structures. If this hoist is used for any other purpose, all necessary precautions must be taken to ensure that both the design and operation of the setup in which the hoist will be used will be hazard-free, and that such use conforms to the manufacturer’s specifications.
Page 19: Features Of The Spider ® Sc1000-Re Series Hoist (Continued)
5.2 Features of the Spider SC1000-RE Series Hoist (continued) ® Feature Function Benefit Voltage Indicator Light • Indicates voltage is flowing • Easy visual inspection can eliminate (Incorporated into UP Button) to unit and battery is properly a service call connected Remote Ready •...
Page 20: Parts Of The Spider ® Sc1000-Re Series Hoist
PARTS OF THE SPIDER SC1000-RE SERIES HOIST ® 6.1 Front View Carrying Handle Primary Wire Rope Insertion Point Emergency Stop (Power Supply Cut-off) Optional Wire Rope Hour Meter and Battery Insertion Point for Charge Level Indicator Secondary Wire Rope UP Operation Button and Power On (Green Overspeed Light)
Page 21: Back View & Battery Pack
6.2 Back View & Battery Pack Motorshaft Access Plug Emergency Descent Lever Storage Emergency Descent Lever Insertion Point Model Designation and Serial Number Secondary Wire Rope Exit Spring Operating Instructions (Optional Feature) Manual and Schematic Figure: 6.2.1 Power Supply Cable (to hoist) Battery Pack Bracket...
Page 22: Labels
6.3 Labels Sea�le, WA 98188 USA Tel: (877) 774-3370 www.spiderstaging.com Steel Wire Rope Ø 5/16” or 8.4 mm (5x26, 6x19 or 6x31) A�en�on: Read Operator’s Manual before use. Use only steel wire rope as speciﬁed in the Operator’s Manual. Atención: Debe leer el Manual de Uso antes de manejar este maquina.
Page 23: Hoist Setup
HOIST SETUP 7.1 Installing Hoist onto Platform Follow the manufacturer’s instructions for platform assembly. The hoist can be lifted into position by hand or under power. Attach the hoist stirrup bar to the platform stirrup. Connect the hoist to the power supply. Spider battery hoists have a push &...
Page 24: Reeving Optional Secondary Wire Rope
7.3 Reeving Optional Secondary Wire Rope Secondary Suspension Wire Push secondary wire rope through the wire Rope Insertion Point rope insertion point for the secondary rope until it exits the hoist. Attach a 25 lb (11.5 kg) weight to the end of the secondary wire rope to apply tension to assist in wire rope travel.
Page 25: Operating The Hoist
OPERATING THE HOIST 8.1 Warnings CAUTION: BEFORE operating this hoist, you must understand and follow the instructions in this manual. You must be properly trained, physically fit and authorized to operate the hoist. Failure to comply with these instructions could result in serious injury or death. ►...
Page 26: Normal Operation
8.2 Normal Operation Emergency For routine travel in the UP direction, push Stop Button in the UP operation button. UP Operation For routine travel in the DOWN direction, Button & Power push in the DOWN operation button. Indicator Light Both the UP and DOWN operation buttons are spring-loaded.
Page 27: Cautions For Cold Weather Operation
8.3 Cautions for Cold Weather Operation When operating the hoist in cold weather, test the secondary overspeed brake frequently to make sure it is not frozen. (Refer to section “9.3 Resetting the Overspeed Brake Test Button” on Blow dry air here to Page 29).
Page 28: Daily Testing And Inspection
DAILY TESTING AND INSPECTION CAUTION: Perform all daily tests to ensure correct operation! DO NOT use the hoist for lifting until it has successfully completed the daily tests. The following tests must be performed at the start of each work shift. If the hoist fails any test, DO NOT USE THE HOIST UNTIL IT IS REPAIRED.
Page 29: Testing The Overspeed Brake Test Button
9.2 Testing the Overspeed Brake Test Button Emergency Push in the UP Operation Button Descent Lever and raise the platform approximately 3 feet (1 meter). Remove the Emergency Descent Lever from the storage location and insert into brake through the cutout on motor body. Lift the Emergency Descent Lever.
Page 30 Overspeed Power the hoist UP a few inches while at Brake Reset the same time turning the Overspeed Brake Knob Reset Knob clockwise until it clicks into position in normal with the ‘braided’ bar vertical. The Overspeed operating Brake Test Button releases and the DOWN position.
Page 31: Testing The Overspeed Brake
9.4 Testing the Overspeed Brake De-reeve the wire rope. Re-insert the rope about 12" (30 cm) into the hoist. Holding the wire rope firmly, pull it out quickly. If the brake is working correctly, it will grab and hold the wire rope in less than 4" (10 cm). The DOWN button will light up RED indicate the overspeed brake has activated and the DOWN circuit has been interrupted.
Page 32: Check For Flywheel Movement
9.5 Check for Flywheel Movement While powering the hoist UP and DOWN approximately 3 feet (1 meter), Flywheel movement look through the window into the overspeed compartment to see whether the flywheel is turning. The flywheel should rotate either clockwise or counterclockwise depending on whether the hoist is raising or lowering a load.
Page 33: Testing The Emergency Descent
9.7 Testing the Emergency Descent Emergency Raise the hoist approximately 3 feet Descent Lever (1 meter). storage location Remove the Emergency Descent Lever from the storage location and insert into brake through the cutout on motor body. Emergency Descent Lever Pull up the emergency descent lever SLOWLY, to make sure the hoist does not overspeed.
Page 34: Reeving
10. DE-REEVING 10.1 Removing the Optional Secondary Suspension Wire Rope Verify hoist is secure in the stirrup mount prior to applying slack in the primary suspension wire rope. In order to remove the secondary suspension wire rope, there must be no slack on the primary suspension wire rope and the platform must be supported on a flat, stable surface.
Page 35: Hoist Maintenance
11. HOIST MAINTENANCE 11.1 Regular Maintenance The hoist should be returned to an authorized Power Climber service location for annual ® inspection at least once a year from the date it was placed into service. The hoist should be returned to an authorized Power Climber service location every 105 ®...
Page 36: Troubleshooting
13. TROUBLESHOOTING STOP! Read ALL troubleshooting guidelines before attempting any solution. Problem Possible Cause and Solution 13.1 No Power to Verify hoist is connected to 48 VDC battery source. Platform AND Voltage indicator Plugs are not connected; check hoist, power cord, and battery power source.
Page 37 Problem Possible Cause and Solution 13.4 Hoist does Check battery voltage. This can be checked using the battery not move UP, charge level indicator on the battery box. onlyDOWN. ► If voltage is lower than 40V the hoist will still operate in the down direction, but battery needs to be charged.
Page 38 Problem Possible Cause and Solution 13.7 Overspeed WARNING! DO NOT OPERATE HOIST. Flywheel does Check and correct the following: not Turn while ► Clear obstructions such as dirt or other materials. Hoist moves UP ► Wire rope may be worn out. Call your supervisor. or DOWN and YOU ARE ON THE ►...
Page 39 Problem Possible Cause and Solution 13.11 You hear Unusual WARNING! WIRE ROPE MAY BE JAMMED. DO NOT OPERATE. Noises coming from the Hoist Check for damaged wire rope and replace as necessary. and YOU ARE ON THE GROUND Check for dirt on the wire rope and clean as necessary. Check the hoist for visible signs of damage.
Page 40 Problem Possible Cause and Solution 13.13 Hoist Will NOT Once it is safe to reset the overspeed safety (refer to Travel Downward 13.12), unplug the power supply cable and engage the red AND You Cannot emergency stop button to ensure that power does not come back on while performing the steps that follow.
Page 41: Code Of Safe Practices For Adjustable Suspended Scaffolds
14. CODE OF SAFE PRACTICES FOR ADJUSTABLE SUSPENDED SCAFFOLDS CO-DEVELOPED BY THE SCAFFOLDING, SHORING & FORMING INSTITUTE (SSFI) and THE SCAFFOLD AND ACCESS INDUSTRY ASSOCIATION, INC. (SAIA) It shall be the responsibility of all users to read and comply with the following common sense guidelines which are designed to promote safety in the erecting, dismantling and use of adjustable suspended scaffolds.
Page 42 K. A COMPETENT PERSON SHALL CONSIDER STOPPING WORK WHEN WIND SPEED EXCEEDS 25 MPH FOR 2 POINT ADJUSTABLE SUSPENDED SCAFFOLDS OR 20 MPH FOR SINGLE POINT SUSPENSION. If materials on a platform create a sail effect, stopping work at lower wind speeds must be considered.
Page 43 A. RIGGING: 1. UTILIZE FALL PROTECTION EQUIPMENT when rigging near unguarded edges. 2. SUPPORTING DEVICES must be capable of supporting the hoist rated load with a safety factor of 4. 3. ALL OVERHEAD RIGGING must be secured from unwanted movement in any direction. 4.
Page 44 C. POWER SUPPLY FOR MOTORIZED EQUIPMENT: 1. USE PROPERLY GROUNDED ELECTRICAL POWER CORDS. Protect them with circuit breakers. 2. USE POWER CORDS AND AIR HOSES OF THE PROPER SIZE THAT ARE LONG ENOUGH for the application. 3. POWER CORD AND AIR HOSE CONNECTIONS MUST BE RESTRAINED to prevent separation. 4.
Page 45 E. DURING USE: 1. USE ALL EQUIPMENT AND ALL DEVICES in accordance with the manufacturer’s instructions. 2. DO NOT OVERLOAD OR MODIFY EQUIPMENT. 3. INSPECT ALL EQUIPMENT INCLUDING HOISTS, PLATFORM, AND RIGGING before each use. 4. INSPECT WIRE ROPE BEFORE AND DURING USE. 5.
