Summary of Contents for Philips 32PFL7403D

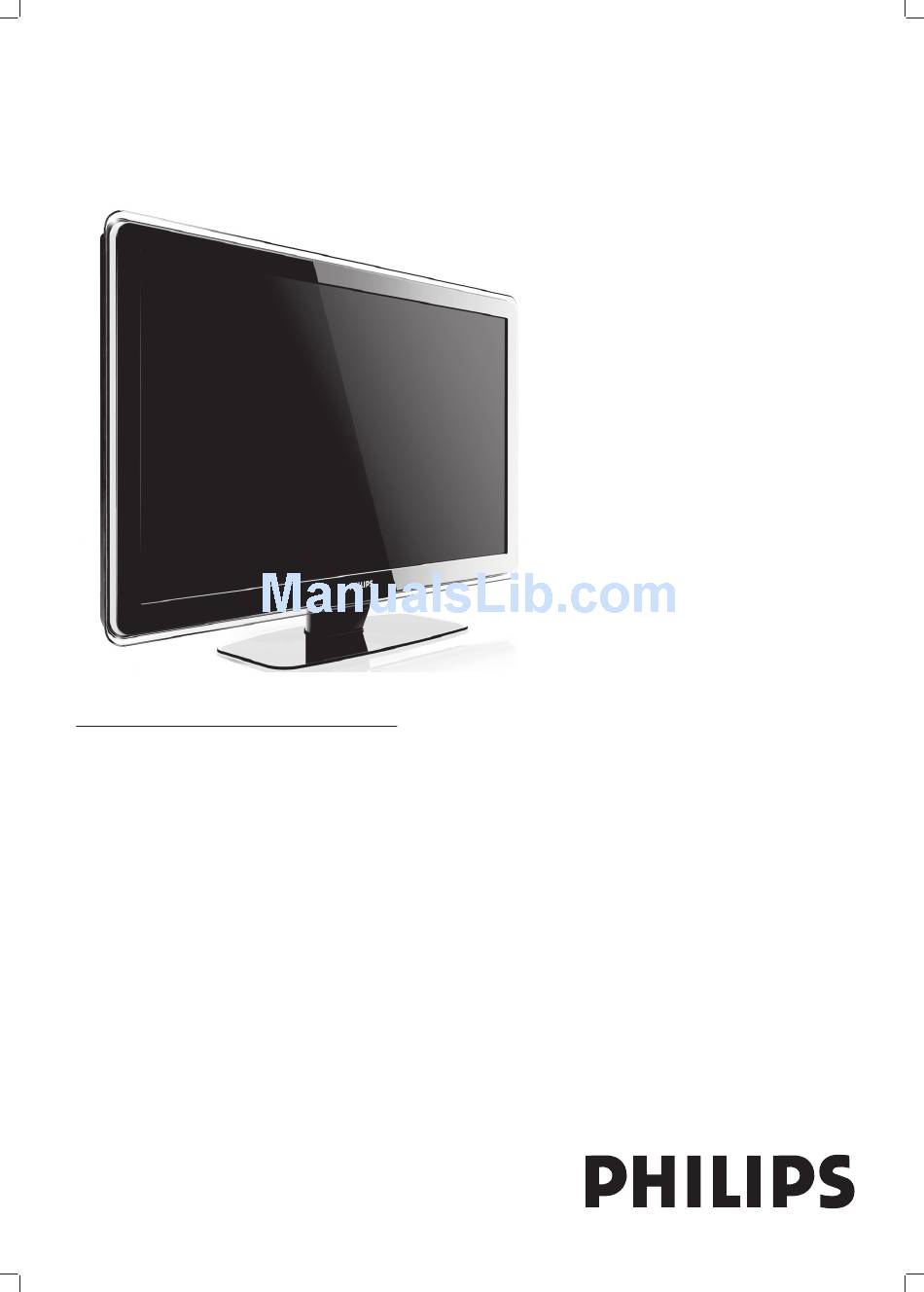

  • Page 1 Register your product and get support at www.philips.com/welcome USER MANUAL...
  • Page 2 Serbia Slovakia Slovenia Spain Sweden Switzerland Turkey Ukraine This information is correct at the time of press. For updated contact information, refer to www.philips.com/support. www.philips.com/support Number 0810 000205 078250145 +3592 489 99 96 01 3033 754 800142840 3525 8759 09 2311 3415...

  • Page 3: Table Of Contents

    Table of contents 1 Important � � � � � � � � � � � � � � � � � � � � � 3 1.1 Safety ......3 1.2 Screen care .
  • Page 4 No components are user- serviceable. Do not open or remove covers to the inside of the product. Repairs may only be done by Philips Service Centres and official repair shops. Failure to do so shall void any warranty, stated or implied.

  • Page 5: Important

    Important Congratulations on your purchase and welcome to Philips! Read this user manual before you start to use this product. Pay close attention to this section and follow the safety and screen care instructions. The product warranty does not apply if damage is caused by failing to follow these instructions.

  • Page 6: Screen Care

    Unplug the mains cord from the power connector at the back of the TV. Always pull the mains cord by the plug. Do not pull the mains cord. • Permanent hearing loss can occur if you use earphones or headphones at high volumes. Though high volume may sound normal over time, it can damage your hearing.

  • Page 7: Your Tv

    Your TV This section gives you an overview of commonly-used TV controls and functions. 2�1 TV overview Side controls and indicators POWER PROGRAM +/- MENU VOLUME +/- Power indicator/Remote control sensor Side connectors VOLUME Use the TV side connectors to connect to mobile devices such as a camera or high- definition game console.
  • Page 8 Remote control SOURCE TELETEXT SUBTITLE DEMO GUIDE BACK EXIT MENU BROWSE MHEG CANCEL EN-6 STANDBY SOURCE TELETEXT COLOUR KEYS From left: Red, green, yellow, blue NAVIGATION KEYS Up Î, Down ï, Left Í, Right Æ, OK MENU PROGRAM +/- VOLUME +/- INFO For advanced information about the remote control, see Section 5.1 Remote control overview.

  • Page 9: Get Started

    Get started This section helps you position and install the TV and supplements the information provided in the Quick Start Guide. Note Refer to the Quick Start Guide for stand mounting instructions. 3�1 Position the TV In addition to reading and understanding the safety instructions in Section 1.1, consider the following before positioning your TV: • The ideal viewing distance for watching TV...
  • Page 10 Step 2 Remove the TV stand Note These instructions are only applicable to TV models with mounted stands. If your TV stand is not mounted, skip to Step 3 Connect cables. TV stands may differ in shape on some TV models. Carefully place the TV face down on a flat, stable surface that is covered by soft cloth.

  • Page 11: Connect The Antenna Cable

    3�3 Connect the antenna cable Locate the TV ANTENNA connector at the back of the TV. Connect one end of an antenna cable (not supplied) to the TV ANTENNA connector. Use an adaptor if the antenna cable does not fit. Connect the other end of the antenna cable to your antenna outlet, ensuring that the cable is tightly secured at both ends.

  • Page 12: Switch On The Tv

    Slide the cover back into position. Note Remove the batteries if not using the remote control for an extended period of time. 3�6 Switch on the TV The first time you switch on the TV, check that the mains cord is properly connected. When ready, turn on the mains (if mains switch is available), then press POWER on the side of the TV.

  • Page 13: Use Your Tv

    Use your TV This section helps you perform basic TV operations. Instructions on advanced TV opera- tions are provided in Section 5 Use more of your 4�1 Switch your TV on/off or to standby 4�1�1 Switch on your TV • If the power indicator (1) is off, press POWER on the side of the TV.

  • Page 14: Watch Tv

    4�2 Watch TV 4�2�1 Switch channels • Press a number (1 to 999) or press on your remote control. • Press PROGRAM +/- on the side controls of the TV. • Press on the remote control to return to the previously-viewed TV channel. 4�2�2 Switch channels (digital receiver) Switch on the digital receiver.

  • Page 15: Use Teletext

    4�4 Use teletext Most TV channels broadcast information via teletext. Press TELETEXT on the remote control. The main index page appears. To select a page with the remote control: • Enter the page number with the number keys. • Press P +/- or Î/ï to view the next or the previous page.

  • Page 16: Use More Of Your Tv

    Use more of your TV This section helps you perform advanced TV operations. EN-14 5�1 Remote control overview This section provides a detailed overview of remote control features. SOURCE TELETEXT SUBTITLE DEMO GUIDE BACK EXIT MENU BROWSE MHEG CANCEL INFO OPTION...
  • Page 17 STANDBY Switches the TV on from standby or back to standby. SOURCE Selects connected devices. PICTURE FORMAT Selects a picture format. SUBTITLE Activates or deactivates subtitles. COLOUR KEYS Selects tasks or teletext pages. INFO Displays programme information, if available. Accesses the All channels menu or activates a setting.

  • Page 18: Use Tv Menus

    5�2 Use TV menus On-screen menus help you install your TV, adjust picture and sound settings and access other features. This section describes how to navigate the menus. 5�2�1 Access the main menu Press MENU on the remote control to display the main menu.

  • Page 19: Picture Format

    Press ï to select Picture. TV settings Picture Settings assistant Contrast Reset smart settings Brightness Picture Colour Sound Sharpness Tint Pixel Plus HD Natural Motion Press Æ to enter the Picture settings. Picture Contrast Contrast Brightness Colour Sharpness Tint Pixel Plus HD Natural Motion Press ï...

  • Page 20: Adjust Picture And Sound Settings

    Clock and press OK to display the clock permanently. Quick access Audio language Subtitle language Subtitle Picture format Equalizer Clock Press OPTION and press Î or ï to select Clock again. Press OK to hide the clock. 5�3 Adjust picture and sound settings This section describes how to adjust picture and sound settings.

  • Page 21: Active Control

    Minimum or Off. Note HD Natural Motion is not available on all models. To check availability, refer to your product leaflet at www.philips.com/support. • Dynamic contrast Enhances the contrast in the picture as the image on the screen changes. Set the level to Minimum, Medium, Maximum or Off.
  • Page 22 5�3�4 Change picture format Change the picture format to suit your content. Press PICTURE FORMAT on your remote control. Alternatively, press MENU and select TV menu > TV settings > Picture > Picture format. Press Î or ï to select one of the following picture formats: •...

  • Page 23: Surround Mode

    5�3�5 Adjust sound settings This section describes how to adjust sound settings. Press MENU on the remote control and select TV menu > TV settings > Sound. Press Æ to enter the list. TV settings Sound Settings assistant Equalizer Volume Reset smart settings Picture Balance...

  • Page 24: Change To Shop Or Home Mode

    5�4 Change to Shop or Home mode Press MENU on the remote control and select TV menu > Installation > Preferences > Location. Press Æ to enter the Location menu. Î or ï to select the TV mode: • Shop Sets smart settings to Vivid, ideal for a shop environment.
  • Page 25 5�5�5 Enlarge teletext pages For more comfortable reading, you can enlarge the teletext page. Press TELETEXT on the remote control and select a teletext page. Press OPTION on the remote control to enlarge the top part of the page. Press OPTION again to view the enlarged lower part of the page.

  • Page 26: Create Favorite Lists

    Press MENU on the remote control and select TV menu > Installation > Preferences > Teletext 2�5. Press Æ to enter the list. Select On or Off. Press OK to change the option. 5�6 Create favorite lists Use the All channels list or setup a favourite list of your own with preferred TV channels and radio stations.

  • Page 27: Use The Electronic Programme Guide

    5�7 Use the Electronic Programme Guide EPG is an on-screen guide that displays scheduled digital TV programmes. This guide is not available with analogue channels. You can navigate, select and view programmes by time, title or genre. There are two types of EPG, ‘Now and Next’ and ‘7 or 8 day’...

  • Page 28: Use Timers And Child Lock

    Press GUIDE on the remote control. Press MENU on the remote control. The Programme guide menu appears. Programme guide What's on What's on 12:30 South Today 11:50 Working Lunch Search by genre Scheduled remind... 11:55 Melrose Place Preferred EPG ch... 13:00 In aller Freund Acquire EPG data Press...

  • Page 29: Use Subtitles

    To enter the Child lock menu Press MENU on the remote control and select TV menu > Features > Child lock and press Æ to enter your code. Enter your code with the number keys. To lock or unlock all channels and connected devices In the Child Lock menu, select Lock or...

  • Page 30: View PHotos And Listen To Music

    TV menu Features TV settings Subtitle Features Subtitle language Installation Sleeptimer Software update Child lock Set/Change code On timer Common interface Demo Press Î or ï to select On to display subtitles always or On during mute to display subtitles only when the sound is muted with the key on the remote control.

  • Page 31: Multimedia Menu

    5�10�3 View your photos After connecting your USB storage device to the TV, press Æ to enter the Multimedia menu. Picture is highlighted. Picture Picture Afrika_2001 Music Paris_2006 My_car.jpg Jean.jpg Mary.jpg Press Æ to enter the Picture folder. Press Î or ï to select a picture or a picture album on the USB device.

  • Page 32: Listen To DIgital RadIo Channels

    Music folder. Press Î or ï to select a song or a music album. Press OK to play the selected song or album. Music settings • No details/More details Displays the file name. • Repeat one/all Repeat a song or an album. •...
  • Page 33 5�12�4 Update software (analogue broadcasts) Note Before performing this procedure be sure • Set aside some time to complete the entire update. • Have available a USB storage device with at least 64MB of storage space. • Have access to a computer with a USB port and internet access.

  • Page 34: Install Channels

    Install channels The first time you setup your TV, you will be prompted to select an appropriate menu language and to perform automatic installation of all TV and digital radio channels (if available). This chapter provides instructions on how to reinstall channels as well as other useful channel installation features.

  • Page 35: Manually Install Channels

    Press Æ to enter the list. Press Î or ï to select your time zone. Press Í to return to the Installation menu. Step 4 Install channels Your TV searches and stores all available digital and analogue TV channels as well as all available digital radio channels.

  • Page 36: Rename Channels

    6�2�1 Fine tune analogue channels You can manually fine tune analogue channels when reception is poor. Press MENU on the remote control and select TV menu > Installation > Channel installation > Analogue: manual installation > Fine tune. Press Æ to enter the Fine tune menu. Press Î...

  • Page 37: Test Digital Reception

    Press MENU on the remote control and select TV menu > Installation > Channel installation > Installation update. Press Æ to enter the Installation update menu. Start now is highlighted. Press Press the green key to start the update. This may take a few minutes. When the update is complete, press the red key to return to the Channel installation menu.

  • Page 38: Connect Devices

    Connect devices 7�1 Connection overview Back connectors EXT 1 First SCART connector for DVD players, VCRs, digital receivers, game consoles and other SCART devices. Supports Audio L/R, CVBS in/out, RGB. EXT 2 Second SCART connector. Supports Audio L/R, CVBS in/out, RGB. EXT 3 Component video (Y Pb Pr) and Audio L/R input connectors for DVD players,...

  • Page 39: Select Connection Quality

    TV and HDMI devices. You must use HDMI to experience full high-definition video. You must also use HDMI cables to enable Philips EasyLink as described in Section 7.5 Use Philips EasyLink. If your PC only has a DVI connector, use a DVI-HDMI adaptor to connect your device to a HDMI connector at the back of the TV.
  • Page 40 7�2�2 Component (Y Pb Pr) - Higher quality Component (Y Pb Pr) video provides better picture quality than S-Video or composite video connections. Though component video supports high-definition signals, picture quality is lower than HDMI and is analogue. When connecting a component video cable, match the cable colours to the EXT 3 connectors on the back of the TV.

  • Page 41: Connect Devices

    7�3 Connect devices This section describes how to connect various devices with different connectors and supplements examples provided in the Quick Start Guide. Caution Disconnect the mains cord before connecting devices. Note Different types of connectors may be used to connect a device to your TV, depending on availability and your needs.
  • Page 42 7�3�3 Satellite receiver To receive analogue channels via antenna and digital channels via a satellite receiver, connect an antenna cable and SCART cable as illustrated: Satellite receiver 7�3�4 HD digital receiver To receive analogue channels via antenna and digital channels via a HD digital receiver, connect two antenna cables and HDMI cable as illustrated: HDM I...
  • Page 43 7�3�5 Combined DVD recorder and digital receiver To receive analogue channels via antenna and record programs on a combined DVD recorder and digital receiver, connect two antenna cables and one SCART cable as illustrated: 7�3�6 Separate DVD recorder and receiver To receive analogue channels via antenna and record programmes on a separate DVD recorder and receiver, connect three antenna...
  • Page 44 7�3�7 DVD recorder and home theatre system To receive analogue channels via antenna, output sound to a home theatre system and record programmes on a DVD recorder, connect two antenna cables, one SCART cable and two digital audio cables as illustrated: Note If using a home theatre or other audio system, the best synchronisation between...

  • Page 45: Setup Devices

    7�3�8 Game console or camcorder The most practical connection for a mobile game console or camcorder may be at the side of the TV. You can, for example, connect the game console or camcorder to VIDEO/S-Video and AUDIO L/R connnectors at the side of the TV.

  • Page 46: Use Philips Easylink

    ï or Î to select the connector used by the decoder. Press MENU to exit. 7�5 Use Philips EasyLink Your TV supports Philips EasyLink, which enables one-touch play and one-touch standby between EasyLink-compliant devices. Compliant devices must be connected to your TV via HDMI and assigned as described in Section 7.4.1...

  • Page 47: Prepare Tv For Digital Services

    7�6 Prepare TV for digital services Scrambled digital TV channels can be decoded with a Conditional Access Module (CAM) and a Smart card provided by a digital TV service operator. The CAM may enable several digital services, depending on the operator and services you choose (for example, pay TV).

  • Page 48: Technical Specifications

    Technical specifications Supported display resolutions • Computer formats Resolution Refresh rate 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1920 x 1080i 60Hz 1920 x 1080p 60Hz • Video formats Resolution Refresh rate 480i 60Hz 480p 60Hz 576i 50Hz...

  • Page 49: Troubleshooting

    Troubleshooting This section describes commonly-encountered issues and accompanying solutions. 9�1 General TV issues The TV does not switch on: • Unplug the mains cord, wait for one minute and plug in the mains again. • Verify that the mains cord is properly connected and that the mains are powered.

  • Page 50: Connected Devices

    • If reception on only one channel is poor, try to fine tune this channel. See Section 6.2.1 Fine tune channels. You receive poor picture quality from connected devices: • Check that the devices are connected properly. Also, be sure to assign devices to connectors as described in Section 7.4.1 Assign devices to connectors.
  • Page 51 9�6 USB connection issues The TV does not display the USB device content: • Set your device to ‘Mass Storage Class’ compliant, as described in your device documentation. • Your USB device may not be compatible with the TV. • Not all audio and picture files are supported.

  • Page 52: 10 Index

    10 Index Active Control 19 All channels list 24 Analogue Channel installation 33 Fine tune channels 34 Antenna Connect 9 Assign Devices 43 Audio language 21 Automatic Channel installation 32 Surround 21 Volume leveling 21 Back connectors 5 Balance Sound 21 Brightness 18 Care Environment 4...
  • Page 53 Setup devices Assign channel decoder 44 Assign to connectors 43 Side connectors 37 Contrast 18 Country Selection 32 Custom tint 19 Decoder 44 Delta volume 21 Demo 35 Devices Watch 12 Digital Radio 30 Teletext 23 Dual I/II 21 Dual screen teletext 22 Dynamic contrast 19 Electronic Programme Guide Use 25...
  • Page 54 Picture Adjust settings Active Control 19 Brightness 18 Colour 18 Colour enhancement 19 Contrast 18 Custom tint 19 Dynamic contrast 19 HD Natural Motion 19 Hue 18 Light sensor 19 MPEG artefact reduction 19 Noise reduction 19 Pixel Plus HD 19 Sharpness 18 Tint 18 Change format 20...
  • Page 55 Equalizer 21 Headphone volume 21 Mono/Stereo 21 Surround mode 21 Volume 21 Stereo sound 21 Subtitles Analogue TV 27 Digital TV 28 Language 28 Surround sound Auto 21 Mode 21 S-Video 38 Switch TV Off 11 On 10, 11 On from standby 11 To standby 11 System selection 33 Technical specifications 46...
  • Page 56 To standby 11 Teletext Advanced use 22 Basic use 13 Timers On timer 26 Sleeptimer 26 Volume 12 Wall mount 7 Watch Channels 12 Devices 12 Uninstall channels 34 USB device Connect 28 Disconnect 28 VESA wall bracket 7 Video formats 46 Volume Adjust 12, 21 Automatic leveling 21...
  • Page 59 © 2008 Koninklijke Philips Electronics N.V. All rights reserved. Document order number: 3139 125 39402...
