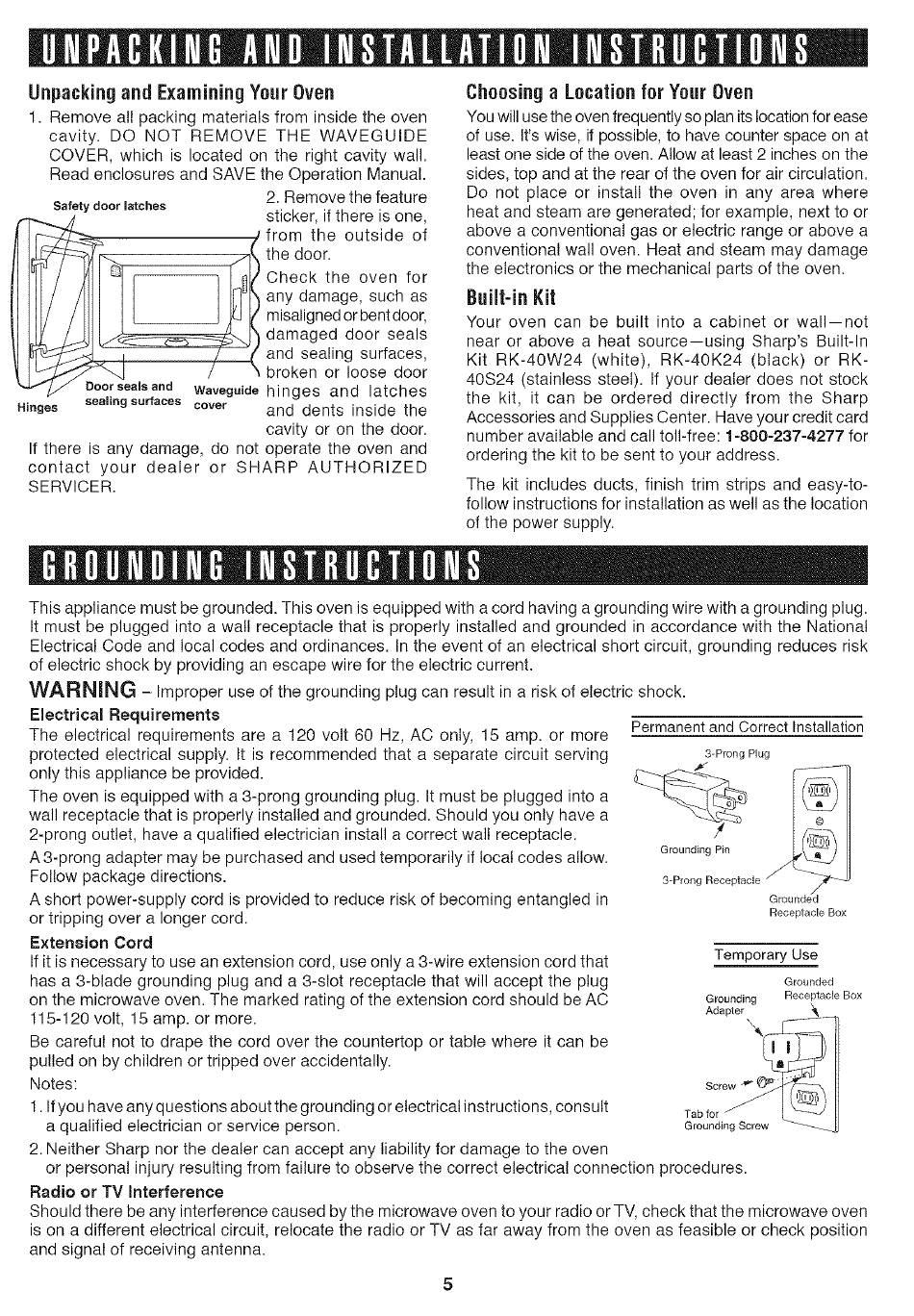

Unpacking and Examining Your Oven
1. Remove all packing materials from inside tile oven
cavity. DO NOT REMOVE THE WAVEGUIDE
COVER, which is located on the right cavity wall.
Read enclosures and SAVE the Operation Manual.
2. Remove the feature
Safety door latches
__ sticker, if there is one,
from the outside of
the door.
Check the oven for
any damage, such as
misaligned or bent door,
damaged door seals
II I_J<J , / ( and sealing surfaces,
I_ / _ broken or loose door
'_,."_" Door seals and Waveguide
hinges and latches
Hinges sealing surfaces cover
and dents inside the
cavity or on the door.
If there is any damage, do not operate the oven and
contact your dealer or SHARP AUTHORIZED
SERVICER.
Choosing a Location for Your Oven
You will use the oven frequently so plan its location for ease
of use. It's wise, if possible, to have counter space on at
least one side of the oven. Allow at least 2 inches on the
sides, top and at the rear of the oven for air circulation.
Do not place or install the oven in any area where
heat and steam are generated; for example, next to or
above a conventional gas or electric range or above a
conventional wall oven. Heat and steam may damage
the electronics or the mechanical parts of the oven.
Built-in Kit
Your oven can be built into a cabinet or wall--not
near or above a heat source--using Sharp's Built-In
Kit RK-40W24 (white), RK-40K24 (black) or RK-
40S24 (stainless steel). If your dealer does not stock
the kit, it can be ordered directly from the Sharp
Accessories and Supplies Center. Have your credit card
number available and call toll-free: 1=800-237-4277 for
ordering the kit to be sent to your address.
The kit includes ducts, finish trim strips and easy-to-
follow instructions for installation as well as the location
of the power supply.
This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug.
It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the National
Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding reduces risk
of electric shock by providing an escape wire for the electric current.
WARNING - Improper use of the grounding plug can result in a risk of electric shock.
Electrical Requiremente Permanent and Correct Installation
The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. or more
protected electrical supply. It is recommended that a separate circuit serving
only this appliance be provided.
The oven is equipped with a 3-prong grounding plug. It must be plugged into a
wall receptacle that is properly installed and grounded. Should you only have a
2-prong outlet, have a qualified electrician install a correct wall receptacle.
A3-prong adapter may be purchased and used temporarily if local codes allow.
Follow package directions.
A short power-supply cord is provided to reduce risk of becoming entangled in
or tripping over a longer cord.
Extension Cord
If it is necessary to use an extension cord, use only a 3-wire extension cord that Temporary Use
has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug Grounded
on the microwave oven. The marked rating of the extension cord should be AC Grounding Receptacle Box
115-120 volt, 15 amp. or more. _ .........
Be careful not to drape the cord over the countertop or table where it can be
pulled on by children or tripped over accidentally.
Notes:
Screw _,. _ , tl
1. Ifyou have any questions about the grounding or electrical instructions, consult r_b,o_ __ II
a qualified electrician or service person.
Grounding Screw
2. Neither Sharp nor the dealer can accept any liability for damage to the oven
or personal injury resulting from failure to observe the correct electrical connection procedures.
Radio or TV interference
Should there be any interference caused by tile microwave oven to your radio or TV, check that the microwave oven
is on a different electrical circuit, relocate the radio or TV as far away from the oven as feasible or check position
and signal of receiving antenna.
3-Prong Plug
Grounding Pin _1
3-Prong Receptacle
Grounde_
Receptacle Box
