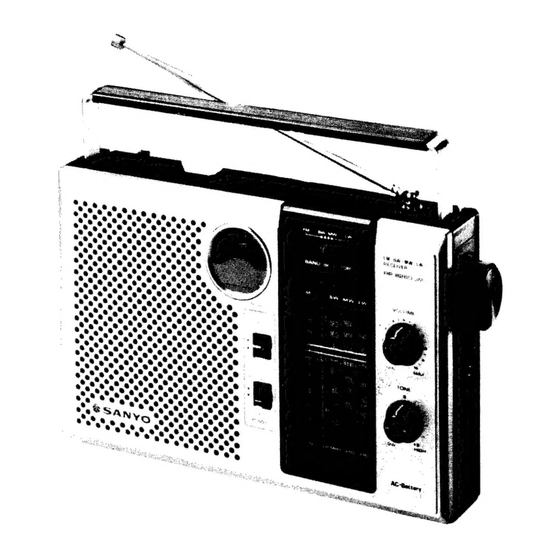

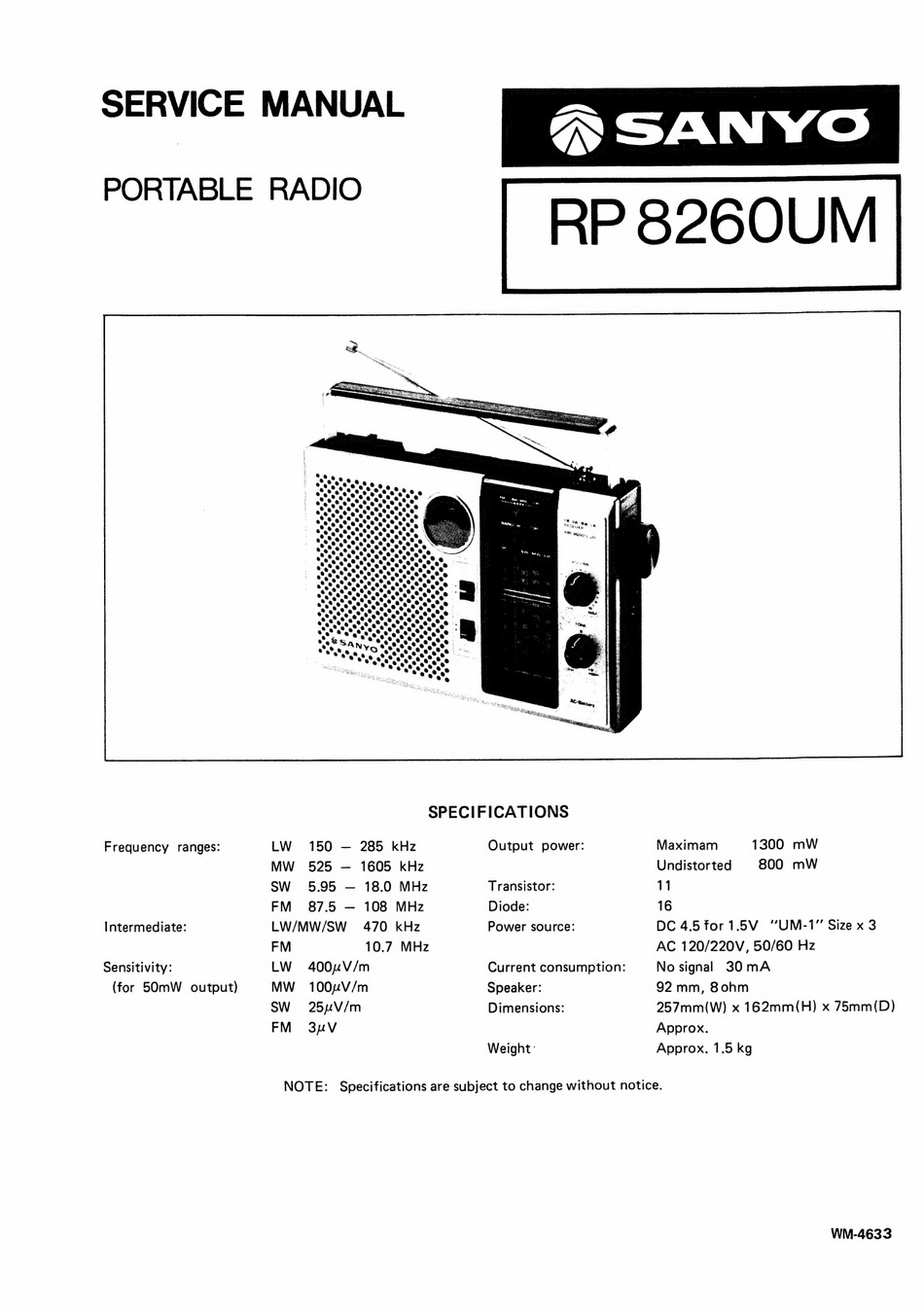

SERVICE MANUAL
PORTABLE
RADIO
RP 8260UM
SPECIFICATIONS
Frequency
ranges:
LW
150 —
285 kHz
Output
power:
MW
525 —
1605 kHz
SW
5.95 —
18.0 MHz
Transistor:
FM
87.5 —
108 MHz
Diode:
Intermediate:
LW/MW/SW
470 kHz
Power source:
FM
10.7 MHz
Sensitivity:
LW
400unV/m
Current consumption:
(for 50mW
output)
MW
100uV/m
Speaker:
SW
25uV/m
Dimensions:
FM
3uV
Weight:
Maximam
1300
mW
Undistorted
800
mW
11
16
DC 4.5for1.5V
"UM-1" Size x 3
AC 120/220V, 50/60 Hz
No signal
30mA
92 mm, 8ohm
257mm(W) x 162mm(H) x 75mm(D)
Approx.
Approx. 1.5 kg
NOTE:
Specifications are subject to change without notice.
WM-4633
