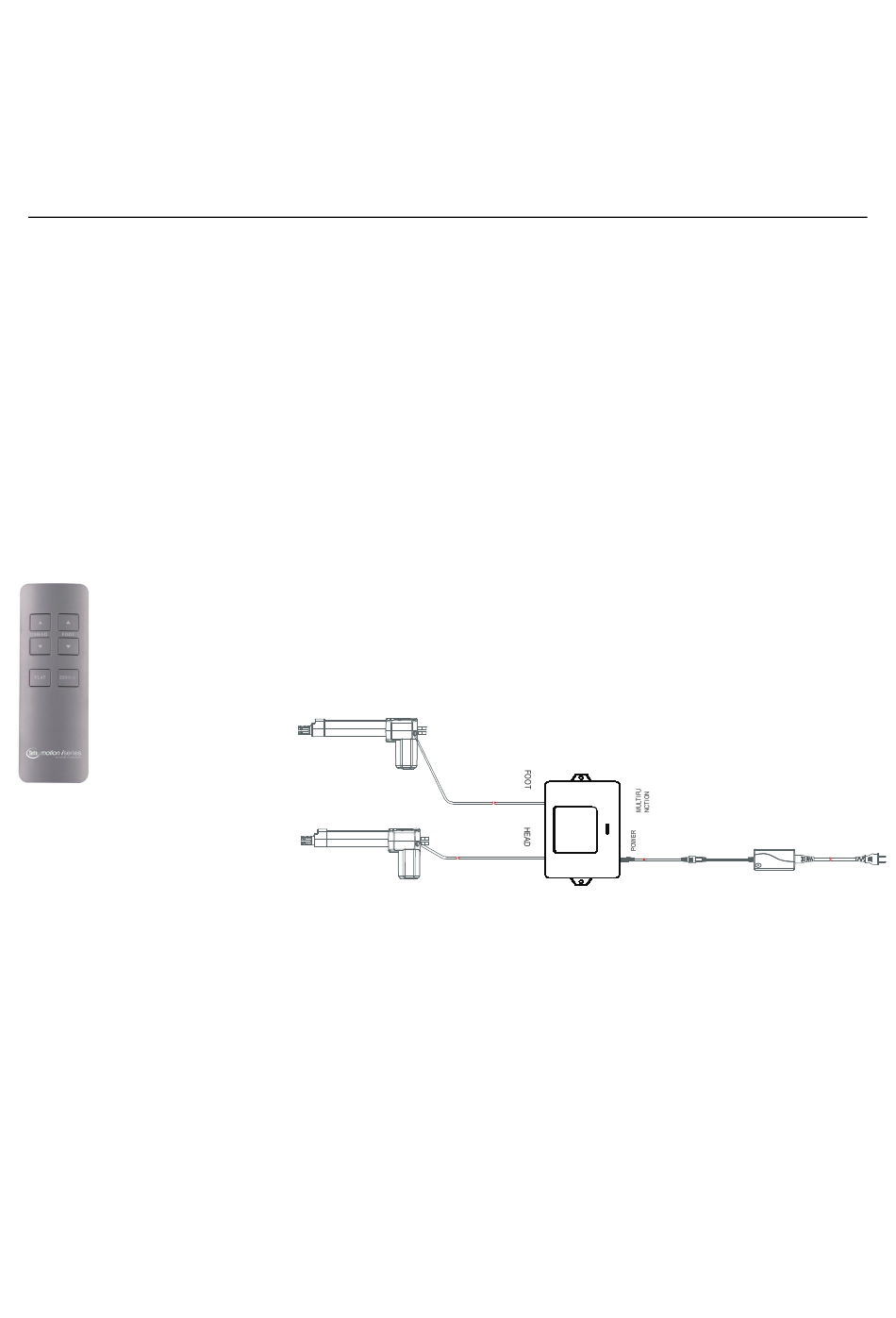

MC120 Function instruction 1. Electrical configuration diagram: JLDK.27.10.01 Control Box 75083 MC120 3.00.401.151.30 75084 Power Cord AC Power Supply Input Cable DC JLDP.10.025.000 73178 1 ...
Page 2

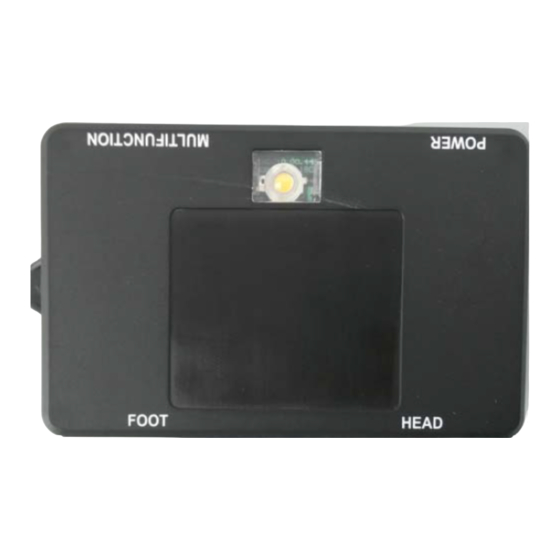

MC120 Function instruction 2. Function Picture Process of test 2.1. HEAD port Connect to head actuator,control by remote single: Click head up button on the remote, head actuator moves out, stop when released; Click headdown button,head actuator moves in, stop when released; This function takes effect only by pressing the corresponding button on the remote. 2.2. FOOT port Connect to foot actuator,control by remote single: Click foot up button,foot actuator moves out,stop when released; Click foot down button,foot actuator moves in,stop when released; This function takes effect only by pressing the corresponding button on the remote. 2.3. MULTIFUNCTION port Connect with the same other Control box or Other accessories; 2.4. Power LED& PAIRING LED Power supply for control box, PAIRINGLED of control box flashes for 4 times,and then turns off, POWER LED turns on。 2.5. Power Connect to the 29V DC; 2.6. Test for underbed light Click button of underbed light, turns on( or turns off ) the underbed light, switch the status once when click once; This function takes effect only by pressing the corresponding button on the remote. 2 ...
Page 3
MC120 Function instruction FCC Warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ISED RSS Warning: This device complies with Innovation,Science and Economic Development Canada licenceexempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'ISED applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. ISED RF exposure statement: This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment.
