RX-P840

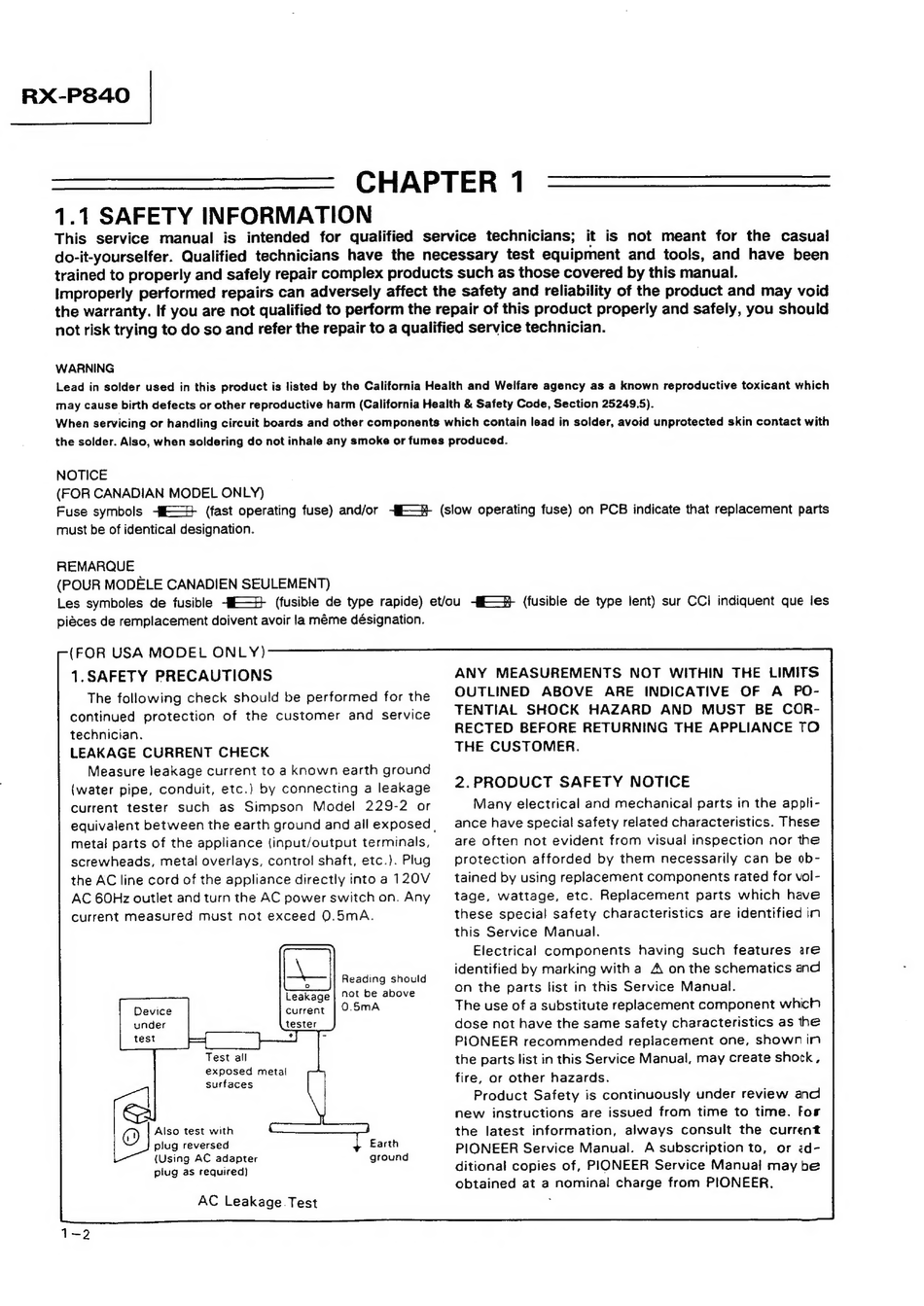

CHAPTER 1
1.1 SAFETY INFORMATION
This service
manual
is intended
for qualified
service
technicians;
it is not meant
for the
casual
do-it-yourselfer.
Qualified
technicians
have the necessary
test equipment
and tools, and have
been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void
the warranty. If you are not qualified to perform the repair of this product properly and safely, you should
WARNING
Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxicant which
may cause birth defects or other reproductive harm (California Health & Safety Code, Section 25249.5).
When servicing or handling circuit boards and other components which contain lead in solder, avoid unprotected skin contact with
the solder. Also, when soldering do not inhale any smoke or fumes produced.
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols
-f&—4
(fast operating fuse) and/or
~-§&— (slow operating fuse) on PCB indicate that replacement parts
must be of identical designation.
REMARQUE
(POUR MODELE CANADIEN SEULEMENT)
Les symboles de fusible
-§——1
(fusible de type rapide) et/ou
-§—#
(fusible de type lent) sur CCi indiquent que les
piéces de remplacement doivent avoir la méme désignation.
(FOR USA MODEL ONLY)
1.SAFETY PRECAUTIONS
The following check should be performed for the
continued
protection
of the customer
and service
technician.
LEAKAGE
CURRENT
CHECK
Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current
tester
such
as
Simpson
Model
229-2
or
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60Hz outlet and turn the AC power switch on. Any
current measured
must not exceed 0.5mA.
Reading should
Leakage | 20t be above
current | 0.5mMA
tester
°
Test ail
exposed
metal
surfaces
Also test with
plug reversed
(Using AC adapter
plug as required)
Earth
ground
AC Leakage. Test
equivalent between the earth ground and ail exposed |
ANY
MEASUREMENTS
NOT
WITHIN
THE
LIMITS
OUTLINED
ABOVE
ARE
INDICATIVE
OF
A
PO-
TENTIAL
SHOCK
HAZARD
AND
MUST
BE COR-
RECTED
BEFORE RETURNING THE APPLIANCE
TO
THE CUSTOMER.
2.PRODUCT
SAFETY
NOTICE
Many electrical and mechanical parts in the appli-
ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them
necessarily can be ob-
tained by using replacement components rated for vol-
tage, wattage,
etc. Replacement
parts which
have
these special safety characteristics are identified in
this Service Manual.
Electrical
components
having such
features
are
identified by marking with a A on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER
recommended
replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.
Product Safety is continuously under review and
new
instructions are issued from time to time. For
the
latest
information,
always
consult
the current
PIONEER Service Manual.
A subscription to,
or éd-
ditional copies of, PIONEER
Service Manual may be
obtained at a nominal charge from PIONEER.
