Summary of Contents for Philips Home Access 1000 Series

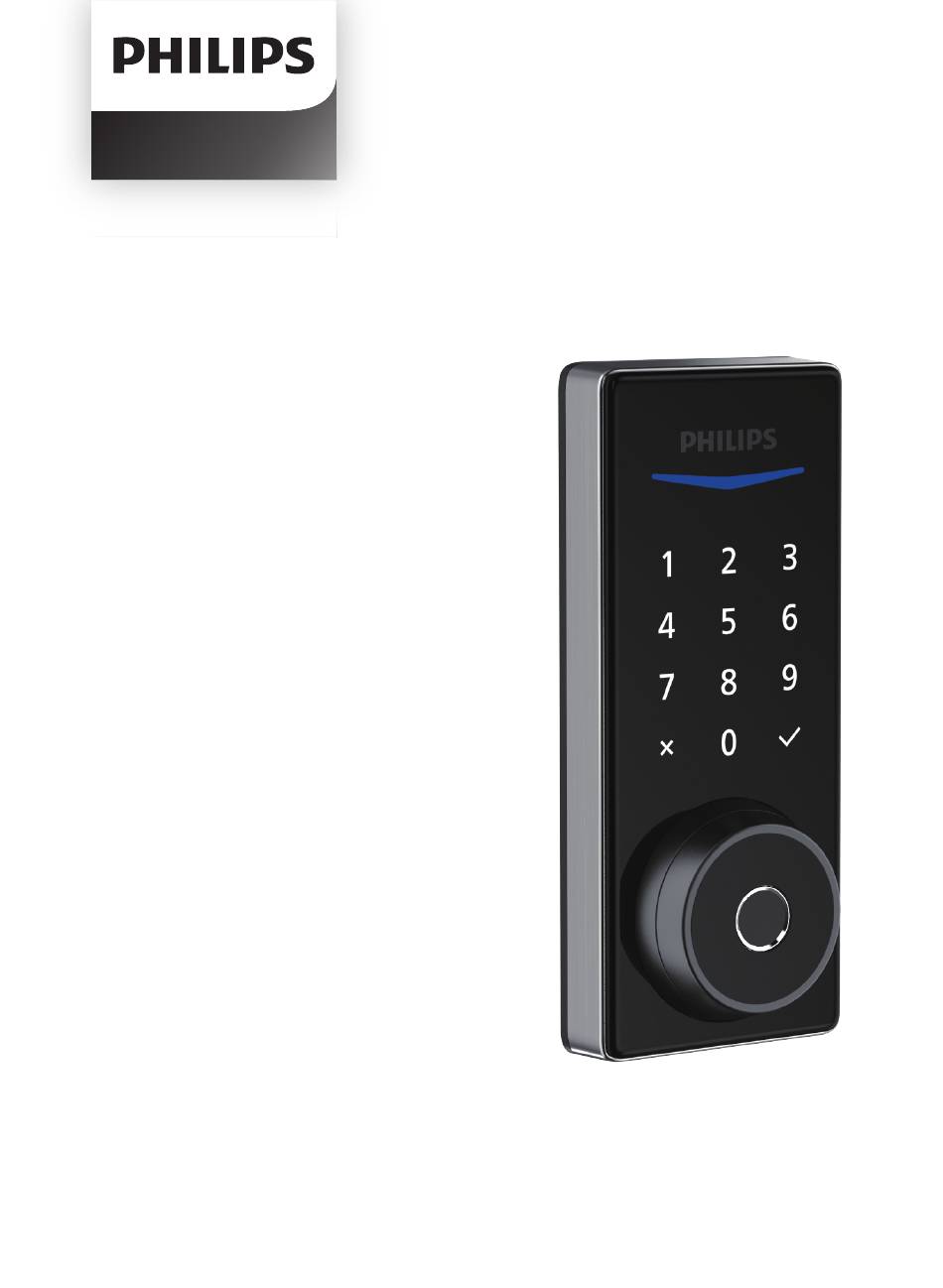

- Page 1 Home Access Electronic deadbolt 1000 series User Manual Register your product and get support at www.philips.com/support...
-
Page 3: Table Of Contents
Returns & Disposal 2 How to Install Parts List Assembly View Install the Lock 3 How to Setup Download the Philips Home Access App Create a User Account Add the Device 4 How to Use Feature De�nitions Factory Reset & Default Settings... -
Page 4: Warnings & Safety
◆ Do not expose products to places that have water leakage or splashing. Returns & Disposal ◆ Locks can be returned at an authorized Philips service center. Appropriate compensation will be provided if the returned product meets Philips's conditions. ◆ Please follow local regulations and do not throw the used products or batteries into... -
Page 5: How To Install
2 How to Install Parts List Exterior Assembly Latch Bolt Mounting Plate Interior Assembly AA Batteries (4) Battery Cover Interior Assembly Mounting Plate Screws (2) Screws (2) Reinforcement Strike Plate Strike Plate Screws (2) Latch Bolt Reinforcement Plate Screws (2) Plate (Optional) Screws (2) Upper Screw &... -
Page 6: Assembly View
Assembly View 13 (Optional) 13 (Optional) Exterior Assembly Mounting Plate Screws (2) Latch Bolt Reinforcement Plate (Optional) Mounting Plate 10. Strike Plate Interior Assembly Strike Plate Screws (2) AA Batteries (4) Reinforcement Plate Screws (Optional) (2) Latch Bolt Screws (2) 6. - Page 7 Exterior Assembly Status Indicator Touchscreen Keypad Cancel Key Con�rm Key Fingerprint Sensor Keyhole Cover Keyhole Interior Assembly Battery Cover Reset Button Privacy Button Installation Buckle Thumb Turn...
-
Page 8: Install The Lock
Install the Lock Required Tools #2 Phillips Screwdriver Prepare the Door and Check the Dimensions Measure to con�rm that the hole in the Measure to con�rm that the backset is door is 1-1/2’’ or 2-1/8" (38mm or 54mm). either 2-3/8" or 2-3/4" (60mm or 70mm). Measure to con�rm that the hole in the door edge is 1"... - Page 9 OPTIONAL: Drill a hole for Upper Screw. Attention Installing this screw onto the Exterior Assembly is OPTIONAL. It is used for additional security or when a door is weak or warped. If you install this screw, you need to drill a hole (19/32″) in the door before starting the installation. Drilling Template...
- Page 10 Determine the backset and adjust the Latch Bolt. Hold the Latch Bolt in front of the door hole, with the Latch Bolt face �ush against the door edge. Is the slotted hole centered in the door hole? No adjustment is required.
- Page 11 Use a screwdriver to con�rm that the Install the Strike Plate on the door frame. deadbolt locks and unlocks smoothly. Strike Plate Screws (Optional) Attention Make sure the hole in door frame is drilled a minimum of 1"(25mm) deep. Install the Exterior Assembly Attention With the Latch Bolt fully retracted (in the unlocked position), route the cable below...
- Page 12 Secure the Mounting Plate with the Mounting Plate Screws. Do not overtighten screws. Attention Route the cable through the hole in the mounting plate. The Upper Screw on the top is OPTIONAL. Before installing the Upper Screw, fasten the Screw Post into the hole of the Exterior Assembly.
- Page 13 Keep the Thumb Turn in the vertical position, Attach the Interior Assembly to the Mounting toggle the Installation Buckle upwards, and Plate, toggle the Installation Buckle downwards, install the Interior Assembly. and fasten using the Interior Assembly Screws. Interior Assembly Screws Note: Do not use...
-
Page 14: How To Setup
3 How to Setup Download the Philips Home Access App QR code Home Access Scan the QR Code to download the Philips Home Access app. Create a User Account Add the Device Register and log in to the Philips Home Tap the “Add device”... -
Page 15: How To Use
Thumb Turn or the Master PIN Code. One-Time PIN Code (in-app feature) Generated by the Philips Home Access app, the One-Time PIN Code can only be used once. You can only generate One-Time PIN Codes for the 1000 series electronic deadbolt via the Philips... -
Page 16: Factory Reset & Default Settings
Factory Reset & Default Settings This procedure deletes all user codes associated with the lock. Restoring the lock will also activate the lock-handing process. Press the Reset Button for at least 5 seconds until you hear the tone prompting you to restore the default settings. -
Page 17: Format Of Entry Methods
Format of Entry Methods 1. Master PIN Code (4 to 10 digits): The default Master PIN Code is 12345678. Change the default Master PIN Code before programming other codes. 2. User PIN Code (4 to 10 digits): A total of 20 User PIN Codes can be programmed and stored in the lock. 3. -
Page 18: Program The Lock
Program the Lock Attention The default Master PIN Code is 12345678. Change the default Master PIN Code before programming the lock. The indicator light will �ash red when the code entered is not saved successfully. If no button is pressed for more than 10 seconds, the lock will exit programming mode. Touch the Touchscreen Keypad with your hand palm to activate the lock before setting it up. - Page 19 Delete the User PIN Code Enter Master Press Press 2 times Press 1 time PIN Code Green light is on Enter the unwanted Press 1 time User PIN Code Green light is on Add a User Fingerprint Enter Master Press Press 2 times Press...
- Page 20 Change the System Language Enter Master Press Press 2 times Press 1 time PIN Code Green light is on Press for English Green light is on Press 1 time Press for French Green light is on 1 time Press Press for Spanish Green light is on Press...
-
Page 21: Lock & Unlock
Away Mode Enter Master Press Press 2 times Press 1 time PIN Code Green light is on Press 1 time Green light is on Lock & Unlock Unlocking the Door from Outside Attention Before entering PIN codes, place your hand on the Touchscreen Keypad to wake it up. 1. - Page 22 Locking the Door from Outside 1. Press and hold any button on the keypad for at least 2 seconds to lock the door in Manual Mode. 2. In Auto-Lock mode, the Latch Bolt will automatically extend after it is unlocked and the door is shut. 3.
- Page 23 5 Troubleshooting Issue Solution The Latch Bolt does Make sure the backset on the Latch Bolt is set to the proper not operate correctly length. Refer to page 8. after installation. Make sure before installation the Latch Bolt is retracted. Refer to page 9.
- Page 24 Check if the Master PIN Code you set in the app is the same as the not work. Master PIN Code of the lock. If not, change the Master PIN Code in the Philips Home Access app to the correct one.
- Page 25 Issue Solution Cannot add �ngerprints, Make sure the �ngerprint is registered and recognizable. or the �ngerprint does Change the default Master PIN Code (12345678) before adding not work. �ngerprints. Keep the �nger to be registered dry and clean. Keep the Fingerprint Sensor dry and clean. Add multiple �ngerprints with the same �nger.
- Page 26 6 Warranty 2 Years Warranty For more information on the warranty applicable for this product, please visit www.philips.com or contact the dealer where you purchased the product.
- Page 28 Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license. This product has been manufactured by and is sold under the responsibility of Shenzhen Conex Intelligent Technology Co., Ltd. and Shenzhen Conex Intelligent Technology Co., Ltd. is the warrantor concerning this product.
