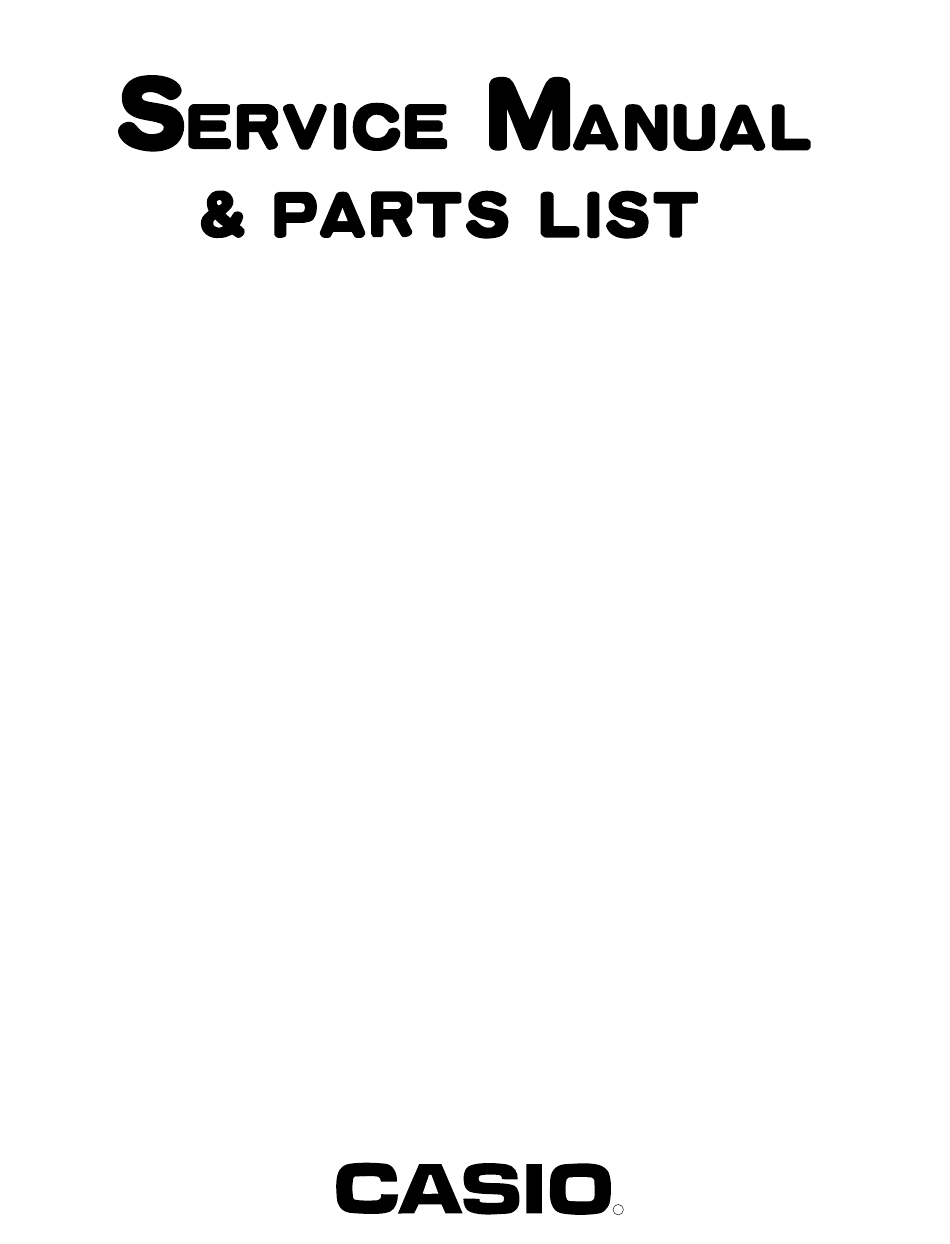

POCKET TELEVISION
TV-600G/H
Specifications............................................................................................. 1
Block Diagram ........................................................................................... 2
Circuit Description...................................................................................... 3
Linear PCB.......................................................................................... 5
A/D PCB .............................................................................................. 9
Troubleshooting ....................................................................................... 10
Printed Circuit Boards .............................................................................. 11
Wiring Diagram ........................................................................................ 15
Exploded View / Disassembly.................................................................. 16
Electrical Parts List .................................................................................. 17
Mechanical Parts List............................................................................... 23
IC and Transistor Lead Identification ....................................................... 24
Schematic Diagrams and Waveforms ..................................................... 26
MARCH 1995
(with price)
(KX-507G/H)
R
Page
Advertisement
Table of Contents
Related Manuals for Casio TV-600G/H
Summary of Contents for Casio TV-600G/H
-
Page 1: Table Of Contents
All manuals and user guides at all-guides.com (with price) POCKET TELEVISION TV-600G/H (KX-507G/H) MARCH 1995 Page Specifications..................... 1 Block Diagram ................... 2 Circuit Description..................3 Adjustment Linear PCB..................5 A/D PCB ....................9 Troubleshooting ..................10 Printed Circuit Boards ................11 Wiring Diagram .................. -
Page 2: Specifications
All manuals and user guides at all-guides.com SPECIFICATIONS Item Specification Reception channels VHF : 2 ~ 13 ch UHF : 14 ~ 69 ch Power voltage DC 6.0 V Power consumption Approx. 3.4 W Current consumption Approx. 566 mA Battery life (with alkaline batteries) Approx 3.0 hours Batteries : 4 AA size batteries... -
Page 3: Block Diagram
All manuals and user guides at all-guides.com BLOCK DIAGRAM Antenna IC200 TU200 Q200 IC600 Speaker Video VR600 Sound Det. Audio Tuner IF Amp. Amp. AFT Circuit Volume AGC Circuit Control IC500 IC300 Tuning Voltage Common Chroma Generator Driver Circuit IC700 Osc. -
Page 4: Circuit Description
All manuals and user guides at all-guides.com CIRCUIT DESCRIPTION TUNING VOLTAGE GENERATOR VCC6 IC500 MSC1169MS-K VREF Figure 1 This circuit generates the DC tuning voltage BT for selecting a channel with a TU pulse being output from IC700. IC500 has 3 circuits for converting pulses to voltages; it selects one of VHF-L, VHF-H, or UHF, and causes the tuning voltage to be output from the OUT terminal (pin 12). - Page 5 All manuals and user guides at all-guides.com POWER SUPPLY VCC1-1 T100 D155 CP100 VCC7 D152 CP108 VCC6 CP107 Q111 VCC2 Vref L101 C135 CP109 R115 D152 D150 D100 C140 VR100 VEE1 Q100 CP110 Q101 CP104 Figure 3 The power supply consists of a DC-DC converter and causes the voltages to be output as shown in Table 2. Name Voltage Function...
-
Page 6: Adjustment
All manuals and user guides at all-guides.com ADJUSTMENT LINEAR PCB Items To Be Adjusted Item Measuring Instrument VCC2 voltage setting Voltmeter Video detection coil adjustment TV signal generator, pattern generator, oscilloscope, low-pass filter AFT coil adjustment Sweep generator, oscilloscope, voltmeter Contrast adjustment TV signal generator, pattern generator, oscilloscope AGC adjustment... - Page 7 All manuals and user guides at all-guides.com VR100 PadIF VR300 VR200 Bottom View Equipment Connection / Adjustment Procedure VCC2 Voltage Setting TV-600 Voltmeter Output Input Input Input Output Output Adjust Result Connection Point Signal Connection Point Adjust for 3.95 ± 0.02 V VR100 Voltmeter reading on voltmeter.
- Page 8 All manuals and user guides at all-guides.com Video Detection Coil Adjustment * Desolder the IF pad to open. Pattern Signal TV-600 Oscilloscope generator generator Low-pass filter Input Output Input Input Input Output Output Adjust Result Connection Point Signal Connection Point Pattern Color bar generator...
- Page 9 All manuals and user guides at all-guides.com AGC Adjustment * Short the IF pads. Pattern Signal TV-600 IF levelmeter generator generator Input Output Input Input Input Output Output Connection Point Signal Adjust Connection Point Result Pattern Adjust for 84 ± 2 dBµ generator Color bar VR200 IF levelmeter...
-
Page 10: A/D Pcb
All manuals and user guides at all-guides.com A/D PCB Item to Be Adjusted Item Measuring Instrument Clock adjustment Voltmeter Adjustment And Test Point Locations TOP VIEW Equipment Connection / Procedure Clock Adjustment TV-600 Voltmeter Output Input Input Input Output Output Connection Point Signal Adjust... -
Page 11: Troubleshooting
All manuals and user guides at all-guides.com TROUBLESHOOTING Symptom Cause Solution No power supply Defective power switch (SW100). Replace. No picture and Defective DC-DC converter (T100). Replace. no sound Defective tuner (TU200). Replace. Defective Q200. Replace. Defective IC200. Replace. Defective IC300. Replace. -
Page 12: Printed Circuit Boards
All manuals and user guides at all-guides.com PRINTED CIRCUIT BOARDS TOP VIEWS Linear C202 C115 C244 C291 R247 C340 R222 F201 C345 D180 FU100 SW100 Q950 L950 T950 Q951 R950 507BL — 11 —... - Page 13 All manuals and user guides at all-guides.com BOTTOM VIEWS Linear CP590 CP203 VR100 CP541 IC500 Q100 CP542 Q101 CP204 CP322 R115 R500 C550 CP320 Q111 CP500 CP235 CP208 D100 CP209 CP236 D150 CP110 CP210 CP109 D155 CP207 CP221 D152 CP108 CP327 CP326 C146 C237...
- Page 14 All manuals and user guides at all-guides.com TOP VIEW IC703 R815 Q802 Q801 R809 Q800 C836 IC701 R700 R816 D800 R803 HP700 Q805 SW701 SW700 R833 DOWN R830 D805 R704 Q806 Q804 C755 L705 R611 C756 R824 R825 IC700 R726 C642 C760 R730 R845...
- Page 15 All manuals and user guides at all-guides.com BOTTOM VIEW CDB2 CNB2 CFB2 VCC2-8 VR600 R615 GND1 C741 C734 C740 VR800 GND2 C603 D700 D701 IC600 C761 C606 JK600 — 14 —...
-
Page 16: Wiring Diagram
All manuals and user guides at all-guides.com WIRING DIAGRAM TOP VIEWS A/D PCB Linear PCB — 15 —... -
Page 17: Exploded View / Disassembly
All manuals and user guides at all-guides.com EXPLODED VIEW / DISASSEMBLY 12-2 12-1 15-3 15-1 15-2 6-10 — 16 —... -
Page 18: Electrical Parts List
All manuals and user guides at all-guides.com ELECTRICAL PARTS LIST Linear PCB No. 1 FOB Japan Item Code No. Parts Name Specification Q'ty N.R.Yen Unit Price Capacitors C100 2805 2180 Electrolytic capacitor (V) 10RE2-220 1 20 C105 2801 7630 Electrolytic capacitor (V) 6.3RC2-47MS-G12 1 20 C110... - Page 19 All manuals and user guides at all-guides.com Linear PCB No. 2 FOB Japan Item Code No. Parts Name Specification Q'ty N.R.Yen Unit Price D152 2390 1176 Chip diode MA152WK-(TX) 1 20 D154 2390 1176 Chip diode MA152WK-(TX) 1 20 D155 2390 1302 Chip diode MA153A-(TX) 1 20...
- Page 20 All manuals and user guides at all-guides.com Linear PCB No. 3 FOB Japan Item Code No. Parts Name Specification Q'ty N.R.Yen Unit Price R247 2791 0720 Chip resistor ERJ-6GEYJ222V 1 20 R305 2791 0815 Chip resistor ERJ-6GEYJ102V 1 20 R306 2791 1390 Chip resistor ERJ-6GEYJ473V 1 20...
- Page 21 All manuals and user guides at all-guides.com A/D PCB No. 1 FOB Japan Item Code No. Parts Name Specification Q'ty N.R.Yen Unit Price Capacitor C603 2828 5552 Electrolytic capacitor 6.3RV2-100-T 1 20 C606 2828 5552 Electrolytic capacitor 6.3RV2-100-T 1 20 C630 2892 0059 Chip capacitor GR40Y5V103Z50PT...
- Page 22 All manuals and user guides at all-guides.com A/D PCB No. 2 FOB Japan Item Code No. Parts Name Specification Q'ty N.R.Yen Unit Price Resistors R606 2791 0343 Chip resistor ERJ-8GEYJ150V 1 20 R607 2791 0343 Chip resistor ERJ-8GEYJ150V 1 20 R610 2797 1617 Chip resistor ERJ-6GEYJ752V...
- Page 23 All manuals and user guides at all-guides.com BL PCB FOB Japan Item Code No. Parts Name Specification Q'ty N.R.Yen Unit Price Capacitors C925 2825 0434 TF capacitor ECQ-V1H184JL 1 20 C927 2813 2814 Ceramic capacitor DE0805SL151J2K 1 20 Fuses FU900 3632 0308 Temperature fuse EYP-1BF102L 1 20...
-
Page 24: Mechanical Parts List
All manuals and user guides at all-guides.com MECHANICAL PARTS LIST FOB Japan Item Code No. Parts Name Specification Q'ty N.R.Yen Unit Price 6609 5750 Display plate BIM-K507 K412075-2 6609 5816 Upper case ass'y K311716*5 6609 2820 Adhesive tape A-K507 K412077-1 1 20 6609 2830 Adhesive tape B-K507 K412078-1... -
Page 25: Ic And Transistor Lead Identification
All manuals and user guides at all-guides.com IC AND TRANSISTOR LEAD IDENTIFICATION IC/LSI IC200 IC300 M51348FP M52042FP IF AGC OUT IF AGC ADJ VIDEO IF AGC IN SyOUT SY IN VCXO OUT RF AGC SyIN ACCF AGCDL AFTC SY OUT VCXO IN VCCv HDIN... - Page 26 All manuals and user guides at all-guides.com IC700 MSM6625-02GSK-640F VSS2 TRANSISTORS 2SD1119 2SD601A 2SD965R 2SB709A 2SD1149-S 2SC4238 — 25 —...
-
Page 27: Schematic Diagrams And Waveforms
All manuals and user guides at all-guides.com SCHEMATIC DIAGRAMS AND WAVEFORMS LINEAR VHF(L) VHF(H) Pad IF — 26 —... - Page 28 All manuals and user guides at all-guides.com — 27 —...
- Page 29 All manuals and user guides at all-guides.com HP950 fromAD Vcc1–1 FU900 102deg HP900 HP902 Vcc1–1 HP901 HP903 C927 FU901 102deg T950 Q950 NT–01 150p 2SD965–R *R950 HP905 L950 CK 100u Vcc9 CP900 Q951 2SD965–R LA900 2inch (ST) TF50VO. 18 HP906 CP990...
- Page 30 All manuals and user guides at all-guides.com WAVEFORMS 63.5 µs 63.5 µs 63.5 µs 1 Q200 Collector 2 IC200 Pin 19 3 IC200 Pin 18 0.24 µs 63.5 µs 63.5 µs 4 IC300 Pin 23 5 IC300 Pins 10, 11, 12 6 IC300 Pin 5 63.5 µs 63.5 µs...
- Page 31 All manuals and user guides at all-guides.com 8-11-10, Nishi-Shinjuku Shinjuku-ku, Tokyo 160, Japan Telephone: 03-3347-4926...
