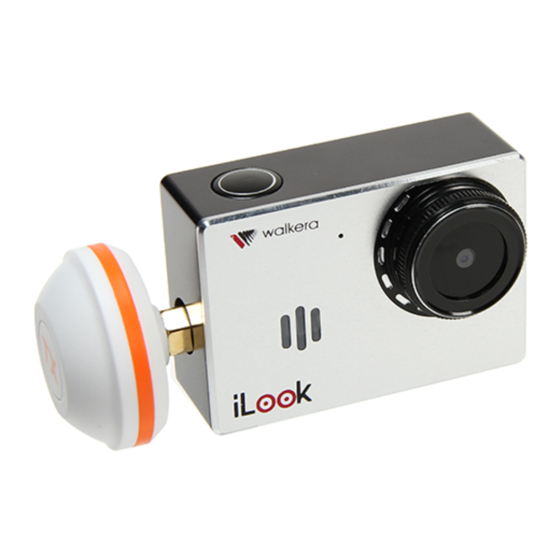

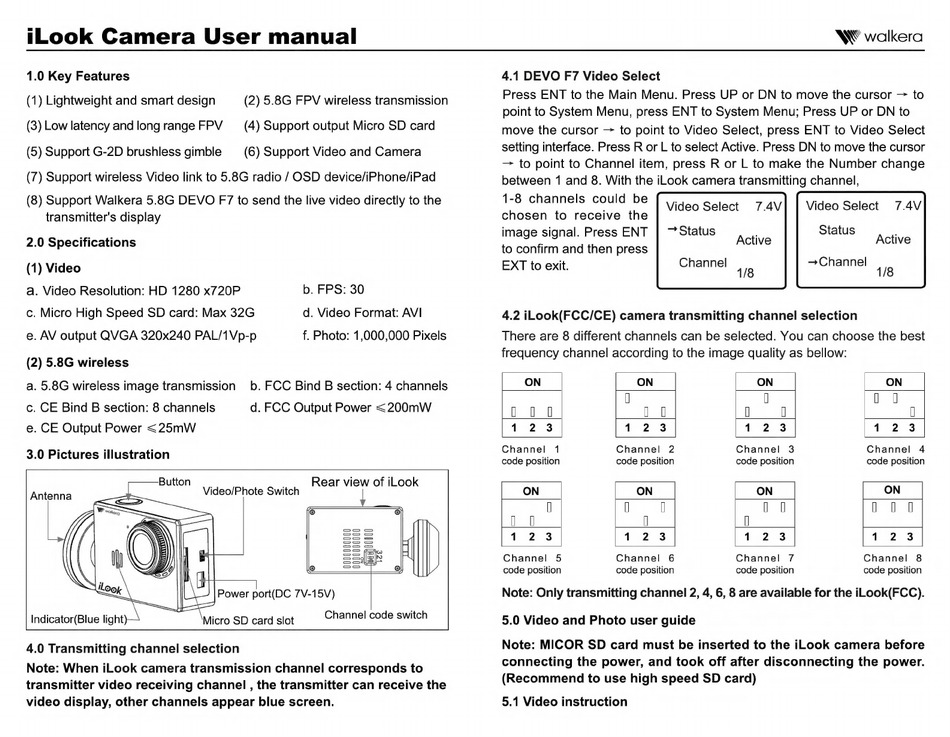

iLook Camera
User manual
1.0 Key Features
1) Lightweight and smart design
(2) 5.8G FPV wireless transmission
3) Low latency and long range FPV
(4) Support output Micro SD card
7) Support wireless Video link to 5.8G radio / OSD device/iPhone/iPad
8) Support Walkera 5.8G DEVO F7 to send the live video directly to the
transmitter's display
(
(
(5) Support G-2D brushless gimble
(6) Support Video and Camera
(
(
2.0 Specifications
(1) Video
a. Video Resolution: HD 1280 x720P
c. Micro High Speed SD card: Max 32G
e. AV output QVGA 320x240 PAL/1Vp-p
b. FPS: 30
d. Video Format: AVI
f. Photo: 1,000,000 Pixels
(2) 5.8G wireless
a. 5.8G wireless image transmission
b. FCC Bind B section: 4 channels
c. CE Bind B section: 8 channels
d. FCC Output Power <200mW
e. CE Output Power <25mW
3.0 Pictures illustration
Button
Rear view of iLook
Antenna
Video/Phote Switch
Ww Walkera
©
E)
©
=
(E)
look
Power port(DC 7V-15V)
Channel code switch
Indicator(Blue light)
Micro SD card slot
4.0 Transmitting channel selection
Note: When iLook camera transmission channel corresponds to
transmitter video receiving channel , the transmitter can receive the
video display, other channels appear blue screen.
WW walkera
4.1 DEVO F7 Video Select
Press ENT to the Main Menu. Press UP or DN to move the cursor — to
point to System Menu, press ENT to System Menu; Press UP or DN to
move the cursor — to point to Video Select, press ENT to Video Select
setting interface. Press R or L to select Active. Press DN to move the cursor
— to point to Channel item, press R or L to make the Number change
between 1 and 8. With the iLook camera transmitting channel,
1-8 channels
could
be
chosen
to receive
the
image signal. Press ENT | ~Status
eave
Status
Asie
to confirm and then press
EXT to exit.
Video Select
7.4V
Video Select
7.4V
Ch
|
Channel
anne
>
1/8
4.2 iLook(FCC/CE) camera transmitting channel selection
There are 8 different channels can be selected. You can choose the best
frequency channel according to the image quality as bellow:
ON
ON
ON
|
l
00
0
0
0
I
|
1
2
3
1
2
3
1
2
3
Channel
1
Channel
2
Channel
3
Channel
4
code position
code position
code position
code position
ON
ON
ON
ON
[l
[l
U
0
0
0
0
0
1
O
|
[l
1
2
3
1
2
3
12
3
1
2
3
Channel
5
Channel
6
Channel
7
Channel
8
code position
code position
code position
code position
Note: Only transmitting channel 2, 4, 6, 8 are available for the iLook(FCC).
5.0 Video and Photo user guide
Note: MICOR SD card must be inserted to the iLook camera before
connecting the power, and took off after disconnecting the power.
(Recommend to use high speed SD card)
5.1 Video instruction
