D19-10 Simplified service manual for dismantling

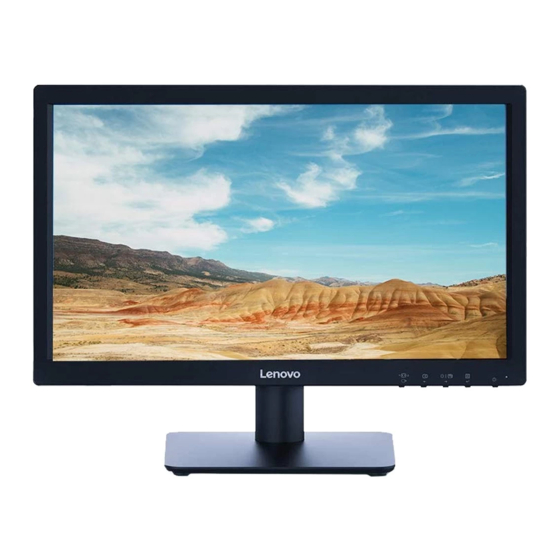

Model Name: Lenovo D19-10

Page 1 D19-10 Simplified service manual for dismantling Model Name: Lenovo D19-10...
Page 2: Exploded Diagram
Exploded Diagram...
Page 3 1. Precaution Please read the precaution as follows to prevent any damages to the LCD Monitor. Make sure all power connector is removed. Be sure that the LCD Monitor is in power off status. Prepare soft cloth and sponge as working platform to place LCD monitor horizontally.
Page 4 2. Appropriate tools Select the Appropriate tools for disassembly and re-assembly. Phillips screwdriver (#2) Spacer screwdriver Hot hair dryer Gloves or soft cloth...
Page 5 3. Disassembly SOP Put the monitor on a flat surface (Put the EPE on under the monitor) Pull out stand Press the button Remove the label * 2pcs Tool : Hot hair dryer Remove the screw * 2pcs Tool : Screwdriver #2...
Page 6 Use the EPE cushion protect panel OC and pull open the bezel from top side Turn the monitor and make rear cover upside，and then remove the rear cover Remove All tape and foil Release the keypad pcb from the bezel and unplug light bar line...
Page 7 Unplug LVDS line Take out of the chassis assembly Take out of the panel from bezel...
Page 8 Remove the screw * 2pcs Tool : Spacer screwdriver Remove all the screws Tool : Screwdriver #2 Take out of the AC socket mylar sheet from chassis Take out of the pcb from chassis...
