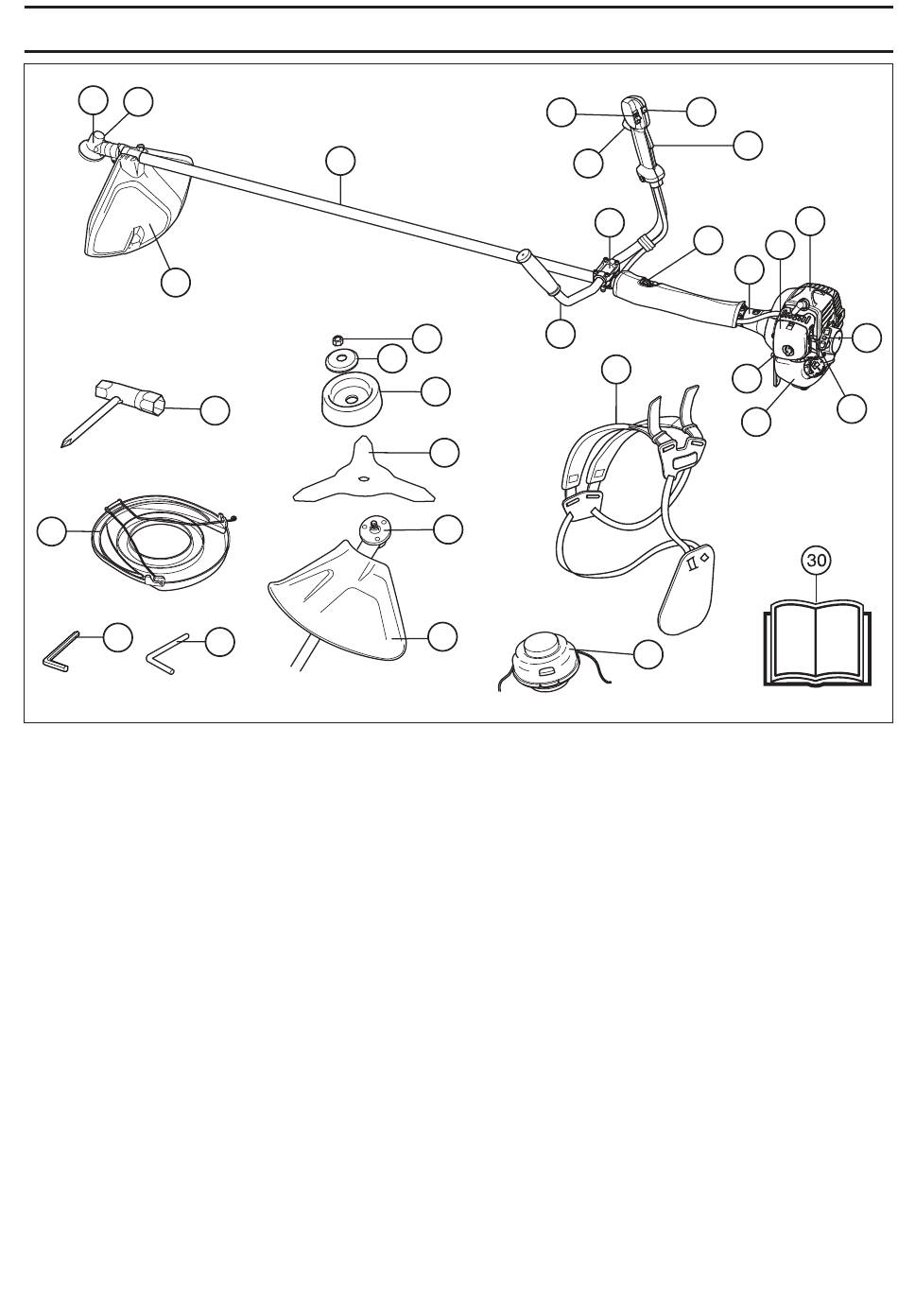

What is what on the brushcutter?

1 Blade
2 Grease filler cap, bevel gear
3 Bevel gear
4 Cutting attachment guard
5 Shaft
6 Stop switch
7 Start throttle button
8 Throttle control
9 Throttle lockout
10 Suspension ring
11 Handlebar clamp
12 Handlebar
13 Clutch cover
14 Air filter cover
15 Cylinder cover

WHAT IS WHAT?

5
24
27
12
20
21
22
1
23
4
16 Starter handle
17 Choke control
18 Fuel tank
19 Air purge
20 Locking nut
21 Support flange
22 Support cup
23 Drive disc
24 Socket spanner
25 Transport guard
26 Allen key
27 Locking pin
28 Harness
29 Trimmer head
30 Operator's manual
6 7
8
11
10
28
29
9
15
14
13
16
19
17
18
English – 65
