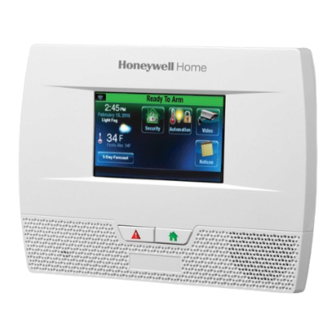

Honeywell LYNX TOUCH L5210 Series Quick Start Manual

Record a Message
Your system can record brief single or multiple messages. The total
available recording time is 184 seconds.
Press
Function this Perform the following...
Icon...
• Select "Add New" to Record a Message.
• Select "Record".
• Select "Stop" when recording is
Record a complete. Then select " ".
Message • The recorded message list is displayed.
Message
Select the " " to return to the Security
Home Screen.
• Select the Message that you wish to
play or delete.
Play OR
• Select "Play" or "Delete All" as
Delete
applicable.
Messages
Message
• Select the " " to return to the Security
Home Screen.
System Displays
A "beeping" at the control, indicates a trouble condition in the
system and requires your attention. Determine if the zone(s)
displayed are intact and make them so if they are not. If the display
persists, CALL FOR SERVICE.
Press any key to silence the beeping for these conditions.
The following icons will be displayed on the Home screen along with
zone status information (if applicable) indicating system status:
Icon Function Icon Function Icon
AC Loss Door Open
Alarm Window
(intrusion) Open
Armed Exit Active
Away
Armed Fire OR
Stay Heat
Sensor
Battery Flood
Low
Check Glass Break
Zones
CO Alarm Medical
Alarm
Disarmed Motion
Not Ready
to Arm
Disarmed Temperature
Ready to
Arm
See the full User Guide for additional details.
Setting the Date and Time
NOTE: The system must be disarmed before date/time can be set.
You can set the time and date by doing the following:
• Use the " " or " " to select the correct month/year.
• Select the correct date. Use the " " to advance.
Date Time • Select "Clear" then enter the correct time
• Select AM/PM then select "Save" or use the " " to
advance.
• Select correct Time Zone
• Enable/disable Day Light Savings Time.
• If required select Day Light Saving
Month/Week.
• Select "Save"
Ê800-19978HŠ
800-19978 2/15 Rev C Part 1
Manually Controlling Home Automation Devices
Your system may be equipped Home Automation (Z-Wave) Devices.
These devices are normally controlled using programmed scenes but
can also be activated/controlled manually. To control home
automation devices manually, perform the following:
Press these Keys or
Mode
Icons...
• You may be able to override
automatically
wave
OR
Automation commands.
68
• Some devices can be manually
activated or deactivated using
OR
the Automation commands.
• See your Installer for details
Activating
Z-Wave on controlling Z-Wave devices.
+
OR
Devices
For
Automation
regarding your system's Home
Automation features refer to the
full version User Guide and to
the
OR
(P/N 800-19979 or later).
Video Camera Control
Your system may be equipped to view and control video cameras. To
view video and/or control the camera, perform the following:
• Select a camera from the displayed list. The selected
camera is highlighted in green.
• Tap the"Back" button to display the video.
Video
Function
• Control the camera, as applicable, using the displayed
Garage
controls.
Door Fault
For additional information regarding video camera features refer to the
LYNX Touch L5210 User Guide (P/N/ 800-19975 or later).
WiFi source
present
Download the LYNX Connect App
Visit the iTunes or Google Play website to download the LYNX
No WiFi
Connect App OR scan the applicable code below with your Mobile
source
Device:
94 Phone
Line Cut
103 Comm.
Trouble
90 RF Jam
IOS
Connecting a Mobile Device
Cover
Tamper
Before attempting to connect your Mobile Device to the LYNX Touch
Control Panel, ensure that the LYNX Touch is connected to a WiFi
Reporter
Failure Network (router). Perform the steps below to connect up to four
Mobile Devices to the LYNX Touch control.
Automation
Connect your Mobile Device to the WiFi Network
(Z-Wave
1. Ensure that you have connected your Mobile Device to the same
Failure)
WiFi Network as your LYNX Touch Control Panel. For additional
information refer to the LYNX Touch User Guide P/N 800-19975
(or higher).
Connect your Mobile Device to the LYNX Touch
1. At the LYNX Touch Master User screen, select the "Keypad" icon.
2. At the Mobile Device, select the "Lynx Connect" icon.
3. A Honeywell License and User Agreement is displayed. After
reading the agreement, select "Agree". You must agree to the
terms in order to use the application.
4. "Discovering Control Panel..." is displayed.
5. Within 10-20 seconds the Device will display the Security Screen
or the Dashboard screen if Total Connect Services are enabled.
6. The control will display ID information for your Mobile Device.
Start/End
7. Select the " " to return to the Master User Screen.
8. A Security Screen is displayed on your Mobile Device, which can
now be used to locally control your system.
2 Corporate Center Drive, Suite 100
P.O. Box 9040, Melville, NY 11747
Copyright © 2015 Honeywell International Inc.
www.honeywell.com/security
LYNX TOUCH L5210 SERIES SECURITY SYSTEM
What happens
controlled Z-
Full User Guide Available Online: This Quick Guide describes the most frequently used features and functions of your system. For full details of
devices using the
all user functions, please see the system's User Guide located online at: http://www.security.honeywell.com/hsc/products (see LYNX Touch
L5210 Security System User Guide P/N 800-19975 or higher). The full version User Guide is also available from your installer upon request.
Congratulations on your ownership of a Honeywell Security System. This system provides:
• Three forms of detection: burglary, fire and emergency (see your installer for which forms of detection are installed)
• At least one keypad which provides control of system and displays system status
• Various sensors for perimeter and interior burglary detection
additional information • Optional smoke or combustion detectors designed to provide early warning in case of fire.
Your system may also be programmed to automatically send alarm and status messages to a Central Monitoring Station.
System Basics
Home Automation Guide
The following is a list of some of the most common features and
functions of your system:
• Several modes of burglary detection: Stay, Away, Instant.
• Bypass feature lets you bypass selected zones while leaving the
rest of the system armed.
• Chime mode alerts you to the opening of protected doors and
windows while the system is disarmed.
• Fire and carbon monoxide detection are always active (if
installed) and an alarm sounds if a fire or carbon monoxide
condition is detected.
• Panic keys (if programmed) let you manually initiate fire, police
and medical alarms using the keypad.
• 4-digit security codes are used in conjunction with keypad
commands to perform system functions.
• Each user (up to 32) can be assigned a different security code.
• The system sensing devices have been assigned to various
"zones," which are specific areas of detection (e.g., front door,
kitchen window, etc.).
• Zone numbers (points of detection) are displayed at the keypad
when an alarm or trouble condition occurs.
• Two-way Voice allows the Central Station to listen, talk or
conduct a two-way conversation with in individuals at the
premises. See the full User Guide for details.
• Follow me reminder announcements allow the panel to dial a
number and deliver system status messages. See the full User
Android
Guide for details.
• A Scheduling feature can be programmed to automatically
perform certain
predetermined time each day. See the full User Guide for details.
Entry/Exit Delays
• Entry Delays give you time to disarm the system when you
enter through the designated entrance door.
• You must disarm the system before the entry delay period ends,
or an alarm will occur (keypad beeps during the entry delay
period, reminding you to disarm the system).
• Exit delay gives you time after arming the system to leave
through the designated exit door(s) without setting off an alarm.
If programmed, a slow beeping will sound during the exit delay
period until the last 10 seconds, which then changes to fast
beeping (alerting you to the end of exit delay). If you cannot
leave within this delay time period, you should stop, disarm the
system, and start over to avoid a false alarm. See your installer
for your delay times. See the full User Guide for details on Exit
Error alarms.
Notes on Burglary Detection
• The system must be armed before the burglary detection can
sense intrusions.
• To arm your system, select the desired arming key or icon and
enter your security code.
Quick Guide to User Functions
Notes on Burglary Detection (Continued)
• To arm your system, if the Quick Arm feature is enabled select
the desired arming key or icon followed by the Quick Arm icon.
You do not need to enter your security code.
• To disarm the system, select the Disarm icon and enter your
security code.
• When an alarm occurs, the control sounds and displays the
zone(s) causing the alarm. An external sounder may also
sound, if installed.
• If your system is connected to a Central Monitoring Station, an
alarm message is also sent (delayed 30 seconds by default to
reduce false alarms).
• To stop the alarm sounding, simply disarm the system.
• Memory of Alarm: When an alarm condition occurs, the
keypad displays the number(s) of the zone(s) that caused the
problem, and the type of alarm. Clear the Memory of Alarm
display by selecting the 'Home" key and entering a valid code.
If you return to the premises and the burglary sounder is on,
or the keypad beeps rapidly upon entering the premises, it
indicates that an alarm has occurred during your absence and
an intruder may still be on the premises. LEAVE IMMEDIATELY
and CONTACT THE POLICE from a nearby safe location.
Notes on Fire and CO Detection
• Your fire alarm system (if installed) is on 24 hours a day, for
continuous detection. In the event of an emergency, the
smoke and heat detectors sound their alarms, triggering a
functions (e.g., arm the system) at a
loud, interrupted pulsed sound from the control and any
external sounder(s) (if installed).
• You can silence the alarm at any time by selecting the 'Home"
key and entering a valid code.
• Carbon
continuous detection. If a high level of carbon monoxide is
detected, an interrupted pulsed alarm sound occurs at the
control and the detector(s). Immediately move to a spot
where fresh air is available, preferably outdoors. From a safe
area,
instructions. To silence the control sounding, select the 'Home"
key and enter a valid code. To silence the detector, refer to its
instructions.
Servicing Information
Your local Honeywell dealer is the person best qualified to service
your alarm system. Arranging some kind of regular service
program with him is advisable. Your local Honeywell dealer is:
Name:
Address:
Phone:
IMPORTANT
monoxide (CO) detectors, if installed, provide
call your security service provider for further
LYNX Touch L5210
