Asus CLIQUE H10 - Wireless Bluetooth Earphone Manual

Key Features

CLIQUE H10

• PETITE YET SENSATIONAL: 5.8 mm drivers, aptX technology, and Bluetooth 4.1 for powerful dynamics and stunning audio clarity
• DESIGNED TO FIT: Unique lock-in earfin ensures earbuds stay securely and comfortably in place during exercise
• LONG LISTENING TIME: 5+ hours of continuous listening and 260 hours of standby time
• SWEAT AND DUST RESISTANT: Designed with an intelligent nano-coating to keep earbuds clean and free of debris
• SMART CONTROL: NFC and one-touch button provides quick access to frequently used audio and phone controls
• VERSATILE STYLE: Conveniently wraps around your wrist when not in use with the stylish looks of a fashion accessory

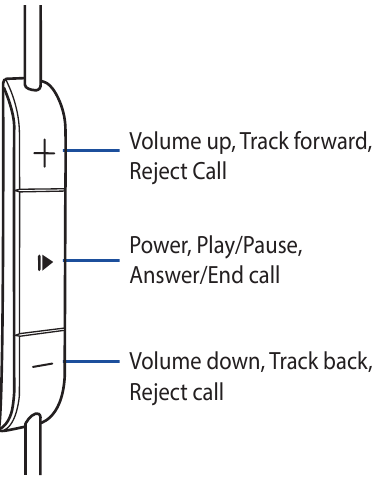

Overview

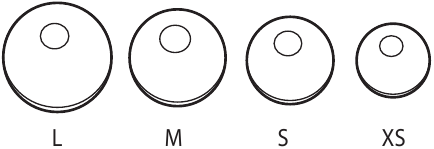

Earbud size

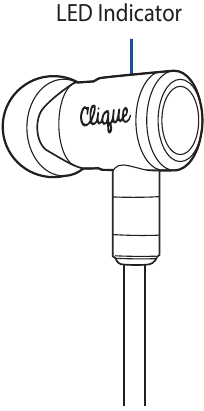

LED Indicator

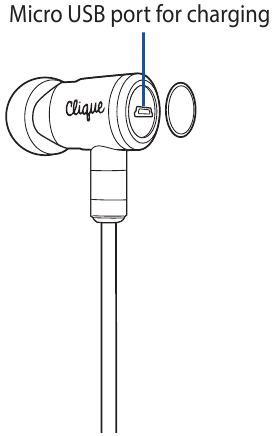

Charging

Pair and connect

1. Press Power.

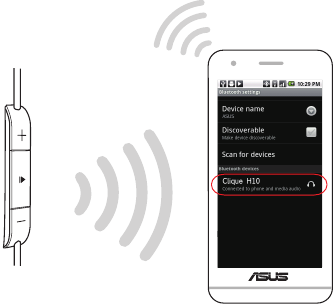

2. Enable Bluetooth.

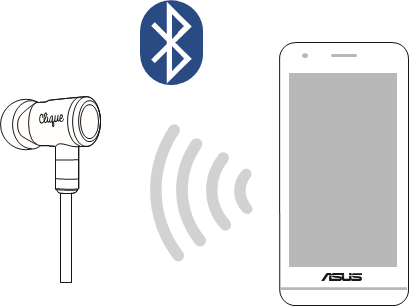

3. Stream music.

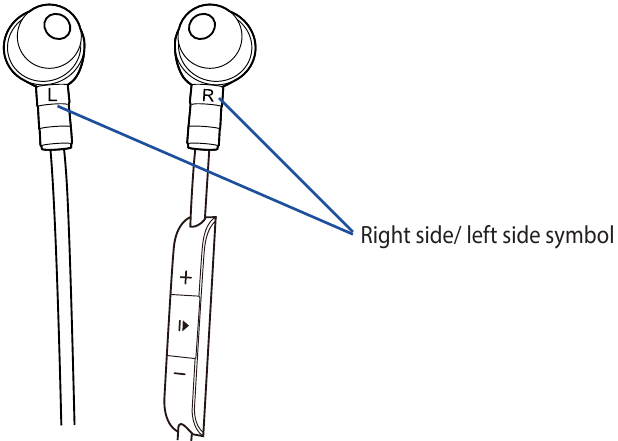

Left & right orientation

When you are wearing H10, the controller should be on your right side.

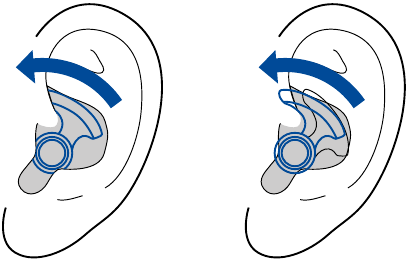

Secure fit with earfins

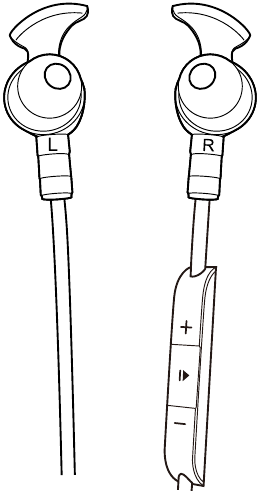

1. Install the earfins for the left and right ears, denoted by the symbols L and R.

2. Rotate to get the tip of the earfin into the top of your ear's bowl.


Setting up

Bluetooth Pairing:

1. Turn on your Bluetooth device.
2. Turn on your headphone. The headphone automatically scans for connected devices. It powers off two (2) minutes after no connected Bluetooth devices.
3. Pair and connect the other device with your headphone. Enter passcode 0000 if prompted. You'll hear a tone when the device and headphone are connected.

NFC Pairing:

1. Turn on NFC on your mobile phone.
2. Turn on your headphone.
3. Slowly slide the NFC zone of the headphone (left ear bud) directly against the NFC device until a connection is confirmed.

To disconnect, repeat the process.

Advanced Multipoint – Connected to two devices simultaneously.

1. Pair to your first device (i.e. phone) following the Bluetooth Pairing instructions.
2. Turn off Bluetooth on your first device (i.e phone).
3. Turn off the headphone.
4. Long press the Power button of H10 until the LED indicator starts flashing alternating red and green.
5. Now pair to your second device (i.e. phone) following the Bluetooth Pairing instructions.
6. Turn Bluetooth back on on your first device (i.e phone). You will hear a tone when the first device connects. Device 1 and 2 are now simultaneously connected to your headphone. To switch and play audio from the alternate connected device, pause the current music device and then press play on the alternate device.

Reconnecting

• Upon power up, the headphone will automatically attempt to reconnect to the last connected device.

Note: If automatic reconnection was not successful, go to your Bluetooth menu and manually connect to the headphone.

Controlling & Indicators

Talk Button Action

Functions		Talk Button Action
Power on/off		Press .
Volume Up/Down/Next/Previous Track		Press + /-.
Play/Pause/Answer/End call		Press .
Dismiss Call (During an incoming call)		Press + /- simultaneously.
Mute/Unmute Call (During call)		Press + /- simultaneously.
Battery Readout		Press + /- simultaneously.

LED & Verbal Indicator

Status	LED & Verbal Indicator
Powered on
Pairing
Connected
Charging
Charged
Low battery

Specification

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Asus CLIQUE H10 - Wireless Bluetooth Earphone Manual
