Dead Keys; No Backlight For Display Or/And Keys - Nokia RM-512 Service Manual

RM-512; RM-513; RM-514; RM-515; RM-543
Baseband Troubleshooting Instructions

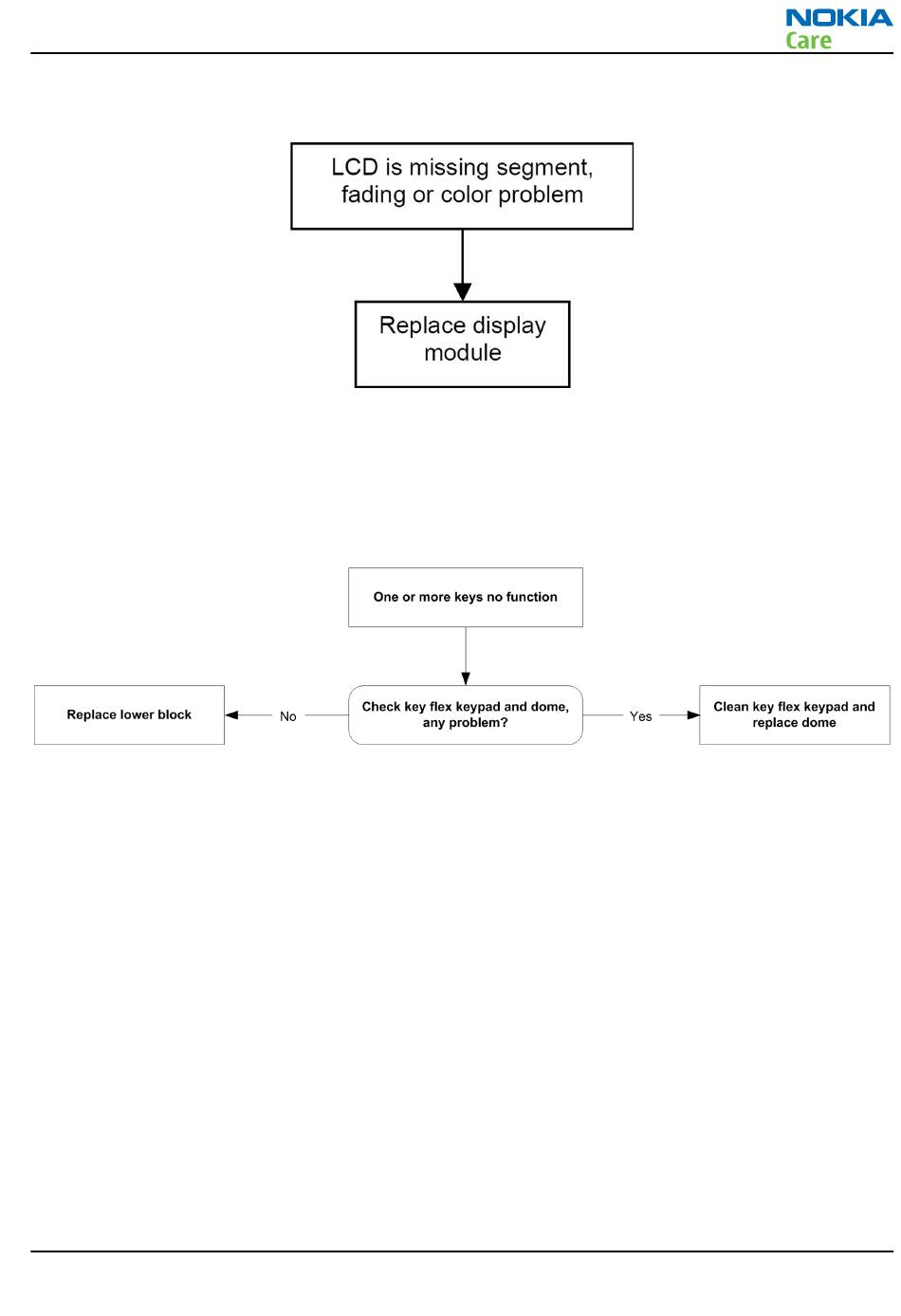

Troubleshooting flow

Dead keys

Context
One or more keys has no function.
Troubleshooting flow

No backlight for display or/and keys

Context
There are 3 kinds of statuses: No backlight for both display and keys; No backlight for only display; No
backlight for only keys.
