Kenmore SMART 1500e Series Quick Start Manual

quick start guide
WARNING
Before first use, remove filters from unit and discard protective filter packaging.
SET UP YOUR AIR PURIFIER
1
Place the air purifier on a level surface.
Remove the filter doors on both sides of
the air purifier by pulling on the clasp of
the doors.
4
Position the unit on a level surface and
away from anything that would block
airflow (ex: curtains).
5
Insert the power adapter into the power port
on the back of the air purifier. Plug the
power cord into an electrical outlet and tap
the Power Button to turn on the unit. The
unit will enter into AUTO mode.
Power Port
UNDERSTAND YOUR AIR PURIFIER
Tap On/Off Button to turn on/off the air purifier.
Tap the Mode button to switch the air purifier into AUTO mode,
SLEEP mode or Manual mode. The corresponding light will turn on
to indicate the mode.
Fan speed audomatically adjusts as your air quality changes.
Sleep Mode - the fan will run at the lowest fan speed and the
display screen turns off. To exit this setting, press any button.
Follow these easy steps to get started with your Kenmore air purifier.
Please be sure to read the Use & Care Guide prior to using your air purifier.
2
Remove the packaging from both filters
and then re-insert the filters back into the
air purifier.
IMPORTANT: Do not run the unit without
removing the packaging from the filters.
6
Download the Kenmore Smart™ app to
your device and create a profile.
7
Once downloaded, open the Kenmore
Smart™ app on your device and follow the
on-screen prompts to set up your air
purifier.
TIP: Check your network and smart device
settings as the Air Purifier supports 2.4GHZ
WiFi networks and is compatible with Apple
iOS11 and above & Android 6 and above.

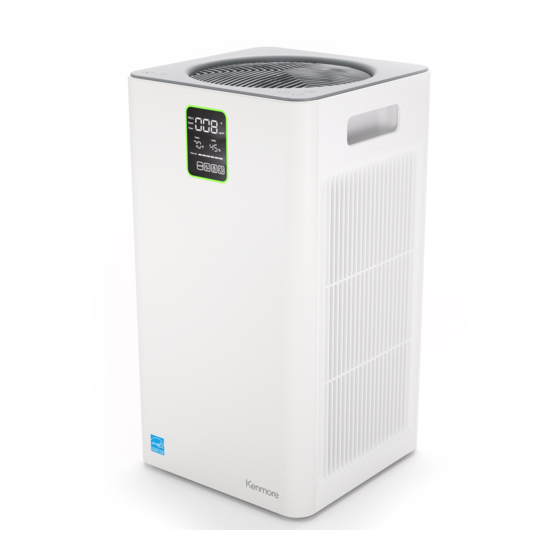

SMART 1500e Series Air Purifier
Tap the Fan Speed button to manually choose between 5 fan
speeds.
Set a timer.
Child Lock - to activate or deactivate, hold down the 'Mode' and
'Fan Speed' buttons simultaneously for more than 3 seconds.
When the last frame of filter life indicator flashes, press and hold
the Filter Reset button for more than 3 seconds to reset the filter
meter after installing new filters.
Wi-Fi Indicator - flashes to indicate the pairing mode; illuminates
steadily to indicate successful connection of the air purifier to the
Wi-Fi network; turns off to indicate the unit is not connected to
Wi-Fi network.
3
Once the filters are reinstalled, install the
filter doors back into place. See visual
description below.
Slots
SCAN HERE
Or Visit
kenmorefloorcare.com
/smart-1500e-series/
for full product instructions
or to purchase replacement filters
Locking
Tabs
