Sony DSC-W730 - Digital Still Camera Manual

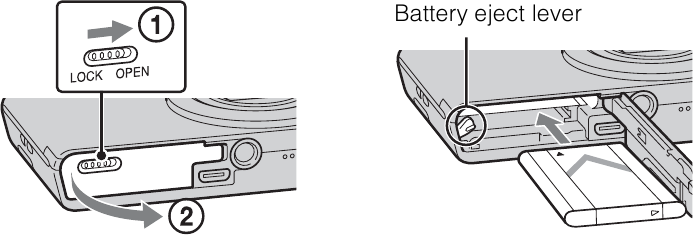

Inserting the battery pack

1. Open the cover.
2. Insert the battery pack.

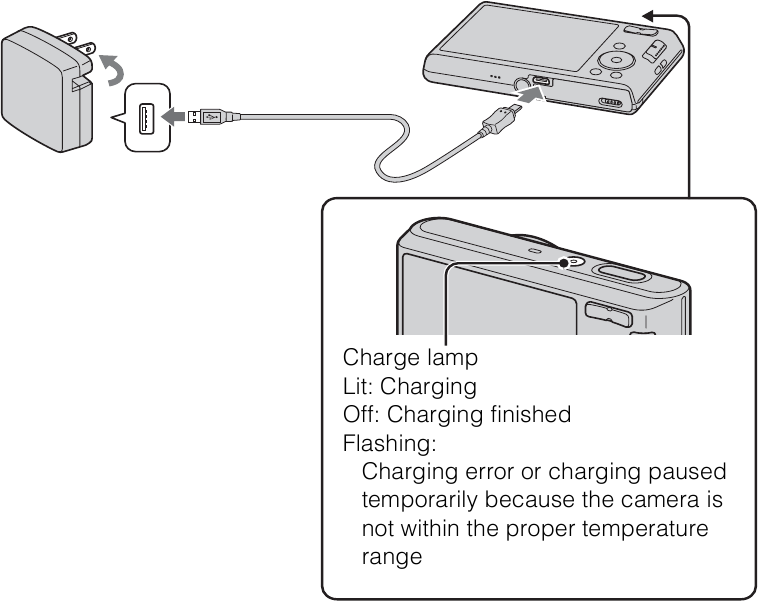

Charging the battery pack

1. Connect the camera to the AC Adaptor (supplied), using the dedicated USB cable (supplied).
2. Connect the AC Adaptor to the wall outlet.
   • Turn off the camera while charging the battery.

Charging time (Full charge)

The charging time is approximately 115 min. using the AC Adaptor (supplied).

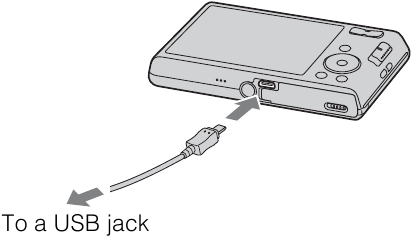

Charging by connecting to a computer

The battery pack can be charged by connecting the camera to a computer using the dedicated USB cable.

Battery life and number of images that can be recorded and played back

• The number is based on the CIPA standard.
  (CIPA: Camera & Imaging Products Association)

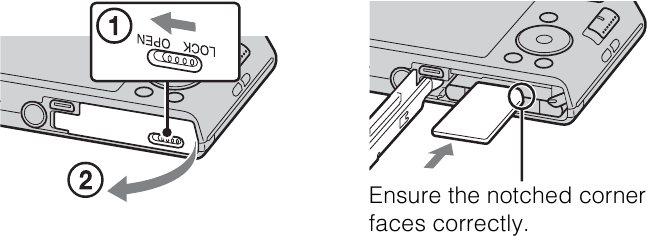

Inserting a memory card (sold separately)

1. Open the cover.
2. Insert the memory card (sold separately).

To remove the memory card/battery pack

Memory card: Push the memory card in once to eject the memory card.
Battery pack: Slide the battery eject lever. Be sure not to drop the battery pack.

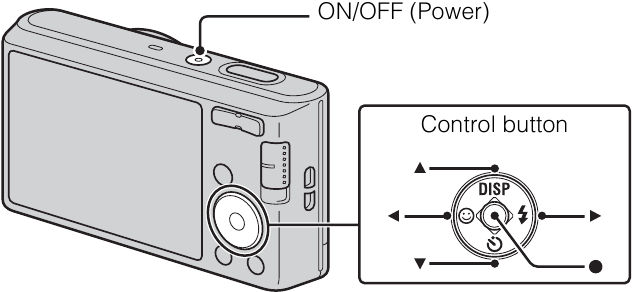

Setting the clock

1. Press the ON/OFF (Power) button.
2. Select a desired language.
3. Select a desired geographic location by following the on-screen instructions, then press on the control button.
4. Set [Date & Time Format], [Summer Time] and [Date & Time], then select [OK] → [OK].
5. Follow the instructions on the screen.

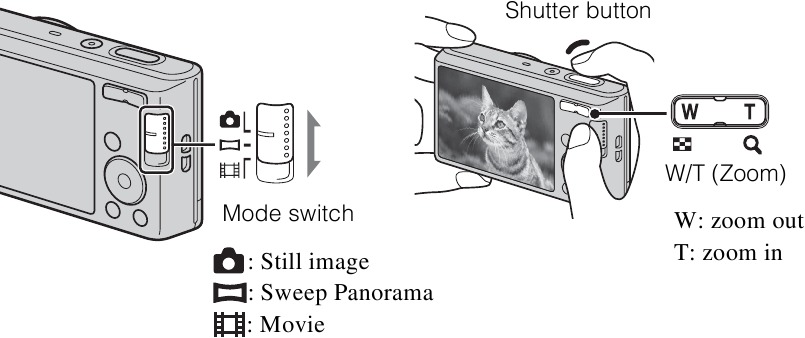

Shooting still images/movies

Shooting still images

1. Press the shutter button halfway down to focus.
2. Press the shutter button fully down to shoot an image.

Shooting movies

1. Press the shutter button fully down to start recording.
2. Press the shutter button fully down again to stop recording.

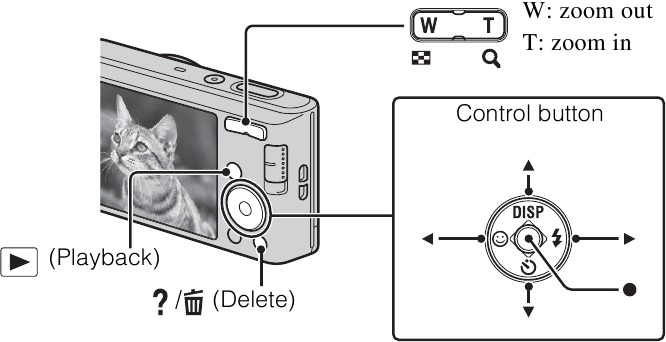

Viewing images

1. Press the (Playback) button.

Selecting next/previous image

Select an image by pressing (next)/ (previous) on the control button. Press in the center of the control button to view movies.

Deleting an image

1. Press (Delete) button.
2. Select [This Image] with on the control button, then press .

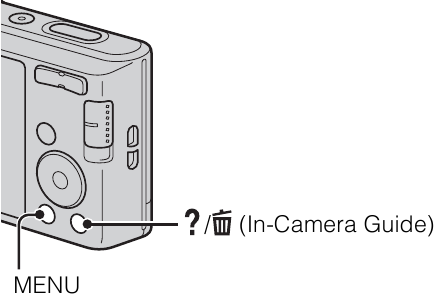

In-Camera Guide

This camera is equipped with a built-in instruction guide. This allows you to search the camera's functions according to your needs.

1. Press the MENU button.
2. Select the desired MENU item, then press the (In-Camera Guide) button.
   • If you press the (In-Camera Guide) button when the MENU screen is not displayed, you can search the guide using keywords or icons.

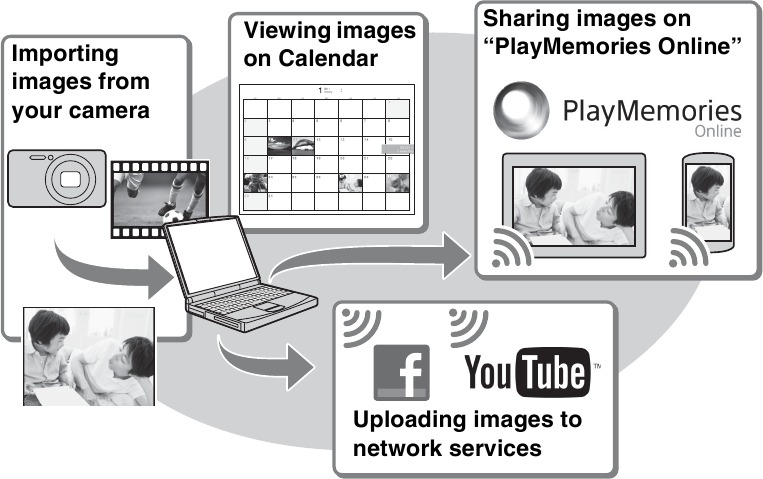

Features of "PlayMemories Home"

The software "PlayMemories Home" allows you to import still images and movies to your computer and use them.

Downloading "PlayMemories Home" (for Windows only)
You can download "PlayMemories Home" from the following URL: www.sony.net/pm

• "PlayMemories Home" is not compatible with Macs. Use the applications that are installed on your Mac. For details, visit the following URL: http://www.sony.co.jp/imsoft/Mac/

Recommended computer environment

The following computer environment is recommended when using the software "PlayMemories Home" (Windows) and "Music Transfer" (Windows/Mac) and when importing images via a USB connection.

Windows

^*1 64-bit editions and Starter (Edition) are not supported.

*² Starter (Edition) is not supported.

Mac

*Equipped with Intel processor

Notes on using the camera

On use and care

Avoid rough handling, disassembling, modifying, physical shock, or impact such as hammering, dropping, or stepping on the product. Be particularly careful of the lens.

Notes on recording/playback

• Before you start recording, make a trial recording to make sure that the camera is working correctly.
• The camera is neither dust-proof, nor splash-proof, nor water-proof.
• Avoid exposing the camera to water. If water enters inside the camera, a malfunction may occur. In some cases, the camera cannot be repaired.
• Do not aim the camera at the sun or other bright light. It may cause the malfunction of the camera.
• If moisture condensation occurs, remove it before using the camera.
• Do not shake or strike the camera. It may cause a malfunction and you may not be able to record images. Furthermore, the recording media may become unusable or image data may be damaged.

Warning on copyright

Television programs, films, videotapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provisions of the copyright laws.

No compensation for damaged content or recording failure

Sony cannot compensate for failure to record or loss or damage of recorded content due to a malfunction of the camera or recording media, etc.

Note on disposal/transfer of the camera

To protect personal data, perform the following when disposing of or transferring the camera.

• Format the internal memory, record images up to full capacity of the internal memory with the lens covered, and then format the internal memory again. This will make it difficult to recover any of your original data.
• Reset all camera settings by performing [Initialize] t [OK].

Specifications

Camera

[System]

Image device: 7.75 mm (1/2.3 type) CCD, Primary color filter

Total pixel: Approx. 16.4 Megapixels

Effective pixel: Approx. 16.1 Megapixels

Lens: Carl Zeiss Vario-Tessar 8× zoom lens
f = 4.5 mm – 36 mm (25 mm – 200 mm (35 mm film equivalent))
F3.3 (W) – F6.3 (T)
While shooting movies (16:9): 28 mm – 224 mm*
While shooting movies (4:3): 34 mm – 272 mm*
* When [Movie SteadyShot] is set to [Standard].

SteadyShot: Optical

Burst shooting (when shooting with the largest pixel number):
Approx. 1 image/second (up to 3 images)

File format:
Still images: JPEG (DCF, Exif, MPF Baseline) compliant, DPOF compatible
Movies: MPEG-4 AVC/H.264

Recording media: Internal Memory (Approx. 27 MB), "Memory Stick XC Duo" media, "Memory Stick PRO Duo" media, "Memory Stick Micro" media, SD cards, microSD memory cards

Flash: Flash range (ISO sensitivity (Recommended Exposure Index) set to Auto):
Approx. 0.3 m to 2.8 m (11 7/8 inches to 9 ft. 2 1/4 inches) (W)
Approx. 1.5 m to 2 m (4 ft. 11 1/8 inches to 6 ft. 6 3/4 inches) (T)

[Input and Output connectors]

USB / A/V OUT jack:
Video output
Audio output
USB communication

USB communication: Hi-Speed USB (USB 2.0)

[Screen]

LCD screen: 6.7 cm (2.7 type) TFT drive

Total number of dots: 230 400 dots

[Power, general]

Power: Rechargeable battery pack NP-BN, 3.6 V
AC Adaptor AC-UB10/UB10B/UB10C/UB10D, 5 V

Power consumption (during shooting): Approx. 1.2 W

Operating temperature: 0°C to 40°C (32°F to 104°F)

Storage temperature: –20°C to +60°C (–4°F to +140°F)

Dimensions (CIPA compliant):
93.1 mm × 52.3 mm × 22.5 mm (3 3/4 inches × 2 1/8 inches × 29/32 inches) (W/H/D)

Mass (CIPA compliant) (including NP-BN battery pack, "Memory Stick Duo" media):
Approx. 122 g (4.3 oz)

Microphone: Monaural

Speaker: Monaural

Exif Print: Compatible

PRINT Image Matching III: Compatible

AC Adaptor AC-UB10/UB10B/UB10C/UB10D

Power requirements: AC 100 V to 240 V, 50 Hz/60 Hz, 70 mA

Output voltage: DC 5 V, 0.5 A

Operating temperature: 0°C to 40°C (32°F to 104°F)

Storage temperature: –20°C to +60°C (–4°F to +140°F)

Dimensions:
Approx. 50 mm × 22 mm × 54 mm (2 inches × 7/8 inches × 2 1/4 inches) (W/H/D)

Mass: Approx. 48 g (1.7 oz)

Rechargeable battery pack NP-BN

Used battery: Lithium-ion battery

Maximum voltage: DC 4.2 V

Nominal voltage: DC 3.6 V

Maximum charge voltage: DC 4.2 V

Maximum charge current: 0.9 A

Capacity:
typical: 2.3 Wh (630 mAh)
minimum: 2.2 Wh (600 mAh)

Design and specifications are subject to change without notice.
