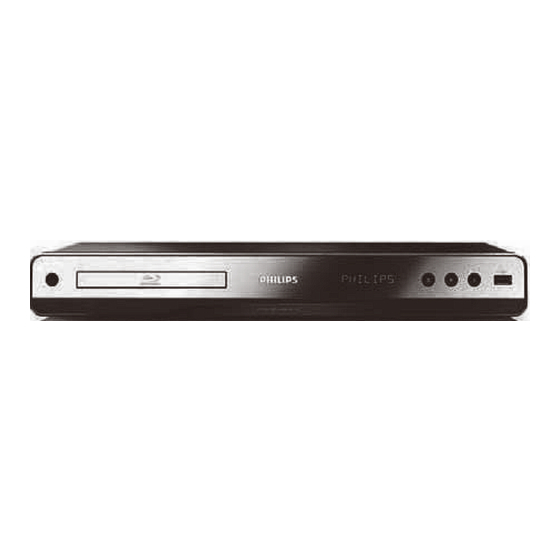

Blu-ray disc player
Hide thumbs Also See for BDP3100/51:

Advertisement

Quick Links

Blu-ray Disc Player
This service manual is for BDP3100 & BDP3080
Second Generation model, which is different from the
previous generation model.
For Second Generation model, the serial number begins
with KX 2A(B,C,...) xxxxxxxxxx.
( Chipset Type: MT8550FBAG)
©
Copyright 2010 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without
the prior permission of Philips.
Version 1.2
Second Generation
TABLE OF CONTENTS
Technical Specifi cations ....................................................... 1-2
Safety Instruction, Warning & Notes ..................................... 1-3
PCBs Location, Version Variations.......................................1-7
Mechanical and Dismantling Instructions ................................2
Software Version & Upgrades, Region Code Change .............3
Trouble Shooting Chart ...........................................................4
Set Wiring Diagram .................................................................5
Electrical Diagrams and PCB layouts ......................................6
Set Mechanical Exploded view & Parts List ............................7
Revision List ............................................................................8
BDP3100
/12/05/51/55/79/93/96/98/X78
BDP3080
/98
Page
LASER PRODUCT
CLASS 1
3141 785
35462GB
©

Advertisement

loading

Summary of Contents for Philips BDP3100/51

  • Page 1 LASER PRODUCT © Copyright 2010 Philips Consumer Electronics B.V. Eindhoven, The Netherlands All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.
  • Page 2 • Specifications are indicative (subject to change). Technical Specifications For on-line product support please use the following website: http://www.p4c.philips.com/cgi-bin/dcbint/cpproduct_selector.pl Here is product information available, as well as getting started, user manuals, frequently asked questions and software & drivers. Directions for Use You can download this information from the following websites: http://www.philips.com/support...
  • Page 3 Make sure that, • Use only lead-free soldering tin Philips SAC305 with order during repair, you are connected with the same potential as code 0622 149 00106. If lead-free solder paste is required, the mass of the set by a wristband with resistance.
  • Page 4 1 - 4 Safety Instructions, Warnings, Notes, and Abbreviation List 2.3.5 Alternative BOM identification Abbreviation List It should be noted that on the European Service website, 0/6/12 SCART switch control signal on A/V “Alternative BOM” is referred to as “Design variant”. board.
  • Page 5 Electro Magnetic Interference LORE LOcal REgression approximation EPLD Erasable Programmable Logic Device noise reduction Europe LG.Philips LCD (supplier) EXTernal (source), entering the set by Loudspeaker SCART or by cinches (jacks) LVDS Low Voltage Differential Signalling Fast BLanking: DC signal Mbps...
  • Page 6 4.406250 MHz and 4.250000 MHz Sound Intermediate Frequency SMPS Switched Mode Power Supply System on Chip Sync On Green SOPS Self Oscillating Power Supply S/PDIF Sony Philips Digital InterFace SRAM Static RAM Service Reference Protocol Small Signal Board STBY STand-BY SVGA 800x600 (4:3)
  • Page 7 PCBS LOCATION AV BOARD MAIN BOARD SWITCH BOARD POWER BOARD FRONT CONTROL BOARD VERSION VARIATIONS Type / Versions B DP 3100 B DP 3080 Service policy Board in used * TIPS: C -- Component Lever Repair. M -- Module Lever Repair X -- Used...
  • Page 8 Mechanical and Dismantling Instructions Dismantling Instruction Detailed information please refer to the model set. The following guidelines show how to dismantle the player. Step1: Remove 6 screws around the Top Cover, and then remove the Top Cover (Figure 1). Figure 1 Step2: If it is necessary to dismantle Loader or Front Panel, the Front door should be removed first.
  • Page 9 Mechanical and Dismantling Instructions Detailed information please refer to the model set. Dismantling Instruction Step3: If the tray can’t open in normal way, you can make it through the instruction as below (Figure 3). Note: Make sure to operate gently otherwise the guider would be damaged. Figure 3 Step4: Dismantling Front Panel, disconnect the connectors (J3, CN502), need release 3 snaps of Front Panel and 2 snaps of bottom cabinet , then gently pull the Panel out from the set.
  • Page 10 Mechanical and Dismantling Instructions Dismantling Instruction Detailed information please refer to the model set. Step5: Dismantling Loader, disconnect the 3 connectors (XP6, XP3, XP4) aiming in the below figure, and remove 4 screws that connects the loader and the bottom cabinet. (Figure 4-5) Figure 5 Step6: Dismantling Main Board, first disconnect the connector (XP2), and then remove 6 screws.
  • Page 11 4) Disconnect the power cord for a few seconds and connect again to turn on the player. C) Update software via USB Flash Drive: 1) Go to www.philips.com/support to check if the latest software version is available for this player. 2) Download the software onto a USB flash drive.
  • Page 12 3 - 2 Loader repair Instruction for BDP3100/5100/ 3080/98 Preliminaries (at O.E.M. supplier site) After scanning BARCODE on the new LOADER in supplier – TCL factory, print the one-dimensional code which generated by scanner and computer on label, then paste it into LOADER.
  • Page 13 Trouble shooting chart No display on VFD, and buttons do not work No display on VFD, and buttons do not work Check every supply voltage on main board is Refer to Power supply board part normal Check -28V,+12V voltage on PSU(CN502.3,5)and Fix the connection JP1 on front board front board (JP1 3,5)
  • Page 14 Trouble shooting chart No audio output No audio output Check if XP2 conect Fix XP2 in AV board ok or not from the AV board to mainboard Check whether the audio signal Check the U915 power supply is right from the U915’9,10,11,12 Replace the U915 Check whether the audio Check the U6 power supply...
  • Page 15 Trouble shooting chart Remote control does not work Remote control does not work Check whether the remote Replace the battery for remote controller’s battery controller exhausted or not. Check power Check the VCC net no front board supply is OK,IR1’3 is about Replace IR1...
  • Page 16 Trouble shooting chart Can’t read disc or can’t open the disk door Can’t read disc or can’t open the disk door Check whether Check the connection o 4pin cable from the DVD loader running is main board normal Check 45pin 8pin cable from main board Fix the connection the 45pin cable...
  • Page 17 Trouble shooting chart No video display No Video display Check if XP2 fix ok or not from AV board to Fix XP2 in AV board mainboard Check R615 is on in Fix R615 main board Check if L452 is on Add L452 Check If R616 is on Add R616...
  • Page 18 Trouble shooting chart Can not connect to network Can not connect to network Check if LFE8634 is on LFE8634 in mainboard In mainboard Check Fix all the resistor R557,R558,R559,R560,R 561 is on in main board Check if the P400 is ok Change P400 Or not...
  • Page 19 BDP3100 BDP5100BDP3080/98 Wiring Diagram COMPONENT COAX HDMI RJ45 L.R,CVBS AV 220 IN Signal manage(45Pin) LAN8710 connect board SA/SLED MOTOR DRIVER(8PIN) NAND FLASH 2Gbit 8PIN MTK8530 R2A30209SP(MOTOR DRIVE) DDR2 512Mbit/1066 MAIN BOARD LOADER TPC1391G4(Motor Drive) OPU SANYOU 412 DDR2 512Mbit/1066 TRAVERSE DDR2 1Gbit/1066 DDR2 POWER RESET...
  • Page 20 Front Board Circuit Diagram: IR CIRCUIT 2.2k 2.2k +5VSTANBY +12V 100 ohm 100 ohm VFD3 VFD3 VFD20-0824 VFD20-0824 47pF 47pF 47uF/16V 47uF/16V 0.1uF 0.1uF 3DG3904M 3DG3904M 3DG3904M 3DG3904M to main board 0.1uF 0.1uF 3.3uF/50V 3.3uF/50V 3DG3904M 3DG3904M 3CG3906M 3CG3906M 4.7K 4.7K 3.3uF/50V 3.3uF/50V...
  • Page 21 Switch Board Circuit Diagram: POWER POWER PICH=2.0 PICH=2.0 47Pf 47Pf CON1 CON1 LED2_5 LED2_5 SWITCH BOARD...
  • Page 22 6 -3 Power Board Circuit Diagram: +12V R545 R545 R544 R544 ZD504 ZD504 CY504 CY504 Q510 Q510 Q511 Q511 11V /0.5W 11V /0.5W C501 C501 102/400Vac 102/400Vac 2N3906 2N3906 PMK50XP PMK50XP 103/1KV 103/1KV D505 D505 D507 D507 R543 R543 R511A R511A R511B R511B...
  • Page 23 AV Board Circuit Diagram: SPDIF ASPDIF 180/1% C613 R609 0.1uF/25V LOUT1 R610 500R ROUT1 C615 330pF/50V/X7R 100/1% CVBSO R608 RCA-1 ASPDIF FE_GND 10PIN/2.0mm FE_GND FE_GND SPDIF OUTOUT VIDEO BUFFER IMPEDANCE J601 L456 0.22uH/0.25A G /Y L458 0.22uH/0.25A R /V R /V Pr (Red) D605 D601...
  • Page 24 Main Board Circuit Diagram:POWER SOURCE MOTOR DRIVER MOTOR MOTOR GAINSW2 GAINSW2 (10) MUTE2 MUTE2 (10) POWER DRIVER MUTE1 U900 MUTE1 (10) DMSO V14REF MVCC SPIN FMSO TRAYPWM TRAYPWM SL1IN LOIN TRAYPWM (10) Sensorless DMSO FMSO2 FOSO DMSO (10) FB902 SL2IN FOIN C916 FB10/2A...
  • Page 25 Main Board Circuit Diagram:MT550 DDR CHA MOTOR DRIVER GAINSW2 GAINSW2 (11) MUTE2 MUTE2 (11) HA800 3.3V MUTE1 RS232 MUTE1 (11) FOC2+ (SanYo412) FOC3+ TRAYPWM FCS2+ TRAYPWM (11) FOC2- FOC3- A3.3V URXD DMSO FCS2- DMSO (11) TR1- UTXD FOSO FOSO (11) TRK+ FOC1+ FOC4+...
  • Page 26 Main Board Circuit Diagram:MT550 DDR CHB AUDIO CNT 12V_P DA_VDD REFA R175 5.6K/1% AMUTE AMUTE (5,7) DAC_RST# C121 R138 DAC_RST# DAC_CS# 680pF/50V/NP0 DAC_CS# CLOSED TO AKM4385 -12VA C939 C130 R179 5.6K/1% HA700 10uF 0.1uF/25V C152 R176 0.1uF/25V C123 U903B AUDIO I2S for Audio Board R172 470/1% C940...
  • Page 27 Main Board Circuit Diagram:MT8550 AV ASPDIF NC/0R R959 ASPDIF VCC3 LOUT1 GND5 ROUT1 R948 CVBS R950 LOUT1 LOUT1 R949 ROUT1 ROUT1 R951 ASPDIF ASPDIF R958 10PIN/2.0mm...
  • Page 28 Main Board Circuit Diagram: MT8550 FLASH/USB/ETH/GPIO HW Trapping Pin U100D 3.3V 3.3V_STBY GPIO8 R522 Default value as below: RESET# GPIO8 RESET# GPIO8 (else system will enter test mode) R509 VCC3IO_STB LCD RD FAST_EJECT DVCC33_IO_STB ETCOL TP513 FAST_EJECT (10) --------------------------------------------------------------------- ETTXEN TP515 DVCC33_IO_STB ETCRS...
  • Page 29 6-10 6-10 Main Board Circuit Diagram: MT8550 STBY MCU HW TRAPPING NAND NFW EN NFWEN U100E 3.3V N FREN N FREN 3.3V FLASH N FCEN N FCEN 3.3V NFC EN2 DVCC33_IO_6 NFCEN2 DVCC33_IO VDD3.3_USB R449 AMUTE DVCC33_IO AVDD33_USB_1P AMUTE (5,7) U400 NFCLE DVCC33_IO_2...
  • Page 30 6-11 6-11 Main Board Circuit Diagram: VIDEO OUTPUT & SPDIF OUT AUDIO I2S AOSDATA3 AOSDATA3 AOSDATA2 AOSDATA2 HDMI AOSDATA1 AOSDATA1 AOSDATA0 IC VIDEO MODULE POWER C AOSDATA0 POWER U100C AOLRCK AOLRCK 3.3V AOBCK AOBCK 1.2V AOMCLK AOMCLK R343 AVDD33_VDACY AVDD12_HDMI R350 AOMCLK_R AOMCLK_R...
  • Page 31 6-12 6-12 Main Board Circuit Diagram: AUDIO DAC IC 1.1V POWER C U100B 1.1V MAIN POWER U203 B_DQ0 B_RA0 1.1V B_DQ6 B_RA1 C207 C206 B_DQ3 B_RA2 CE205 B_DQ5 B_RA3 470uF/16V 0.01uF/25V 0.1uF/25V DVCC10_K B_DQ1 B_RA4 DVCC10_K B_DQ0 B_DQ4 B_RA5 DVCC10_K RDQ0_B B_DQ1 B_DQ2...
  • Page 32 6-13 6-13 Main Board Circuit Diagram: MT8550 FE IC 1.5V POWER C U100A U104 1.5V MAIN POWER A_DQ0 A_RA0 1.5V A_DQ7 A_RA1 A_DQ1 A_RA2 C142 C118 A_DQ6 A_RA3 CE100 A_DQ3 A_RA4 0.1uF/25V 0.1uF/25V 220uF/16V AB20 DVCC18_IO_1 A_DQ5 A_RA5 AB21 DVCC18_IO_1 AC10 AE16 A_DQ0...
  • Page 33 6-14 6-14 Main Board Circuit Diagram: FE MOTOR DRIVER 1.1V POWER 12V_P VCC1 behind of Caps R930 1.1V RESET# RESET# (7) 0.1uF/25V 12V_P Close to DC-DC FB706 FB10/2A FB707 FB10/2A R926 0.1uF/25V 10uF/10V C925 R922 4.7uF/16V 22uF/10V 0.1uF/25V 10uF/10V FB708 FB10/2A OPWRSB 12V_P...
  • Page 34 6-15 6-15 AV BOARD - PCB LAYOUT...
  • Page 35 6-16 6 -16 Front Board Print-layout (Top and Bottom side):...
  • Page 36 6-17 6 -17 Power Board Print-layout (Bottom side): Switch Board Print-layout (Bottom side):...
  • Page 37 6-18 6-18 Main Board Print-layout(Top Side):...
  • Page 38 6-19 6-19 Main Board Print-layout(Bottom Side):...
  • Page 39 Exploded view for BDP3100/12/05/51/55/93/96/98/79/X78 ,BDP3080/98 It is a general mechanical exploded view for BDP3100,BDP3080/98 pls refer to the model set for detailed information.ASSY1 includes components:2.3.4.21.22...
  • Page 40 REVISION LIST Version 1.0 * Initial release for BDP3100/12/05/51/55/79/93/96/98/x78 (MKII version, S/N with KX1Bxxxxxxxxxx or SM1Bxxxxxxxxxx) Version 1.1 * BDP3080/98 added. Version 1.2 * Page 7-1 Mechanical Exploded View updated.
