Page 1

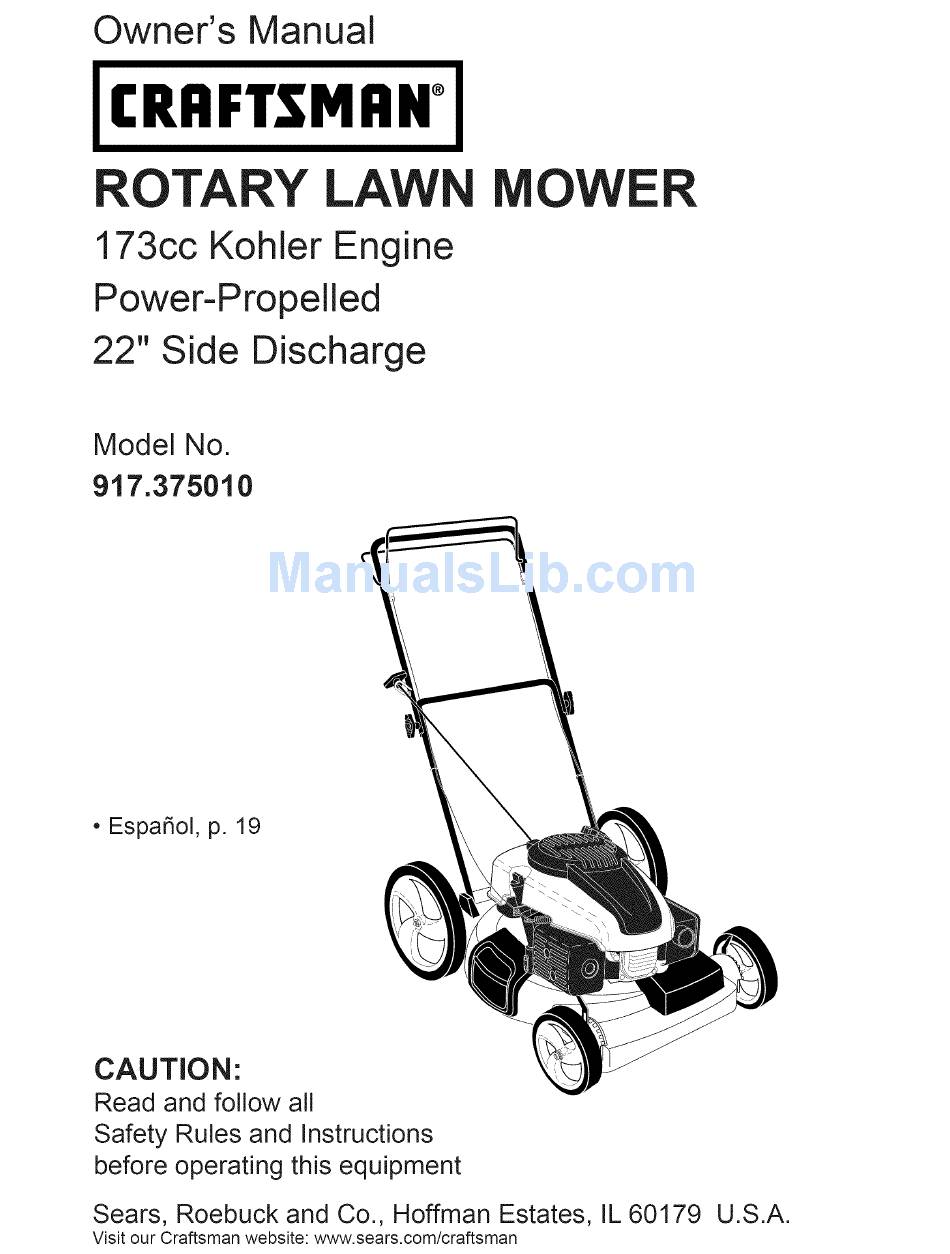

173cc Kohler Engine Power-Propelled 22" Side Discharge Model No. 917.375010 • EspaSol, p. 19 CAUTION'. Read and follow all Safety Rules and Instructions before operating this equipment Sears, Roebuck and Co., Hoffman Estates, IL 60179 Visit our Craftsman website: www.sears.com/craftsman U.S.A.
Page 2
When used and maintained according to the operator's manual instructions, ifthis power mow- er fails due to a defect in material orworkmanship return it to any Sears store, Parts & Repair Center, or other Craftsman outlet for free repair. Warranty coverage does not include: •...
I. GENERAL OPERATION • Read, understand, and follow all instructions on the machine and in the manual(s) before starting. Be thoroughly familiar with the controls and the proper use of the machine before starting. • Do not put hands or feet near or under rotating parts.
Oil Type (API SG-SL): Spark Plug: Blade Bolt Torque: • The model and serial numbers will be found on a decal on the rear of the lawn mower housing. Record both serial number and date of purchase in space provided above.
Repair Protection Congratulations on making a smart pur- chase. Your new Craftsman® designed and manufactured for years of dependable operation. But like all prod- ucts, it may require repair from time to time. That's when having a Repair Protec- tion Agreement can save you money and aggravation.
Page 6
3. Remove all packing materials except padding between upper and lower handle and padding holding operator presence control bar to upper handle. 4. Roll lawn mower out of carton and check carton thoroughly for additional loose parts. NOW TO SET UP YOUR MOWER...
Page 7
MOWER READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the location of various controls and adjustments. future reference. These symbols may appear on your product.
The blade turns when the engine is running. • Your lawn mower is equipped with an operator presence control bar which requires the operator to be positioned behind the lawn mower handle to start and operate the lawn mower.
BEFORE STARTING ENGINE ADD OIL Your lawnmower is shipped without oil in the engine. For type and grade of oil to use, see "ENGINE" in the Maintenance section of this manual. ,A CAUTION: DO NOT overfill engine with oil, or it will smoke heavily from the muffler on startup.
Page 10
• For best results, adjust the lawn mower cutting height so that the lawn mower cuts off only the top one-third of the grass blades.
5 - And after each 5 hours of use. GENERAL RECOMMENDATIONS The warranty on this lawn mower does not cover items that have been subjected to operator abuse or negligence. full value from the warranty, operator must maintain unit as instructed in this manual.
Page 12
2. Turn lawn mower on its side. Make sure air filter and carburetor are up. 3. Use a wood block between blade and mower housing to prevent blade from turning when removing blade bolt.
RANGE EXPECTED BEFORE NEXT OIL CHANGE Change the oil after every 25 hours of opera- tion or at least once a year if the lawn mower is not used for 25 hours in one year. Check the crankcase oil level before...
Page 14
Remove belt from gearcase pushing down on arm and rolling belt off pulley. Drive cover Pulle5 Turn lawn mower on its side with air filter and carburetor becomes Remove blade, engine pulley and debris shield. Remove engine pulley and belt from debris shield.
Page 15
CARBURETOR Your carburetor is not adjustable. engine does not operate properly due to suspected carburetor problems, take your lawn mower to a Sears or other qualified service center for repair and/or adjustment. IMPORTANT: Never tamper with the engine governor, which is factory set for proper engine speed.
Page 16
30 days or more. LAWN MOWER When lawn mower is to be stored for a period of time, clean it thoroughly, all dirt, grease, leaves, etc. Store in a clean, dry area.
Page 17
9. Replace control bar. 10. Turn fuel valve lever in OFF position. to the ON position. 11. Charge battery. battery 12. Connect battery to engine. (if equipped). Plastic cannot Never cover mower while Never store the lawn mower unless directed air filter.
Page 18
2. Contact a Sears or other qualified service center. 3. Replace blade adapter. adapter broken. 4. Move lawn mower to cut dragging in grass. grass or to hard surface. 1. Raise cutting height. 2. Replace blade. 3. Clean grass catcher.
Page 19
Ilevela de vuelta a cualquier tienda, Centro de Repuestos y Reparaci6n u otro lugar de venta de Craftsman para que se la reparen sin costo. La cobertura de la garantia no incluye:...
Page 20
I. OPERACION • Antes de empezar, debe familiarizarse completamente con los controles y el uso correcto de la maquina. Para esto, debe leer y comprender todas las instrucciones aparecen en la maquina yen los manuales de operaci6n. • No ponga las manos o los pies cerca o debajo de las partes rotatorias.
Page 21
• Nunca repostar la maquina al interior de un local. • Nunca guardar la maquina o el contenedor de gasolina donde hay una llama abierta, chispa o luz piloto como una caldera u otros dispositivos. • Nunca Ilenar contenedores en un vehiculo, en un cami6n o caravana con un forro de plastico.
Page 22
Acuerdos Congratulaciones por su buena compra. nuevo producto Craftsman® esta diseSado y fabricado para funcionar de modo liable pot muchos a_os. Pero como todos los productos, puede necesitar alguna reparaci6n de tanto en tanto. En este caso tenet un Acuerdo de Proteccidn para la Reparaci6n puede hacerles ahorrar dinero y fastidios.
Page 23
Lea estas instrucciones y este manual comple- tamente antes de tratar de montar u operar su segadora nueva. IMPORTANTE: Este cortacesped viene SIN ACEITE O GASOLINA en el motor. Su segadora nueva ha sido montada en la fabrica con la excepci6n de aquellas partes que se dejaron sin montar por razones de envio.
Page 24
FAMILIARICESE CON SU SEGADORA LEA ESTE MANUAL DEL DUENO Y LAS REGLAS DE SEGURIDAD SEGADORA. Compare las ilustraciones los diversos controles y ajustes. Guarde este manual para referencia en el futuro. Estos simbolos pueden apareser producto. Aprenda y comprenda ATTENCION MOTOR MOTOR R,_PIDO...
Page 25
La operaci6n de cualquier segadora puede hacer que SEGURIDAD salten objetos extrafios dentro de sus ojos, Io que puede producir dafios graves en estos. Siempre use anteojos de seguridad o protecci6n los ojos mientras opere su segadora o cuando haga ajustes o reparaciones. Recomendamos gafas o una mascara de segufidad de visi6n amplia de seguridad...
ANTES DE HACER ARRANCAR MOTOR AGREGUE ACEITE Su segadora fue enviada sin aceite en el motor. Para el tipo y el grado del aceite a utilizar, vea el "MOTOR" en la secci6n del Mantenimiento de este manual. 4i_PRECAUCl6N: NO sobrellene el motor con aceite, o fumara pesa demante del silenciador cuando Io valla a arrancar.
Page 27
NSEJOS PARA SEGAR PRECAUClON: No utilizar dispositivos paja de la hoja en la segadora ya que estos accesorios son peligrosos, pueden dafiar su segadora y anular su garantia. • Bajo ciertas condiciones, tal como cesped muy alto, puede set necesario el elevar la altura del corte para reducir el esfuerzo necesario para empujar la segadora y para evitar sobrecargar...
PROGRAMA MANTENIMIENTO Revisar si hay Sujetadores Sueltos Limpiar/Inspeccionar el Recogedor de Cesped * Controlar los NeumAticos Controlar las Ruedas Motrices *** Limpiar la Segadora Limpiar debajo la Cubierta de la Transmisi6n Revisar las Correas y las Poleas Impulsadas Revisar / Afilar / Cambiar la Cuchilla Lubricacion Limpiar / Recargar...
Page 29
SEGADORA Siempre observe las reglas de seguridad cu- ando haga el mantenimiento. LLANTAS • Mantenga las Ilantas sin gasolina, aceite o substancias quimicas para control de Jnsec- tos que pueden dafiar la goma. • Evite los tocones, las piedras, las grietas pro- fundas, los objetos afilados y otros peligros que pueden dafiar alas Ilantas.
Page 30
RECOGEDOR D ECESPED (Sicomprado comoaccesorio) • Elrecogedor d ecesped puedeser rociado el agua de la manguera pero tiene que estar seco cuando se vaya a usar. • Revise su recogedor de cesped a menudo para verificar siesta dafiado o deteriorado. Se va a desgastar con el uso normal.
Page 31
Combustible--"f_-_/ SILENClADOR Inspeccione y cambie el silenciador si esta corrou- do puede producir un peligro de incendio y/o dafio. BUJiA Cambie el bujia al comienzo de cada tempo= rada de siega o despues de cada 100 horas de operaci6n, Io que suceda primero. El tipo de bujia y el ajuste de la abertura aparecen en "ES= PEClFICAClONES DEL PRODUCTO"...
Page 32
Vuelva la segadora a la posici6n vertical. Empujando hacia abajo a instale la correa nueva a la polea de la caja de engranajes. NOTA: Siempre use la correa aprobada pot la fabrica para asegurarse que calce y dure. Reinstale la cubierta de la impulsi6n. Polea det motor Estribo de la correa...
Page 33
Inmediatamente prepare su segadora para el almacenamiento al final de cada temporada o si la unidad no se va a usar pot 30 dias o mas. SEGADORA Cuando se va a guardar la segadora por cierto periodo de tiempo, limpiela cuidadosamente, remueva toda la mugre, la grasa, las hojas, etc.
Page 34
ACEITE DEL MOTOR Drene el aceite (con el motor caliente) y cam- bielo con aceite de motor limpio. (Vea "MO- TOR" en la secci6n de Mantenimento manual.) ClLINDRO Remueva la bujia. Vacie una onza (29 ml) de aceite a traves del agujero de la bujia en el cilindro.
Page 35
SOLUCI([)N DE PROBLEMAS est_ dirigido a un centro de servico Sears. CAUSA PROBLEMA Falta de 1. Cuchilla desgastada, fuerza o suelta. Altura de las ruedas dispareja. Velocidad del motor lenta. Acumulaci6n basura debajo de la segadora. Demasiado aceite en motor. Velocidad de recorrido demasiado rapida.
Page 36
CRAFTSMAN 54 67 '", 25 ... 2933 ROTARY LAWN MOWER - - MODEL NUMBER 42 ... _ 917.375010...
Page 37
88348 188839X004 Mounting Bracket, Debris Shield NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. replacement parts, Failure to do so could be hazardous, damage your lawn mower and void your warranty, 917o375010 PART DESCRIPTION 750097...
Page 38
CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917o375010...
Page 39
Use only Original Equipment Manufacturer (O,E,M) ROTARY LAWN MOWER - - MODEL NUMBER NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. replacement parts, Failure to do so could be hazardous, damage your lawn mower and void your warranty, 917o375010 PART...
Page 40
KOHLER 4-CYCLE ENGINE Valve Seal also included in Gasket Set. Intake & Exhaust Valves available separately. MODEL NUMBER PH-XT173-0031EA 71 ----__<_ --47...
